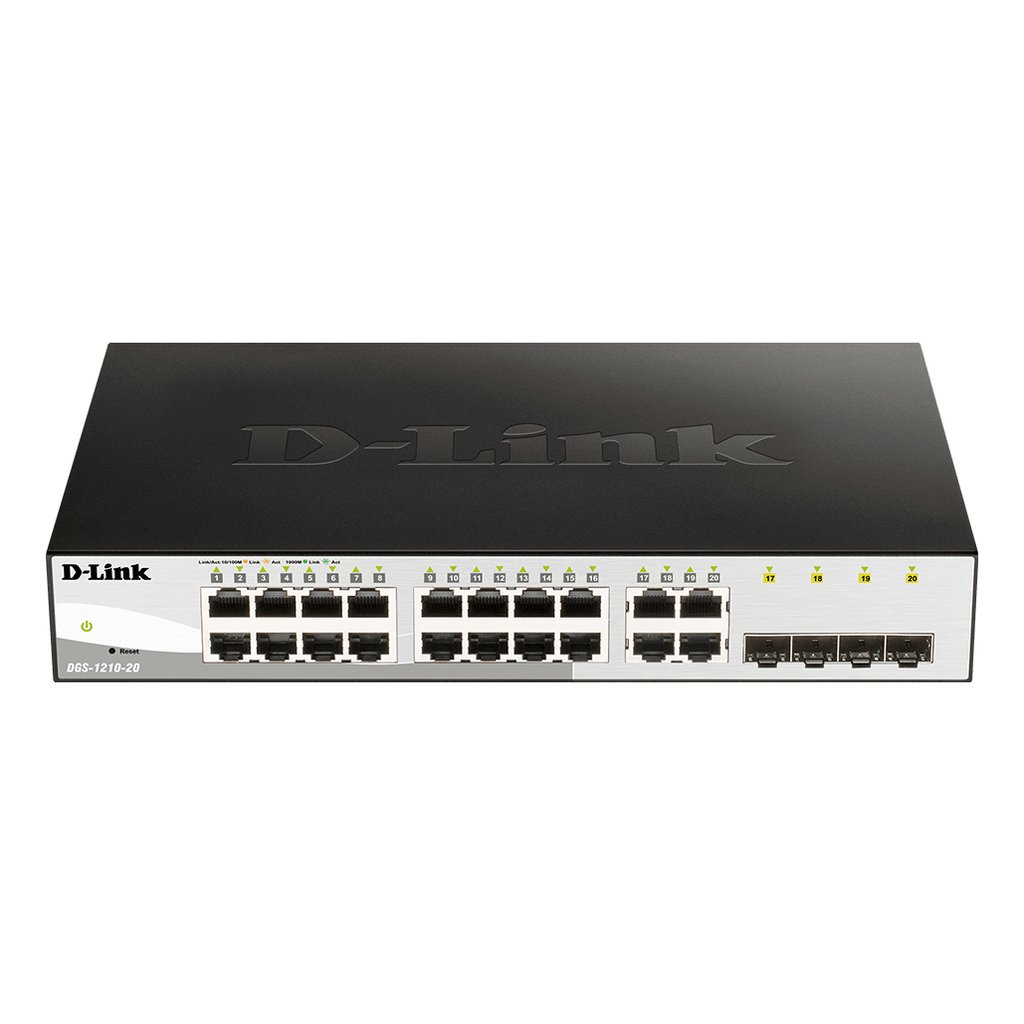

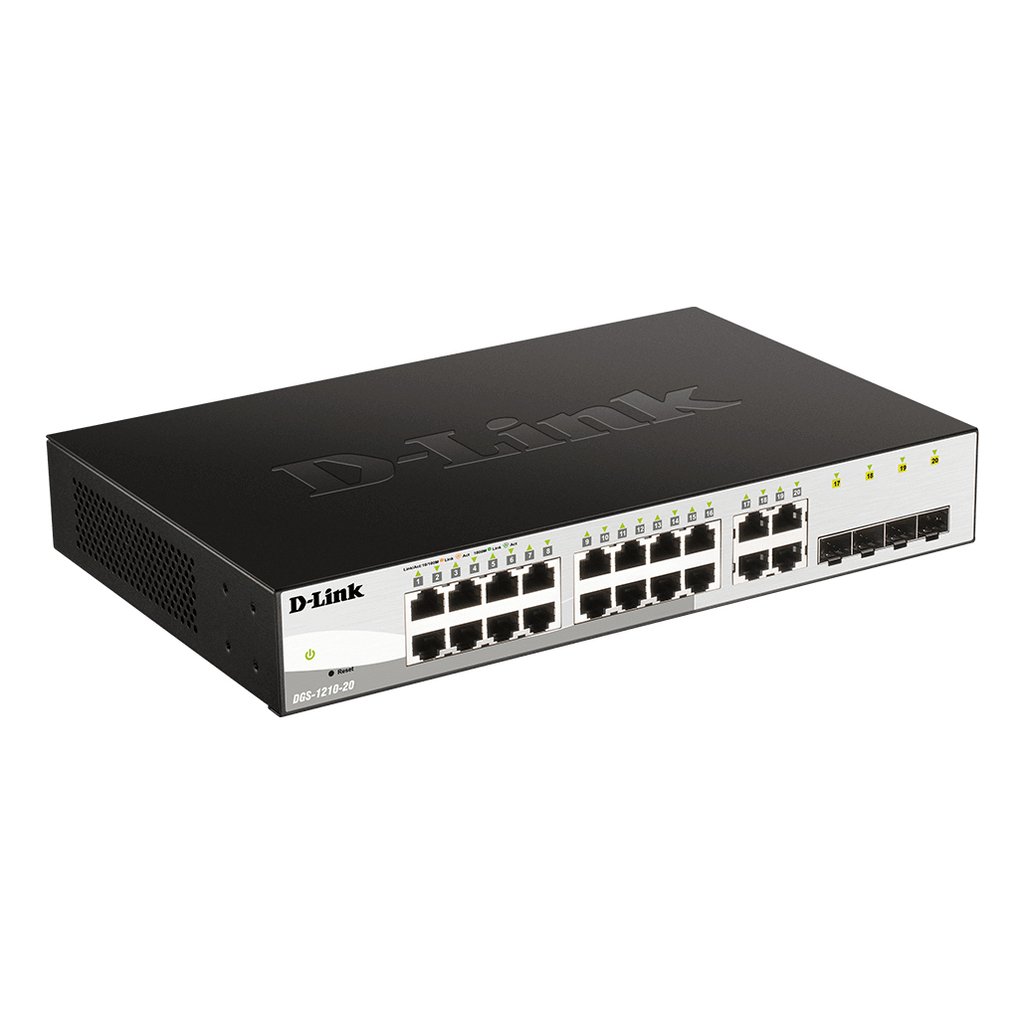

D-Link 20-Port Gigabit Smart Managed Switch including 4 SFP ports

In Stock

16 x 10/100/1000BASE-T, 4 x 100/1000 Mbps GbE/SFP, 256 MB DDR3, 32 MB Flash, 440 x 140 x 44 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DGS-1210-20
Brand:

Description

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

This product is compatible with Nuclias Connect
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Additional information

Weight 3.3 lbs
Switch type

Managed

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Full duplex

Yes

Auto MDI/MDI-X

Yes

MAC address table

8000 entries

Switching capacity

40 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10000

Packet buffer memory

4.1 MB

Rack mounting

Yes

Product colour

Black

LED indicators

Yes

Mean time between failures (MTBF)

1087100 h

Power consumption (max)

13.08 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Width

280 mm

Depth

180 mm

Height

44 mm

Weight

1.75 kg

Switch layer

L2

Web-based management

Yes

Combo SFP ports quantity

4

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

DHCP features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Power source

AC

Power supply included

Yes

Stackable

Yes

Form factor

1U

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

System event log

Yes

Loop protection

Yes

ARP inspection

Yes

MIB support

Y

Power connector

AC-in jack

Port mirroring

Yes

Broadcast storm control

Yes

Number of VLANs

256

Forwarding rate

77.4 Mpps

Memory type

DDR3-SDRAM

Internal memory

256 MB

Flash memory

32 MB

Head-of-line (HOL) blocking

Yes

Noise level

0 dB

Heat dissipation

44.62 BTU/h

Configuring Location Settings (CLI)

Yes

MAC address filtering

Yes

Multicast support

Yes
