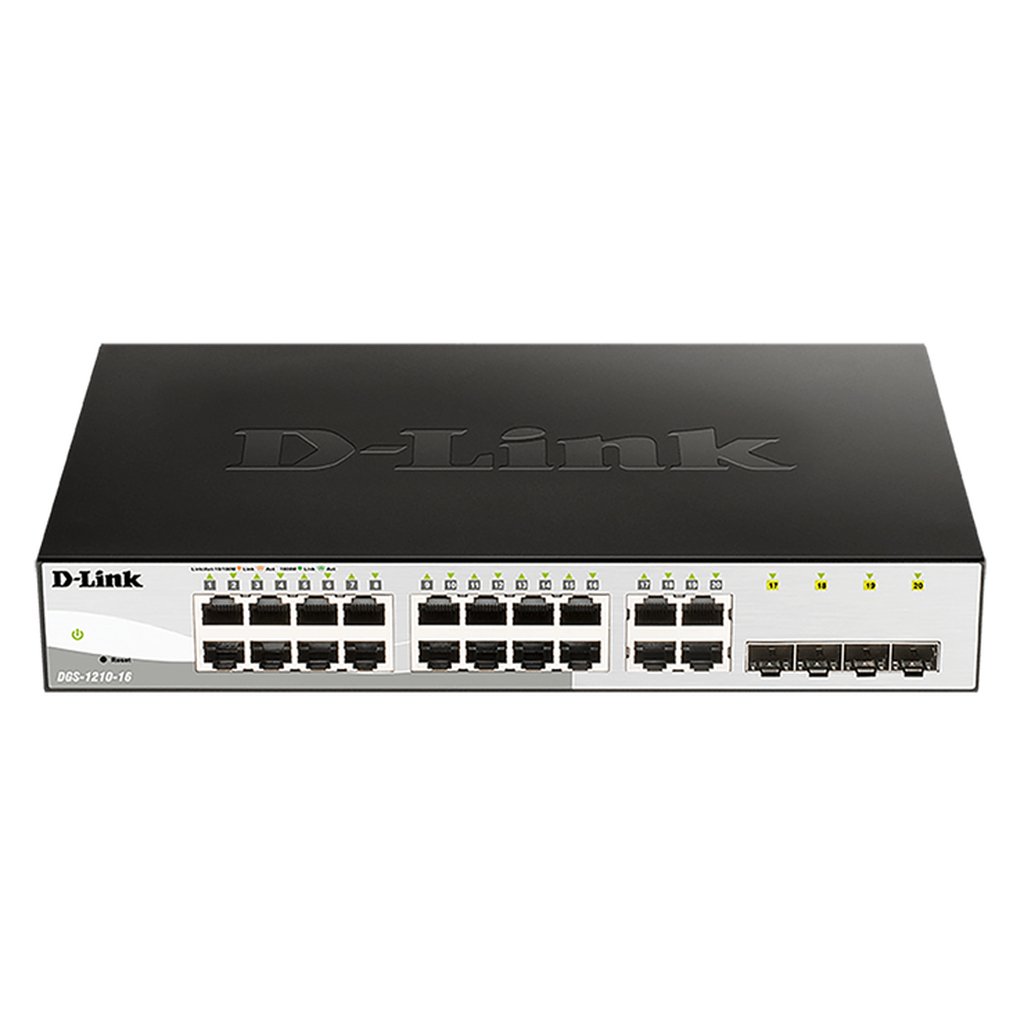

D-Link 16-Port Gigabit Smart Managed Switch with 4 Combo Ports
16 x 10/100/1000BASE-T, 4 x 100/1000 Mbps GbE/SFP, DDR3 128 MB, 32 MB Flash, 280 x 180 x 44 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.
Advanced Layer 2 Management
The DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.
With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.
Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.
PoE and PoE+, with budgets up to 193W
The DGS-1210 Smart Series includes a range of PoE-enabled switches for businesses looking to power VoIP phones, wireless access points or network cameras.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
Additional information
Weight | 4.62 lbs |
---|---|
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
MAC address table | 8000 entries |
Switching capacity | 40 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 10000 |
Packet buffer memory | 4.1 MB |
Rack mounting | Yes |
Product colour | Black |
LED indicators | Yes |
Mean time between failures (MTBF) | 1087100 h |
Power consumption (max) | 13.08 W |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | -5 – 50 °C |
Storage temperature (T-T) | -20 – 70 °C |
Operating relative humidity (H-H) | 0 – 95% |
Storage relative humidity (H-H) | 0 – 95% |
Width | 280 mm |
Depth | 180 mm |
Height | 44 mm |
Weight | 1.75 kg |
Switch layer | L2 |
Web-based management | Yes |
Combo SFP ports quantity | 4 |
Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Flow control support | Yes |
Spanning tree protocol | Yes |
Auto-negotiation | Yes |
VLAN support | Yes |
DHCP features | DHCP client, DHCP server |
Access Control List (ACL) | Yes |
IGMP snooping | Yes |
Power source | AC |
Power supply included | Yes |
Stackable | Yes |
Form factor | 1U |
AC input voltage | 100 – 240 V |
AC input frequency | 50/60 Hz |
System event log | Yes |
Loop protection | Yes |
ARP inspection | Yes |
MIB support | Y |
Power connector | AC-in jack |
Port mirroring | Yes |
Broadcast storm control | Yes |
Number of VLANs | 256 |
Forwarding rate | 29.8 Mpps |
Memory type | DDR3-SDRAM |
Internal memory | 128 MB |
Flash memory | 32 MB |
Link aggregation | Yes |
Head-of-line (HOL) blocking | Yes |
Noise level | 0 dB |
Heat dissipation | 44.62 BTU/h |
Configuring Location Settings (CLI) | Yes |
MAC address filtering | Yes |
Multicast support | Yes |
