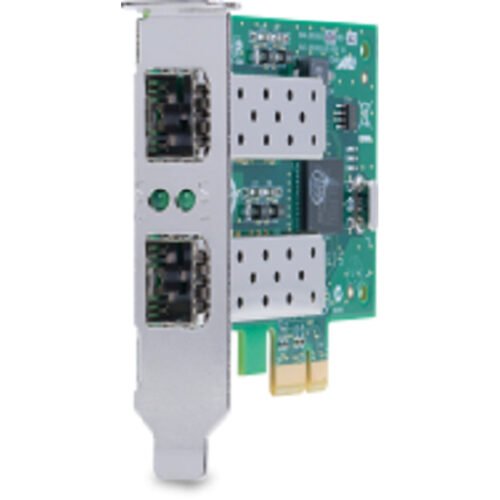

Allied Telesis AT-2911SFP/2-901 network card Internal Fiber 1000 Mbit/s
PCI-E, 1000Mbps, SFP
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Part of the comprehensive Allied Telesis 2911 Series, the AT-2911SFP/2 Network Interface Card continues the Allied Telesis tradition of providing reliable fiber adapter cards. Gigabit cards boost the speed of the network up to ten times over a standard Fast Ethernet card to 1000MB per second. The PCIe x1 bus provides the latest technology, enabling the maximum throughput in the smallest form factor possible.
Additional information
| Weight | 0.1 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Internal | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Window |
| Width | 88 mm |
| Height | 69 mm |
| Weight | 68 g |
| Quantity per pack | 1 pc(s) |
| PCI version | 2.0 |
| Maximum data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Certification | UL, FCC, TUV, CE, VCCI, C-TICK |
| Power consumption (typical) | 2.42 W |
| Flow control support | Yes |
| Output voltage | 3.3 V |
| Management protocols | WMI, PXE 2.1, SNMP |
| Receive Side Scaling (RSS) | Yes |
