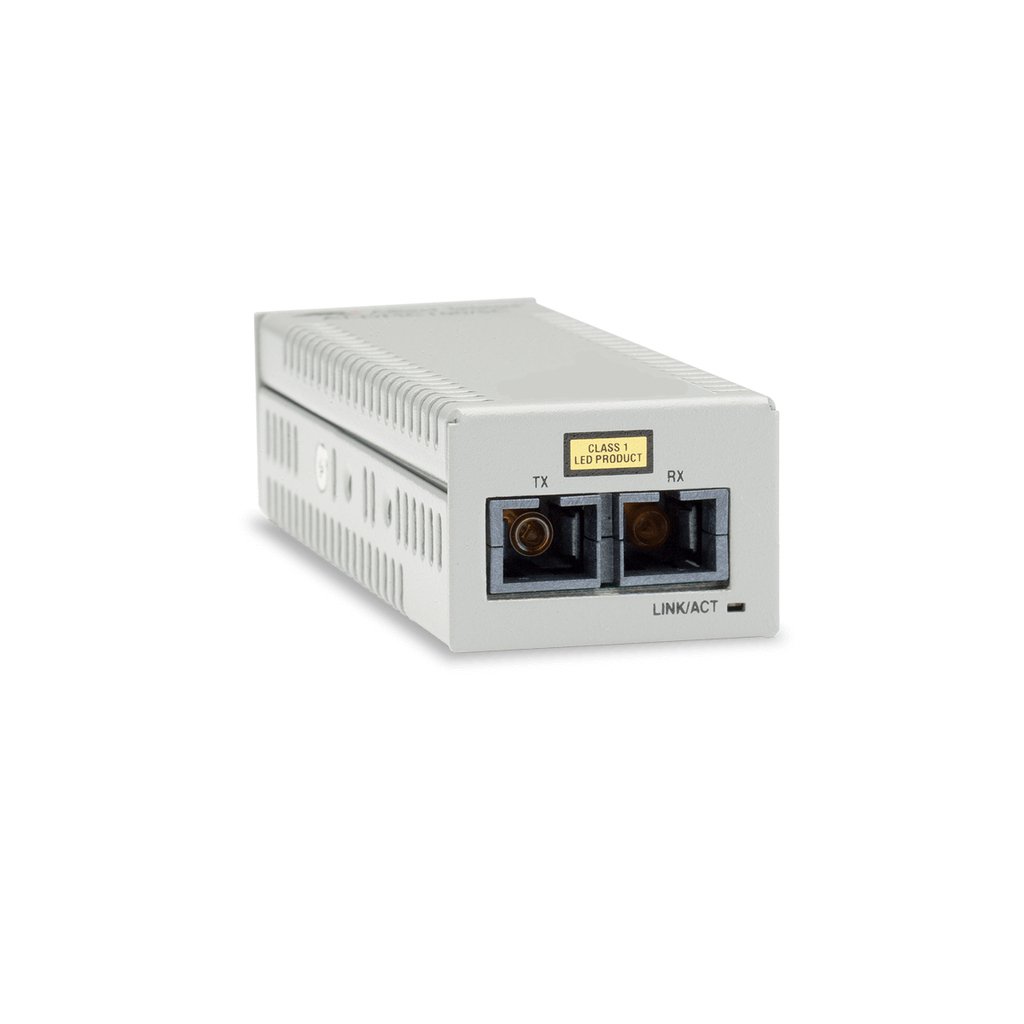

Allied Telesis AT-DMC100/SC-30 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
In Stock
Desktop USB-Powered Media Converter, 100TX to 100FX
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Fast Ethernet to Fiber Desktop Media Converter with USB power
This desktop media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Additional information
| Weight | 0.24 lbs |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Weight | 113 g |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Data transfer rate | 100 Mbit/s |
| Power consumption (typical) | 1.5 W |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| VLAN support | Yes |
| Tx power (min) | -22.5 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -34 dBmW |
