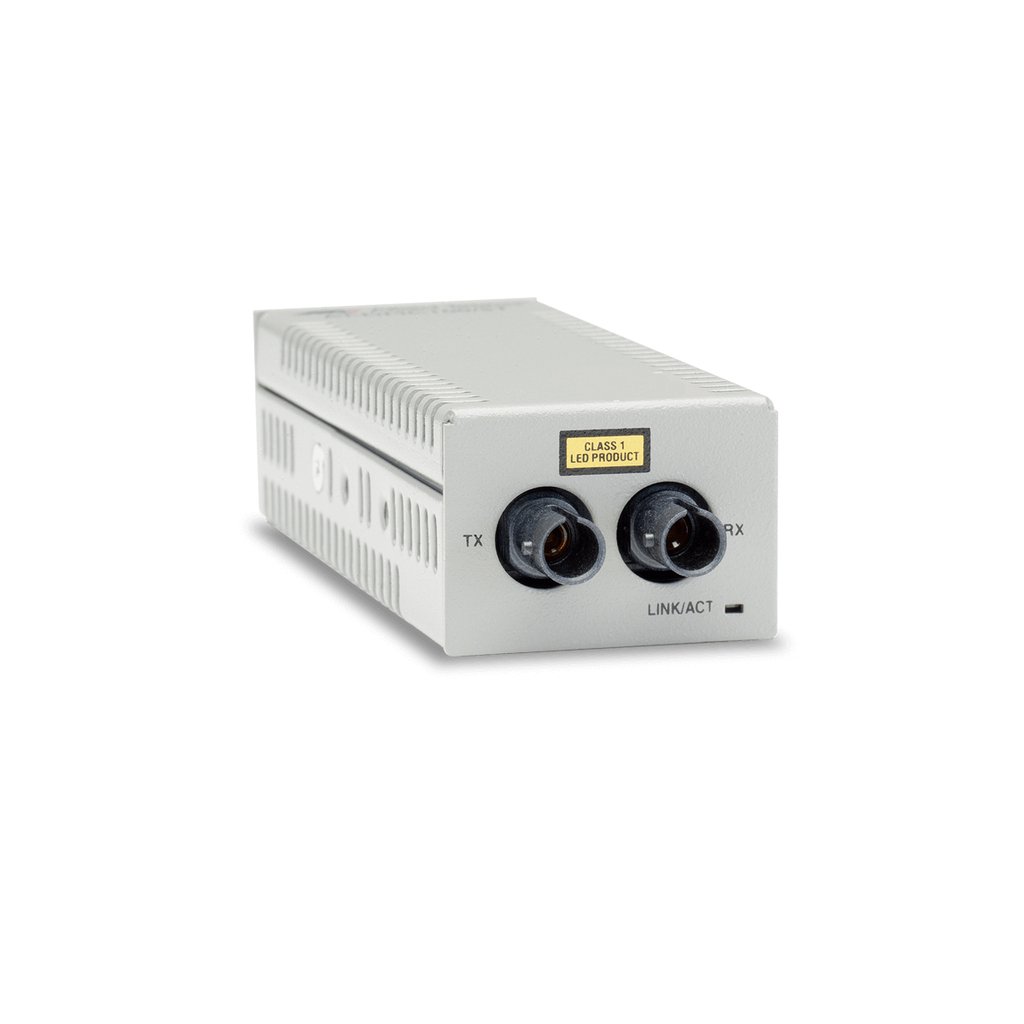

Allied Telesis AT-DMC100/ST-30 network media converter Internal 100 Mbit/s 1310 nm Multi-mode Grey
In Stock
Fast Ethernet to Fiber Desktop Media Converter with USB power, 100TX to 100FX, ST fiber connector
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description
This desktop media converter features 100TX to 100FX conversion with multi-mode ST fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Additional information
| Weight | 0.24 lbs |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Fiber optic connector | ST |
| Connectivity technology | Wired |
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Weight | 113 g |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Data transfer rate | 100 Mbit/s |
| Power consumption (typical) | 1.5 W |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| VLAN support | Yes |
| Tx power (min) | -22.5 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
