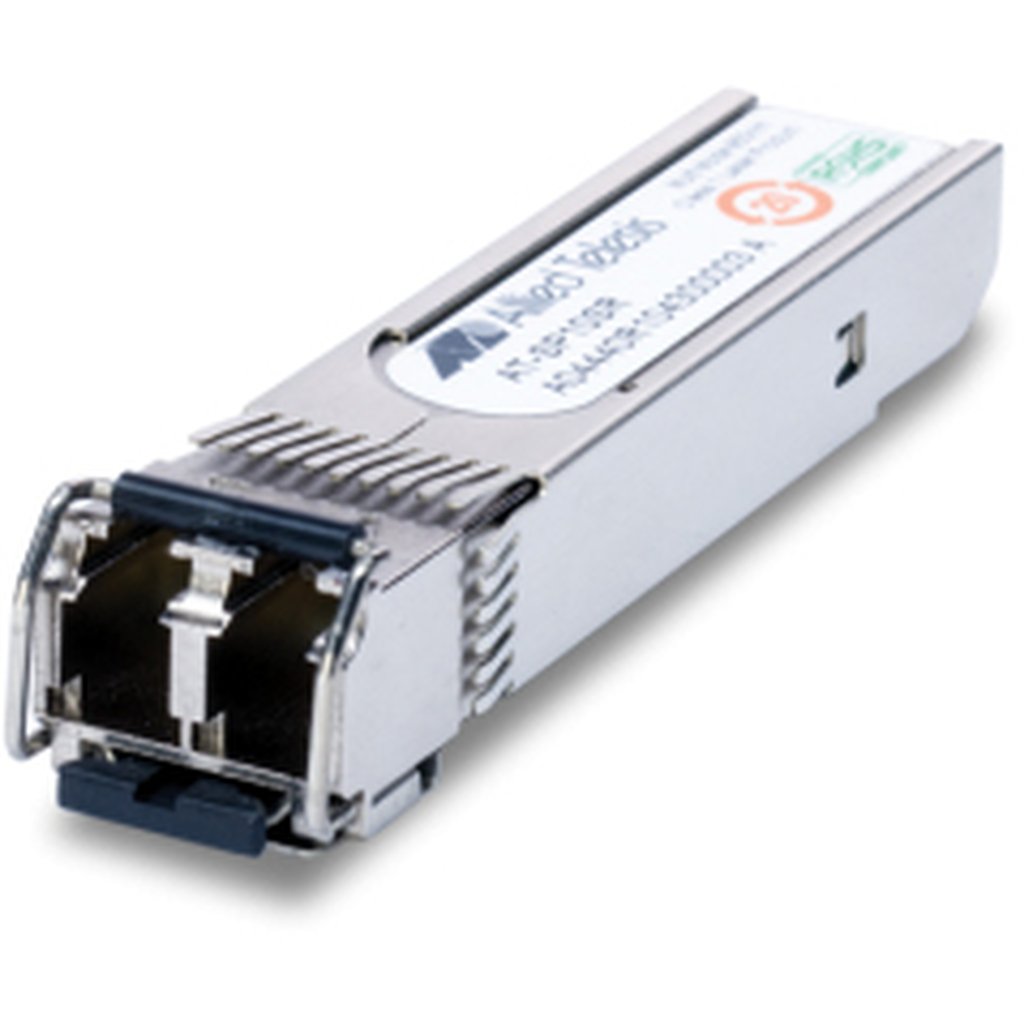

Allied Telesis AT-SP10SR network transceiver module Fiber optic 10300 Mbit/s SFP+ 850 nm
In Stock
SFP+ Pluggable Optical Module, 10G-SR, 300m, Multi mode, Dual fiber [Tx=850,Rx=850], LC conn. (0 to 70°C)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Allied Telesis AT-SP10SR is a hot pluggable 10Gbps small form factor transceiver module. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
Additional information
| Weight | 0.04 lbs |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10300 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Harmonized System (HS) code | 85369010 |
| Power consumption (typical) | 1 W |
| Compliance certificates | RoHS |
| Operating relative humidity (H-H) | 0 – 85% |
| Storage relative humidity (H-H) | 0 – 85% |
| Tx power (min) | -5 dBmW |
| Rx power (min) | -30 dBmW |
| Tx power (max) | -1.8 dBmW |
| Rx power (max) | -11.1 dBmW |
