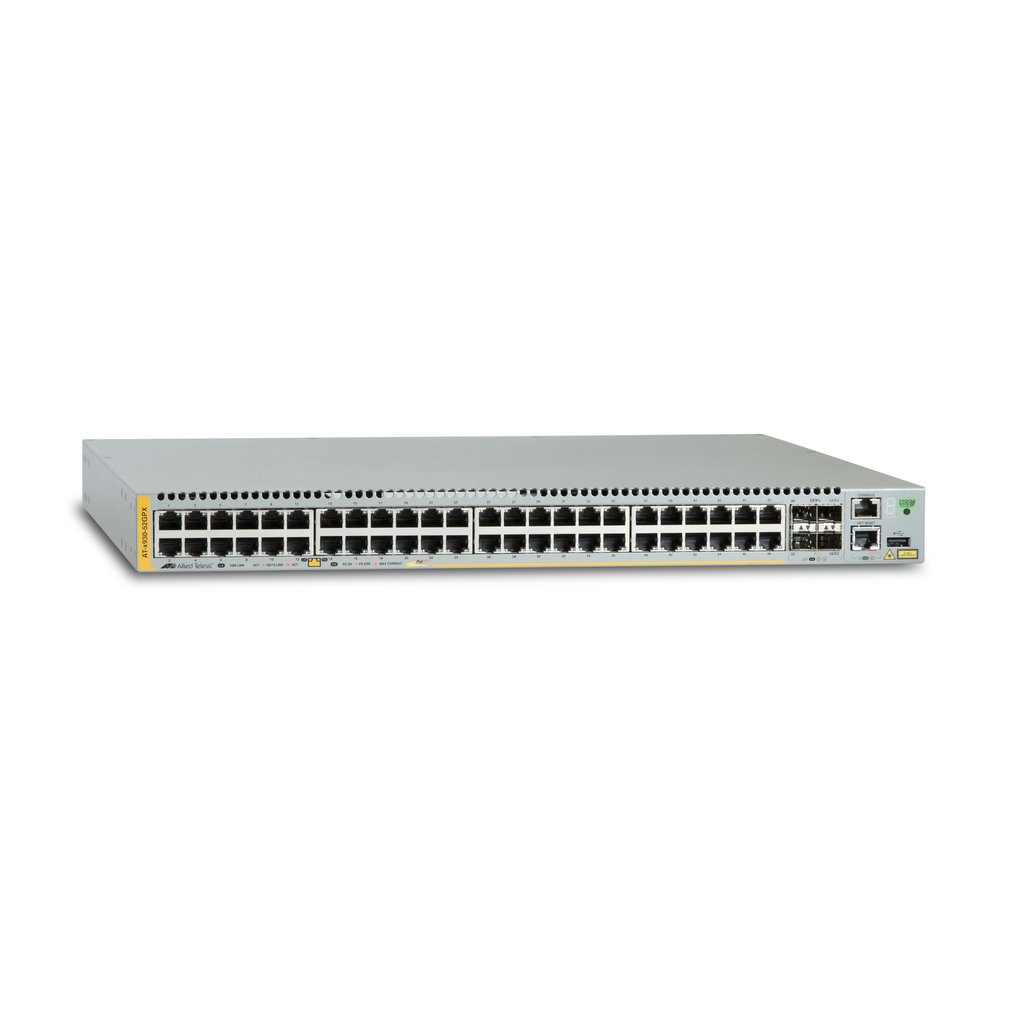

Allied Telesis AT-x930-52GPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
48 x 10/100/1000BASE-TX PoE+ ports, 2 x SFP+ ports, 2 x SFP+/Stack ports, 1 x Expansion module and dual hotswap PSU bays
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Allied Telesis x930-52GPX features 48 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devices
Additional information
| Weight | 7.5 lbs |
|---|---|
| Brand compatibility | 250 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, I |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 64000 entries |
| Switching capacity | 3.36 Gbit/s |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
| Harmonized System (HS) code | 85176990 |
| Safety | UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL |
| Power consumption (typical) | 97 W |
| Switch layer | L3 |
| Web-based management | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Firmware upgradeable | Yes |
| Stackable | Yes |
| AC input voltage | 90 – 260 V |
| AC input frequency | 47/63 Hz |
| System event log | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Latency (1 Gbps) | 3.7 µs |
| Noise level | 56 dB |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 341 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP+ module slots quantity | 4 |
| Multicast support | Yes |
| Security algorithms | 802.1x RADIUS |
| Latency (10 Gbps) | 2.6 µs |
| Traffic classification | Yes |
| Routing entries | 2000 |
| Multicast MAC address table | 2000 entries |
| Expansion module support | Yes |
