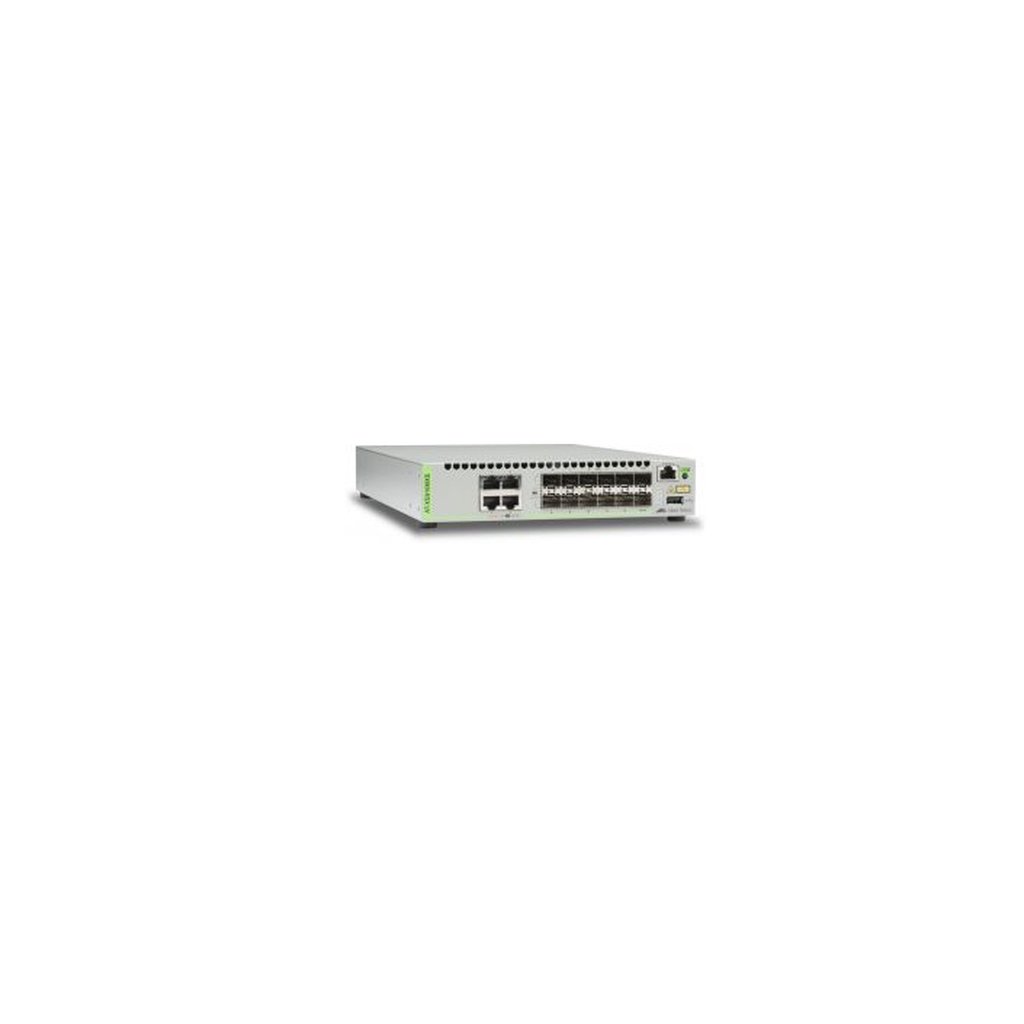

Allied Telesis AT-XS916MXS-30 network switch Managed L3 10G Ethernet (100/1000/10000) Grey
12x SFP+, 4x 10/100/1000/10G-T, Intelligent Switch, STK, UK Power Cord
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Layer 3 10G Stackable Managed Switches
The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.
Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. The switches also make the ideal core or aggregation switch, to connect servers and storage in a small network.The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.
Easy management
The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers. Powerful features like centralized management, auto-backup, auto-upgrade, auto-provisioning and auto-recovery enable plug-and-play networking and zero-touch management.
Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.
Additional information
| Weight | 4.16 lbs |
|---|---|
| Brand compatibility | 238 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Jumbo frames support | Yes |
| Rack mounting | No |
| Product colour | Grey |
| Power consumption (max) | 53 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 323 mm |
| Depth | 210 mm |
| Height | 43 mm |
| Weight | 2.7 kg |
| Switch layer | L3 |
| Web-based management | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Stackable | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 47/63 Hz |
| System event log | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| Port mirroring | Yes |
| Flash memory | 96 MB |
| Link aggregation | Yes |
| Noise level | 42 dB |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 180 BTU/h |
| SFP+ module slots quantity | 12 |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Multicast support | Yes |
| Number of queues | 8 |
| IP routing | Yes |
| Management protocols | SNMP |
| Number of power supply units | 1 |
| Traffic classification | Yes |
