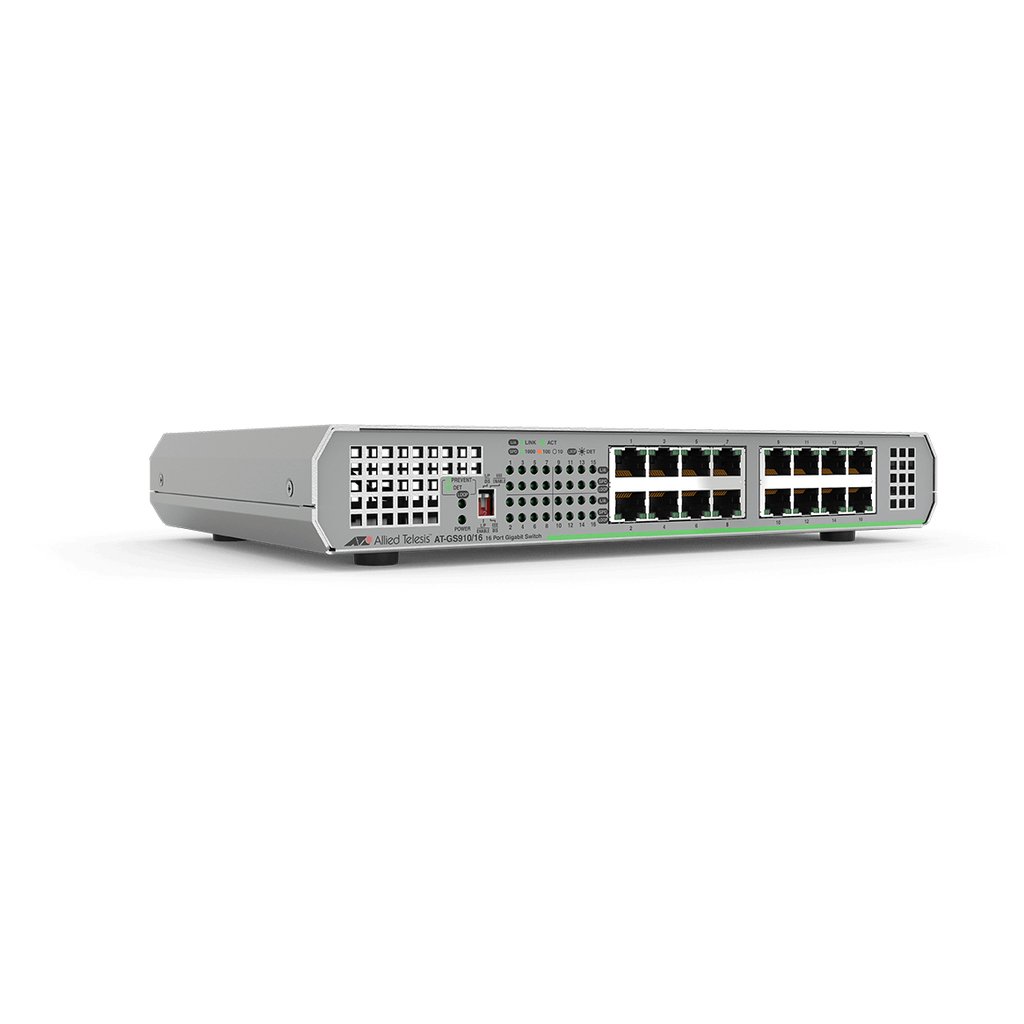

Allied Telesis AT-GS910/16-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Grey
Gigabit Ethernet Unmanaged Switch, 16-port 10/100/1000T, Internal PSU, UK Power Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.
Additional information
| Weight | 2.42 lbs |
|---|---|
| Brand compatibility | 23.8 Mpps |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| Input current | 0.3 A |
| Power consumption (max) | 12 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 263 mm |
| Depth | 179 mm |
| Height | 38 mm |
| Weight | 1.5 kg |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
| Web-based management | Yes |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Certification | EAC certification, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Loop protection | Yes |
| Broadcast storm control | Yes |
| Wall mountable | Yes |
| Gigabit Ethernet (copper) ports quantity | 16 |
| BPDU filtering/protection | Yes |
| Buffer size | 524 KB |
| Included power plug types | UK |
