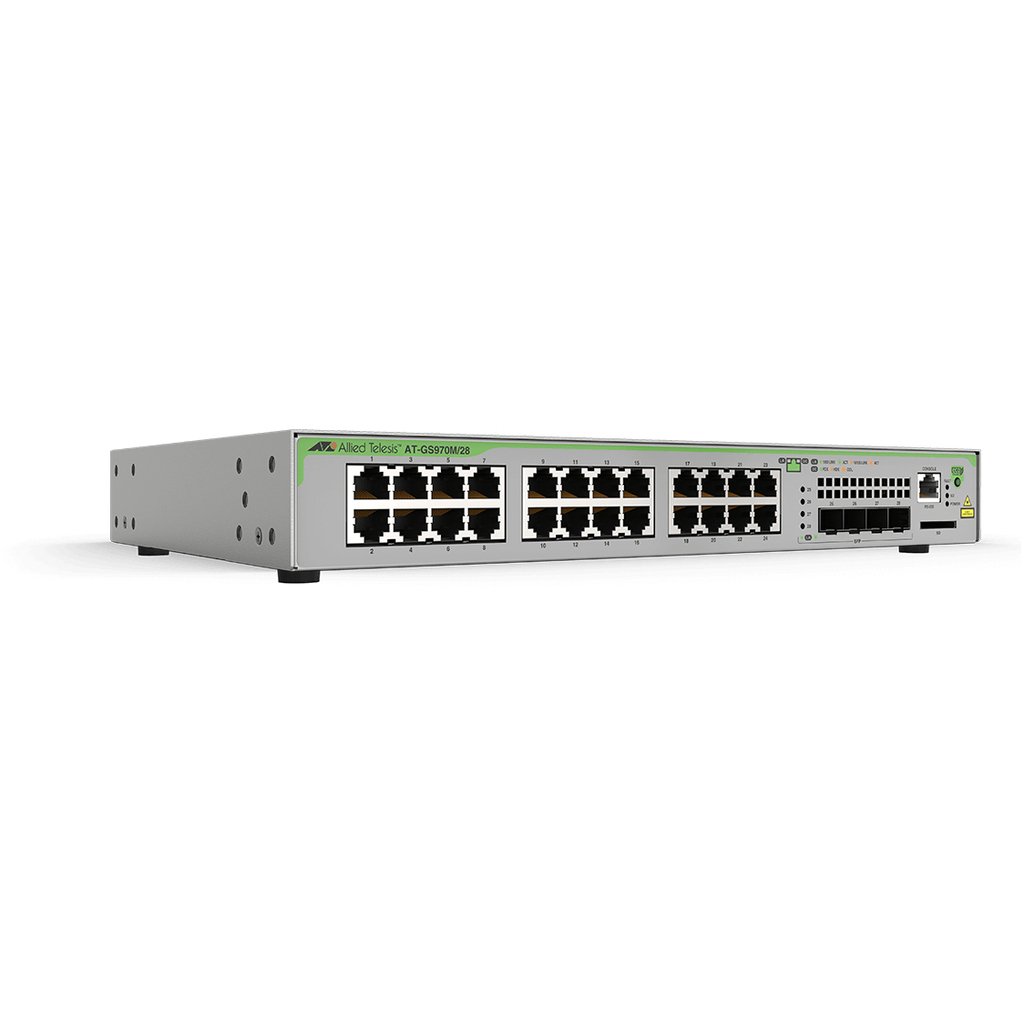

Allied Telesis AT-GS970M/28-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Managed Gigabit Ethernet Switch, 24x 10/100/1000T ports, 4x 100/1000X SFP ports, UK power cord
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Allied Telesis CentreCOM® GS970M/28 Layer 3 managed switch features twenty-four 10/100/1000T Gigabit Ethernet ports and four 100/1000X SFP ports for secure connectivity at the network edge.
Additional information
| Weight | 3.94 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Input current | 2.4 A |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Safety | EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1 |
| Switch layer | L3 |
| Web-based management | Yes |
| Combo SFP ports quantity | 4 |
| Console port | RS-232 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| DHCP features | DHCP snooping, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Package weight | 4 kg |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| System event log | Yes |
| Static route | Yes |
| Loop protection | Yes |
| ARP inspection | Yes |
| MIB support | SNMP MIB |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 41.7 Mpps |
| Password protection | Yes |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Link aggregation | Yes |
| Wall mountable | Yes |
| Latency (1 Gbps) | 4.3 µs |
| Noise level | 34 dB |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 89 BTU/h |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Latency (10-100 Mbps) | 8.6 µs |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Multicast support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS |
| Non-operating altitude | 0 – 4000 m |
| Traffic classification | Yes |
| Fiber optic connector | SFP |
| Country of origin | China |
| Included power plug types | UK |
| Compatible memory cards | SD, SDHC |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fast leave | Yes |
| Root protection | Yes |
| Neighbor discovery snooping | Yes |
| Routing protocols | RIP, RIP-2 |
| Telnet | Yes |
