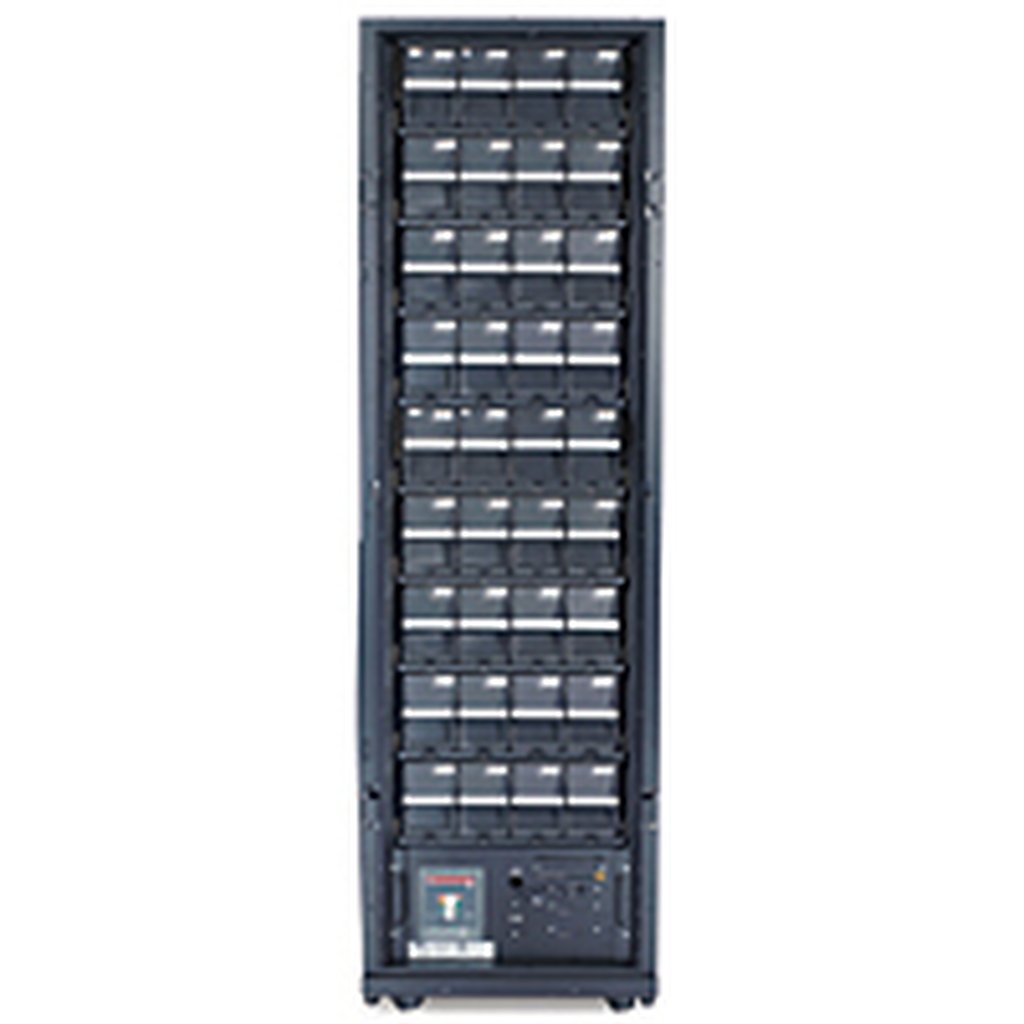

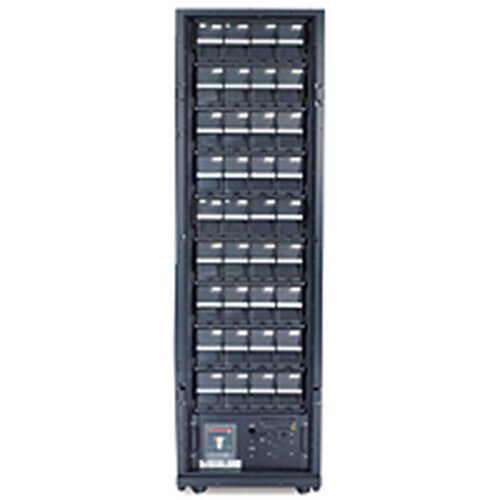

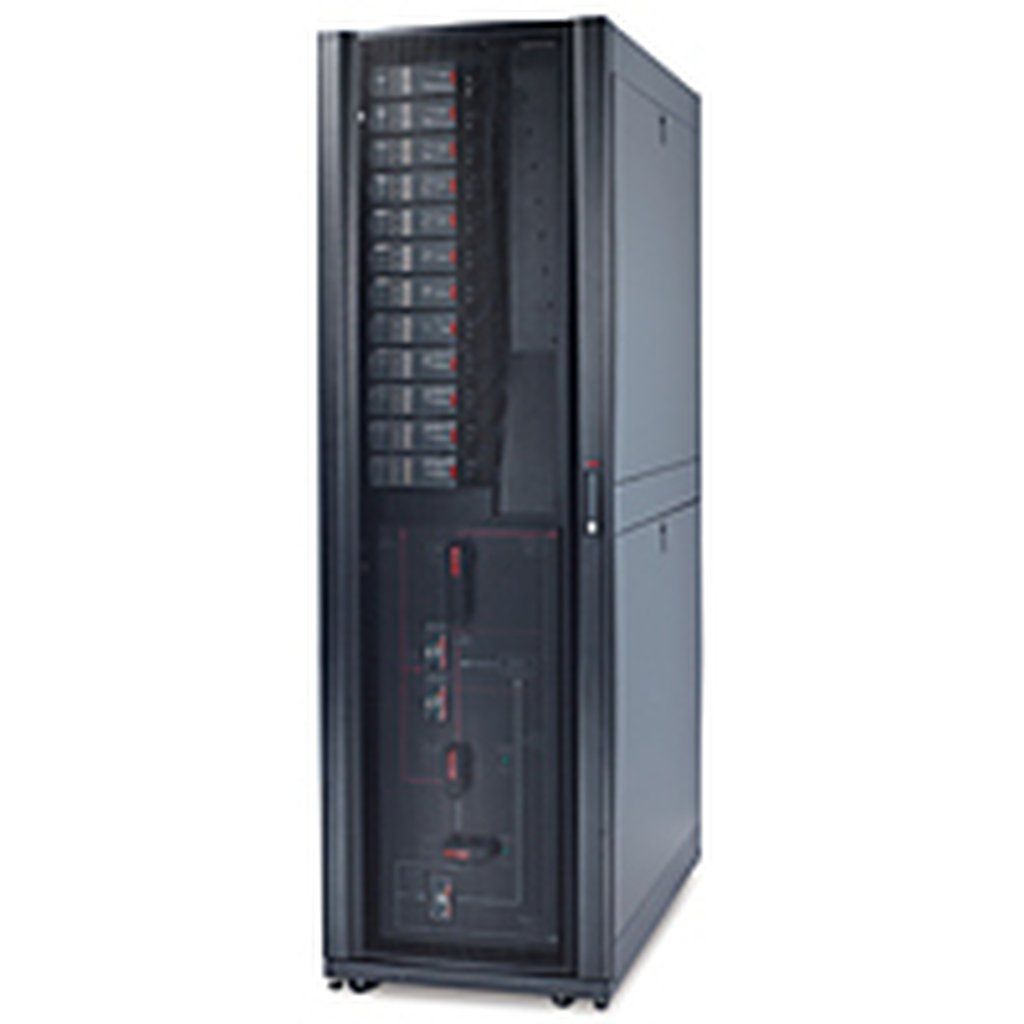

APC PDUM160H-B power distribution unit (PDU)
nfraStruXure Modular IT Power Distribution Unit w/36 Poles, MBP & Batt. Frame for 9 Modules, 400V
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Smallest footprint
Minimizes your real estate expenses
Top and bottom cable entry (standard)
Flexibility that allows the customer to decide – and at no extra cost.
UL-listed Touch-safe backplane
Adding Power Distribution Modules requires no hot work; one trained user can safely add new modules without removing power to the existing PDU load
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes – no tools are required
Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Additional information
| Weight | 385 lbs |
|---|---|
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Output connections | 2x Hard Wire 5-wire (3PH + N + G) |
| Nominal input voltage | 400 V |
| Load capacity | 160000 VA |
| Maximum input current per phase | 295 A |
| Certification | CE, FCC 15 A |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 411.8 kg |
| Package weight | 444.6 kg |
| Package width | 848 mm |
| Package depth | 1210 mm |
| Package height | 2150 mm |
