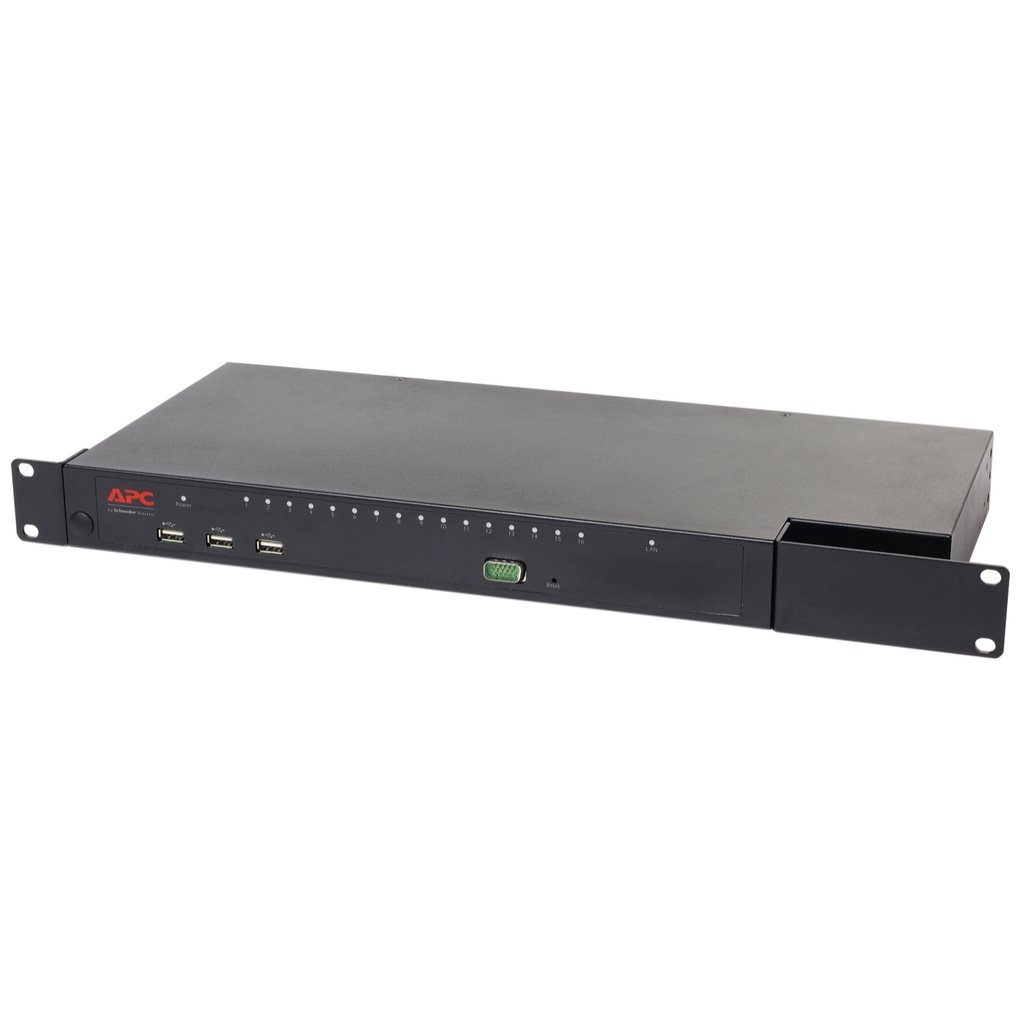

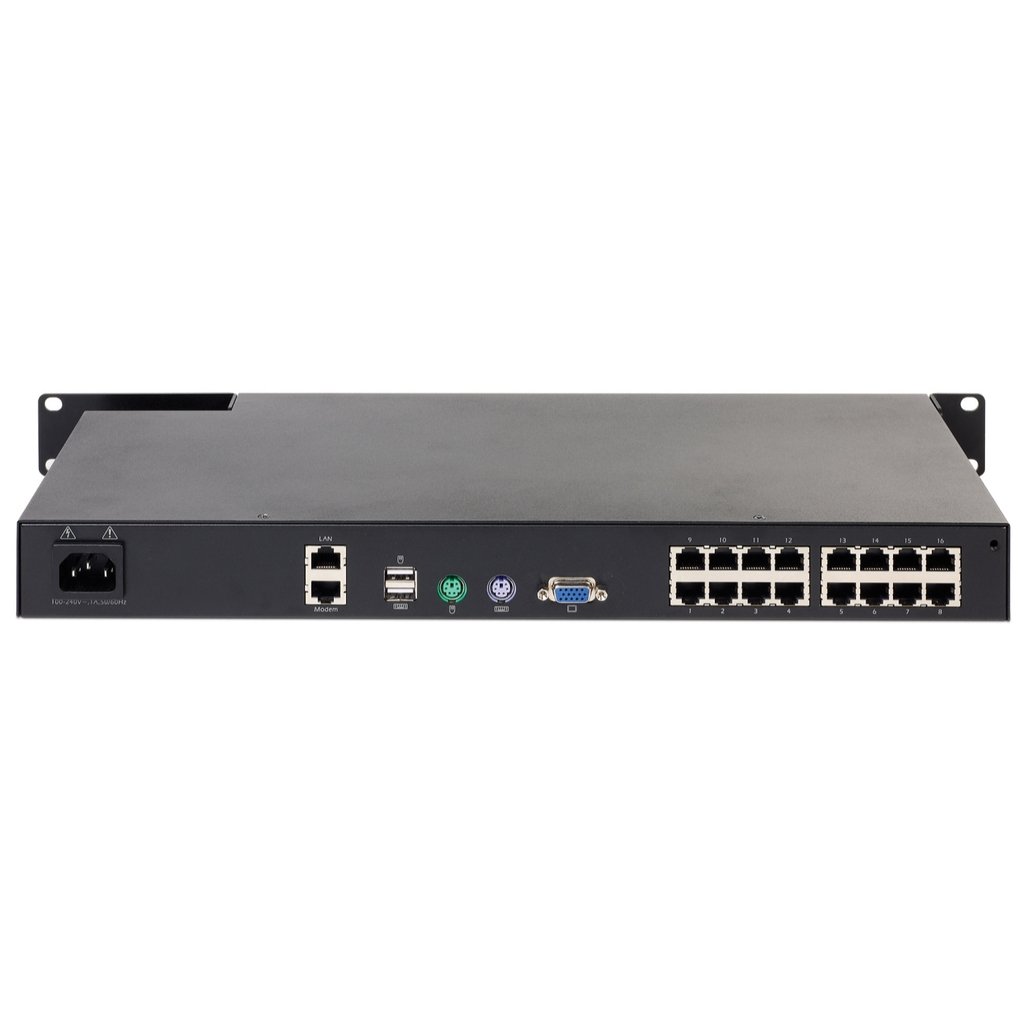

APC KVM1116R KVM switch Rack mounting Black
APC KVM1116R – KVM 2G, Digital/IP, 1 Remote/1 Local User, 16 Ports with Virtual Media – FIPS 140-2
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user’s manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user’s manual for specific cascading capabilities.
Additional information
| Weight | 3.98 lbs |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| Rack mounting | Yes |
| Product colour | Black |
| Built-in display | No |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.59 kg |
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 3.99 kg |
| Rack capacity | 1U |
| Harmonized System (HS) code | 85176200 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50 – 60 Hz |
| Storage relative humidity (H-H) | 0 – 80% |
