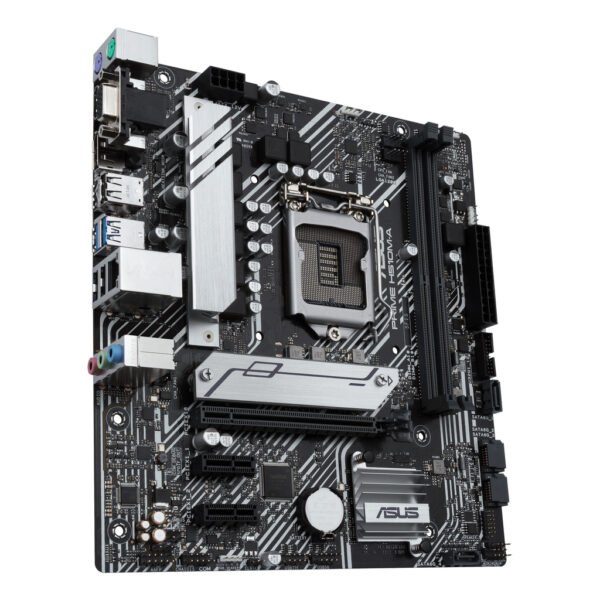

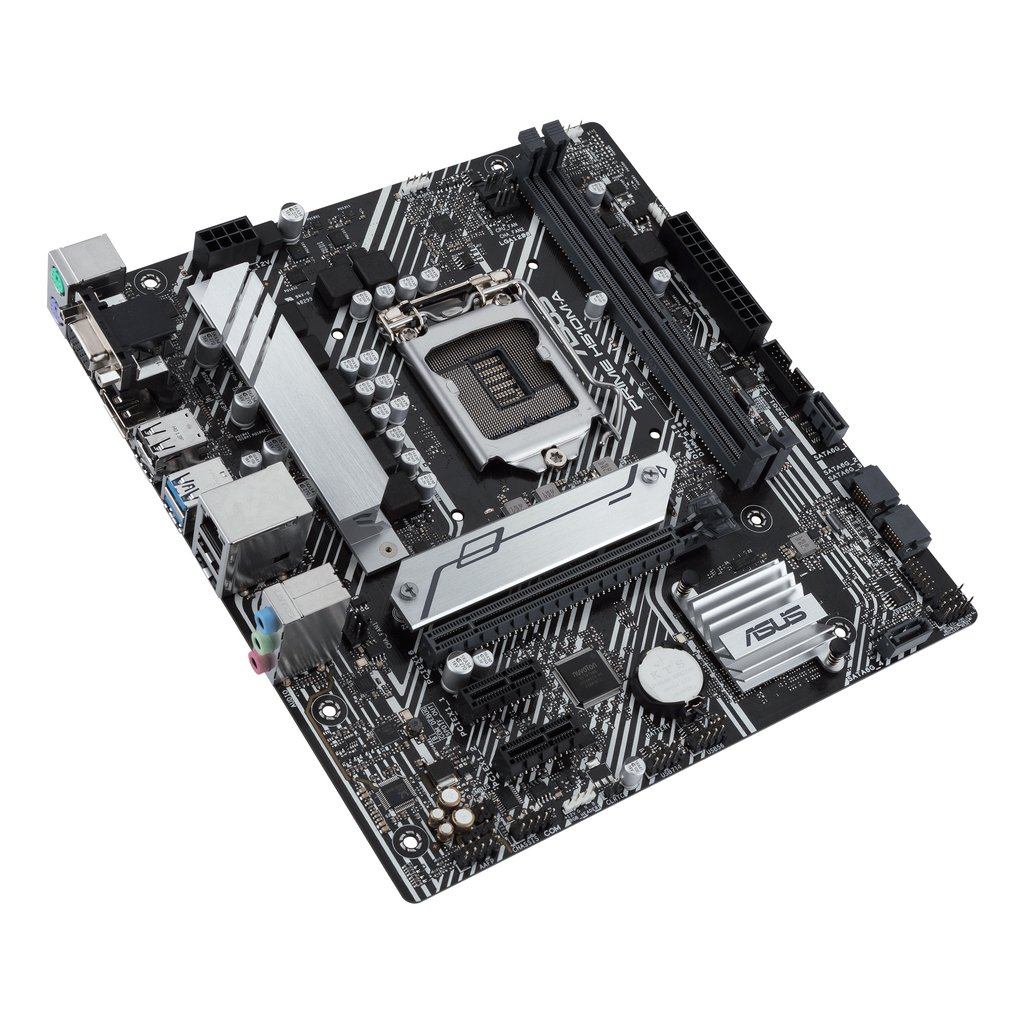

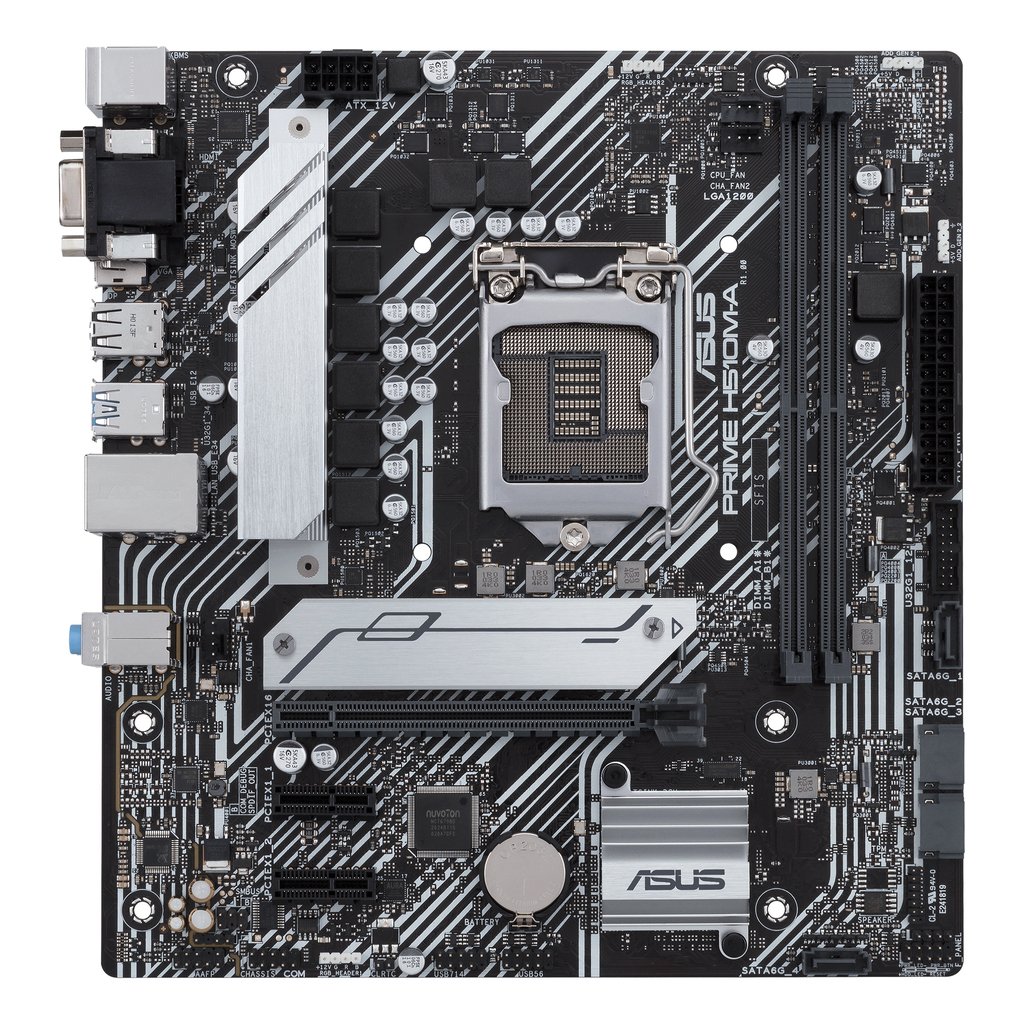

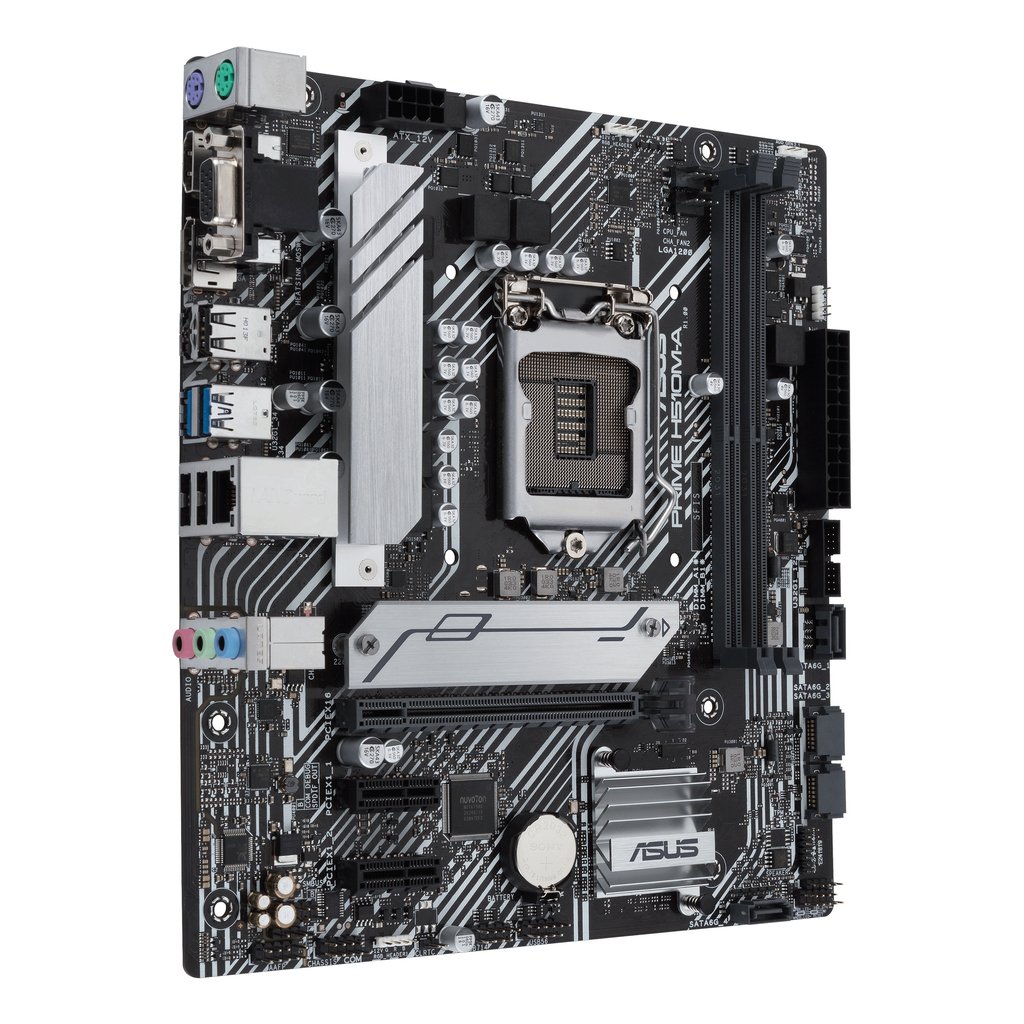

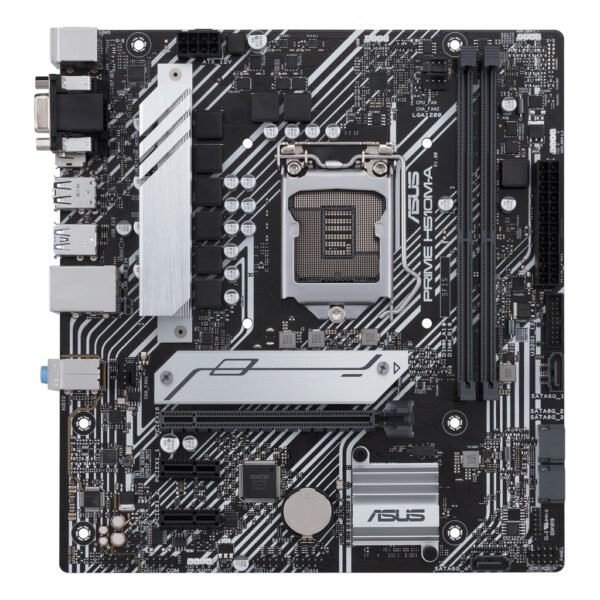

ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
Intel® H510, LGA1200, 2 x DDR4, 64GB max, M.2, 4 x SATA, Ethernet, 2 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, D-Sub, HDMI, 3 x Audio jacks, 2 x PS/2, 128 Mb Flash ROM, UEFI AMI BIOS, microATX, 22.6 x 21.1cm
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description
Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
Additional information
| Weight | 0.94 lbs |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 5 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H510 |
| Windows operating systems supported | Windows 10 x64 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 226 mm |
| Depth | 211 mm |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Number of COM connectors | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Cables included | SATA |
| RGB LED pin header | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Power source type | ATX |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933 MHz |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Drivers included | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Maximum number of SMP processors | 1 |
| Clear CMOS jumper | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Number of displays supported | 3 |
| Harmonized System (HS) code | 84733020 |
| Audio connector | Yes |
| LAN controller | Intel® I219-V |
| Number of EATX power connectors | 1 |
| Number of mounting holes | 6 |
