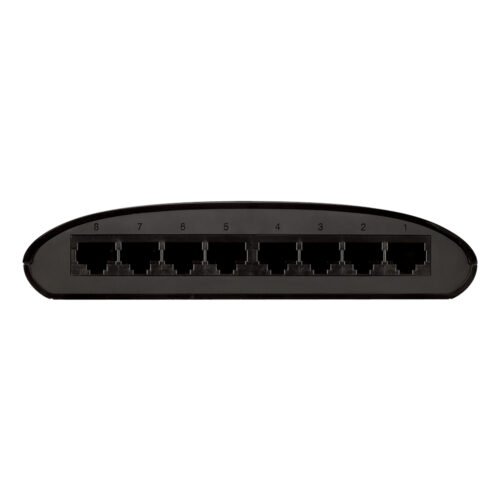

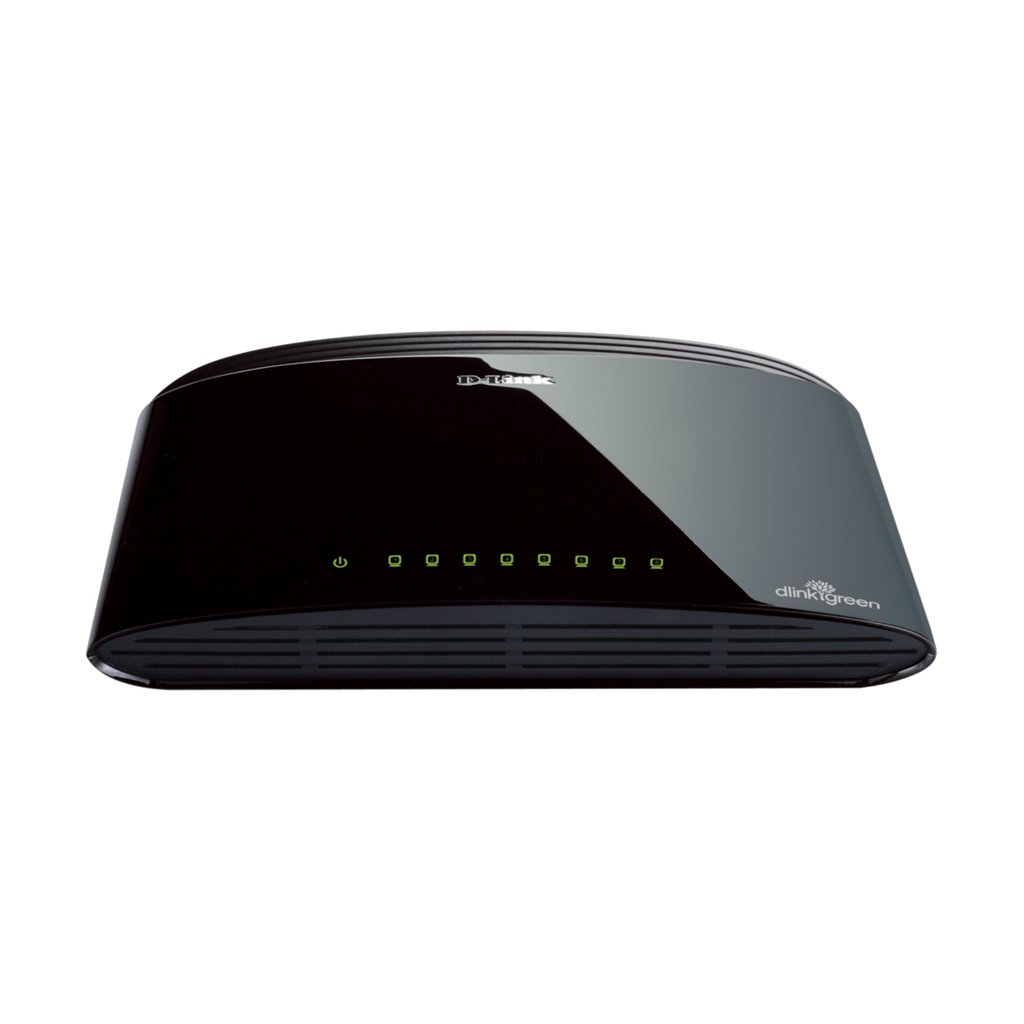

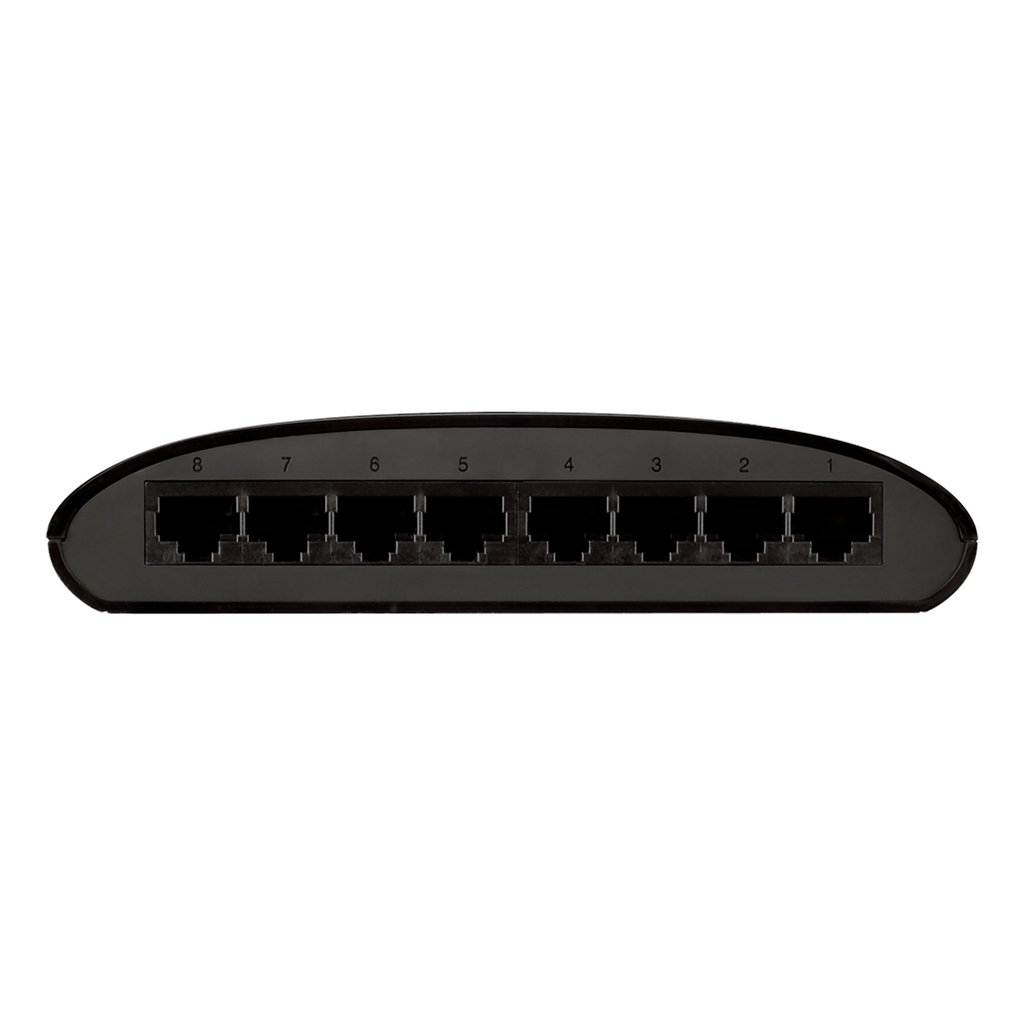

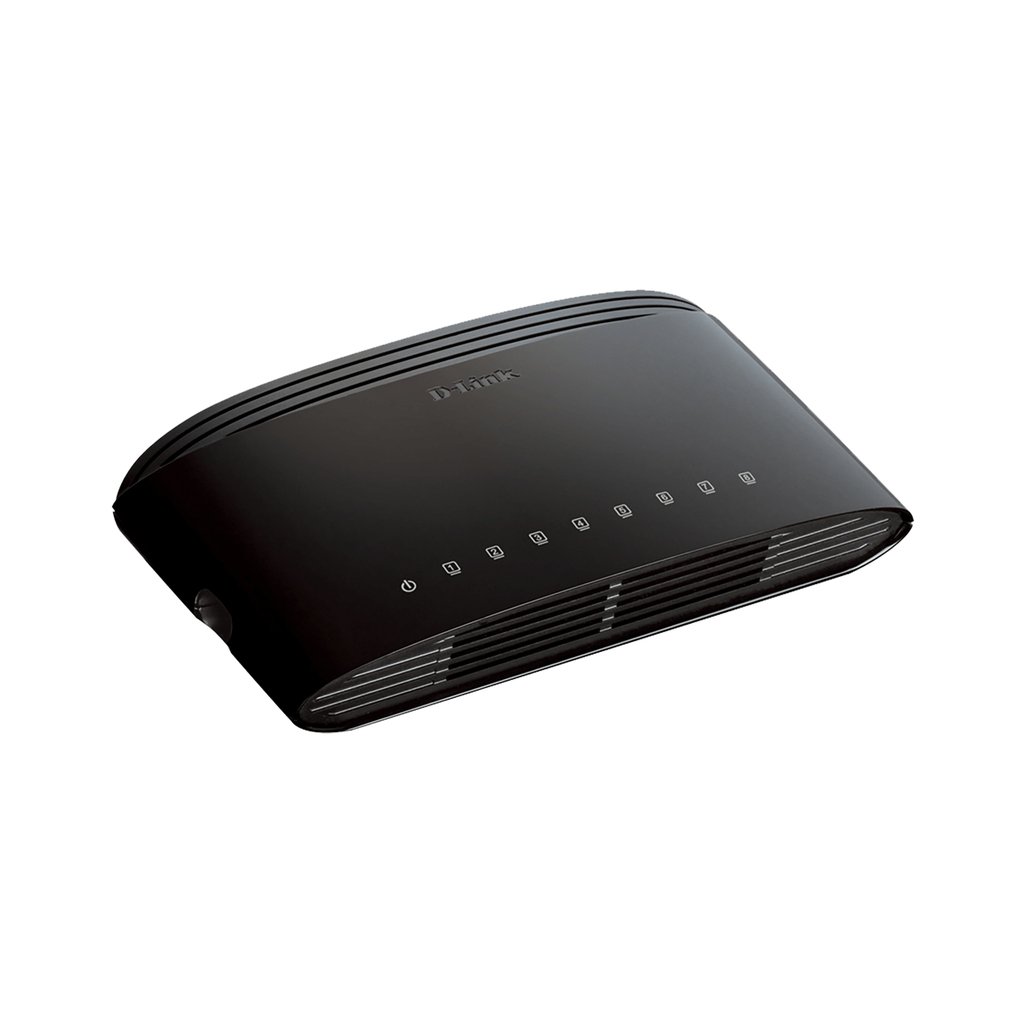

D-Link DES-1008D Unmanaged Fast Ethernet (10/100) Black
DES-1008D/E – 8-Port, Fast Ethernet, IEEE 802.3x, 1Gbps
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
8 10/100Mbps Ports – Unmanaged Stand-alone – Layer 2 Switch: This compact palm-sized switch is designed for the home and small offices. It provides 8 10/100Mbps ports to connect to 8 workstations and servers. Hubs can also connect to this switch.
All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.
IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer. At 200Mbps full duplex, this switch provides high-speed data pipes to your Servers with minimum data transfer loss.
Auto-negotiation of MDI/MDIX cross over eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, workstation, a hub or another switch using the usual straight-through twisted-pair cable.
Additional information
| Weight | 0.21 lbs |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 116186 h |
| Input current | 1 A |
| Power over Ethernet (PoE) | No |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Package weight | 310 g |
| Stackable | No |
| Power connector | DC-in jack |
| Package width | 104 mm |
| Package depth | 158 mm |
| Package height | 94 mm |
| Output voltage | 5 V |
| Shipping (inner) case height | 35 cm |
| Shipping (inner) case width | 21.1 cm |
| Shipping (inner) case length | 54.3 cm |
| Shipping (inner) case net weight | 3.96 kg |
| Products per shipping (inner) case | 20 pc(s) |
| Pallet gross weight (air) | 330.5 kg |
| Master (outer) cases per pallet (air) | 50 pc(s) |
| Products per pallet (air) | 1000 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 188.5 cm |
| Pallet gross weight (sea) | 330.5 kg |
| Master (outer) cases per pallet (sea) | 50 pc(s) |
| Products per pallet (sea) | 1000 pc(s) |
| Pallet height (sea) | 188.5 cm |
| Shipping (inner) case gross weight | 6.23 kg |
| Maximum data transfer rate | 100 Mbit/s |
