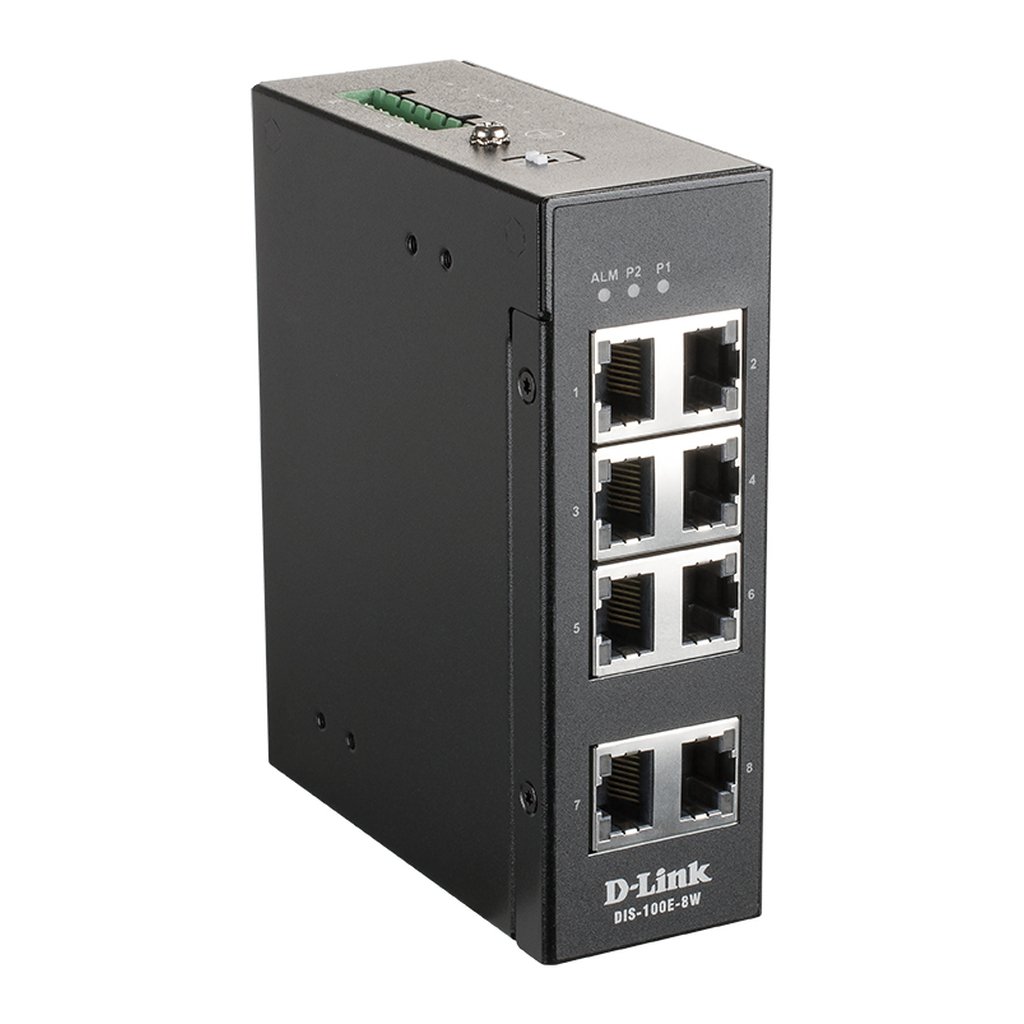

D-Link DIS-100E-8W network switch Unmanaged L2 Fast Ethernet (10/100) Black
8 x 10/100BaseT(X), IEEE 802.3x, 10/100 Mbps, 12‑58 VDC, 1.64W
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description
Unmanaged Plug and Play
Plug in and go. The DIS-100E-8W reliably forwards Ethernet frames.
Fast Ethernet Connectivity
Designed with 8 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.
Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment

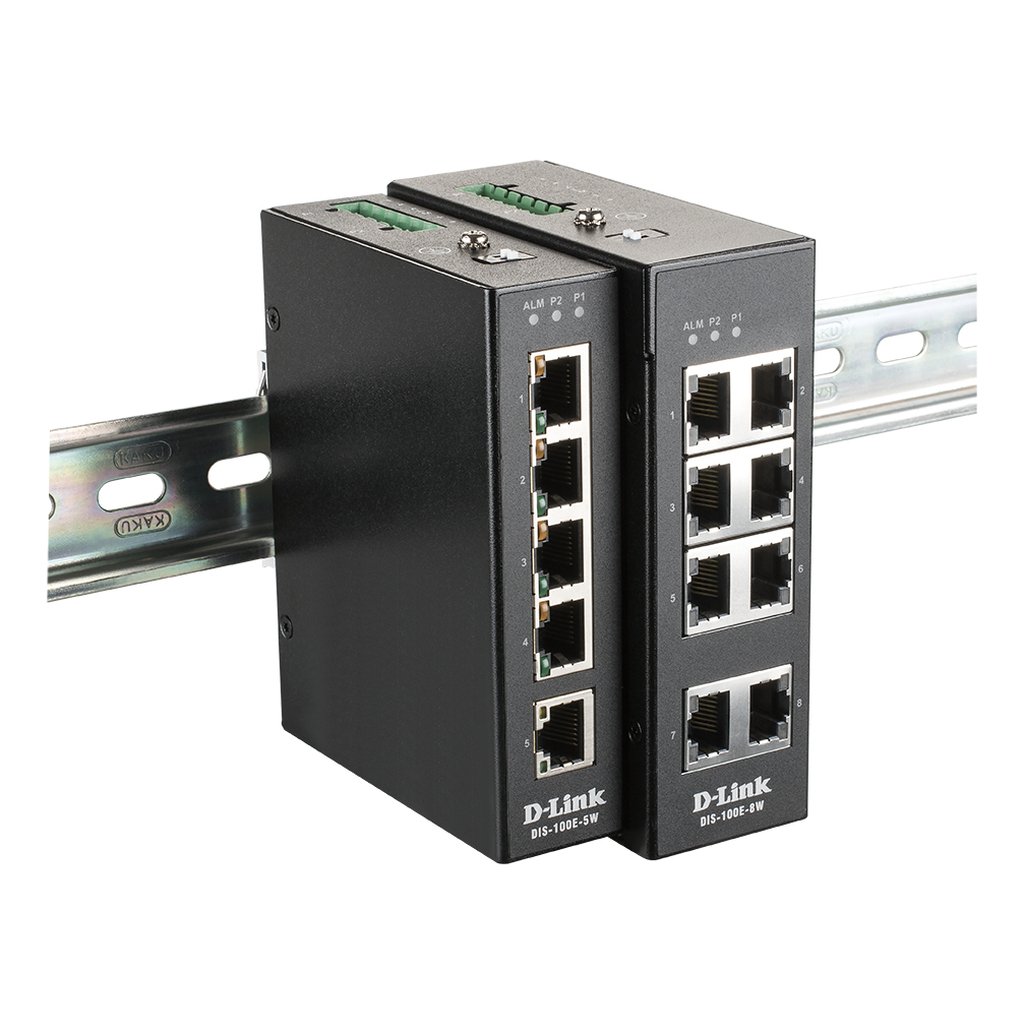

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Additional information
| Weight | 0.6 lbs |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Mean time between failures (MTBF) | 219000 h |
| DC input voltage | 12 – 58 V |
| Power consumption (max) | 1.64 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 – 75 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Width | 39 mm |
| Depth | 96.9 mm |
| Height | 117.8 mm |
| Weight | 405 g |
| Harmonized System (HS) code | 85176990 |
| Power consumption (typical) | 1.41 W |
| Switch layer | L2 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Package weight | 570 g |
| Certification | UL 60950‑1 CEFCC |
| Stackable | Yes |
| Broadcast storm control | Yes |
| Wall mountable | Yes |
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Plug and Play | Yes |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 6.64 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 257.4 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet gross weight (sea) | 377.1 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 195 cm |
| Shipping (inner) case gross weight | 6.65 kg |
| Relay outputs | 1 |
