D-Link 100/1000Base-t to 1000Base-SX SC Multi-mode Media Converter (550m)
In Stock
100/1000Base-T to 1000Base-SX SC Multi-Mode Media Converter (550 m)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

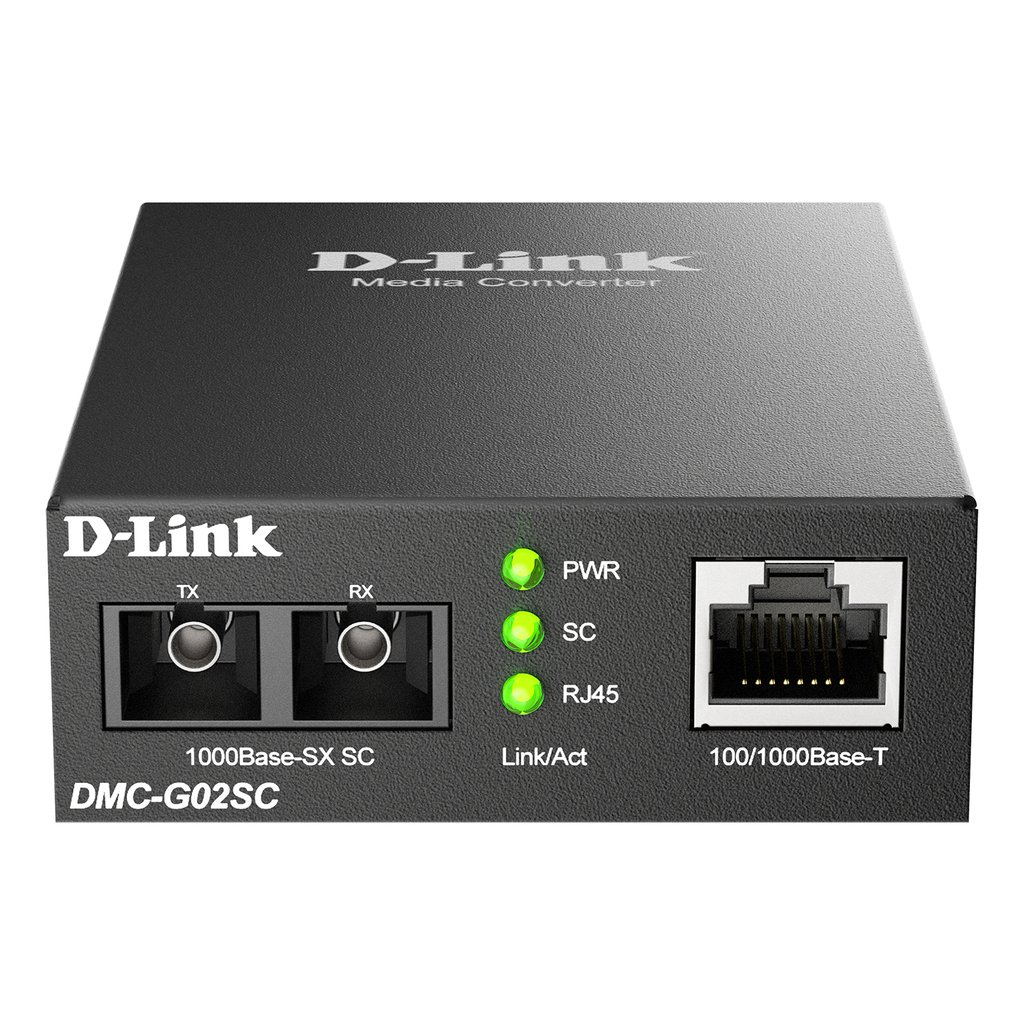

The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.
Additional information
| Weight | 0.76 lbs |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 1.65 W |
| Width | 93.5 mm |
| Depth | 70.5 mm |
| Height | 26 mm |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Weight | 124 g |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 1000Base-SX |
| DC-in jack | Yes |
| Output voltage | 5 V |
| Output current | 0.55 A |
