D-Link DUB-E100 network card Ethernet 100 Mbit/s
DUB-E100 – USB 2.0, Fast Ethernet, IEEE 802.3, 802.3u
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description

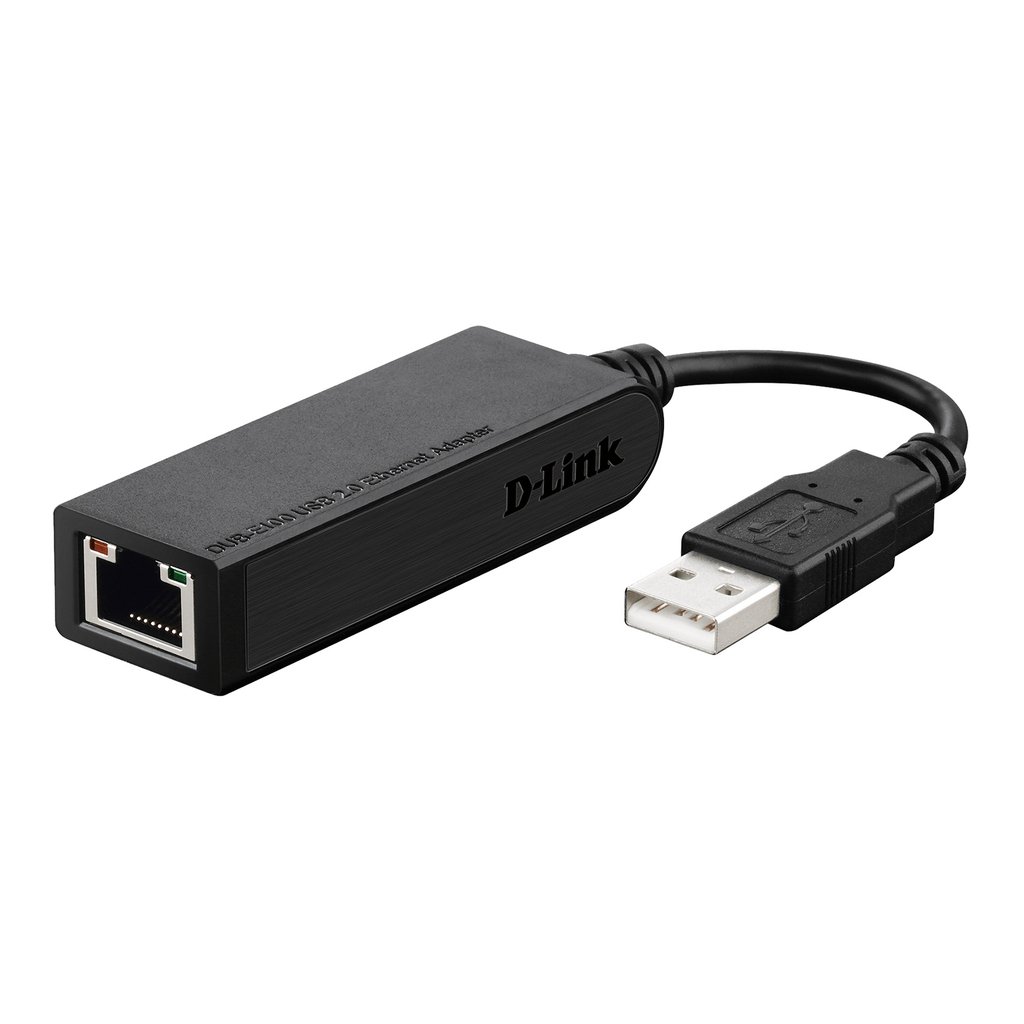

The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.
As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB’s out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ’s. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.
The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.
Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB’s energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Internal | No |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Width | 21.3 mm |
| Depth | 73 mm |
| Height | 20 mm |
| Weight | 22 g |
| Maximum data transfer rate | 100 Mbit/s |
| Component for | PC |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Linux operating systems supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100BaseT(X) |
| LED indicators | Link, Power |
| Package width | 138 mm |
| Package depth | 138 mm |
| Package height | 30 mm |
| Package weight | 116 g |
| Certification | FCC Class B, CE Class B |
| Mac operating systems supported | Yes |
| Full duplex | Yes |
| Power consumption (typical) | 2.5 W |
| Power consumption | 150 mA |
| Compliance industry standards | OHCI, EHCI |
| Input current | 0.5 A |
| Shipping (inner) case net weight | 1.88 kg |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case height | 34.5 cm |
| Shipping (inner) case width | 32 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Pallet gross weight (air) | 378 kg |
| Master (outer) cases per pallet (air) | 45 pc(s) |
| Products per pallet (air) | 1800 pc(s) |
| Pallet height (air) | 186 cm |
| Pallet gross weight (sea) | 378 kg |
| Master (outer) cases per pallet (sea) | 45 pc(s) |
| Products per pallet (sea) | 1800 pc(s) |
| Pallet height (sea) | 186 cm |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Ports quantity | 1 |
| Shipping (inner) case gross weight | 8.4 kg |
| Supported data transfer rates | 10/100 |
