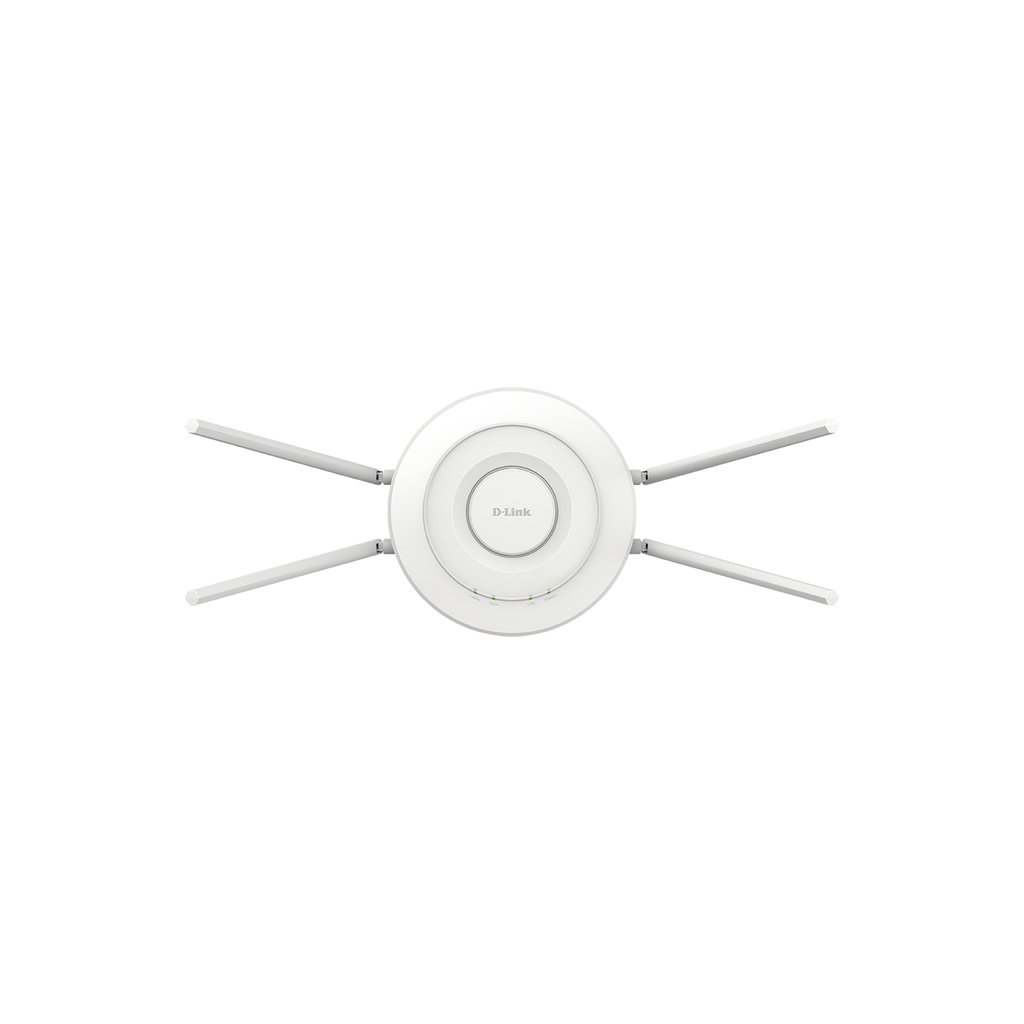

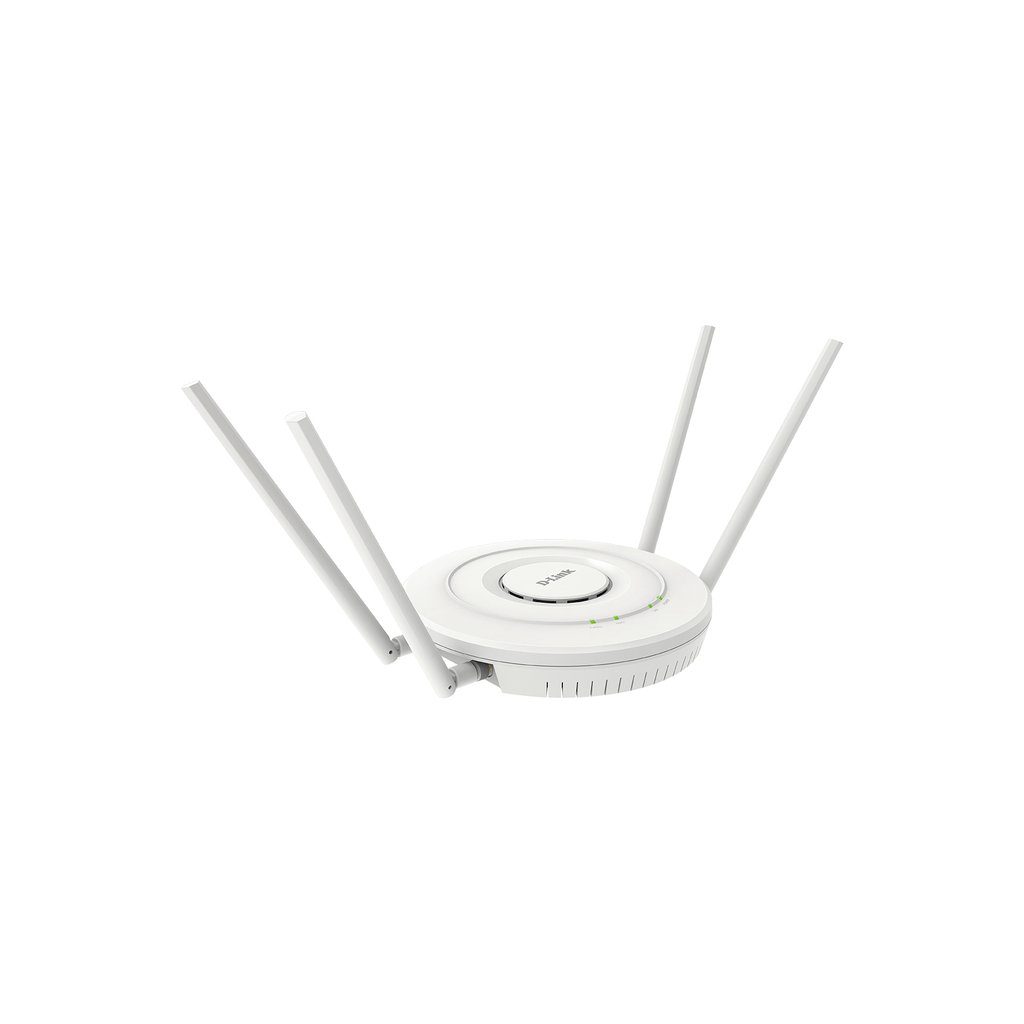

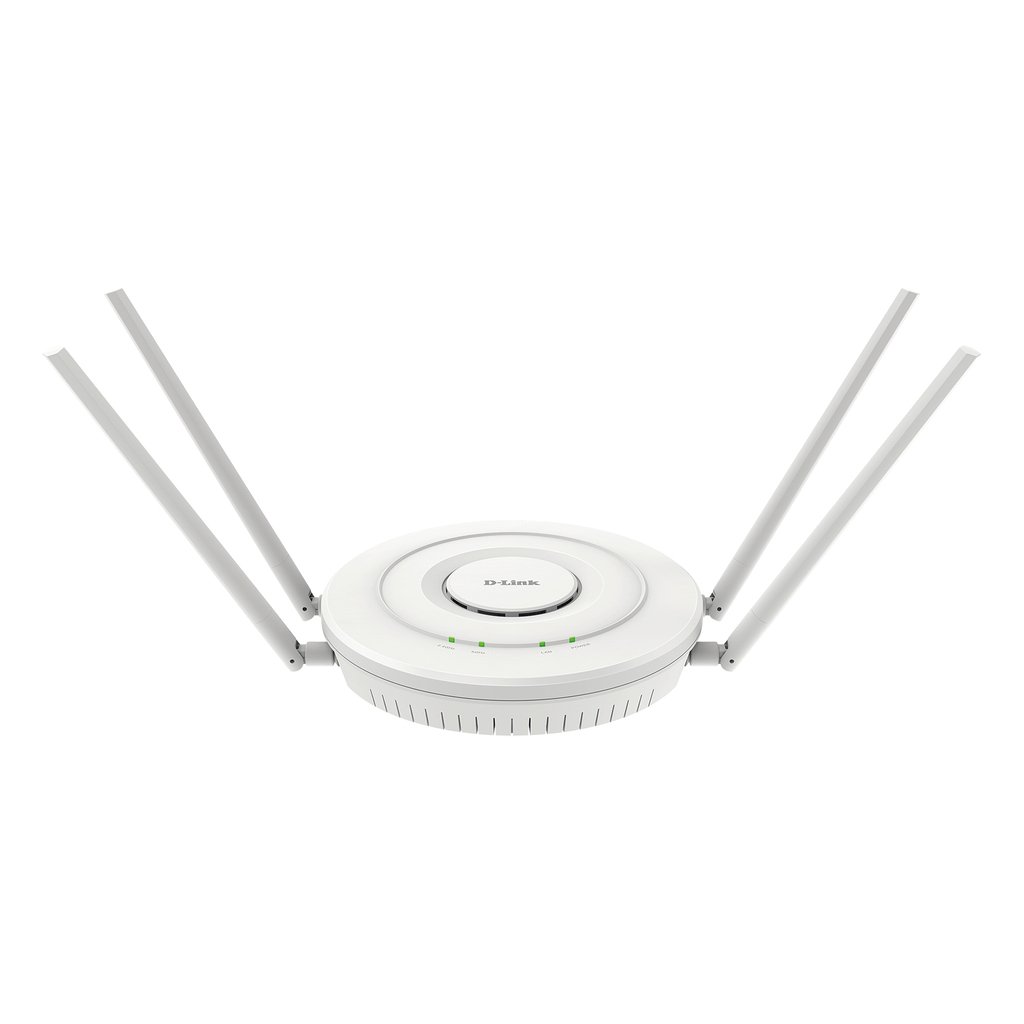

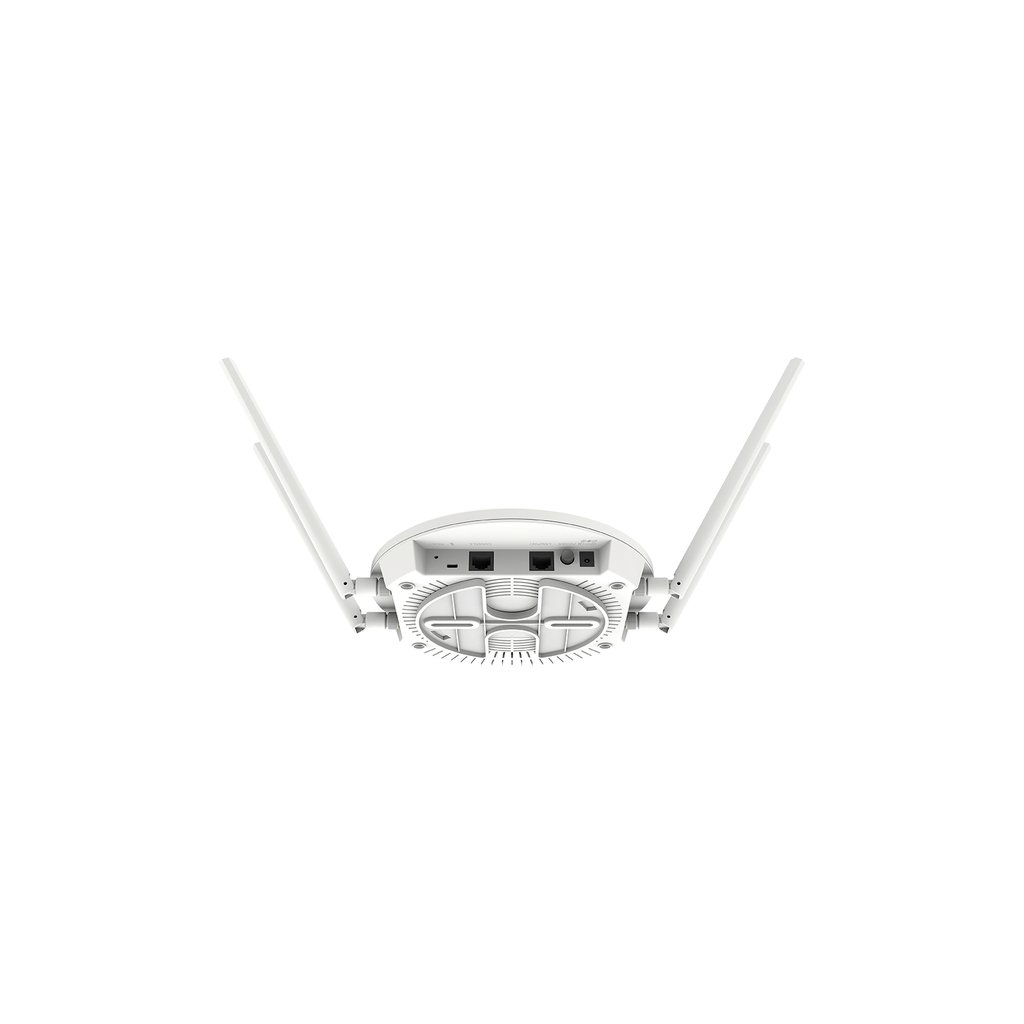

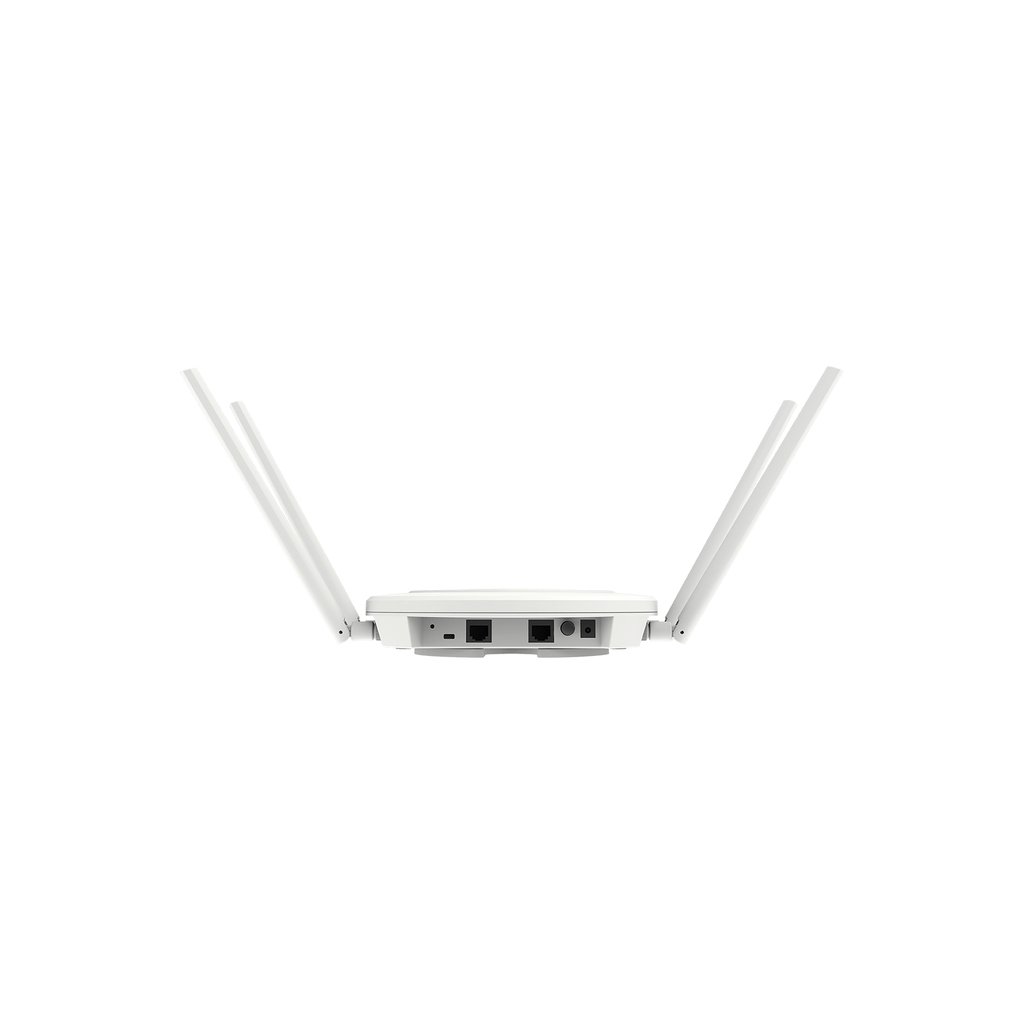

D-Link DWL-6610APE wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

In Stock

802.11b/g/n/ac/a, 2.4/5 GHz, 3/4 dBi, SSID, VLAN, WMM, PoE, 10/100/1000BASE-T LAN, 205 x 39 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DWL-6610APE
Brand:

Description

Performance without Compromise
The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.

Wireless AC 1200
Maximum combined wireless speed of 1200 Mbps.

Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.

Dual Band
Supports both 2.4Ghz and 5Ghz bands simultaneously.

Unified Wireless
Access points can be managed by unified wireless controller.

Smart Design
The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.

Band Steering technology
With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

Versatility Built as standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.

Secure and Green Design
The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Fast Seamless Roaming
Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

Management platforms
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
DWL-6610APE Management platforms

Simultaneous Dual-Band
Supports up to 867 Mbps 2×2 MIMO for the 5Ghz band and up to 300Mbps 2×2 MIMO for the 2.4Ghz band

Additional information

Weight 1.14 lbs
2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

1200 Mbit/s

Frequency band

2.4 – 2.4835, 5.15 – 5.85 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af

VLAN support

Yes

Quality of Service (QoS) support

Yes

Security algorithms

AES, HTTPS, SSH, SSID, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise

MAC address filtering

Yes

Web-based management

Yes

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Power over Ethernet (PoE)

Yes

Power consumption (max)

10.2 W

Placement

Table

Product colour

White

LED indicators

Yes

Antenna gain level (max)

4 dBi

Width

205 mm

Height

39 mm

Ethernet LAN data rates

10,100,1000 Mbit/s

Number of SSID supported

32

Certification

CE, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043

Operating relative humidity (H-H)

10 – 90%

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 65 °C

Storage relative humidity (H-H)

5 – 95%

Antennas quantity

4

Weight

476 g

Wi-Fi Multimedia (WMM)/(WME)

Yes

Products per shipping (inner) case

6 pc(s)

Package width

243 mm

Package depth

235 mm

Package height

90 mm

Package weight

1.15 kg

Antenna features

Detachable antenna

Internal

No

Output voltage

12 V

Output current

1.5 A

Harmonized System (HS) code

85176990

Housing material

Plastic

Channels quantity

165 channels

Shipping (inner) case length

56.5 cm

Shipping (inner) case width

34.3 cm

Shipping (inner) case height

27.5 cm

Shipping (inner) case net weight

6.89 kg

Pallet gross weight (air)

212.5 kg

Master (outer) cases per pallet (air)

24 pc(s)

Products per pallet (air)

144 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

123.5 cm

Pallet gross weight (sea)

347.3 kg

Master (outer) cases per pallet (sea)

42 pc(s)

Products per pallet (sea)

252 pc(s)

Pallet height (sea)

2.06 m

Shipping (inner) case gross weight

7.79 kg
