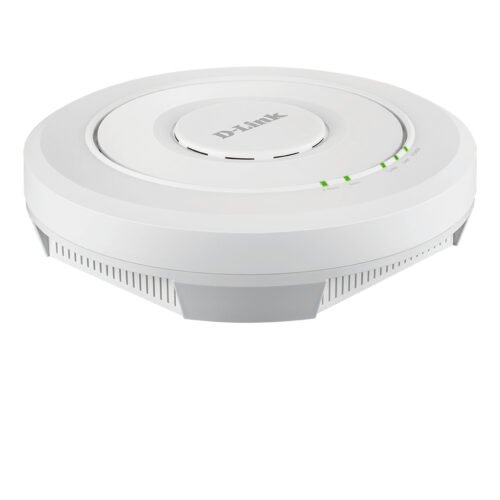

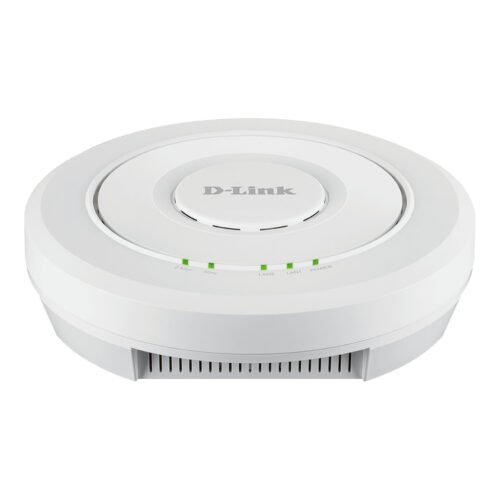

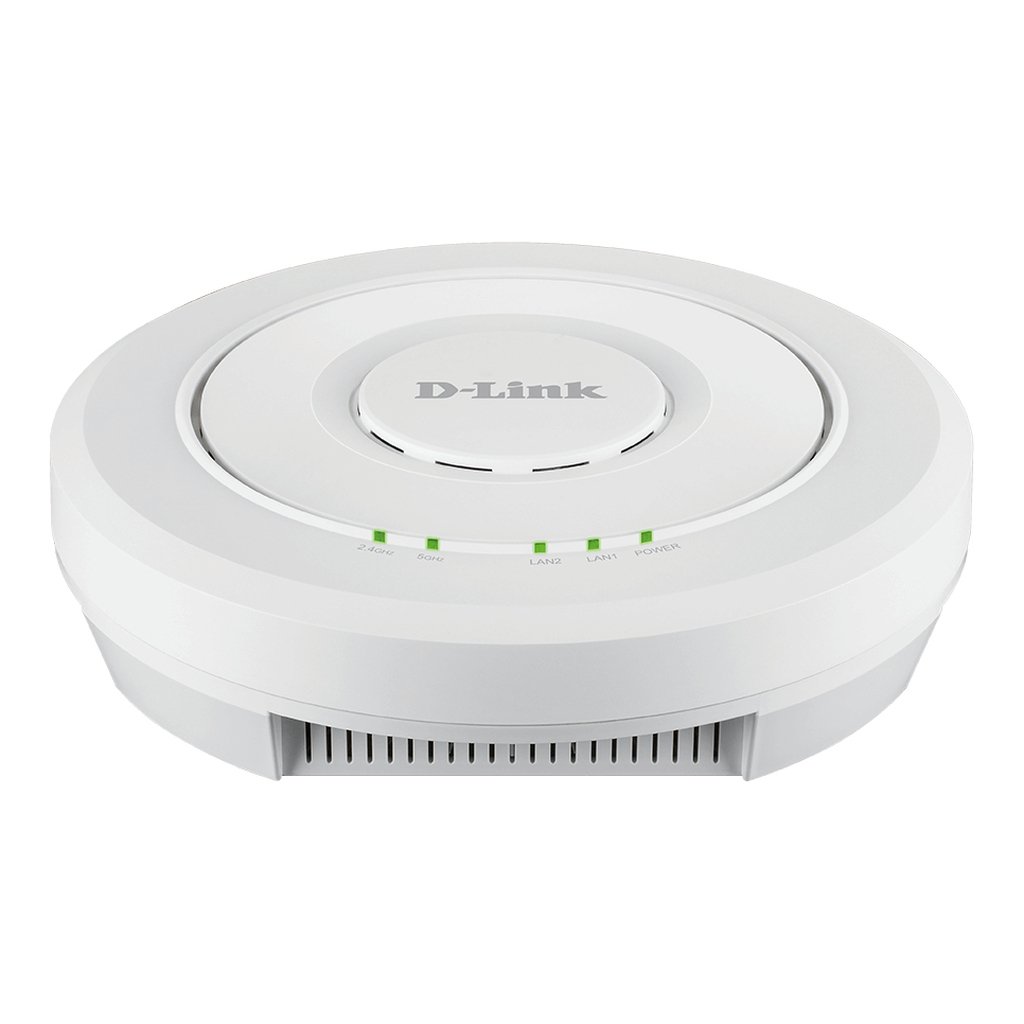

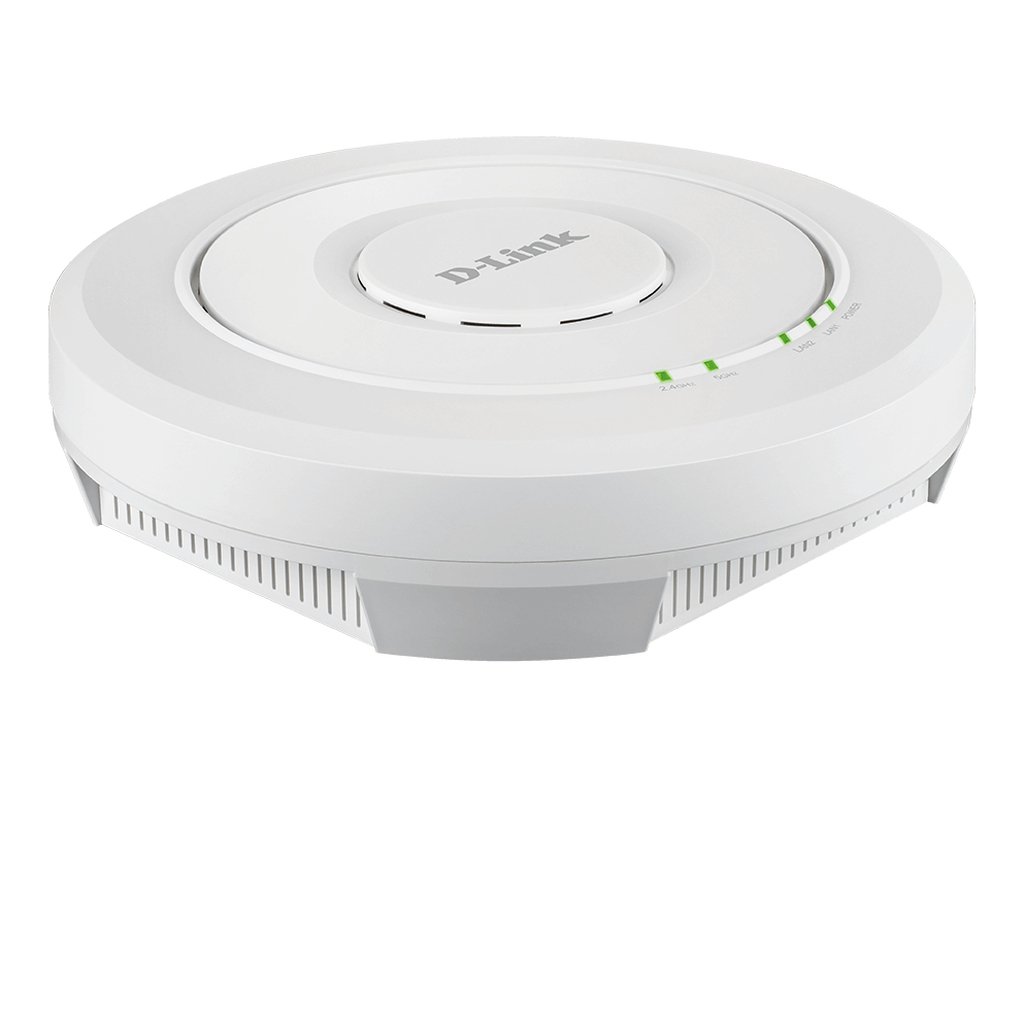

D-Link DWL-6620APS wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

In Stock

DWL-6620APS, AC1300, 802.11b/g/n/ac, 2.4/5 GHz, 32 SSIDs, WPA/WPA2, PoE, 220×55.45 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DWL-6620APS
Brand:

Description

Wave 2 has landed. Connect to more.
Unparalleled performance makes the DWL‑6620APS Wireless AC1300 Wave 2 Unified Access Point a must‑have upgrade that allows your wireless customers in high‑density areas to reliably connect to more, with faster throughput and flexibility. Perfect for medium to large‑scale Wi‑Fi networks.

Smart Antenna Technology
D‑Link’s Smart Antenna technology processes algorithms used to identify spatial signal signatures such as Direction Of Arrival, and uses them to calculate beamforming vectors which are then used to target the wireless client and achieve the best possible throughput.
The fast channel selection feature scans all channels and rapidly selects the one with the least interference. And the Null Steering capability curtails the power in the direction of interference to mitigate its influence. With these capabilities the D-Link Smart Antenna strengthens the connection reliability in real-time and delivers an optimised wireless user experience.

Greater Speed & Connectivity
It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic.

Efficiency multiplied
Support for 802.11ac Wave 2 MU-MIMO technology enables the access point to communicate with multiple clients simultaneously, resulting in significantly improved network capacity and throughput.

Dual‑Band Wireless for efficient performance
The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.

Airtime fairness ensures that equal airtime is given to each client, providing improved performance even when slower devices are connected.

Centrally Manage your Wireless Network
When deployed in combination with D-Link Wireless Controllers (DWC-1000/DWC-2000), up to 1,024 DWL-6620APS access points can be centrally managed. Once the APs are discovered by the controller, any configuration can be pushed to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management1 allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients.

Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays
Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.

Additional information

Weight 1.24 lbs
2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

1300 Mbit/s

Frequency band

2.4 – 2.4835; 5.15 – 5.85 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at

VLAN support

Yes

Security algorithms

AES, TKIP, WPA-Enterprise, WPA2-Enterprise

MAC address filtering

Yes

Web-based management

Yes

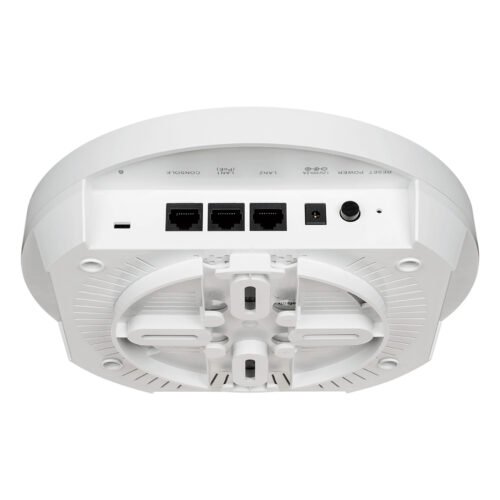

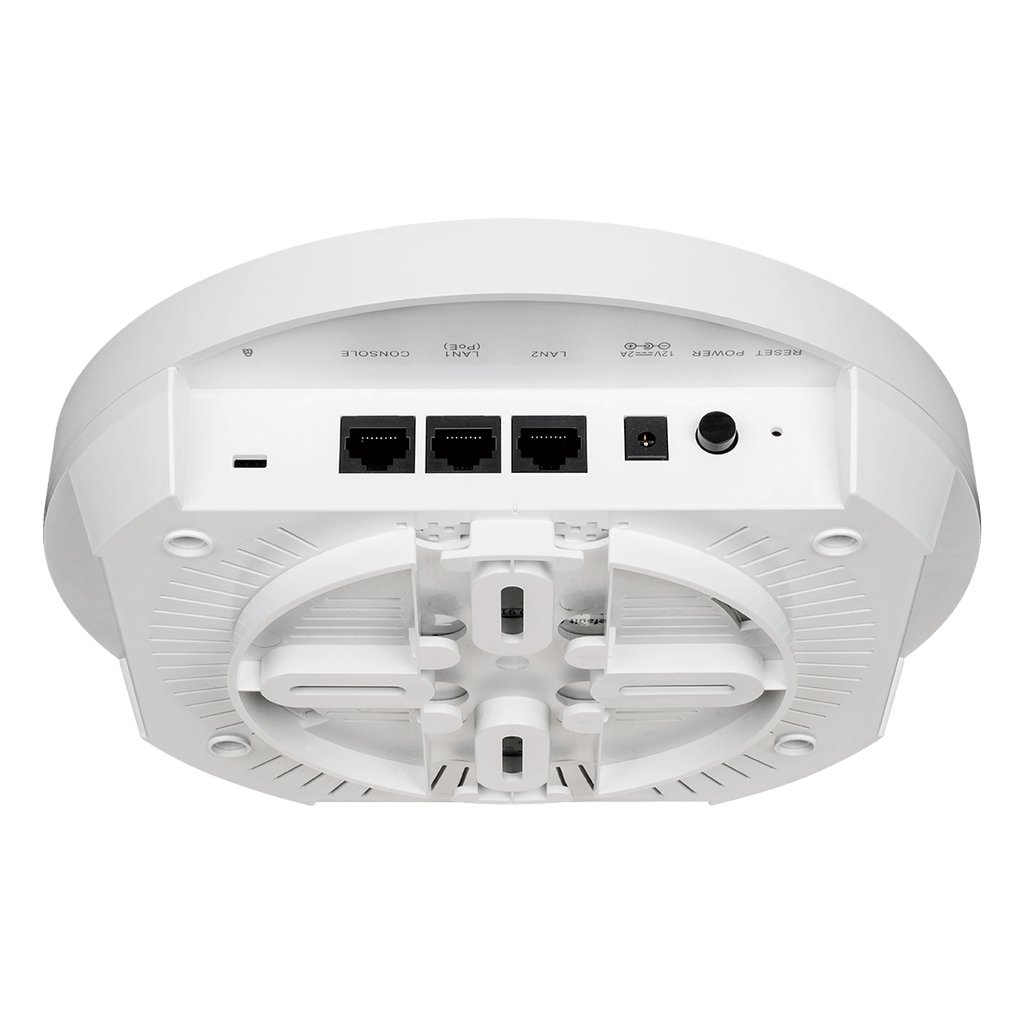

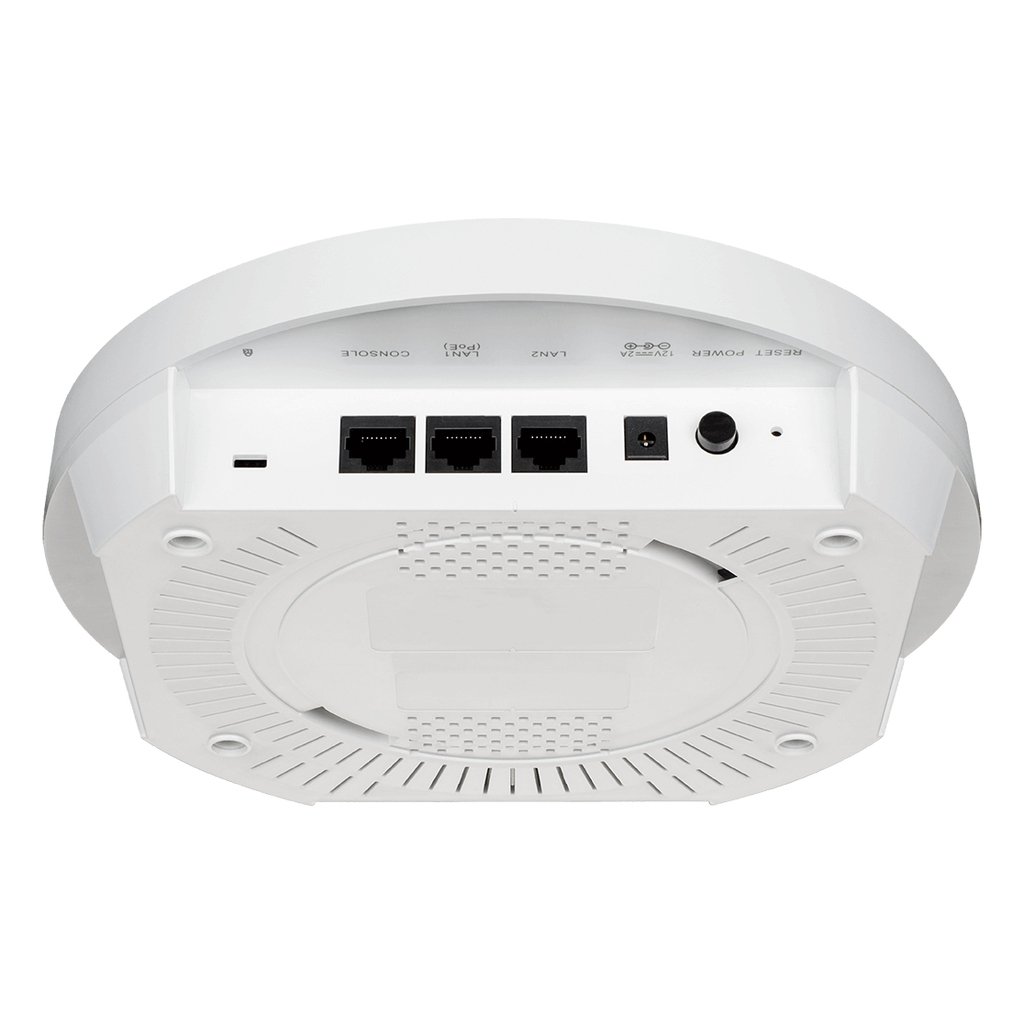

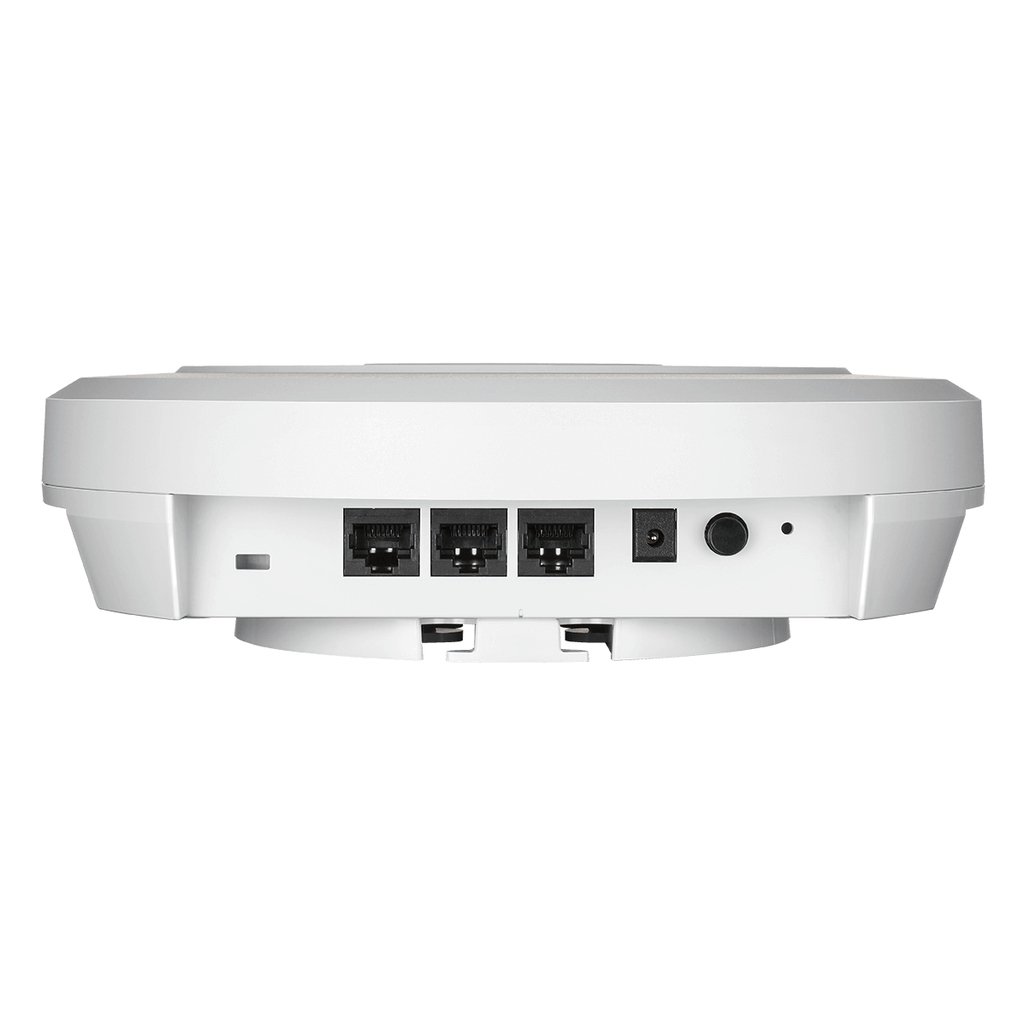

Ethernet LAN (RJ-45) ports

2

DC-in jack

Yes

Power over Ethernet (PoE)

Yes

Power consumption (max)

16.32 W

Product colour

White

Reset button

Yes

Width

220 mm

Depth

220 mm

Height

55.5 mm

Ethernet LAN data rates

10,100,1000 Mbit/s

Number of SSID supported

32

Certification

CE, EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2, EN301489-1, EN301489-17, EN300328, EN301893, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043

Operating relative humidity (H-H)

10 – 90%

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-20 – 65 °C

Storage relative humidity (H-H)

5 – 95%

Antennas quantity

2

Weight

614 g

Products per shipping (inner) case

6 pc(s)

Package width

243 mm

Package depth

235 mm

Package height

90 mm

Package weight

1.2 kg

Wireless isolation

Yes

On/off switch

Yes

Internal

No

Output voltage

12 V

Output current

2 A

Harmonized System (HS) code

85176990

Housing material

Plastic

Channels quantity

165 channels

Shipping (inner) case length

56.5 cm

Shipping (inner) case width

34.3 cm

Shipping (inner) case height

27.5 cm

Shipping (inner) case net weight

7.19 kg

Pallet gross weight (air)

219.9 kg

Master (outer) cases per pallet (air)

24 pc(s)

Products per pallet (air)

144 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

123.5 cm

Pallet gross weight (sea)

366.2 kg

Master (outer) cases per pallet (sea)

42 pc(s)

Products per pallet (sea)

252 pc(s)

Pallet height (sea)

2.06 m

Shipping (inner) case gross weight

8.1 kg
