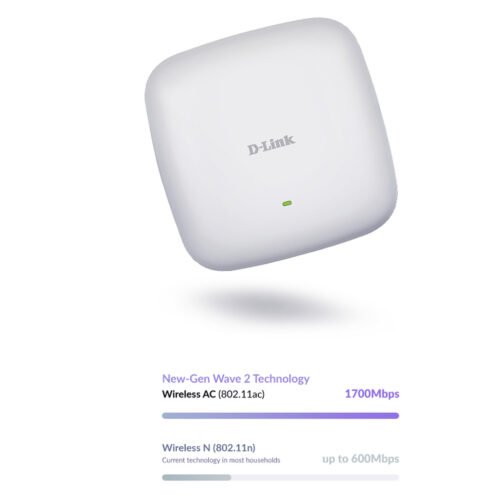

D-Link Wireless AC2300 Wave2 Dual-Band PoE Acess Point
Wireless AC2300 Wave 2 Dual‑Band PoE Access Point
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Fast, business‑class Wave 2 Wi‑Fi.
Designed for medium businesses or enterprise environments, the DAP-2682 provides network administrators with fast, secure and manageable dual-band 802.11ac wireless, coupled with easy and free Nuclias Connect network management.
Strong security, with centralised network management
Use as a standalone AP or manage centrally via free Nuclias Connect software.
Wave 2 Wi-Fi with Band Steering
Fast wireless speeds of up to 2300 Mbps. Automatically steers traffic to the fastest, least congested band.
MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
Multiple Operational Modes
Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

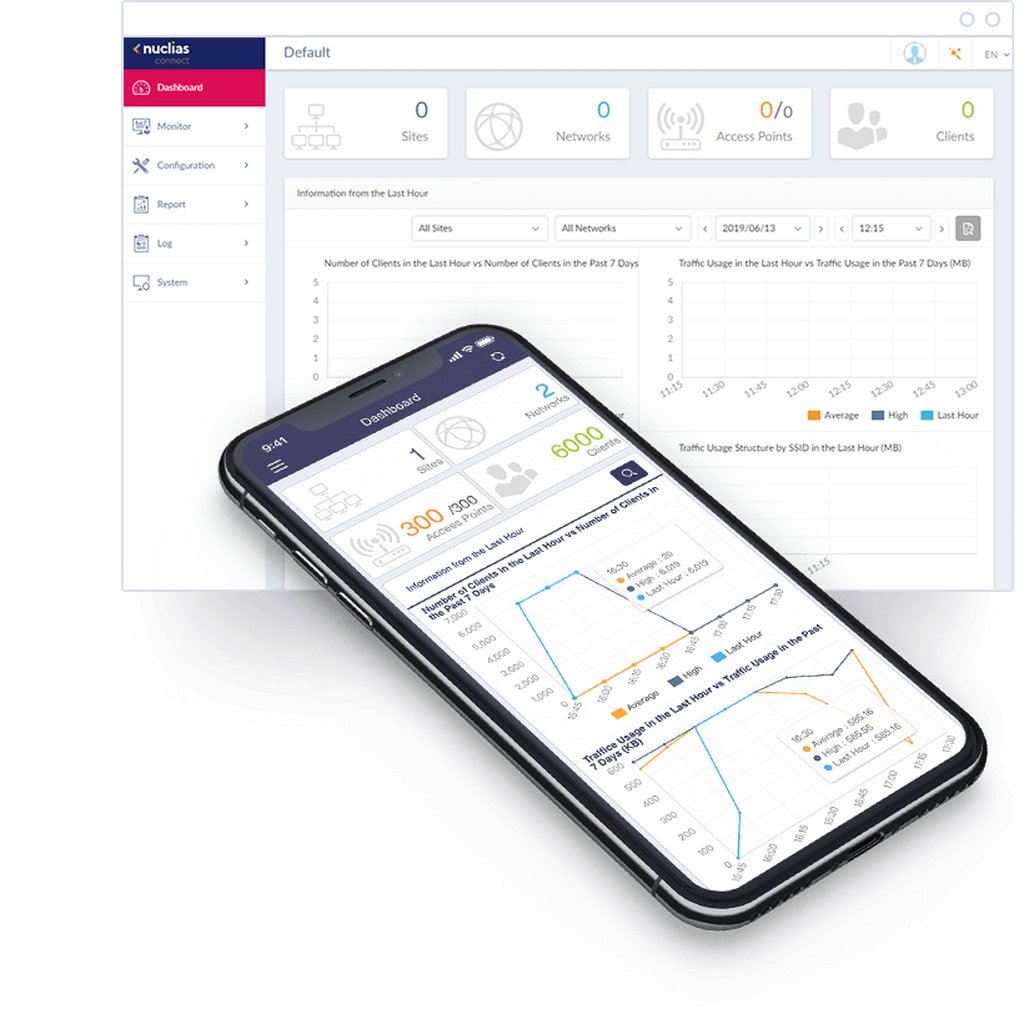

Convenient management
Intuitive interface with instant alerts and live usage reports with integrated Google maps to show the locations of all devices in the network.
Free dedicated app
Free Nuclias Connect tablet app to instantly detect devices on the network and easy remote management from anywhere.

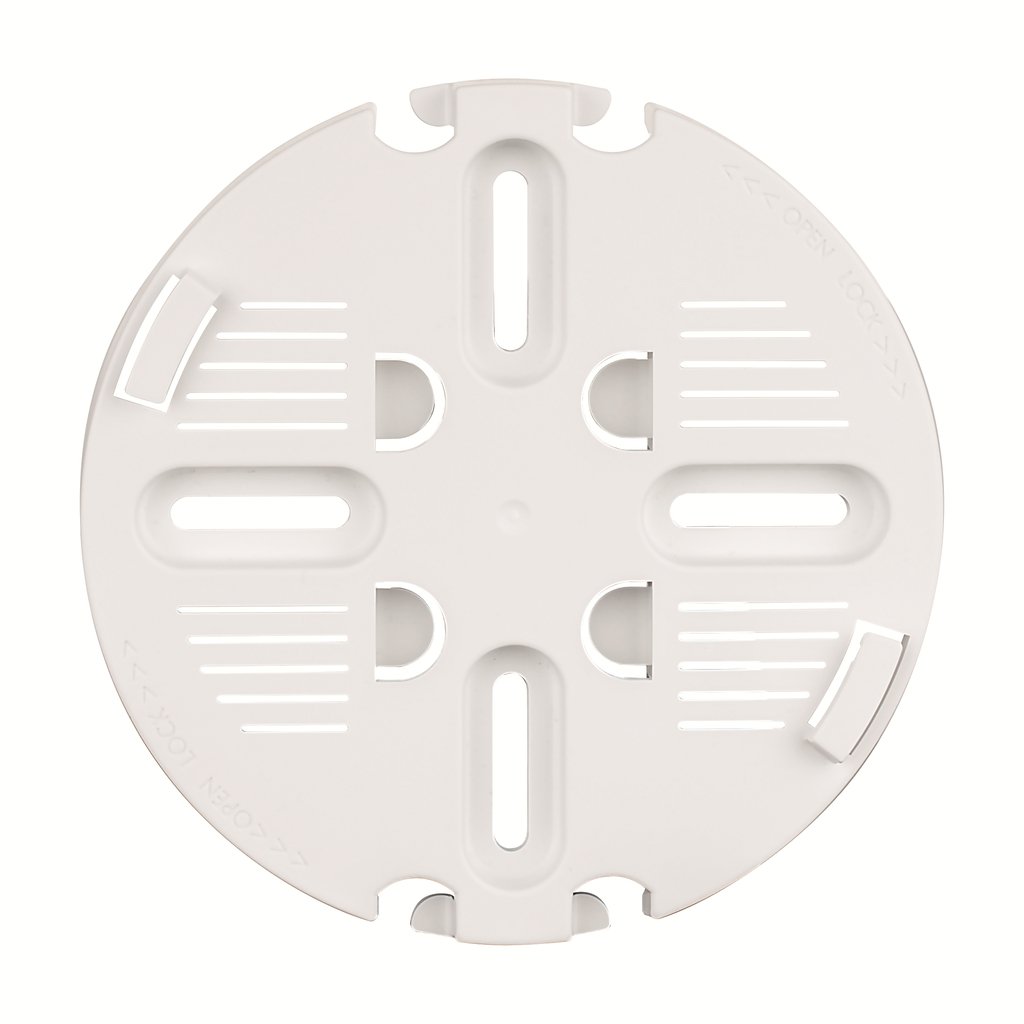

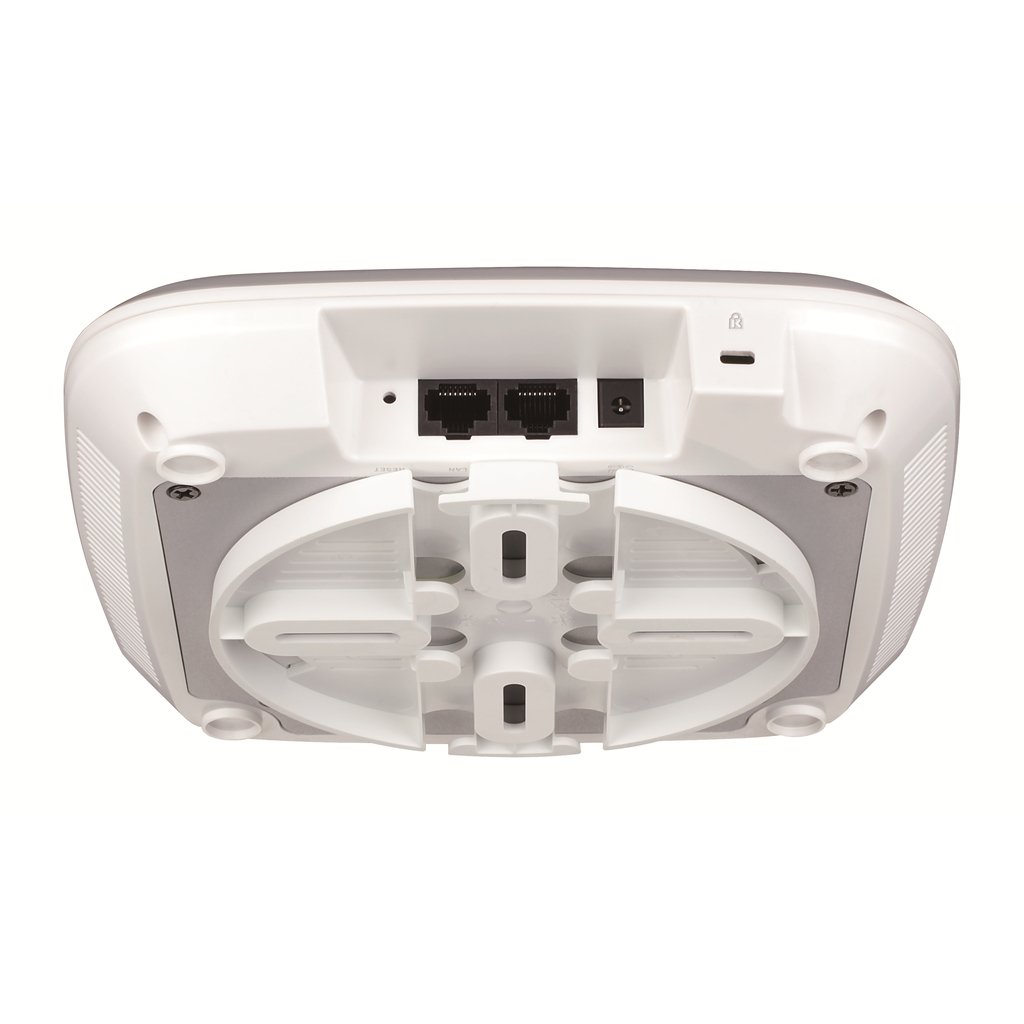

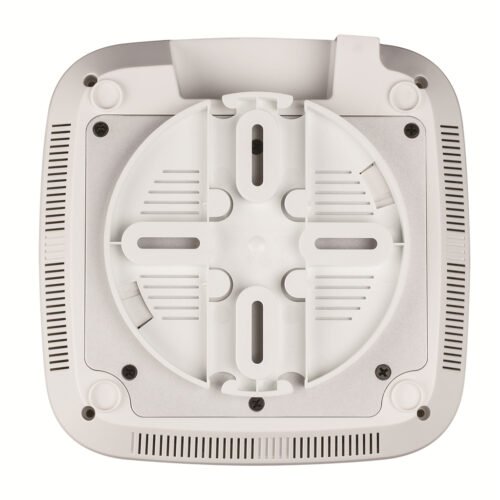

Easy-mount setup with PoE
Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.

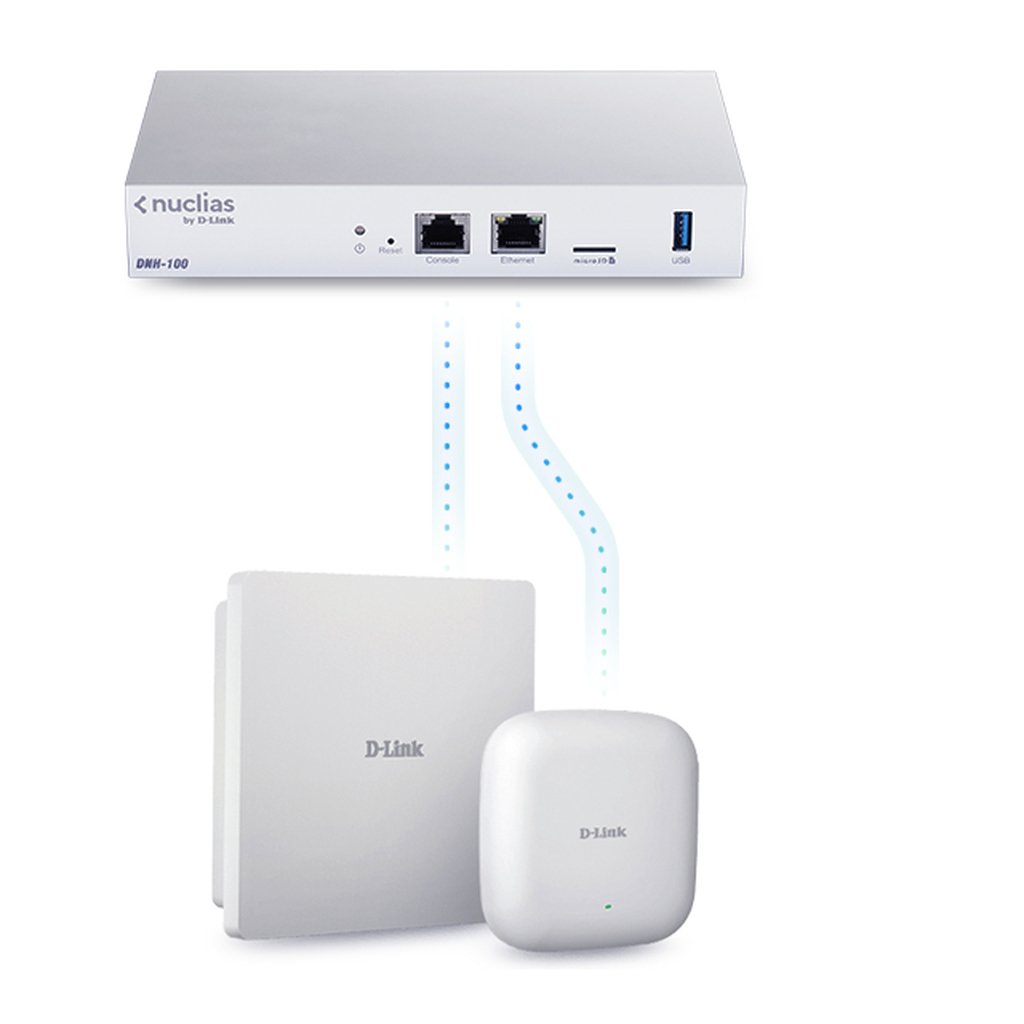

Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

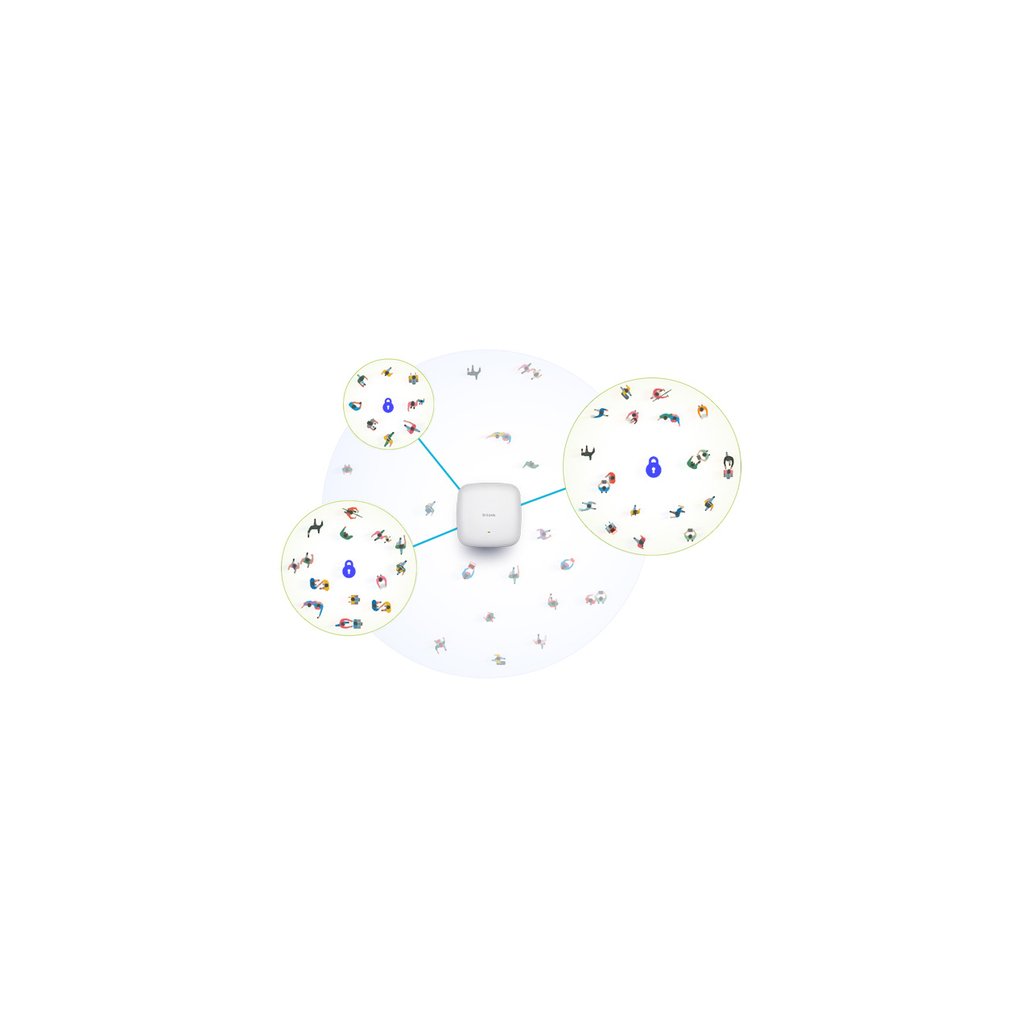

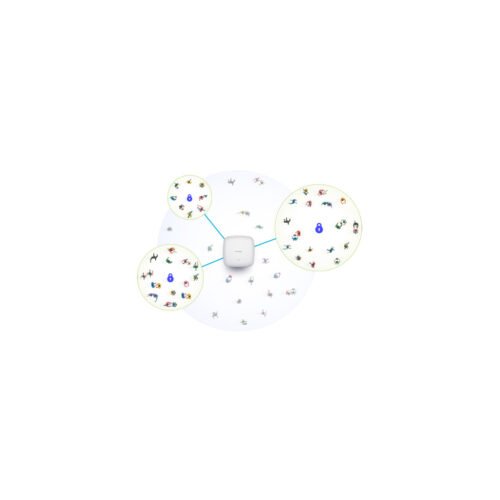

Seamlessly connect entire crowds to a safer and faster internet.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.
Your network, your way.
Customise the network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.

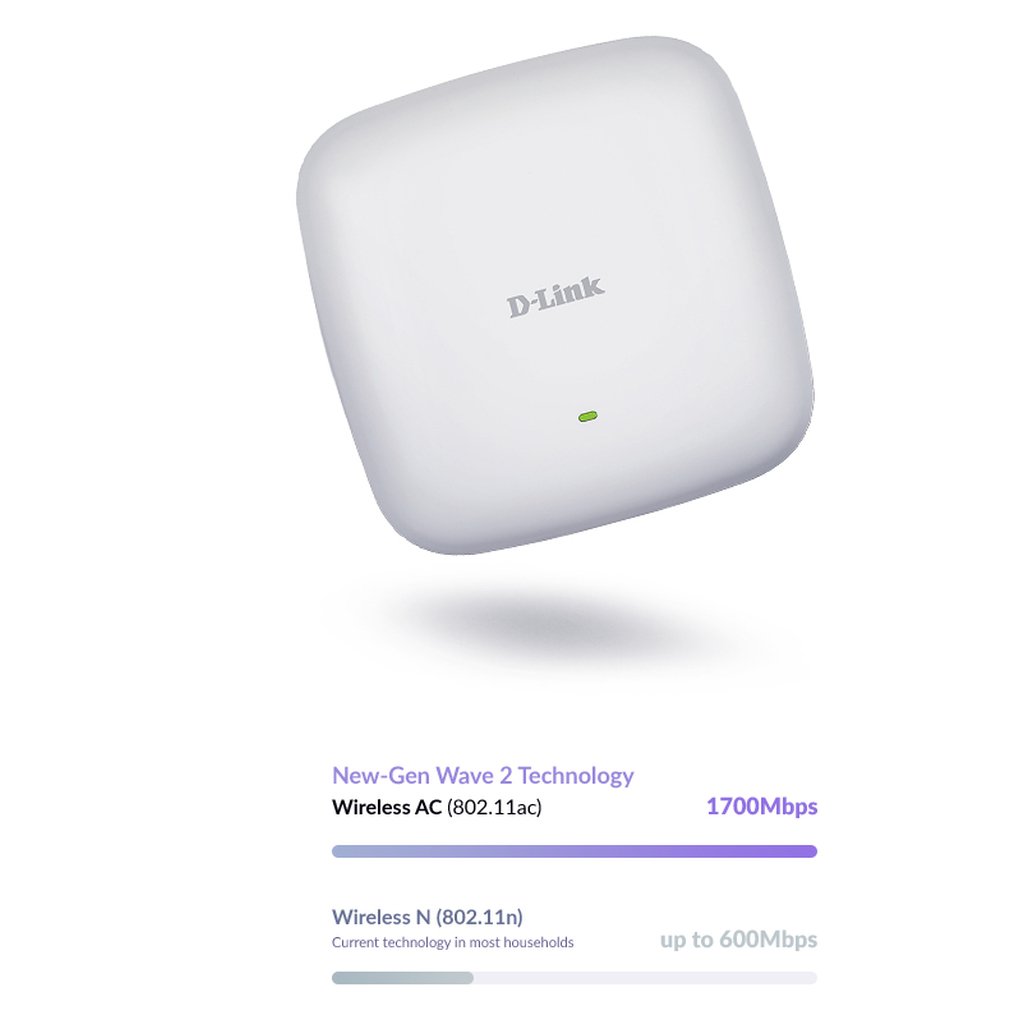

Reliably faster Wireless AC performance.
Delivers reliable wireless speed with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band, and also optimises your network’s performance with Quality of Service (QoS), MU-MIMO, Band Steering and Beamforming.
Scale your Wi‑Fi alongside your business.
The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points, providing a cost-effective network that can be tailored to the demands of the business.
Additional information
Weight | 0.92 lbs |
---|---|
2.4 GHz | Yes |
5 GHz | Yes |
Maximum data transfer rate | 1700 Mbit/s |
Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
Maximum data transfer rate (5 GHz) | 1700 Mbit/s |
Frequency band | 2.4 – 5 GHz |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
MIMO | Yes |
MIMO type | Multi User MIMO |
VLAN support | Yes |
Quality of Service (QoS) support | Yes |
Security algorithms | 64-bit WEP, 128-bit WEP, WPA2 |
MAC address filtering | Yes |
Web-based management | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Power over Ethernet (PoE) | Yes |
Input current | 2.5 A |
Power consumption (max) | 15.5 W |
Placement | Ceiling, Wall |
Product colour | White |
LED indicators | Power, Status |
Antenna type | Internal |
Antenna gain level (max) | 4.8 dBi |
Width | 190 mm |
Depth | 190 mm |
Height | 43.7 mm |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Service Set Identifier (SSID) features | SSID broadcast |
Number of SSID supported | 16 |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Certification | FCC, CE, UL |
Operating relative humidity (H-H) | 10 – 90% |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -20 – 65 °C |
Storage relative humidity (H-H) | 5 – 95% |
Weight | 551.6 g |
Cabling technology | 10/100/1000Base-T(X) |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Auto Wireless Distribution System (WDS) | Yes |
AC input voltage | 12 V |
Management protocols | Telnet, SSH |
Harmonized System (HS) code | 85176990 |
Virtual LAN features | Multiple VXLAN (MUX VLAN) |
Mean time between failures (MTBF) | 341897 h |
