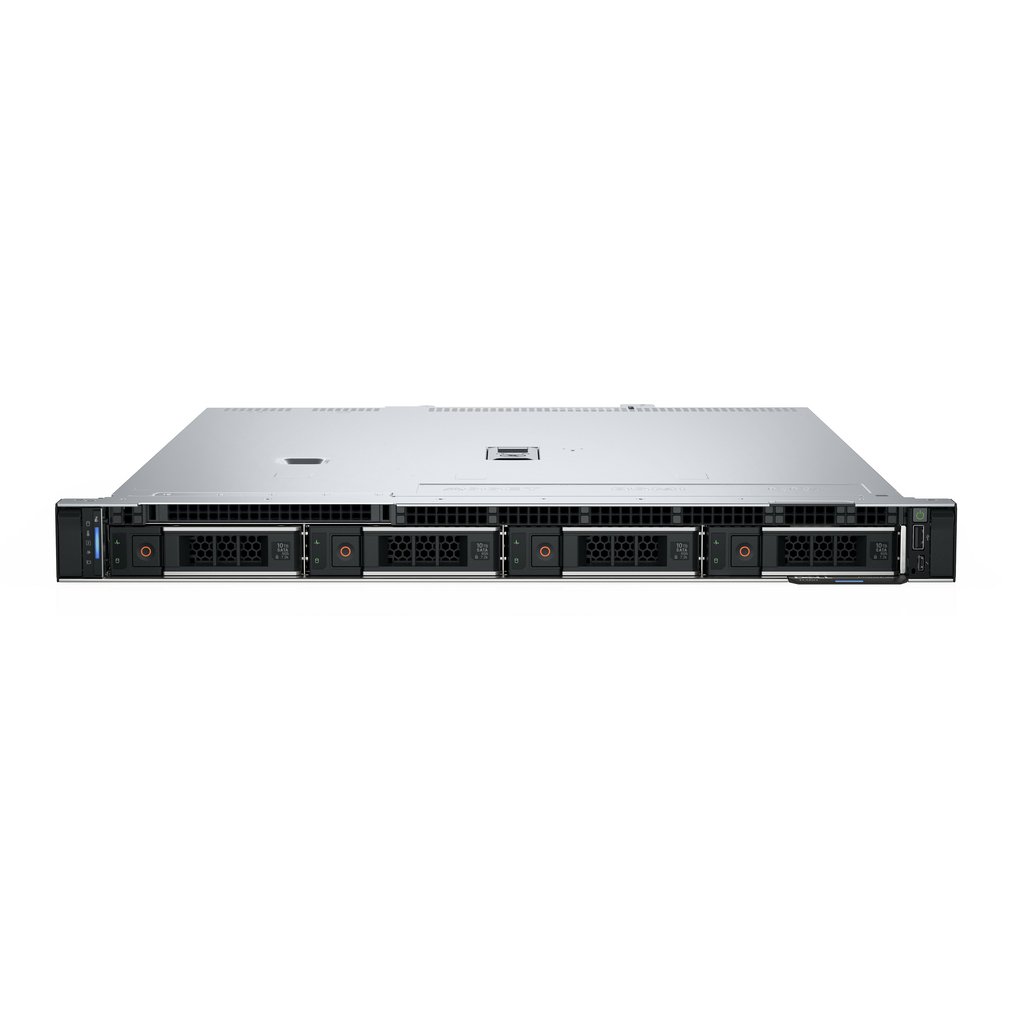

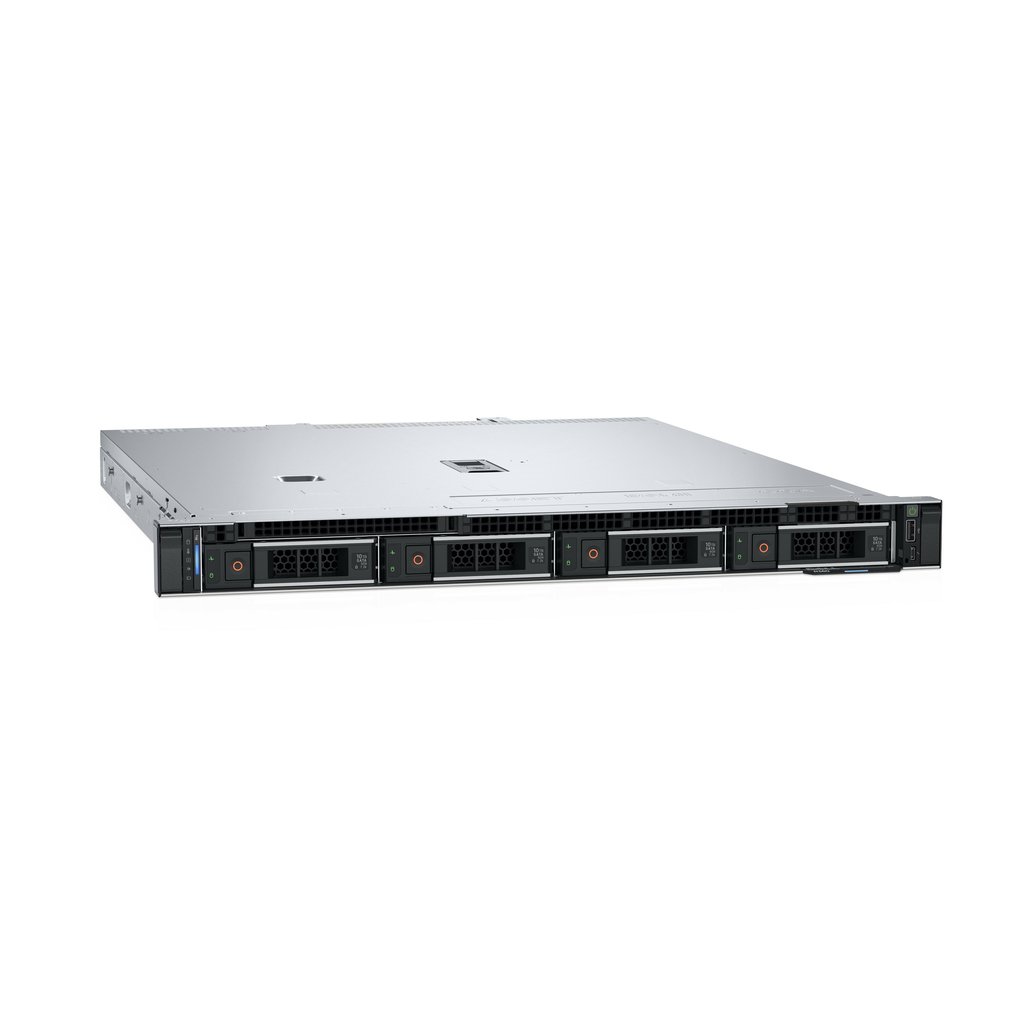

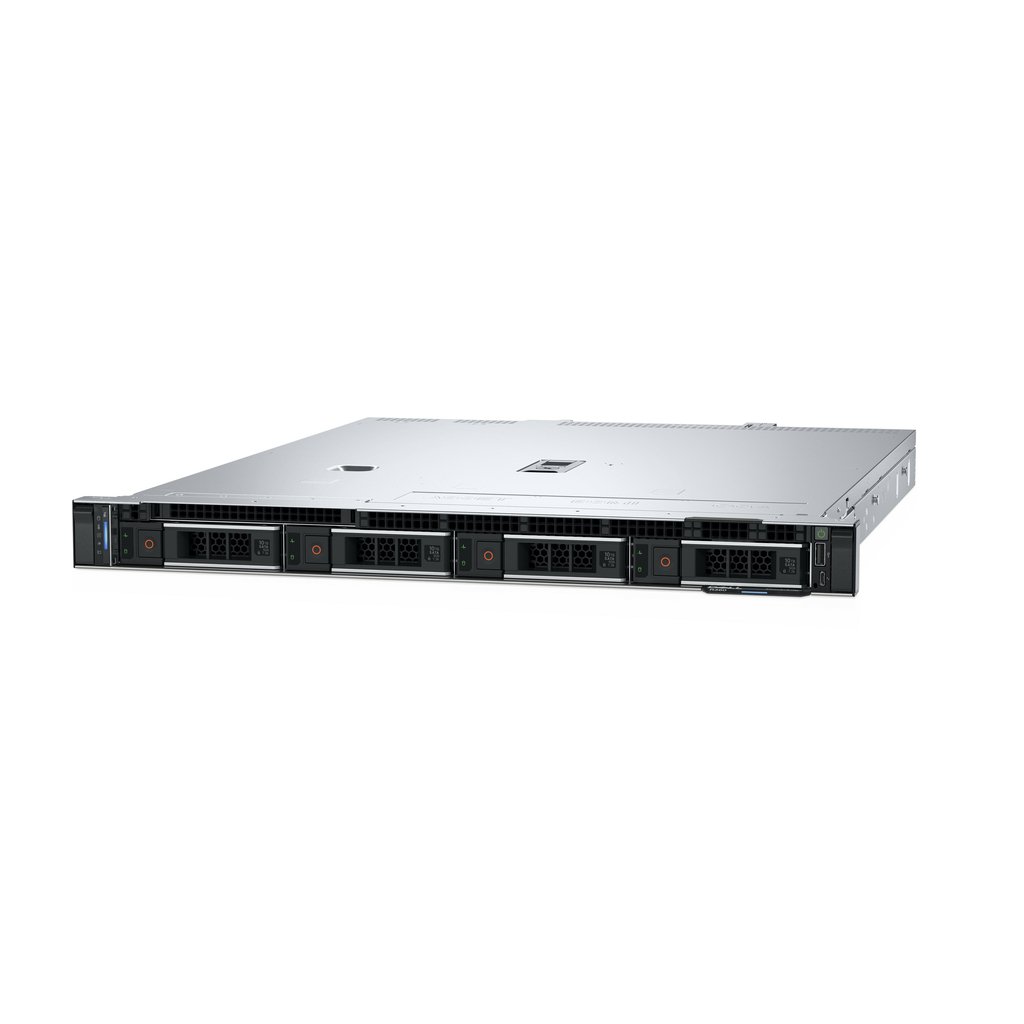

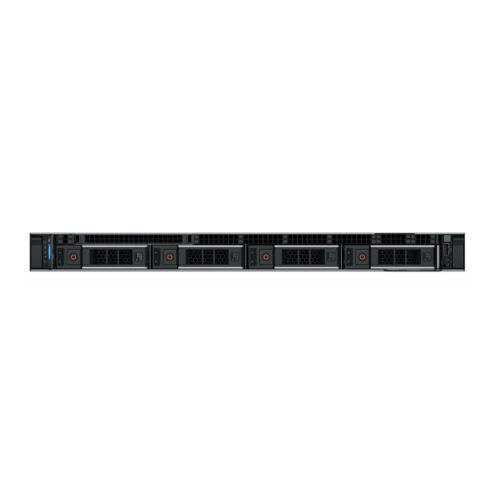

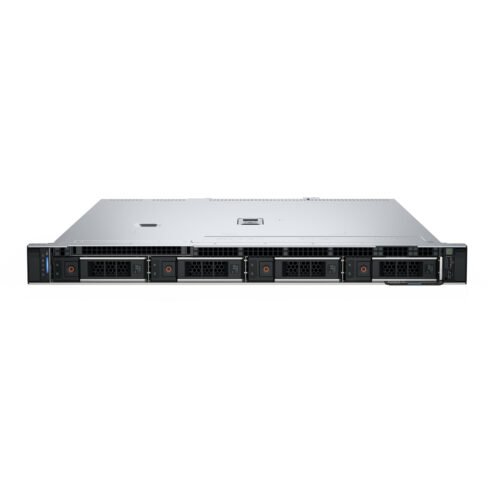

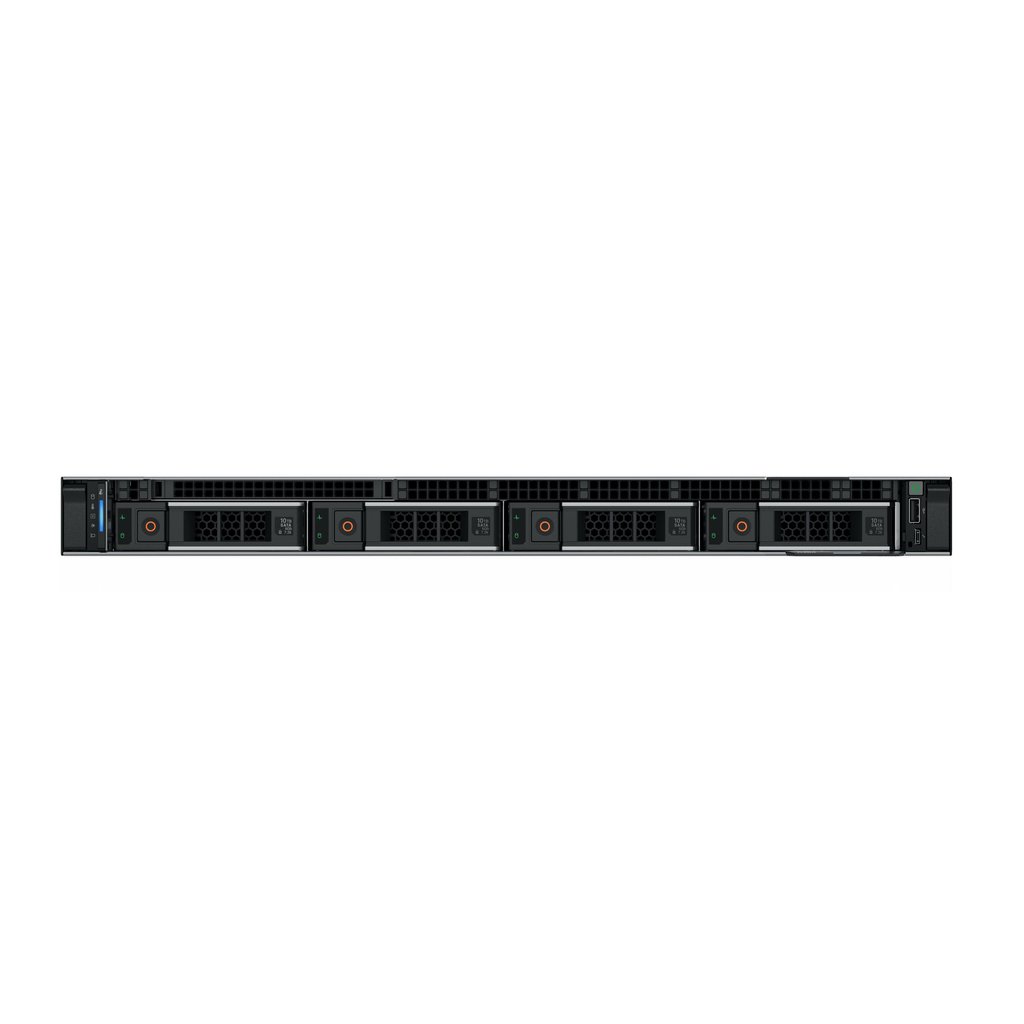

DELL PowerEdge R360 server 480 GB Rack (1U) Intel Xeon E E-2414 2.6 GHz 16 GB DDR5-SDRAM 700 W
Intel Xeon E-2414 (12MB Cache, 2.6GHz), 16GB DDR5-SDRAM, 480GB SSD, LAN (Broadcom 5720), PERC H355, iDRAC9, Enterprise 16G, 700W, No OS
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Processing performance, GPU support
The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
Additional information
| Weight | 16.42 lbs |
|---|---|
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Processor model | E-2414 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 128 GB |
| ECC | Yes |
| RAID support | Yes |
| Optical drive type | No |
| Supported RAID controllers | PERC H355 |
| Internal drive bays | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis type | Rack (1U) |
| Compatible operating systems | Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Redundant power supply (RPS) support | No |
| Power supply | 700 W |
| Number of redundant power supplies supported | 1 |
| Width | 482 mm |
| Height | 42.8 mm |
| Performance cores | 4 |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Serial ports quantity | 1 |
| Product colour | Black, Silver |
| Power supply input voltage | 200 – 240 V |
| Power supply input frequency | 50/60 Hz |
| Storage temperature (T-T) | -40 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| 80 PLUS certification | 80 PLUS Titanium |
| Motherboard chipset | Intel C262 |
| Operating system installed | No |
| Thermal Design Power (TDP) | 55 W |
| Processor threads | 4 |
| Buffered memory type | Unregistered (unbuffered) |
| Memory data transfer rate | 5600 MT/s |
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" – 3.5" |
| Rack rails | Yes |
| Bezel | Yes |
| Remote administration | iDRAC9, Enterprise 16G |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
| Non-operating altitude | 0 – 12000 m |
| Total carbon footprint (kg of CO2e) | 1140 |
| Total carbon emissions, standard deviation (kg of CO2e) | 943 |
| Carbon emissions, manufacturing (kg of CO2e) | 307.8 |
| Carbon emissions, logistics (kg of CO2e) | 102.6 |
| Carbon emissions, energy usage (kg of CO2e) | 718.2 |
| Carbon emissions, end-of-life (kg of CO2e) | 11.4 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 421.8 |
| PAIA version | 1.4.0, 2024 |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Target workload | Read Intensive (RI) |
| Supported storage drives form factor (internal) | 3.5" |
