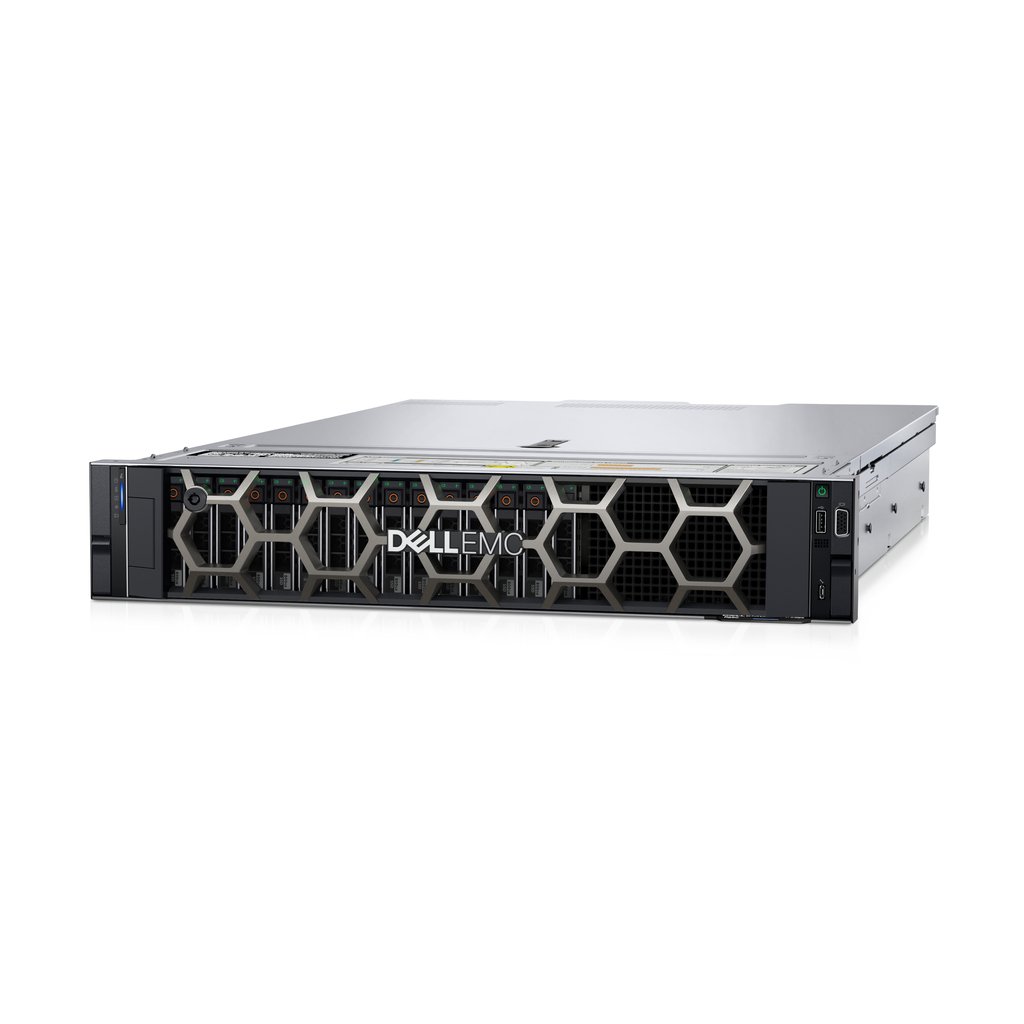

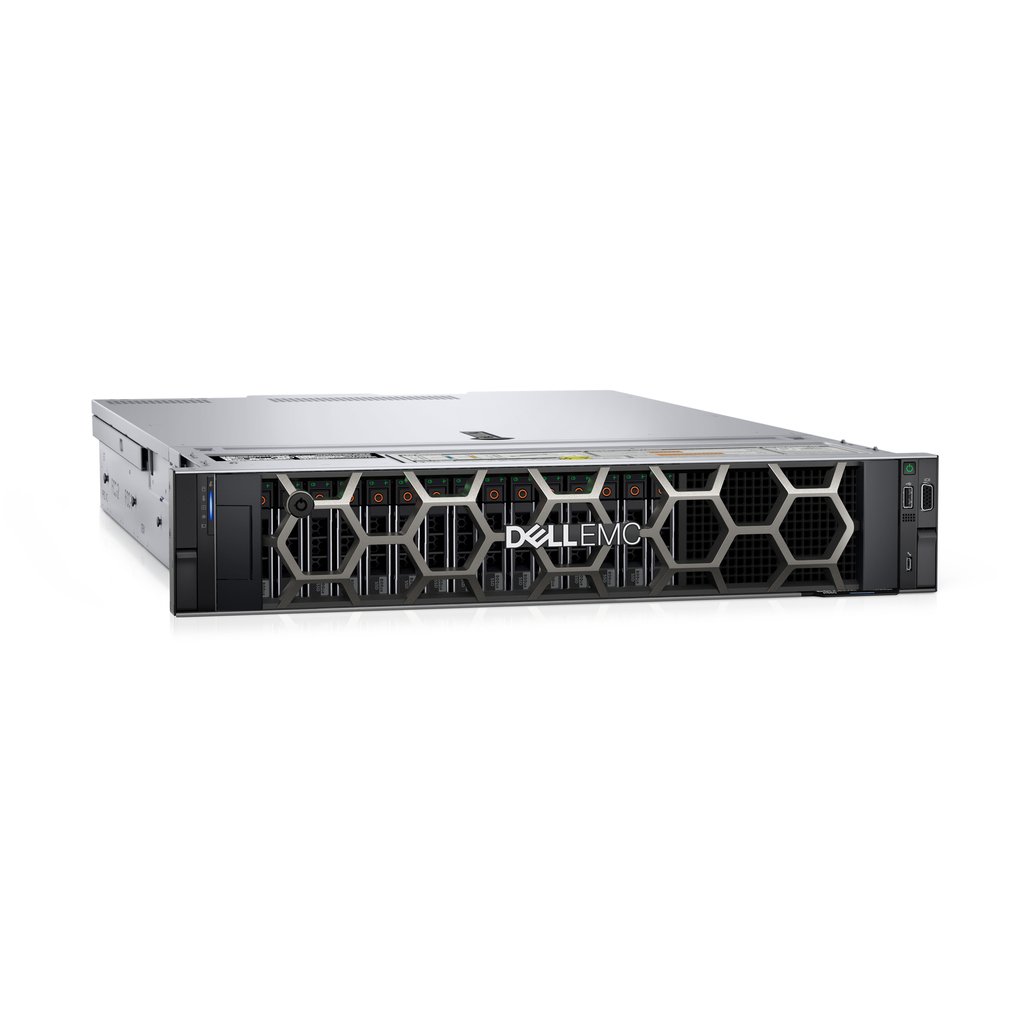

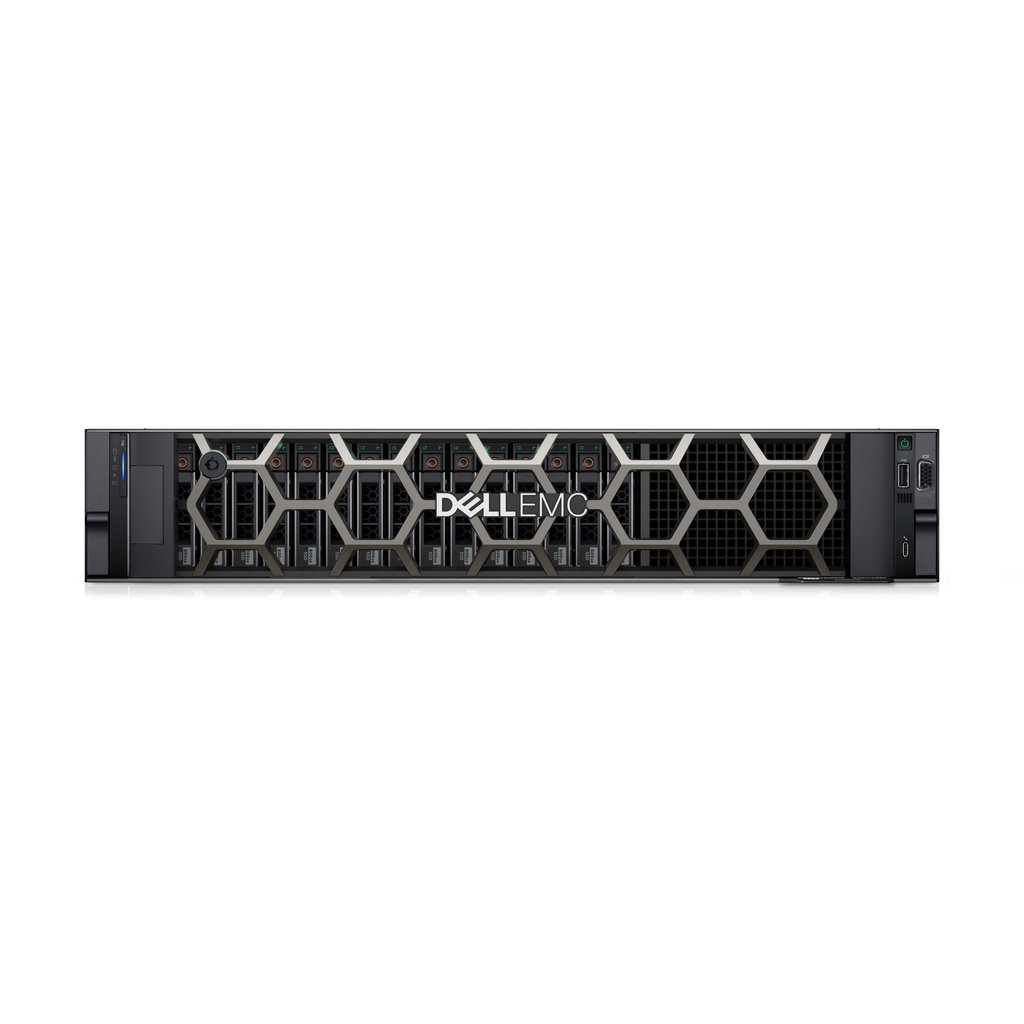

DELL PowerEdge R550 server 480 GB Rack (2U) Intel Xeon Silver 4309Y 2.8 GHz 16 GB DDR4-SDRAM 1100 W
Intel Xeon Silver 4309Y (12MB Cache, 2.8GHz), 16GB DDR4-SDRAM (2933MHz), 480GB SSD, LAN (Broadcom 57412), PERC H755, iDRAC9, Enterprise 15G, 2 x 1100W, No OS
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
2U value-optimized server for added versatility
The Dell EMC PowerEdge R550, with 3rd generation Intel® Xeon® Scalable processors, offers added flexibility for organizations seeking exceptional value.
Additional information
| Weight | 25 lbs |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Processor model | 4309Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 1 TB |
| Memory slots | 16x DIMM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| RAID support | Yes |
| Optical drive type | No |
| Supported RAID controllers | PERC H755 |
| Internal drive bays | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| Chassis type | Rack (2U) |
| Compatible operating systems | Canonical Ubuntu Server LTSCitrix HypervisorMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 2 |
| Width | 482 mm |
| Depth | 721.7 mm |
| Height | 86.8 mm |
| Supported storage drive interfaces | SAS, Serial ATA |
| LAN controller | Broadcom 57412 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | 10 Gigabit Ethernet |
| Product colour | Black |
| Power supply input voltage | 100 – 240 V |
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating relative humidity (H-H) | 8 – 80% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3048 m |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Memory ranking | 2 |
| Operating system installed | No |
| Number of redundant power supplies installed | 2 |
| Processor threads | 16 |
| Buffered memory type | Registered (buffered) |
| Memory data transfer rate | 3200 MT/s |
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Rack rails | Yes |
| Bezel | Yes |
| Remote administration | iDRAC9, Enterprise 15G |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
| Non-operating altitude | 0 – 12000 m |
| Total carbon footprint (kg of CO2e) | 8790 |
| Total carbon emissions, standard deviation (kg of CO2e) | 4760 |
| Carbon emissions, manufacturing (kg of CO2e) | 1017.8 |
| Carbon emissions, logistics (kg of CO2e) | 162 |
| Carbon emissions, energy usage (kg of CO2e) | 7580 |
| Carbon emissions, end-of-life (kg of CO2e) | 25.9 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 1210 |
| PAIA version | 1.3.2, 2022 |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Supported storage drives form factor (internal) | 3.5" |
| Efficient-core base frequency | 0.0028 GHz |
| Performance-core base frequency | 2.8 GHz |
| System bus rate | 10.4 GT/s |
| Maximum internal memory supported by processor | 512 GB |
