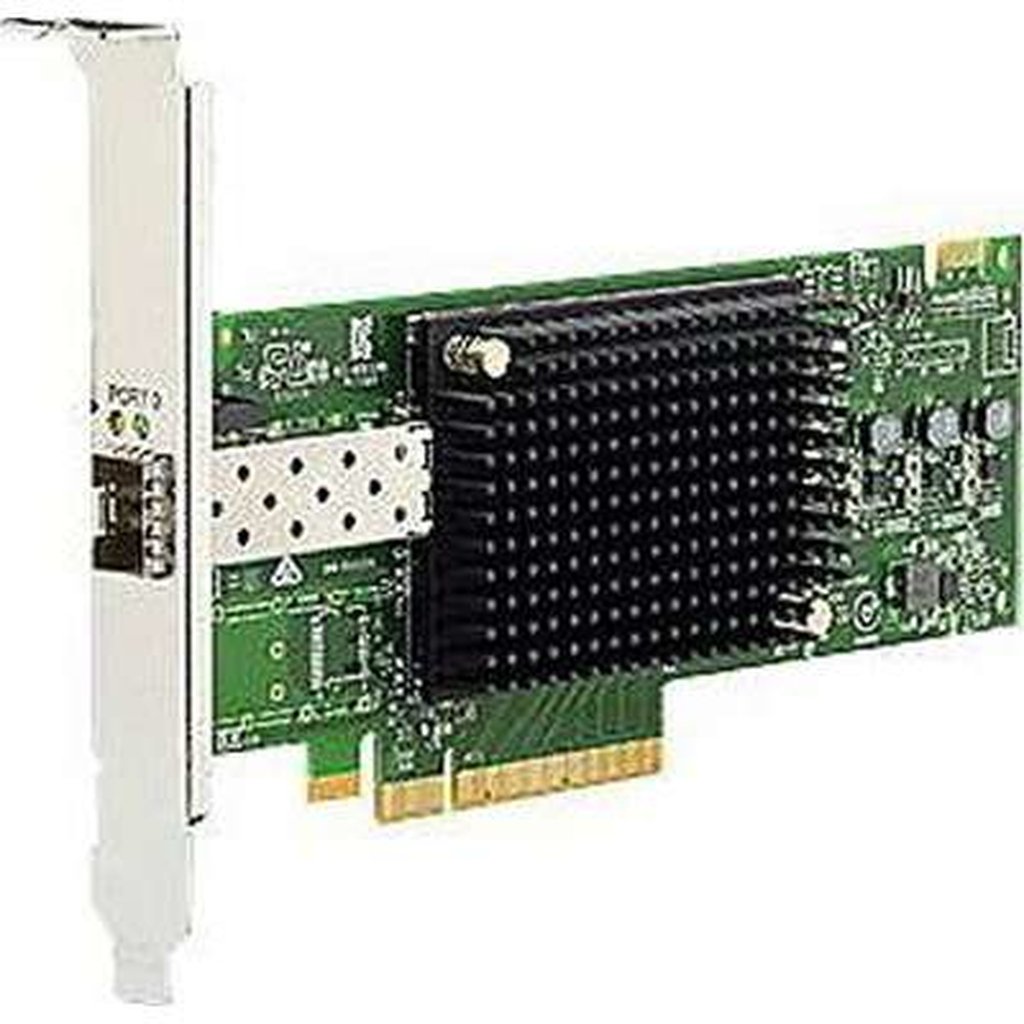

Lenovo 01CV830 network card Internal Fiber 16000 Mbit/s
Emulex 16Gbps Gen 6 FC Single-Port HBA Adaper for Lenovo System X Servers
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Additional information
| Weight | 0.28 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCIe |
| Interface | Fiber |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Depth | 168 mm |
| Height | 69 mm |
| Quantity per pack | 1 pc(s) |
| PCI version | 3.0 |
| Maximum data transfer rate | 16000 Mbit/s |
| Component for | Server |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Linux operating systems supported | RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0 |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Mounting brackets included | Yes |
| Fiber ports quantity | 1 |
| Fiber optic connector | FC, SFP+ |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Certification | AS/NZS CISPR22:2009+A1, Class AAustralian EMC Framework (RCM)cUR recognized to CSA 22.2, No. 60950-1-07EN55022:2010, Class AEN55024:2010EN55032:2012EU (CE Mark)FCC Rules, Part 15, Class AIndustry Cana |
| Other operating systems supported | VMware vSphere ESXi |
| Compatible products | System x3500 M5 Type 5464System x3550 M5 Type 5463System x3550 M5 Type 8869System x3650 M5 Type 5462System x3650 M5 Type 8871System x3750 M4 Type 8753System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4 |
| Full duplex | Yes |
| Low-profile bracket | Yes |
| Maximum operating distance | 150 m |
| Mean time between failures (MTBF) | 10000000 h |
| Hot-Plug support | Yes |
| Package type | Box |
| PCI-SIG* SR-IOV Capable | Yes |
| Hot-swap | Yes |
| Web-based management | Yes |
| Rack mounting | Yes |
| Rack capacity | 2U |
