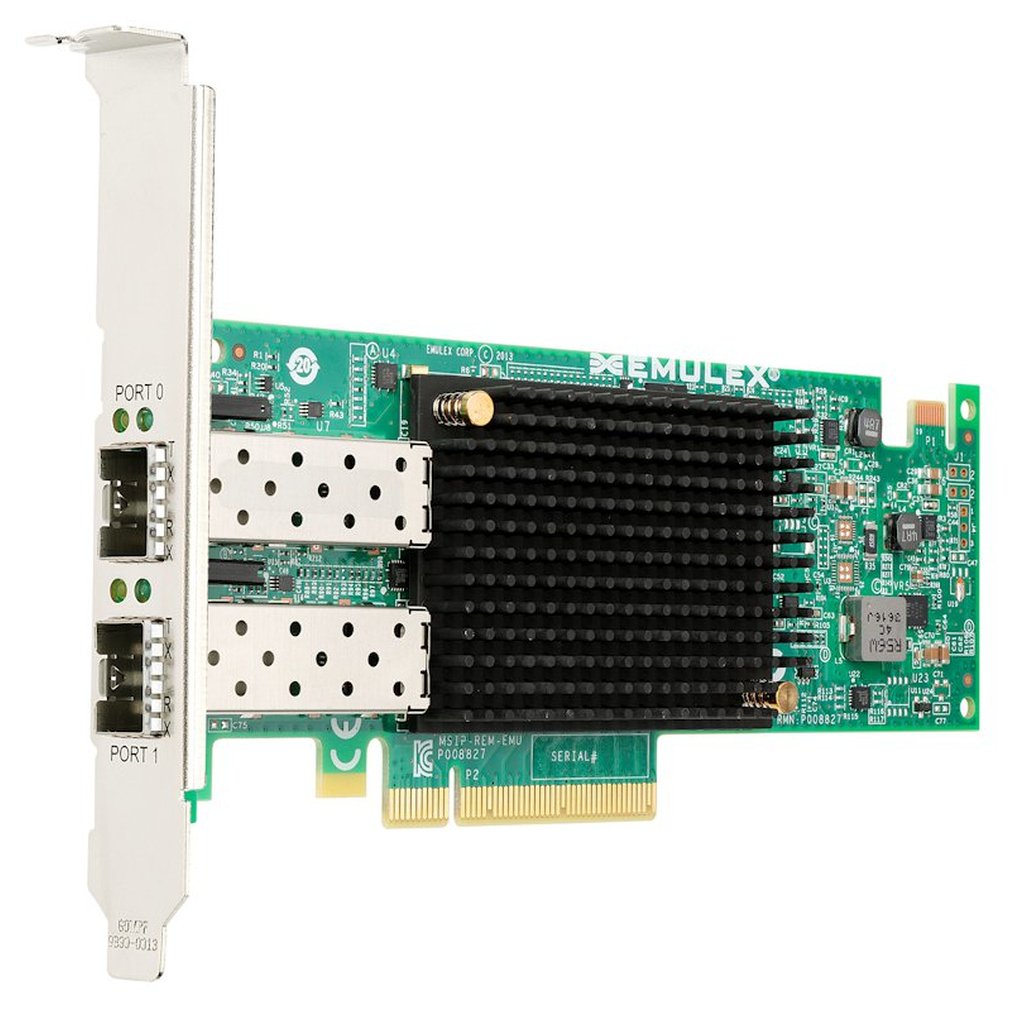

Lenovo 00AG580 network card Internal Fiber 10000 Mbit/s
Emulex VFA5.2 2×10 GbE SFP+ Adapter and FCoE/iSCSI SW
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for System x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These new features help reduce complexity, reduce cost, and improve performance with Lenovo servers.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Internal | Yes |
| Width | 69 mm |
| Depth | 17 mm |
| Height | 167 mm |
| Maximum data transfer rate | 10000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Networking standards | IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Package weight | 450 g |
| Compatible products | x3550 M5 x3650 M5x3850 X6/x3950 X6nx360 M5x3750 M4x3850 X6/x3950 X6 |
| Quality of Service (QoS) support | Yes |
| Power consumption (typical) | 14.4 W |
| VLAN tagging | Yes |
| Receive Side Scaling (RSS) | Yes |
| iSCSI support | Yes |
