Lenovo 00AG570 network card Internal Fiber 10000 Mbit/s

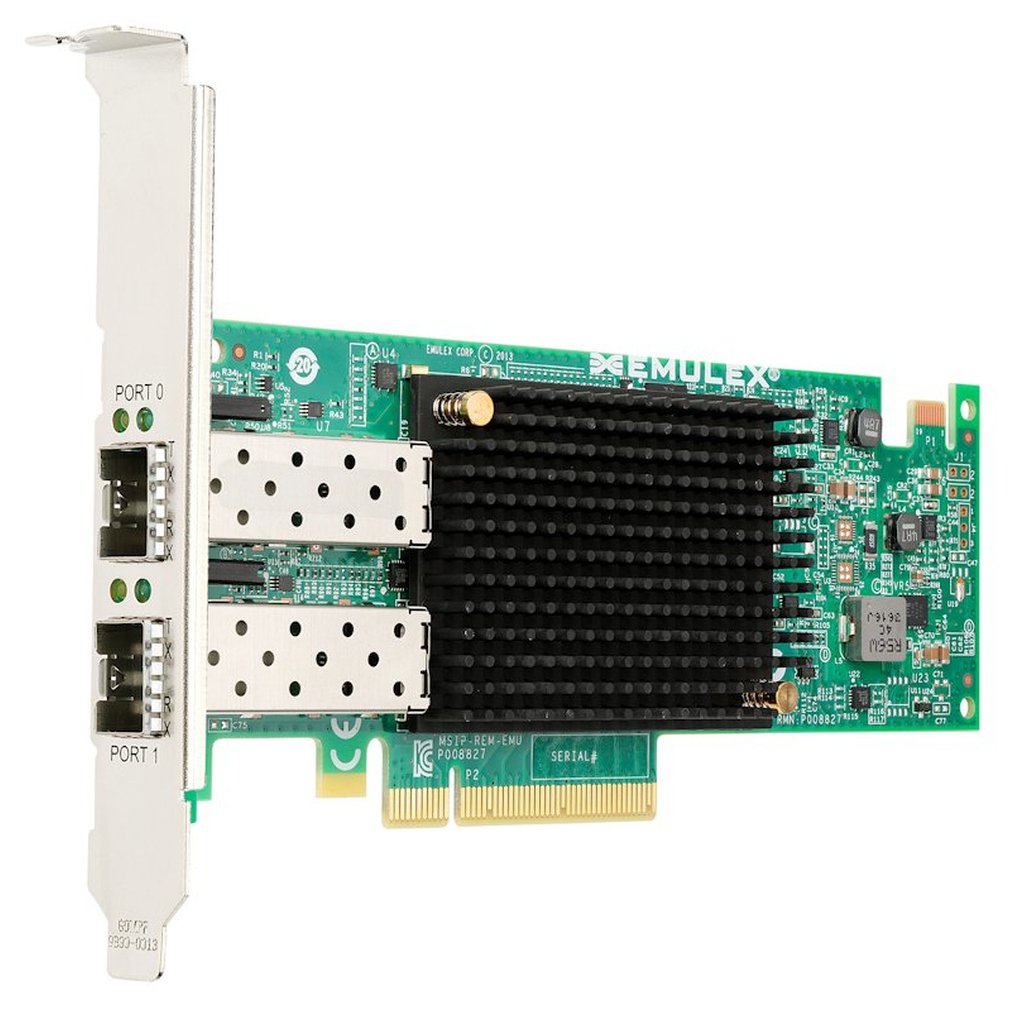

Emulex VFA5.2 2×10 GbE SFP+ PCIe Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Emulex VFA5.2 adapters support three methods to virtualize I/O, out of the box: Virtual Fabric Mode (vNIC1), Switch Independent mode (vNIC2) and Unified Fabric Port (UFP) mode. With Virtual Fabric, up to eight virtual network ports (vNICs) can be created with a single two-port 10 GbE network adapter.
On System x adapters, storage protocols such as iSCSI and FCoE are also supported by Features on Demand upgrades. Using a common hardware infrastructure for Ethernet and SAN and by virtualizing your network adapter, you can reduce your infrastructure capital expense.
Part number information
The part numbers to order these adapters are listed in the following table. The FCoE/iSCSI upgrade licenses are a Features on Demand field upgrade that enables full hardware offloaded converged networking capabilities of the adapters. Adapters 00AG580 and 01CV770 already includes the FCoE/iSCSI license.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Internal | Yes |
| Product colour | Black, Green |
| Width | 69 mm |
| Depth | 7 mm |
| Height | 167 mm |
| Quantity per pack | 1 pc(s) |
| PCI version | 3.0 |
| Maximum data transfer rate | 10000 Mbit/s |
| Component for | Server |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Flow control support | Yes |
| VLAN tagging | Yes |
| Receive Side Scaling (RSS) | Yes |
| iSCSI support | Yes |
