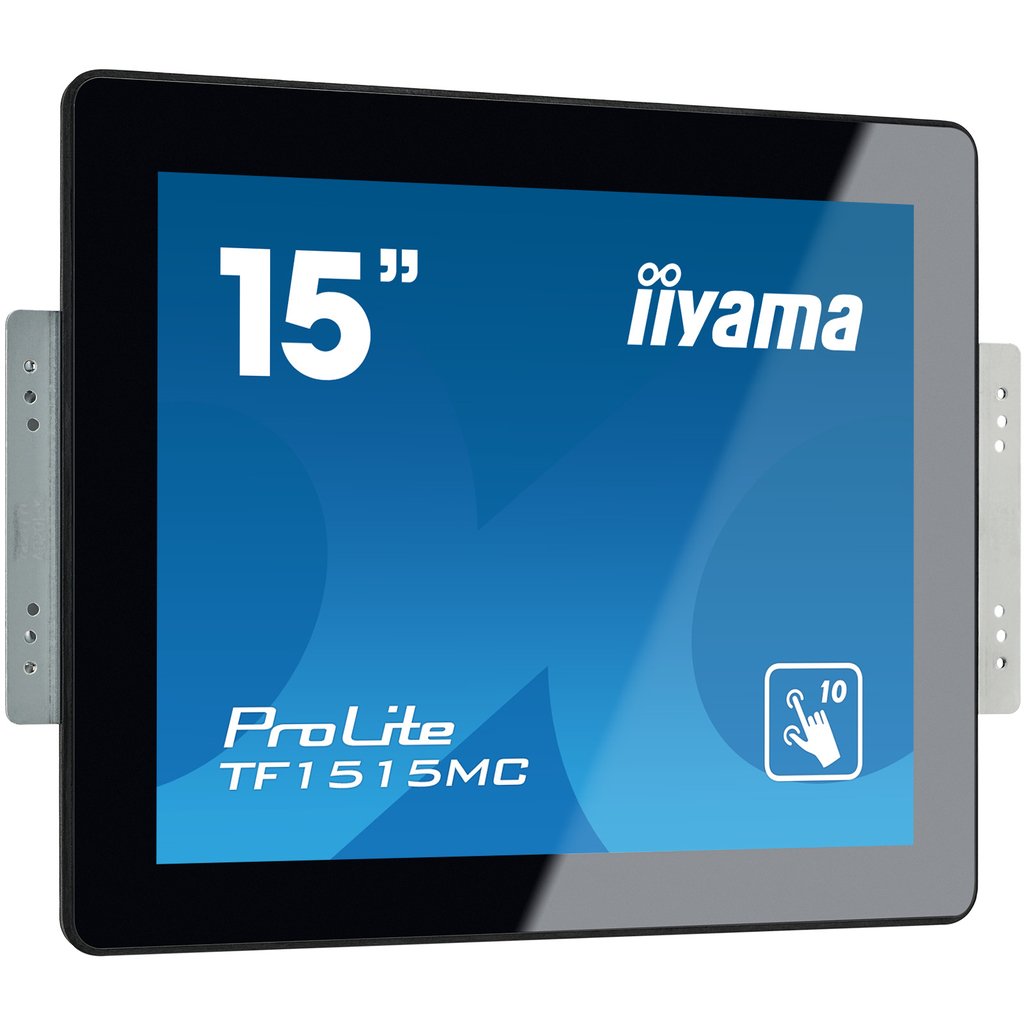

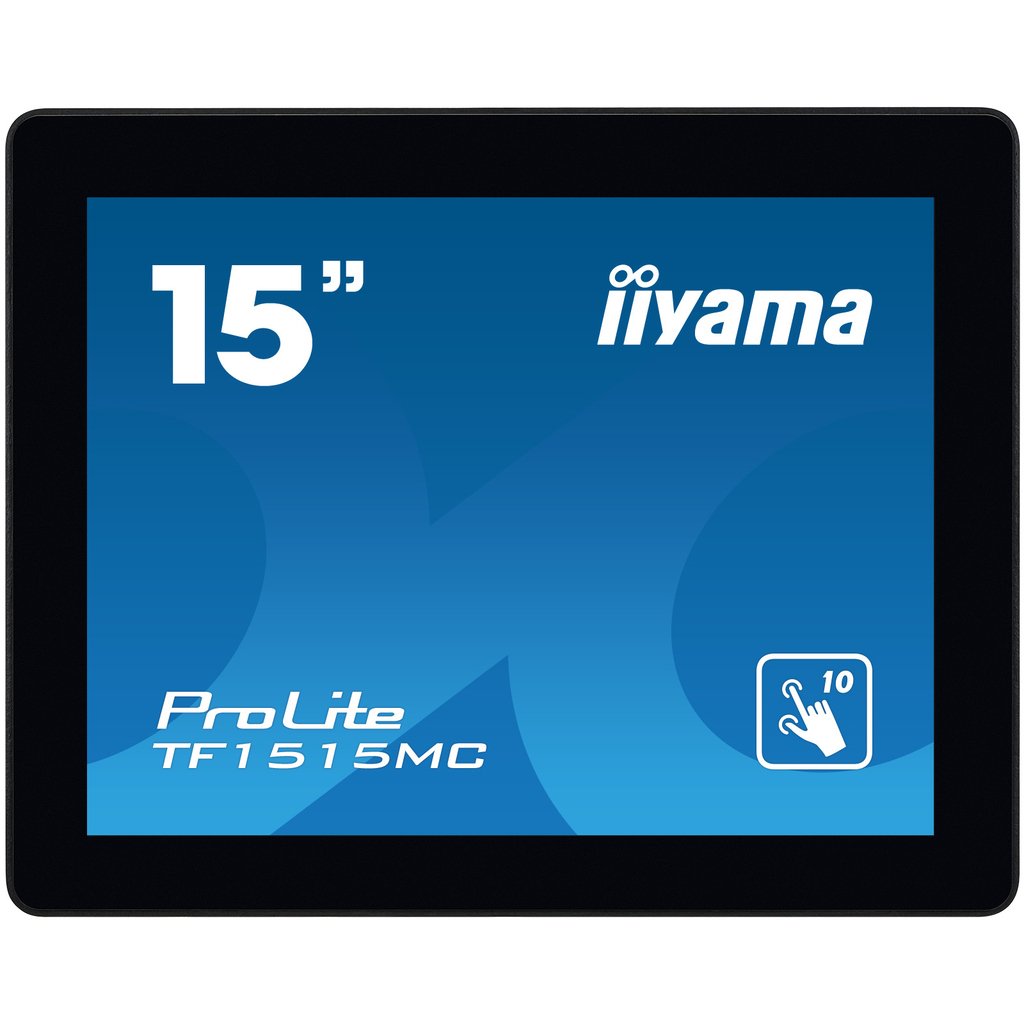

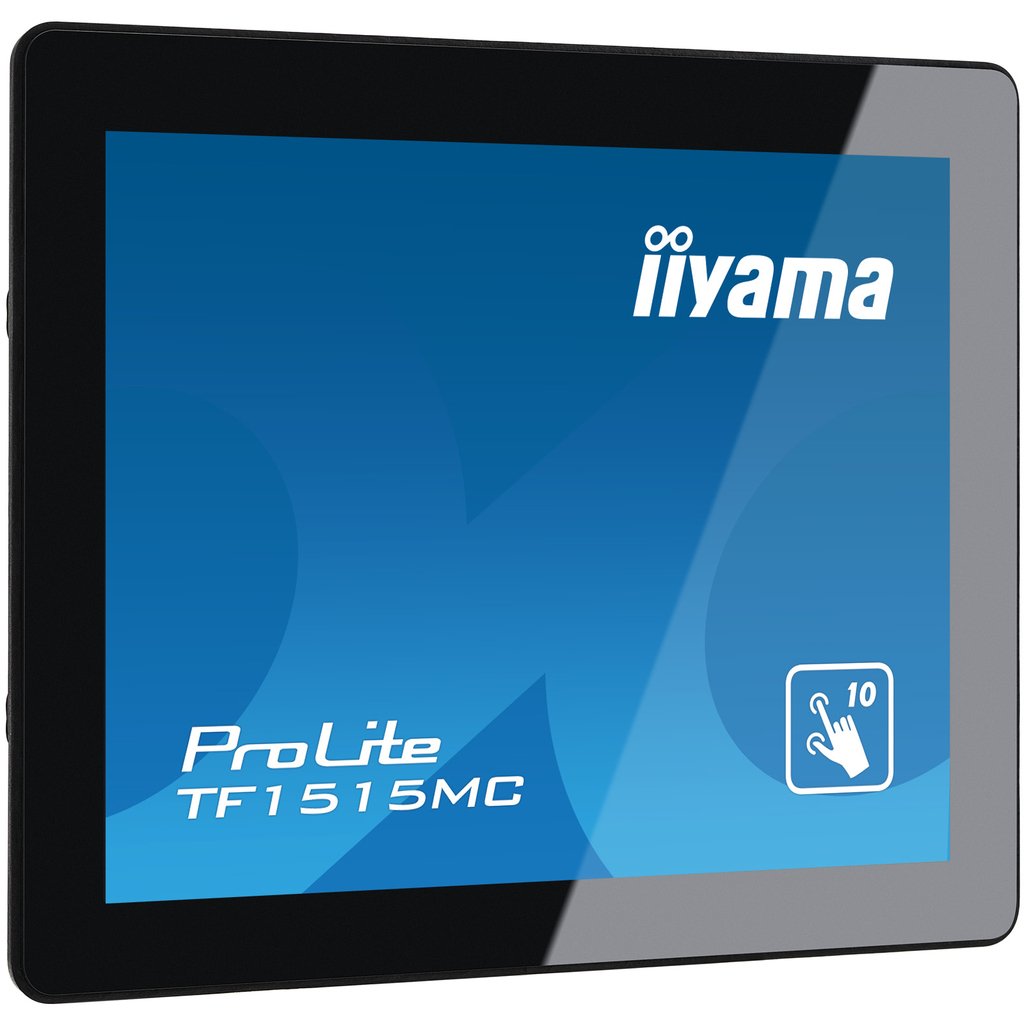

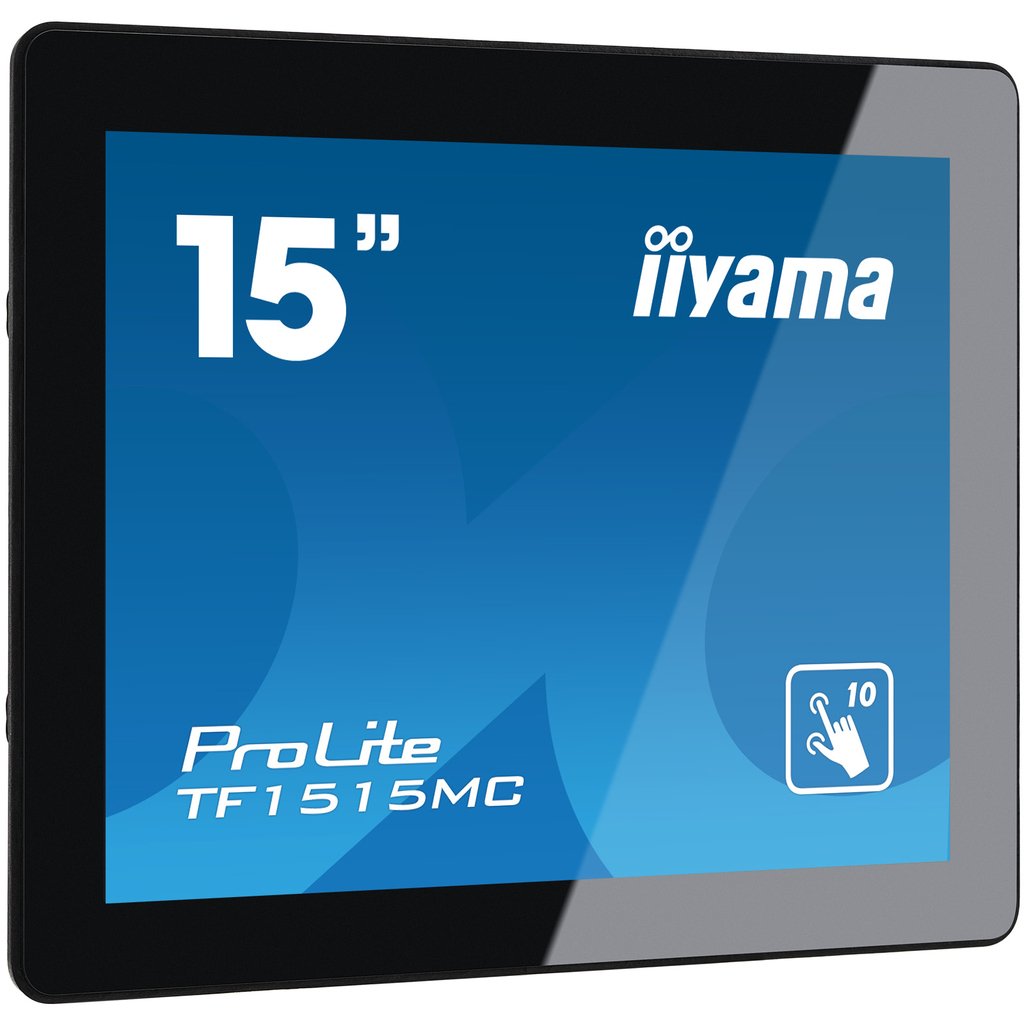

iiyama TF1515MC-B2 Signage Display 38.1 cm (15″) LED 350 cd/m² XGA Black Touchscreen

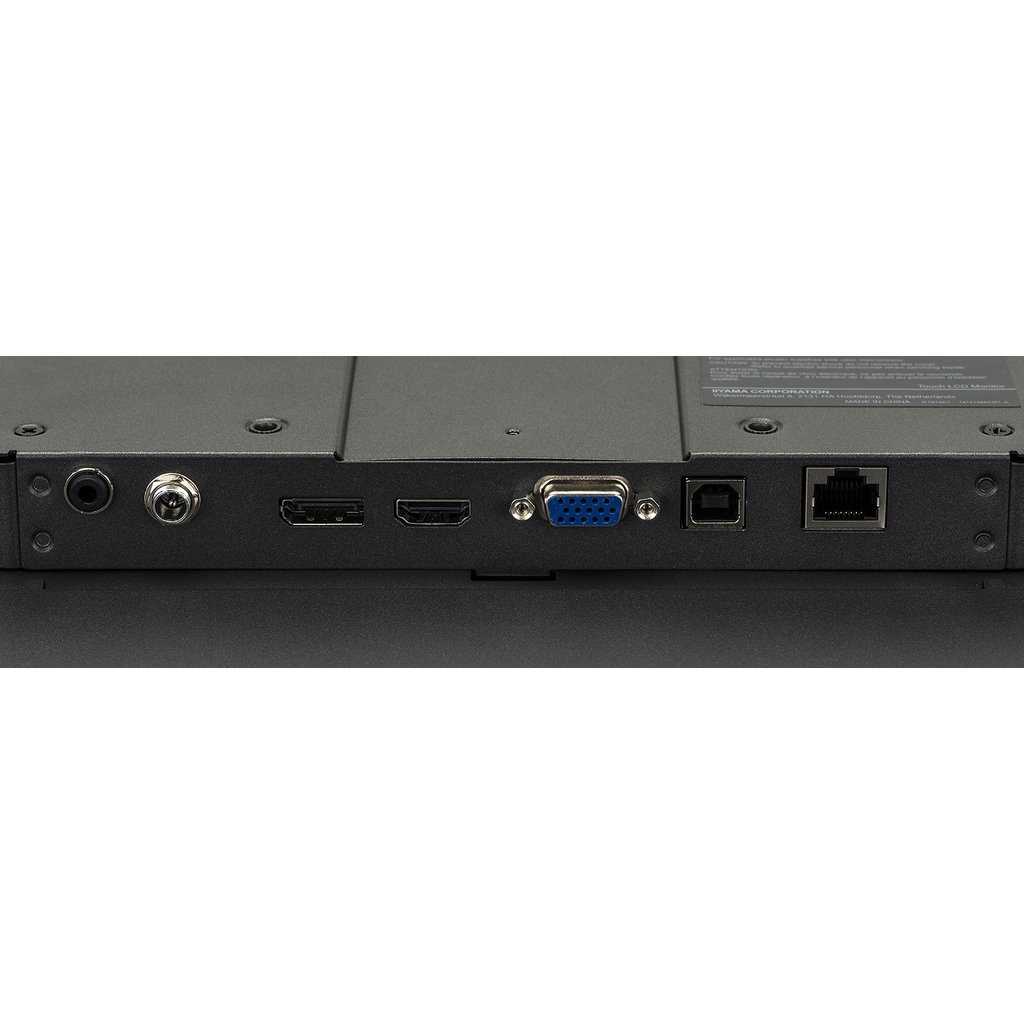

15″, 1024 x 768, 350 cd/m², 800:1, 56 – 75Hz, VGA x1, HDMI x1, DisplayPort x1, Mini jack x1, HDCP, 15kWh/annum
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Open Frame PCAP 10 point touch screen equipped with touch through glass function

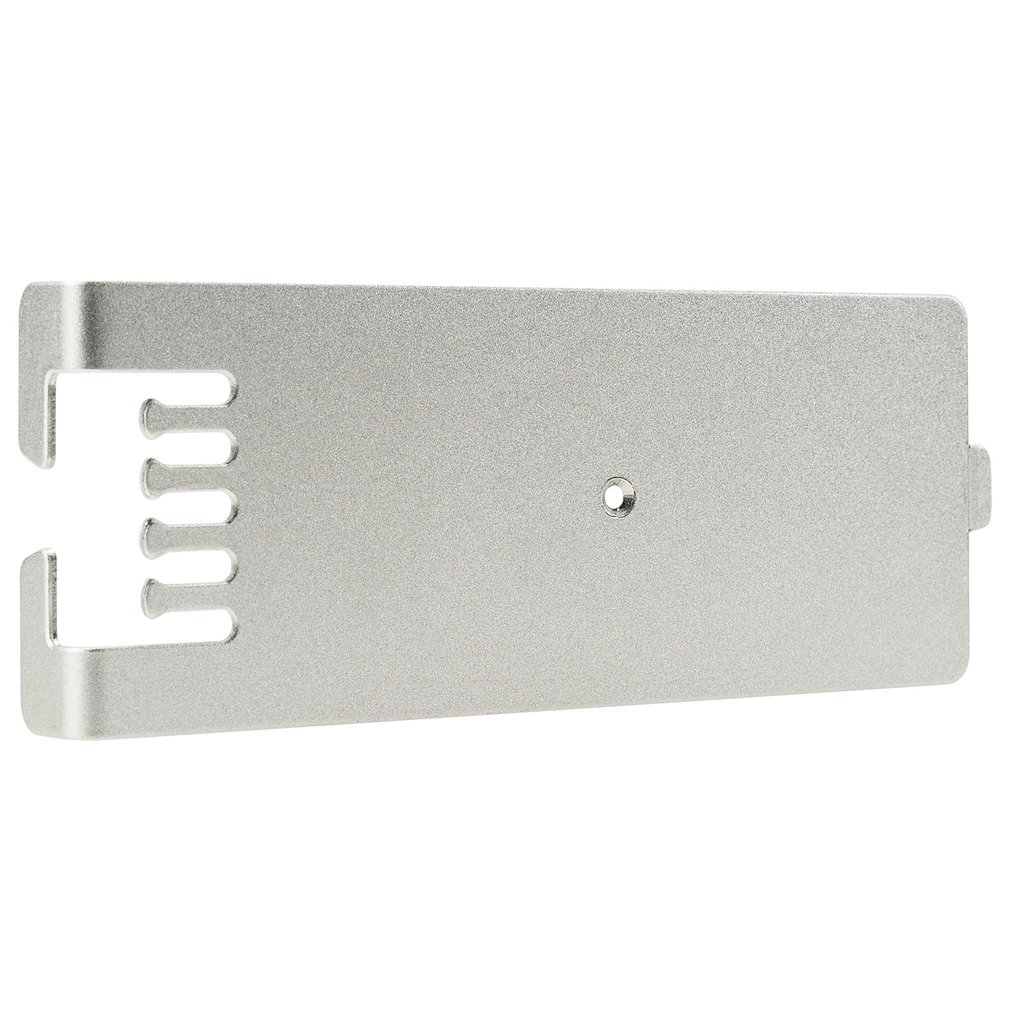

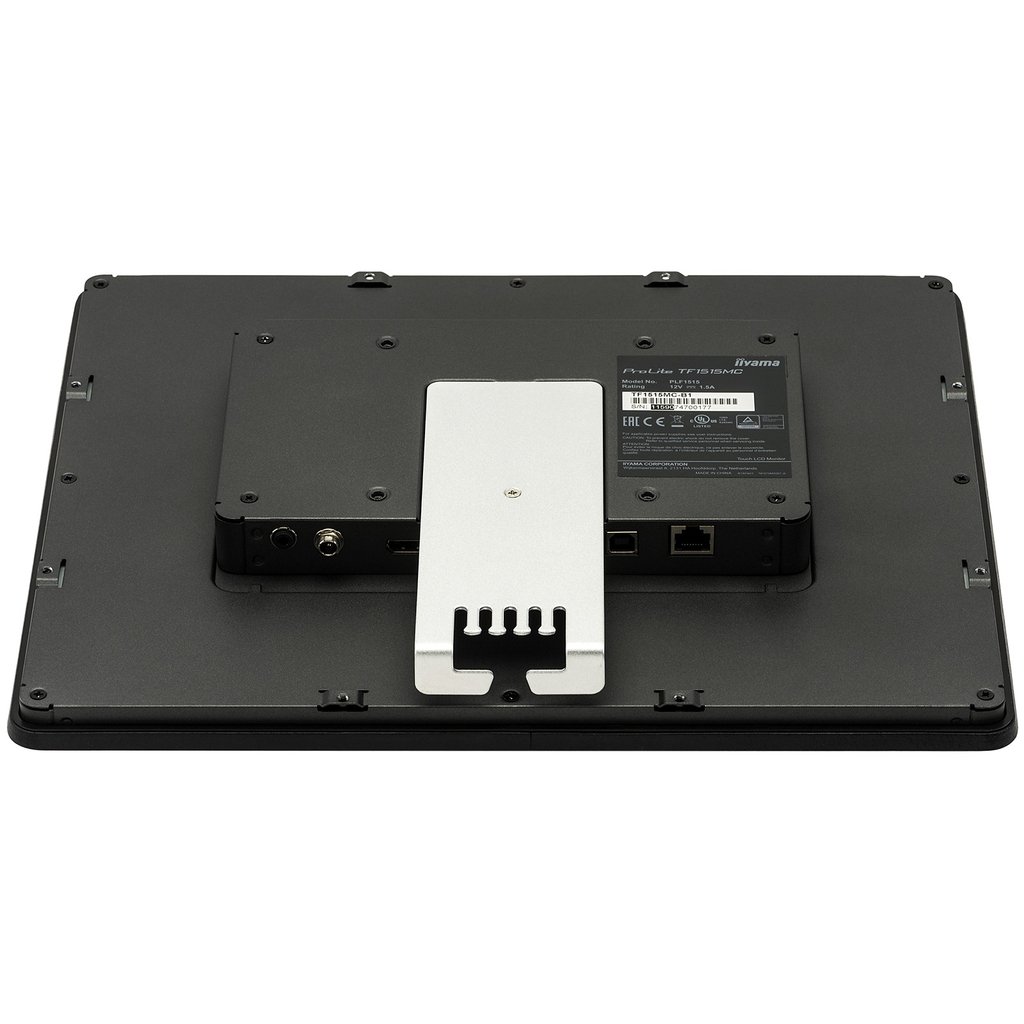

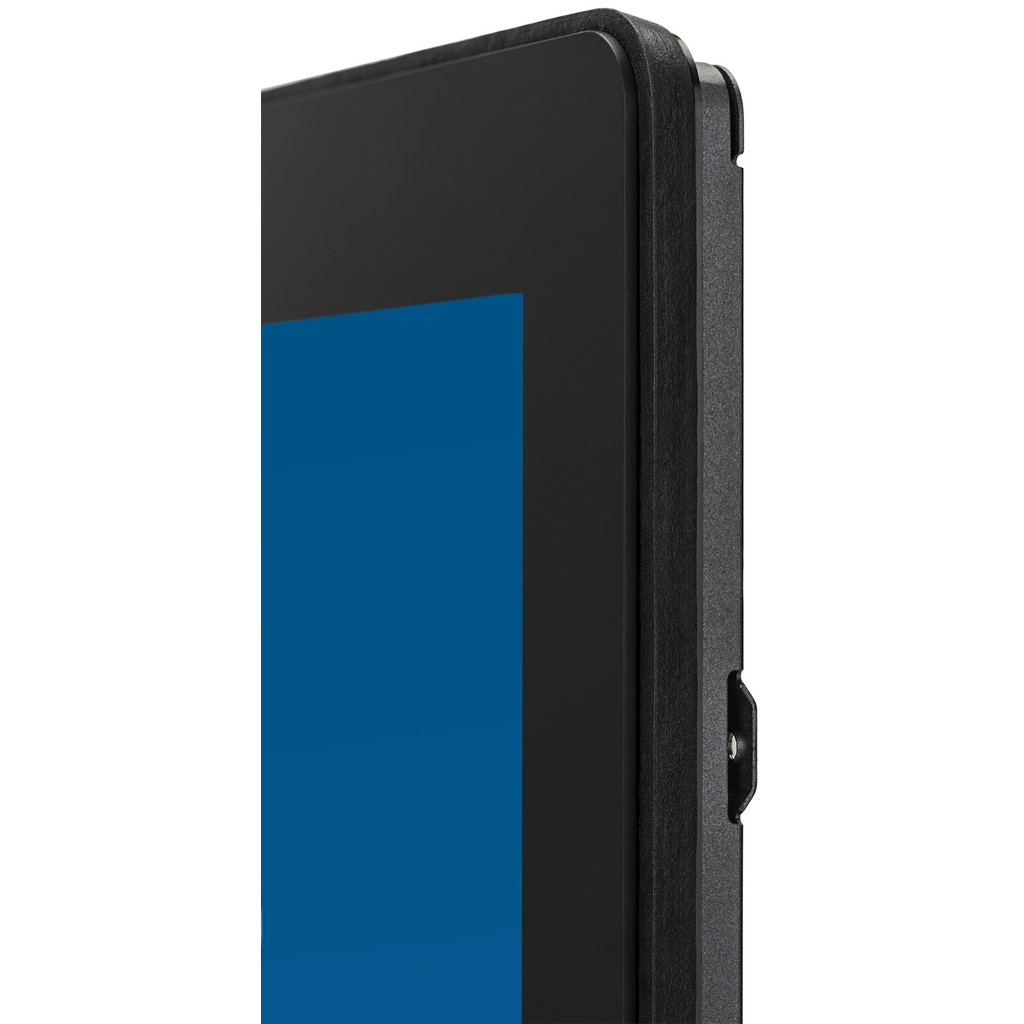

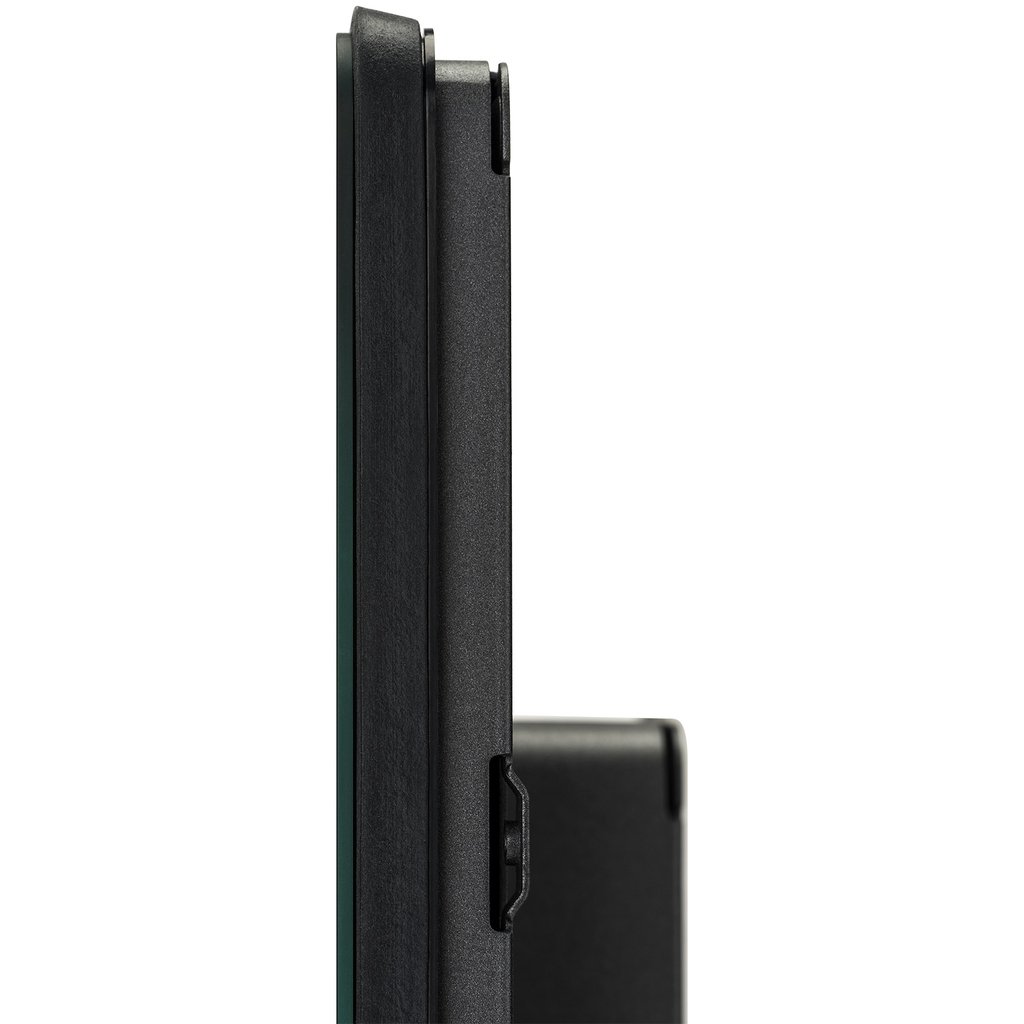

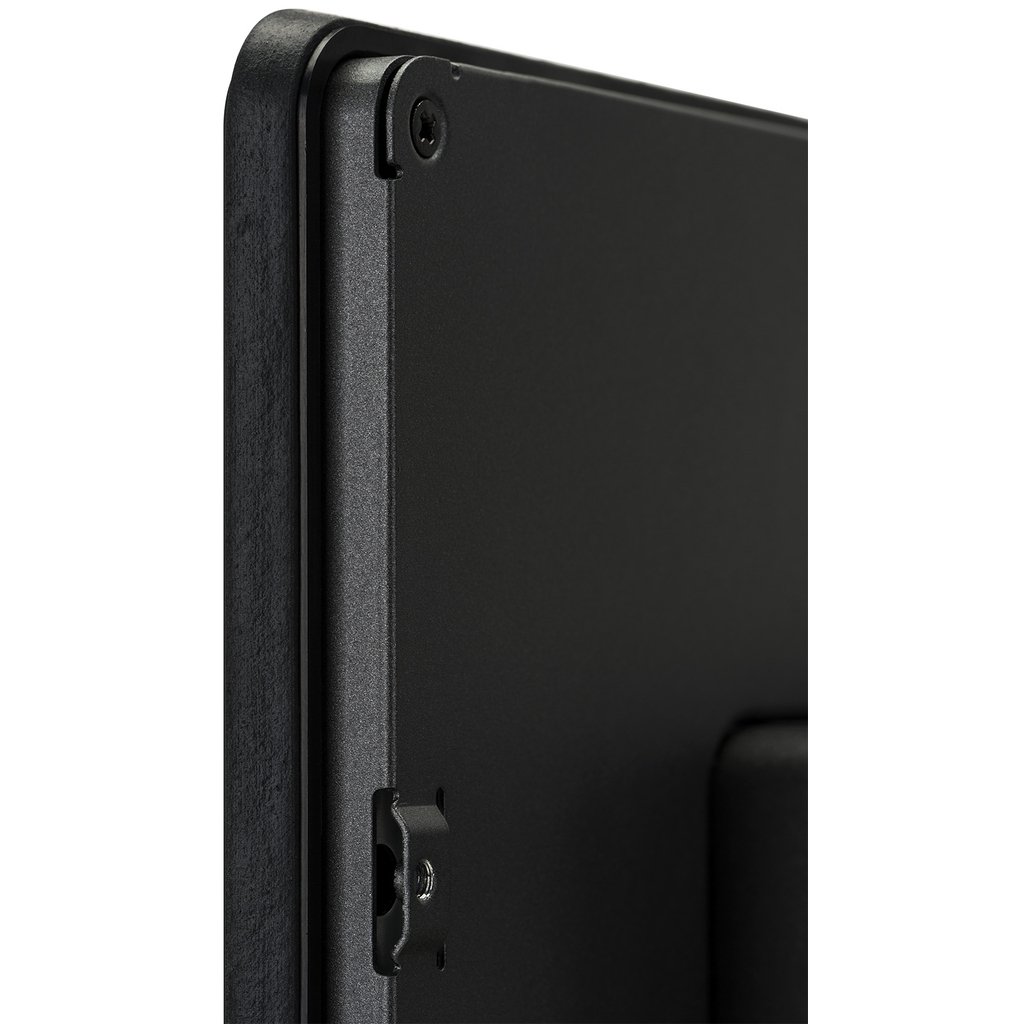

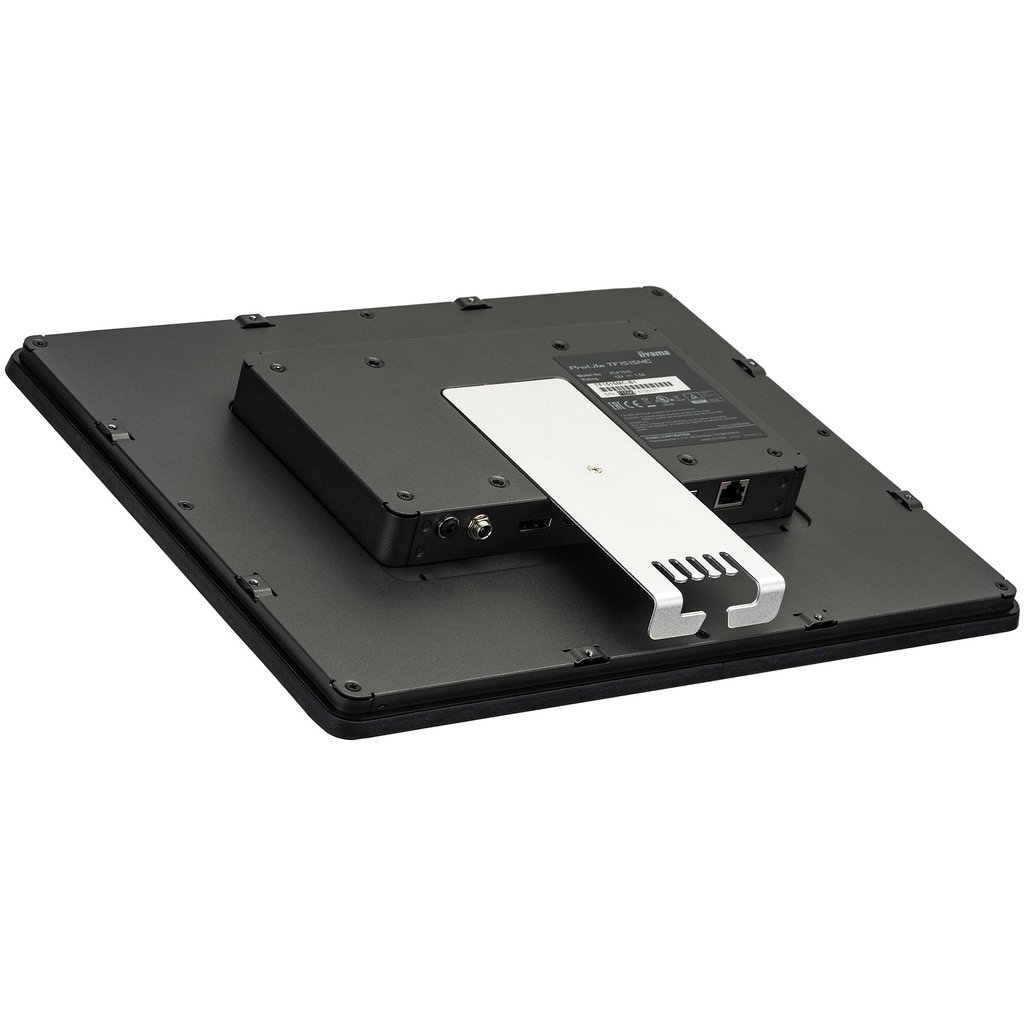

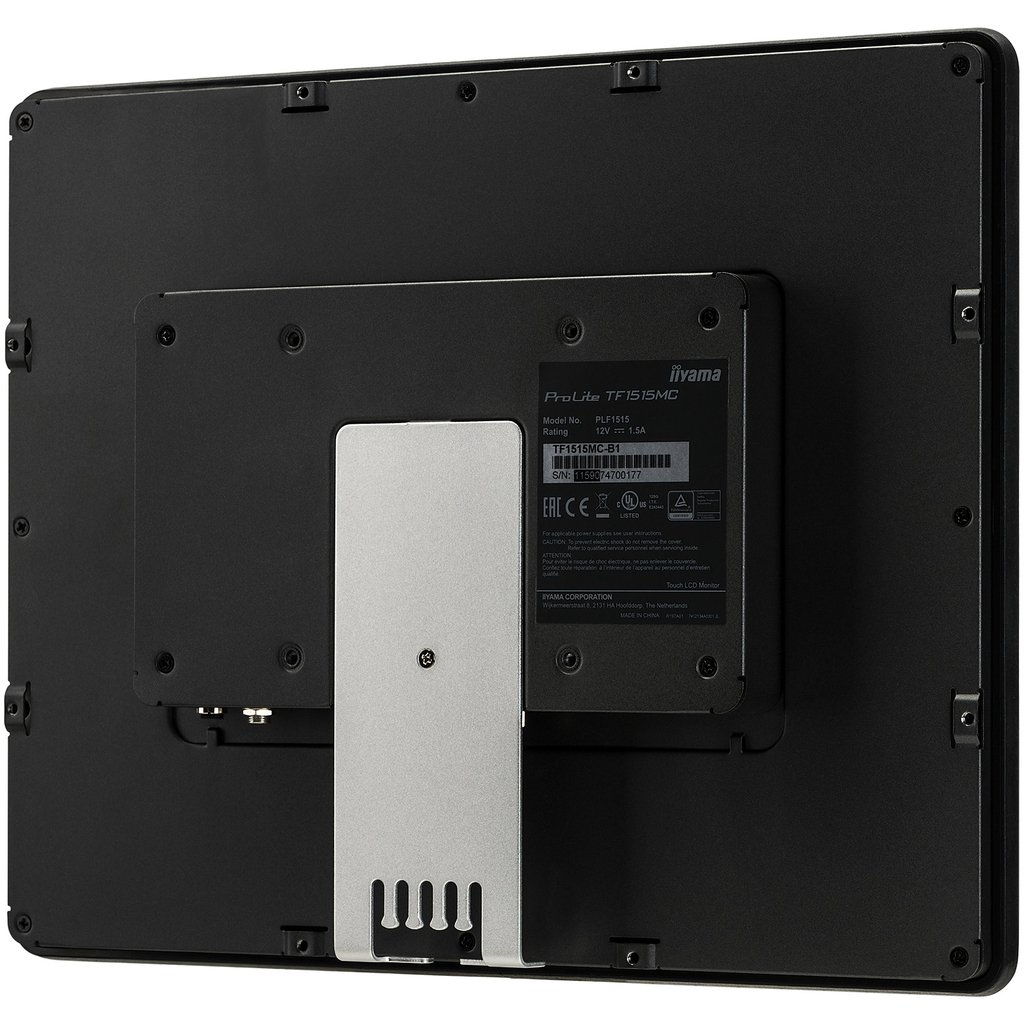

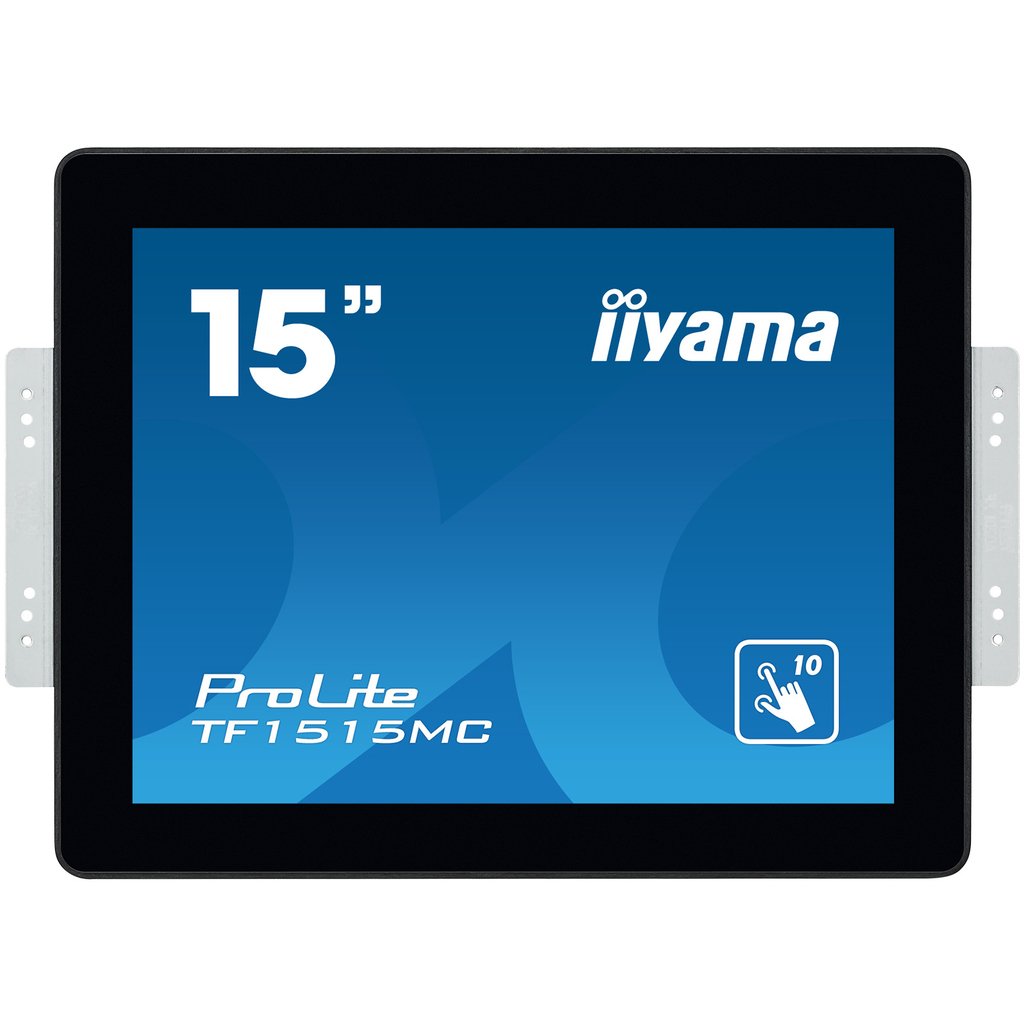

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Additional information
| Weight | 5.05 lbs |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display technology | LED |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 350 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| HDMI ports quantity | 1 |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Power consumption (typical) | 16 W |
| Package width | 460 mm |
| Package weight | 4.6 kg |
| Cables included | AC, DisplayPort, HDMI, USB |
| Wall mountable | Yes |
| HD type | XGA |
| Touchscreen | Yes |
| Native aspect ratio | 4:3 |
| Pixel pitch | 0.297 x 0.297 mm |
| Placement supported | Horizontal/Vertical |
| HDCP | Yes |
| Power consumption (standby) | 1.2 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Screen shape | Flat |
| Package depth | 175 mm |
| Package height | 470 mm |
| Panel type | TN |
| Response time | 8 ms |
| DisplayPorts quantity | 1 |

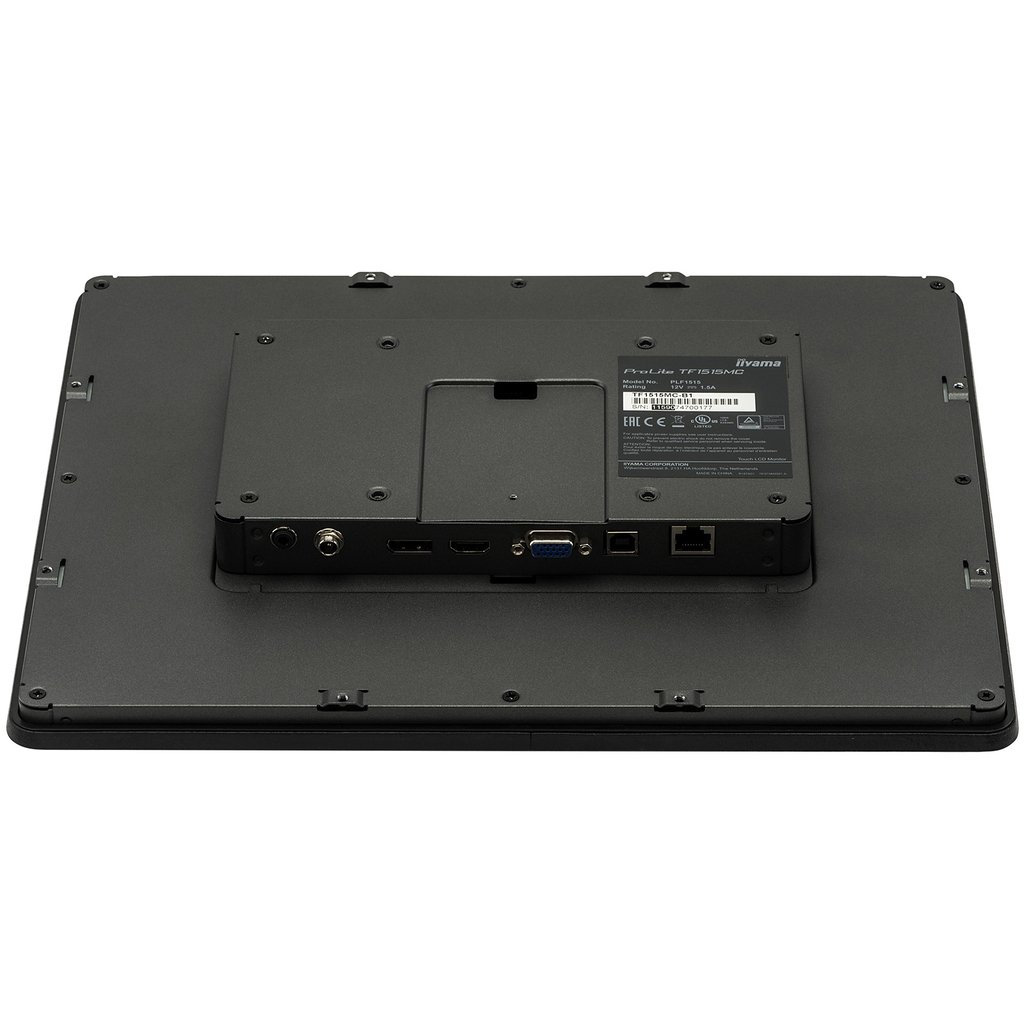

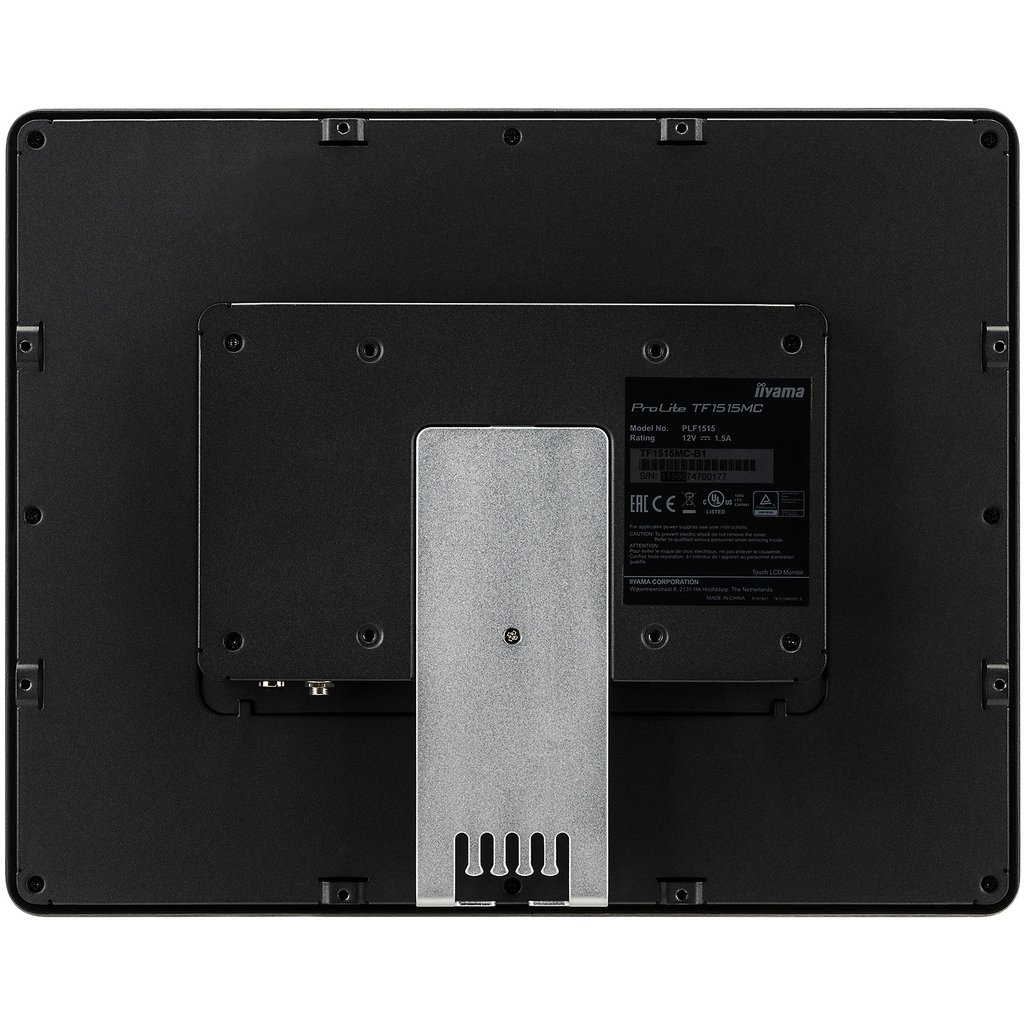

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Storage temperature (T-T) | -20 – 60 °C |
| Harmonized System (HS) code | 85285210 |
| Glass thickness | 6 mm |
| Power consumption (off) | 1.2 W |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Energy efficiency scale | A to G |
| Plug and Play | Yes |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Power supply type | AC/DC |
| Maximum refresh rate | 75 Hz |
| Height (without stand) | 41.5 mm |
| Weight (without stand) | 2.9 kg |
| Depth (without stand) | 291 mm |
| Built-in camera | No |
| Windows operating systems supported | Yes |
| Built-in microphone | No |
| Aspect ratio | 4:3 |
| Linux operating systems supported | Yes |
| LED indicators | Yes |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
