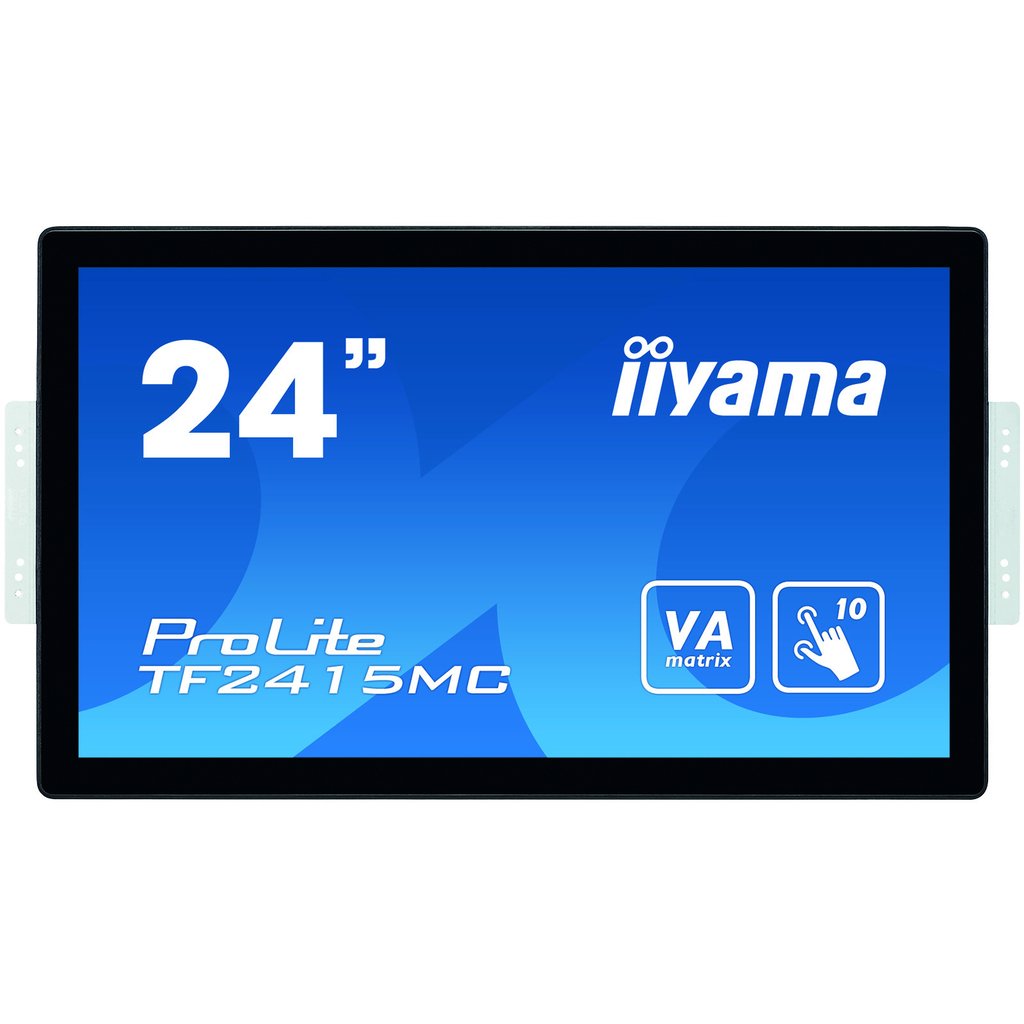

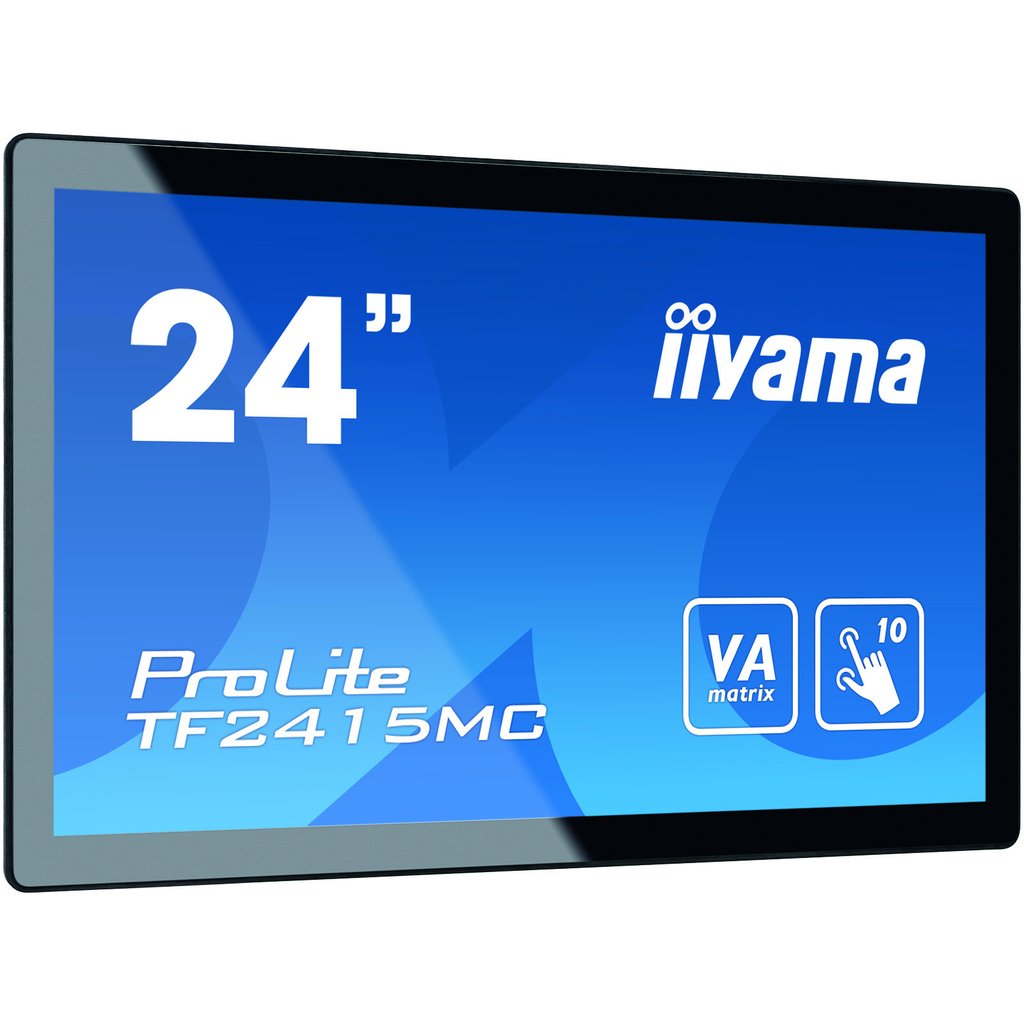

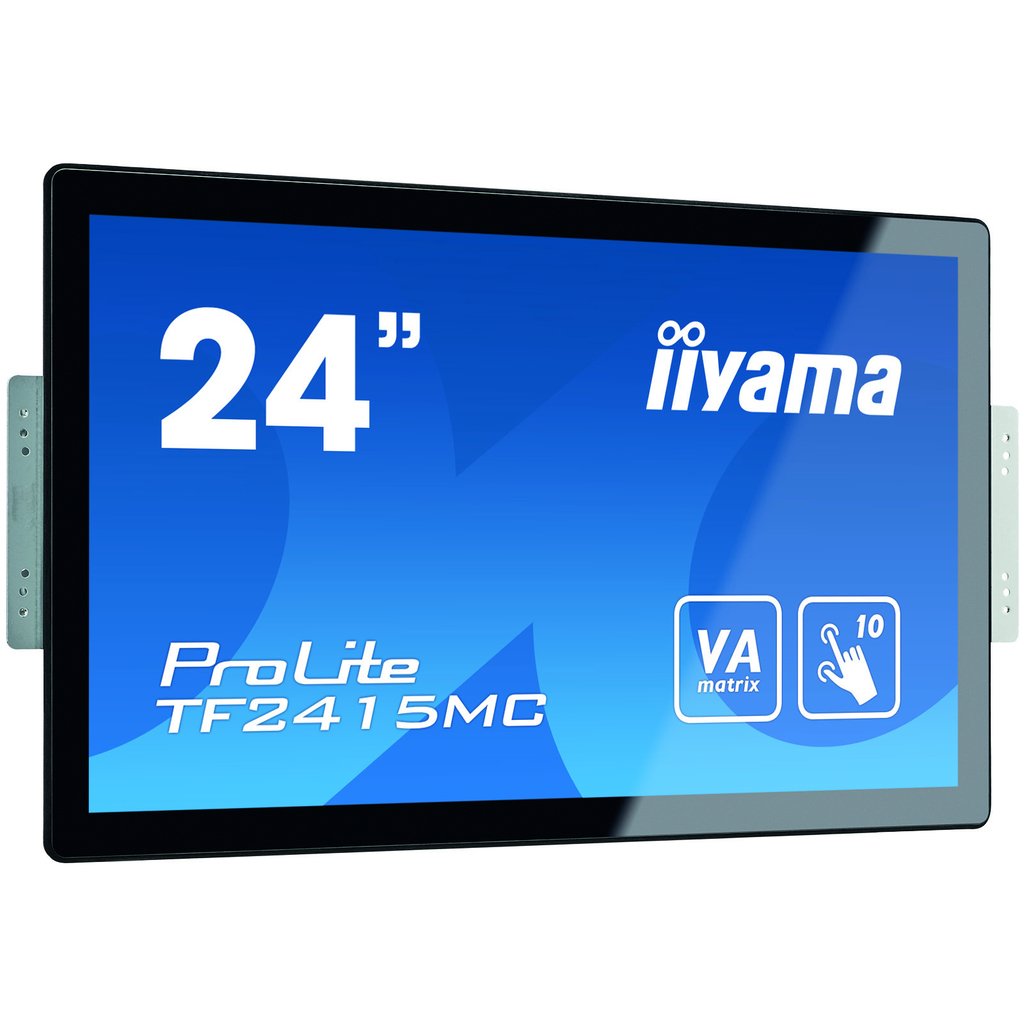

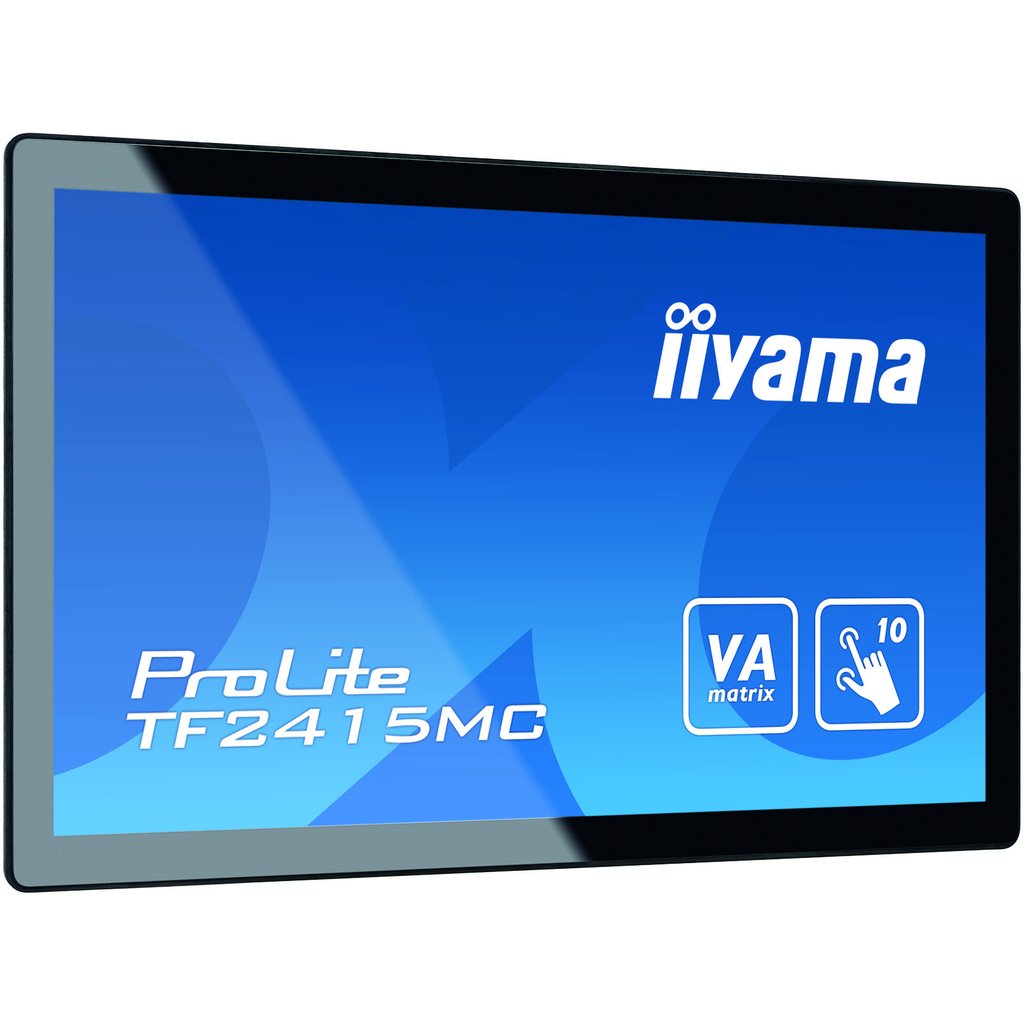

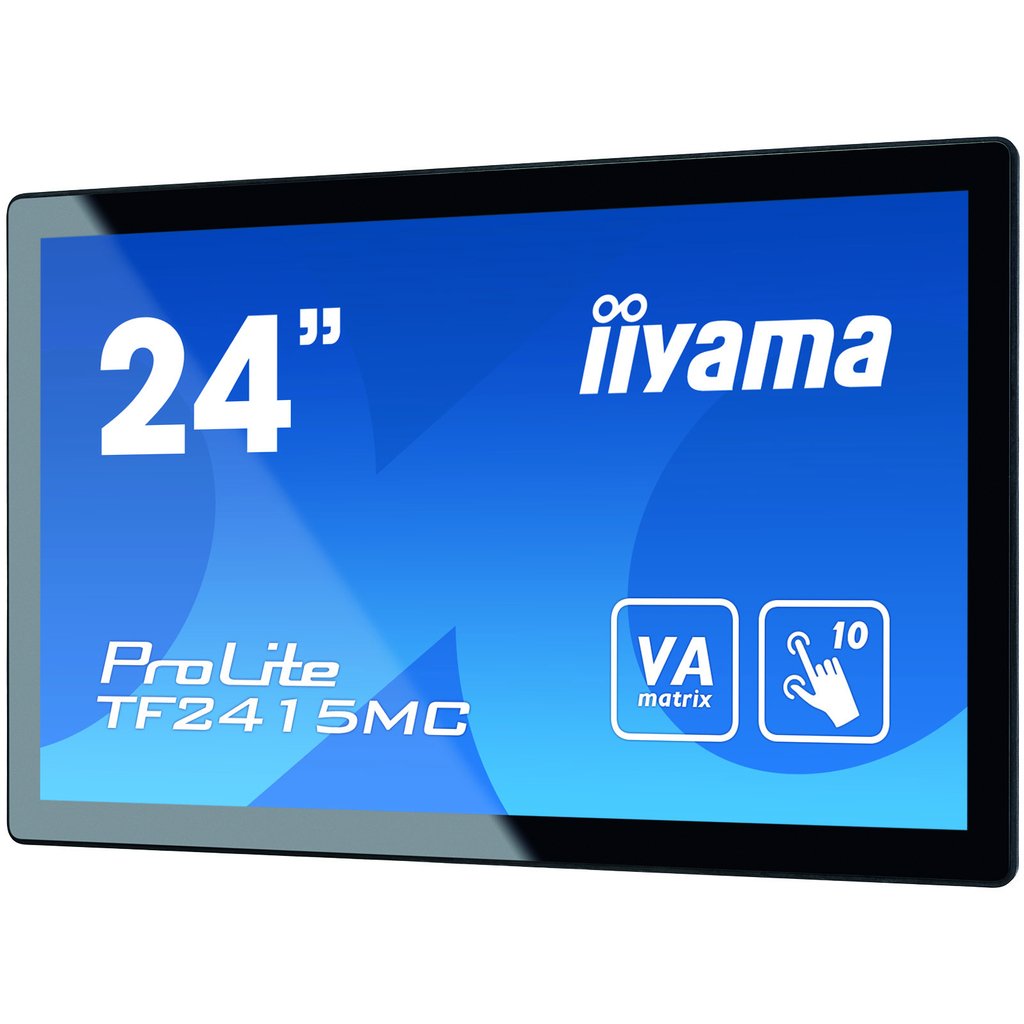

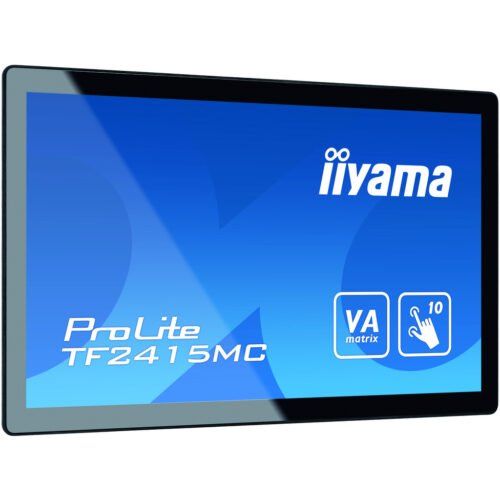

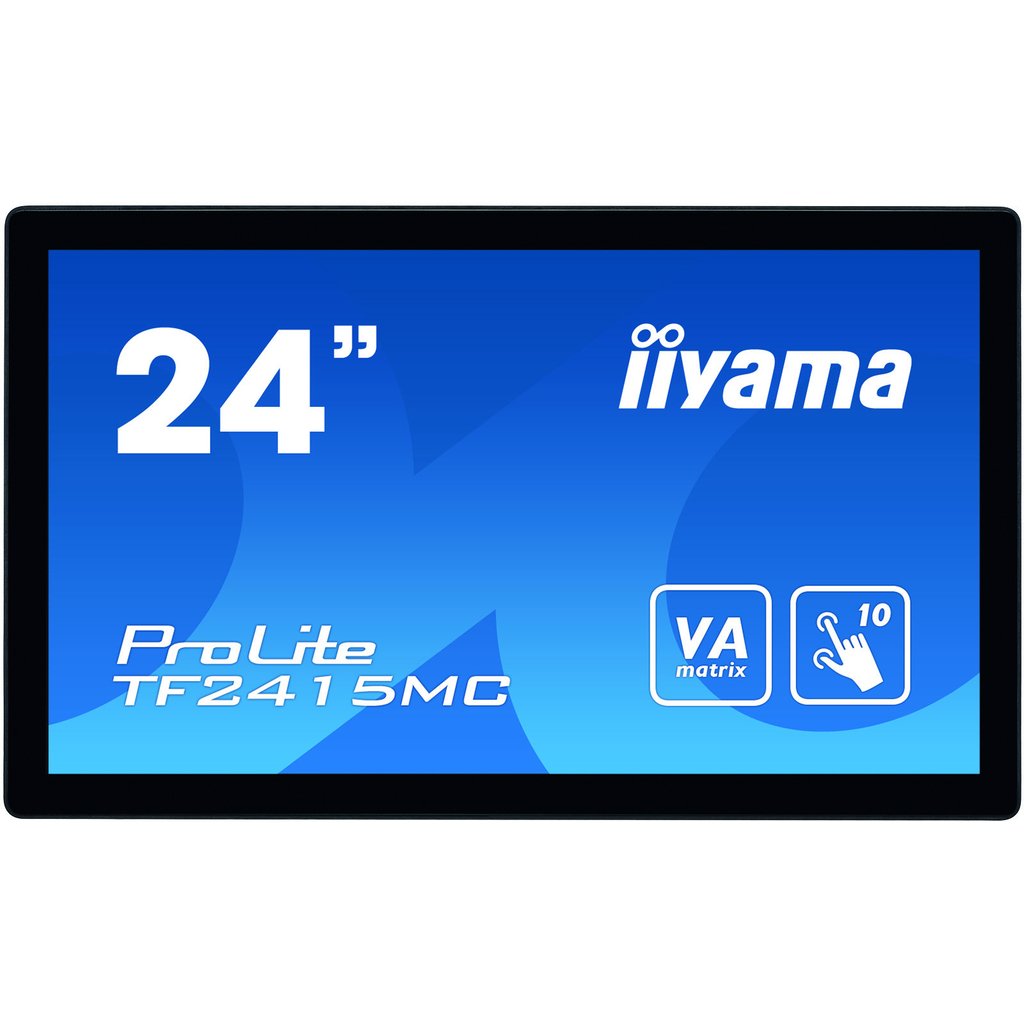

iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8″) 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
TF2415MC-B2, 23.8″, 1920×1080, VA LED, 16:9, 16 ms, VGA, HDMI, DP, HDCP, 575x347x42.5 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

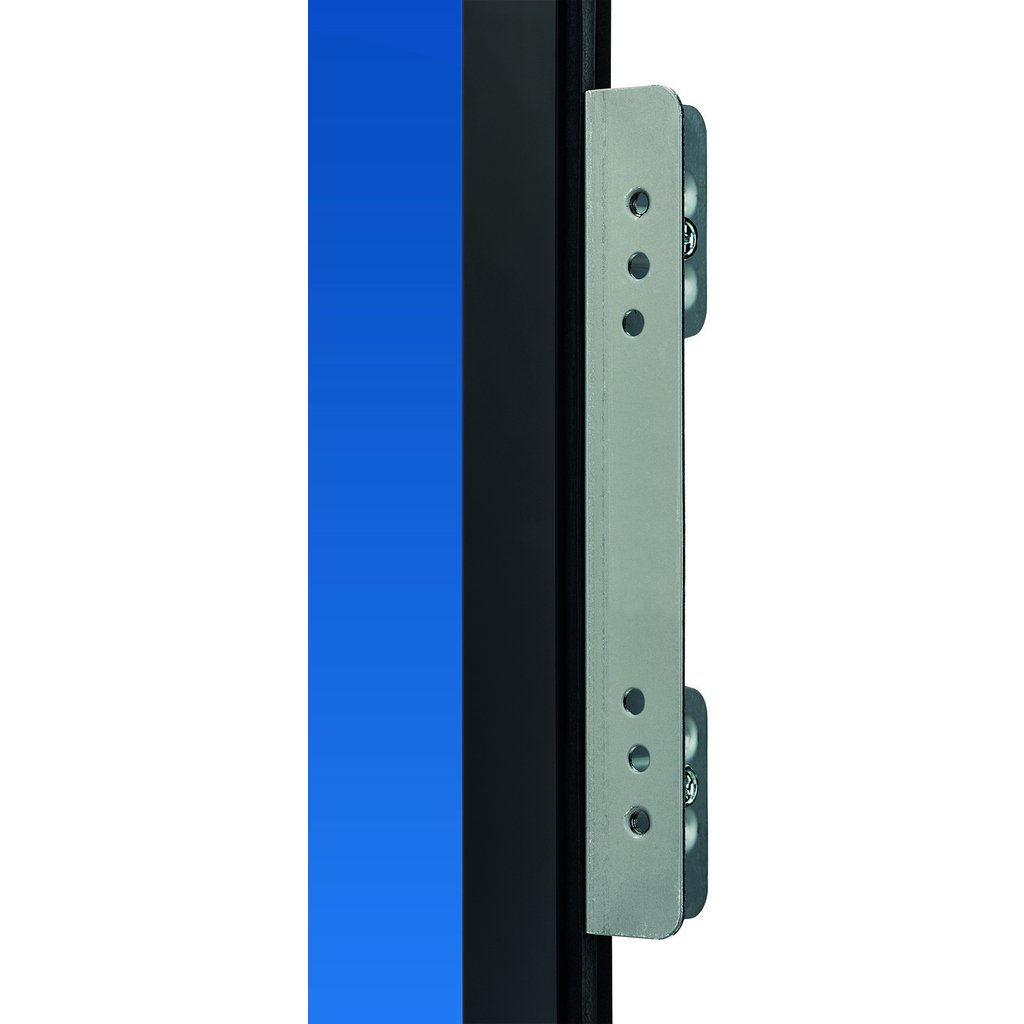

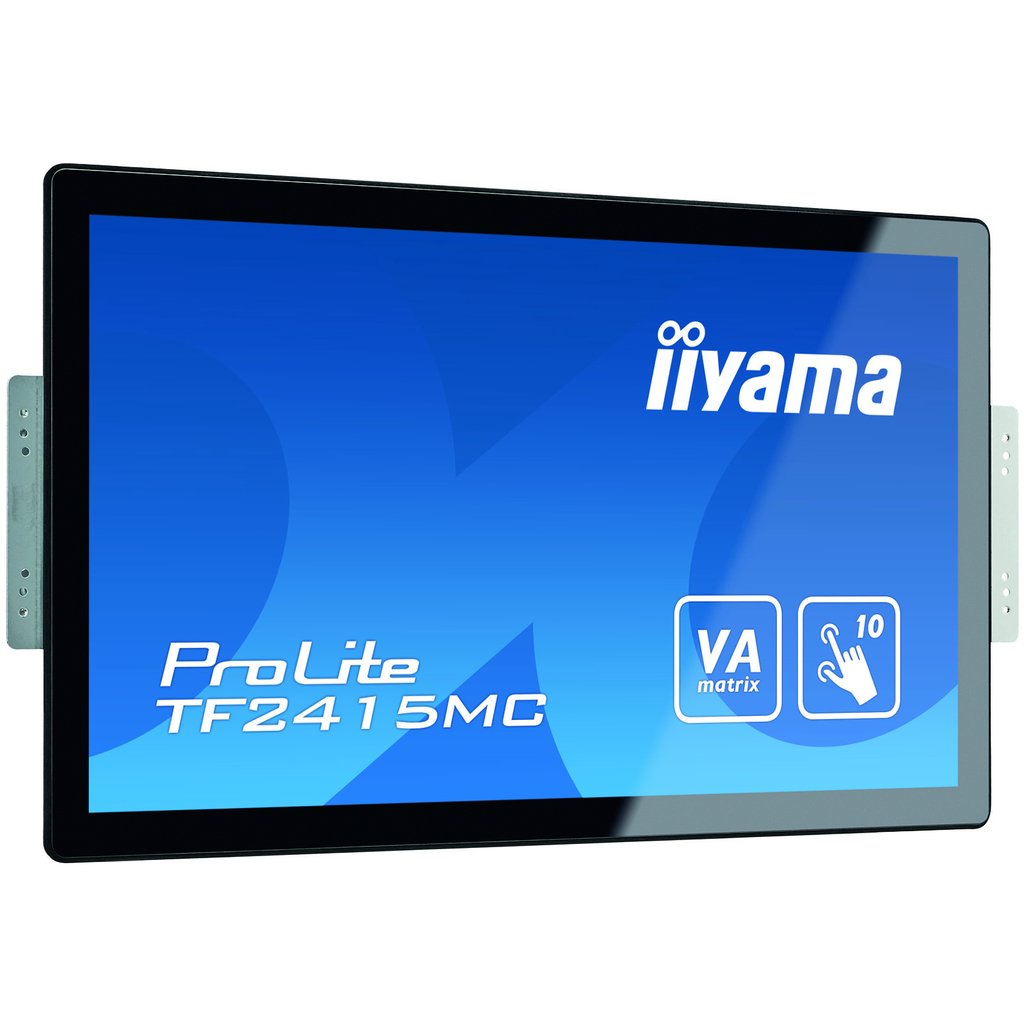

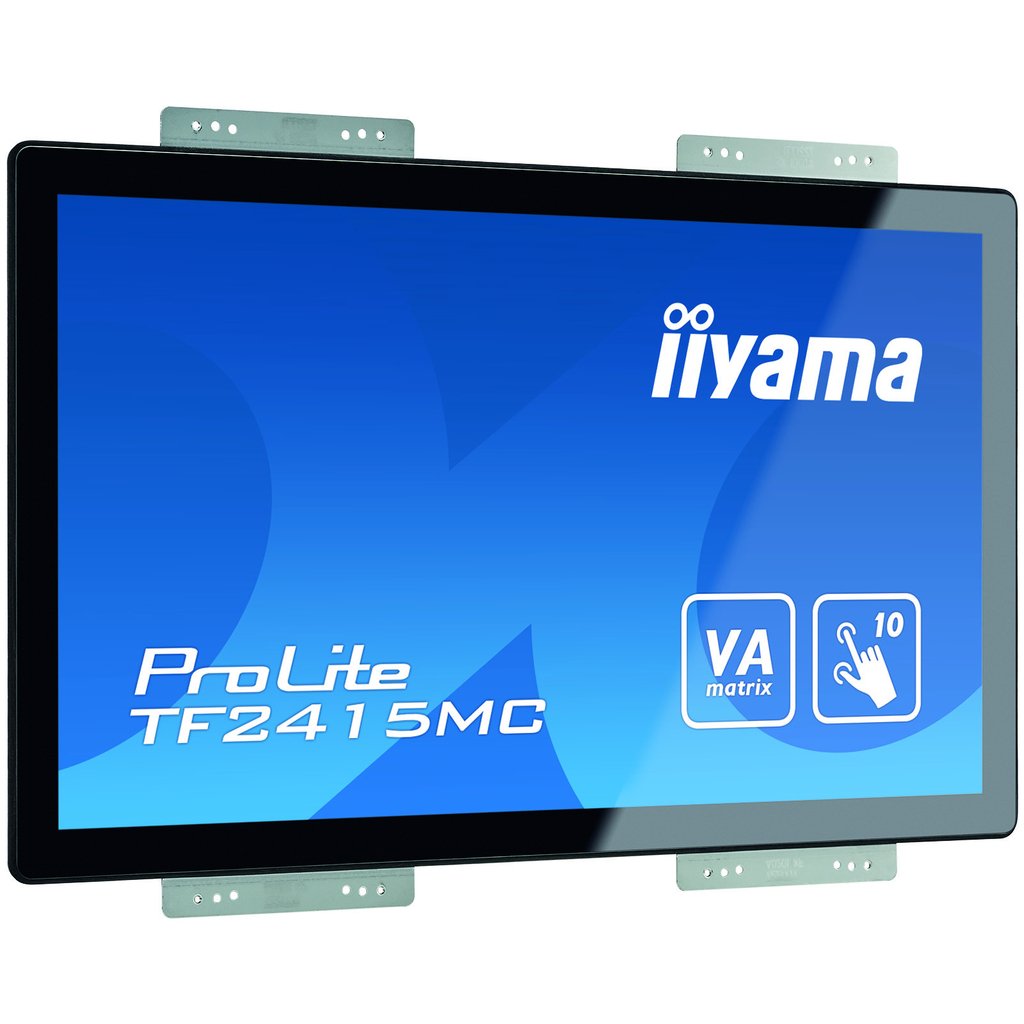

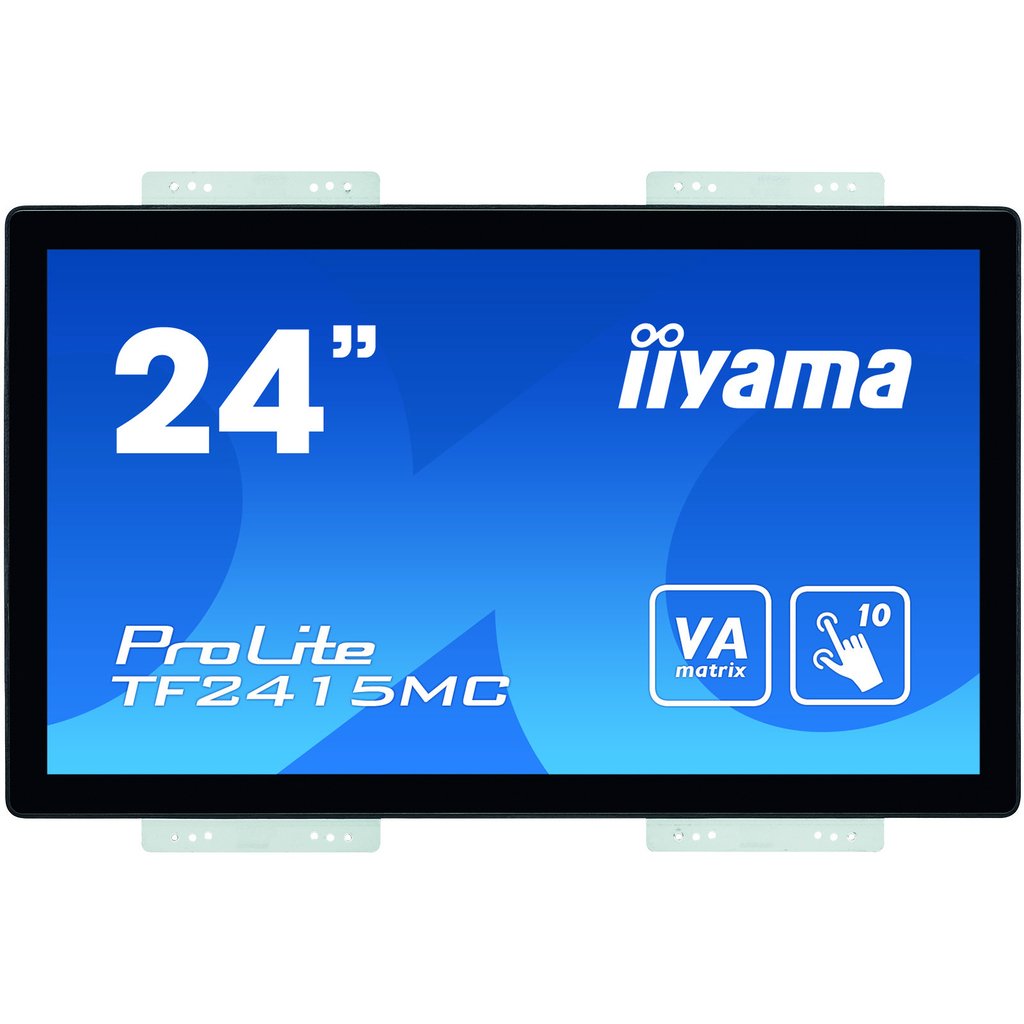

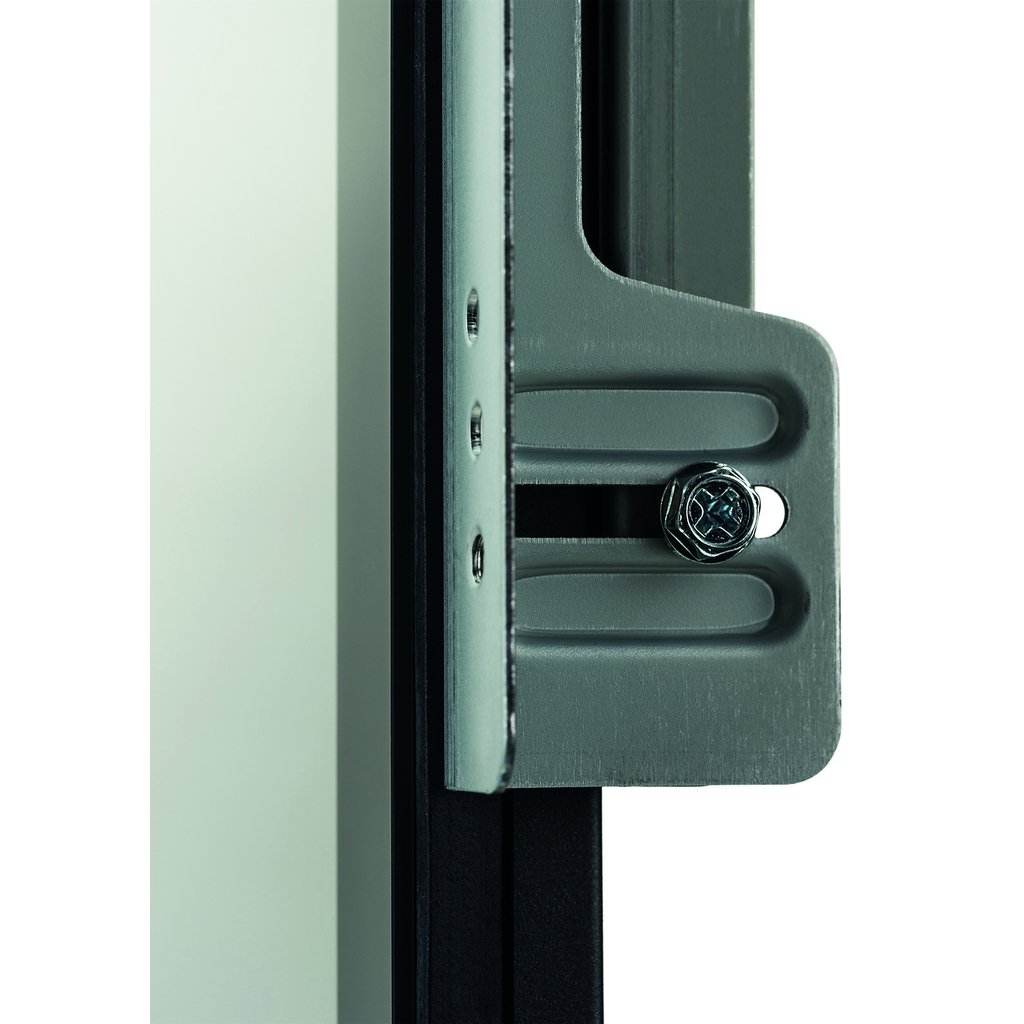

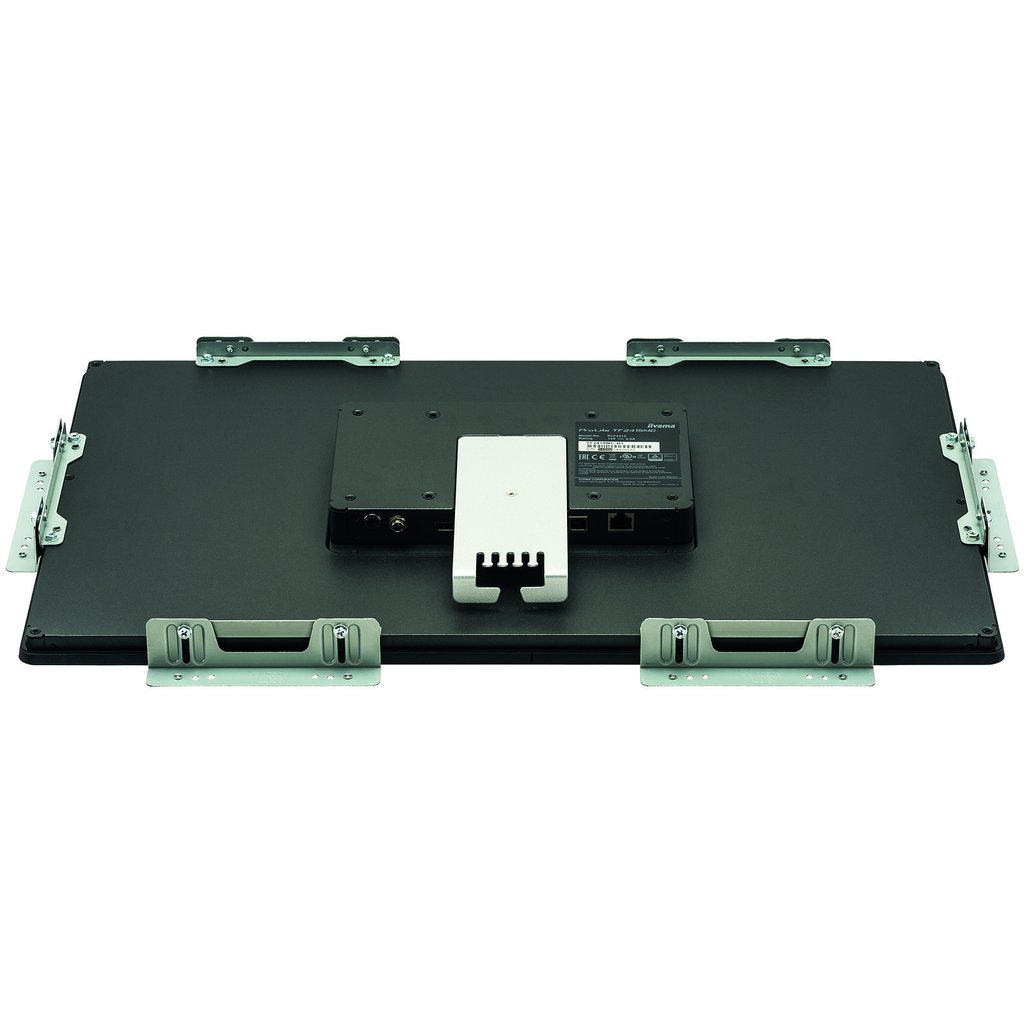

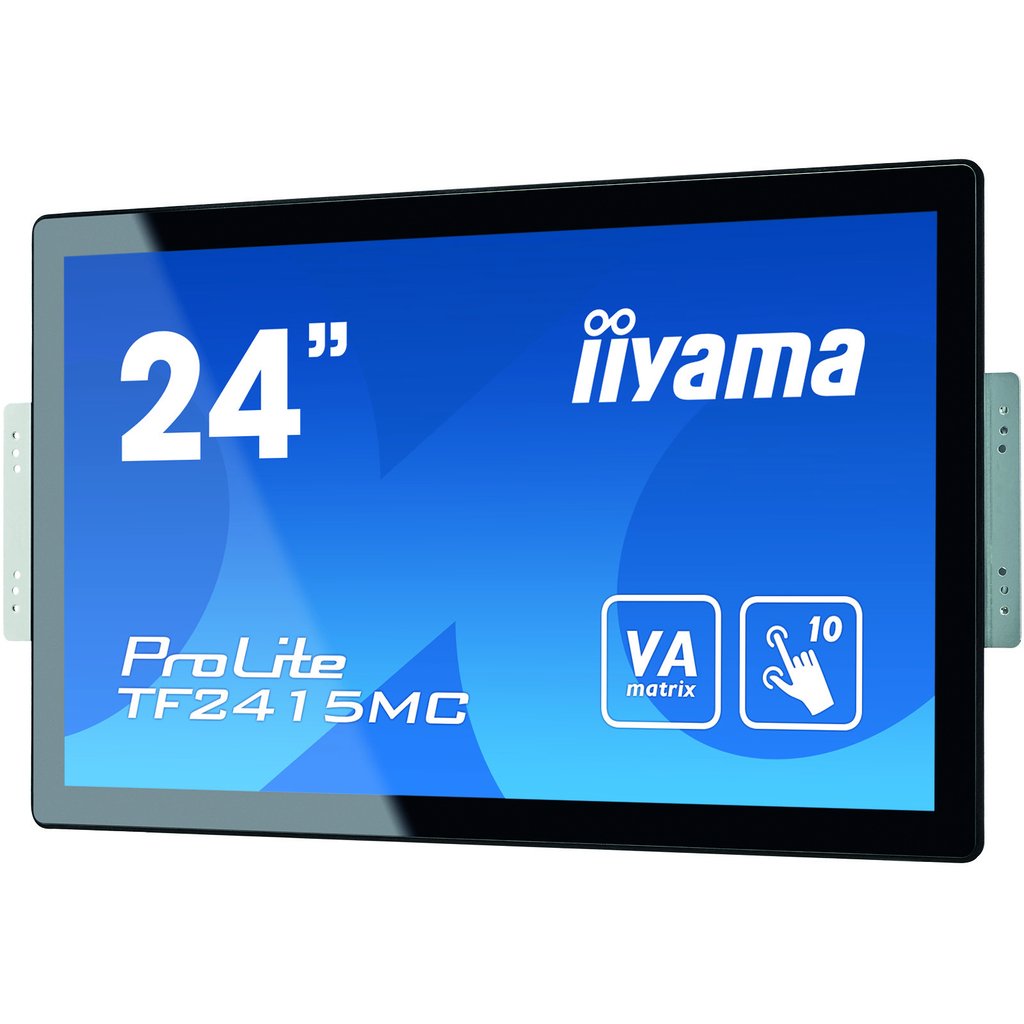

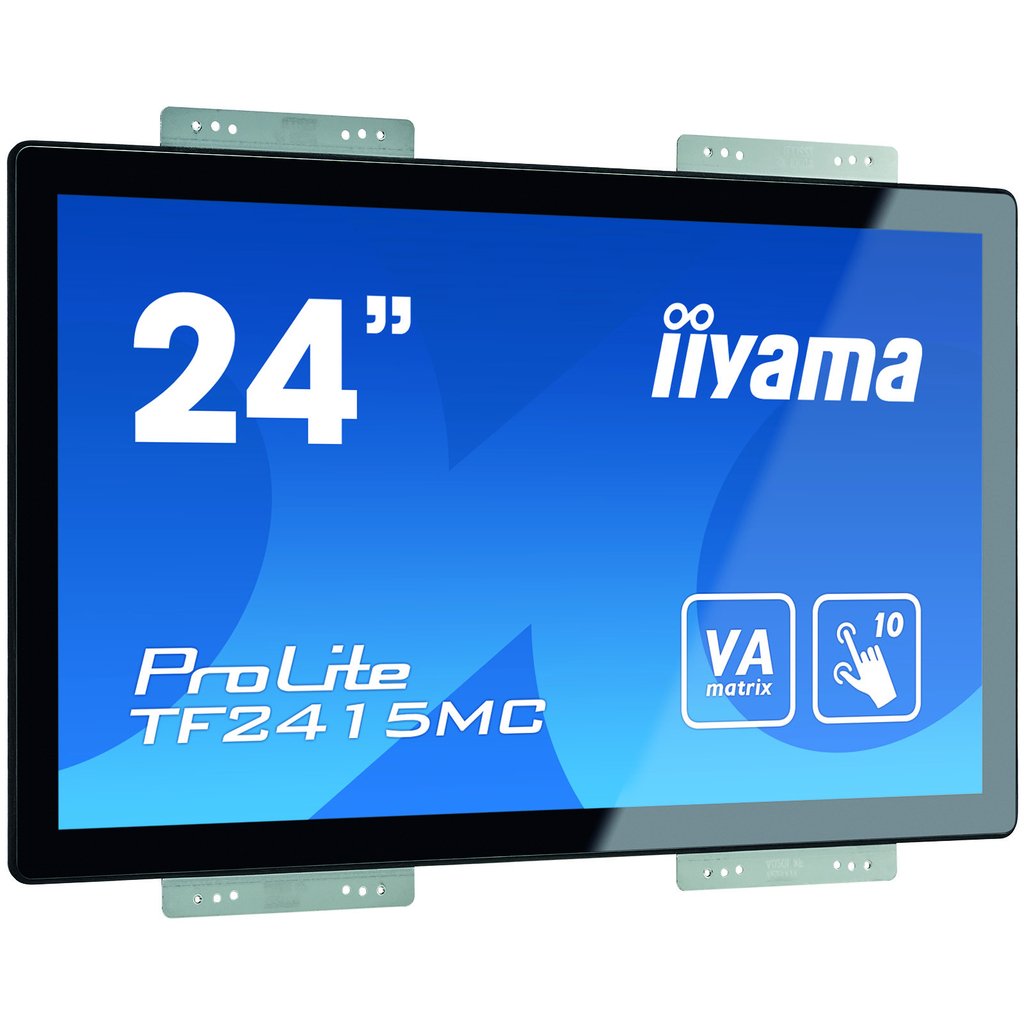

OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
BALL-DROP-TEST PROOF
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Additional information
| Weight | 8.66 lbs |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | Full HD |
| Response time | 16 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Display number of colours | 16.78 million colours |
| Aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 31.4 – 82 kHz |
| Vertical scan range | 56 – 75 Hz |
| Display diagonal (metric) | 60.5 cm |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in camera | No |
| Product colour | Black |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 10 – 90% |
| Width (without stand) | 575 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 347 mm |
| Weight (without stand) | 5.8 kg |
| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Wall mountable | Yes |
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| VGA (D-Sub) ports quantity | 1 |
| Audio output | 1 |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Storage temperature (T-T) | -20 – 60 °C |
| Built-in microphone | No |
| Harmonized System (HS) code | 85285210 |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 315 cd/m² |
| USB Touch port | Yes |
| Placement supported | Horizontal/Vertical |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| International Protection (IP) code | IP65 |
| Full HD | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Separate H/V sync | Yes |
| AC adapter included | Yes |
| OmniTapps Multitouch compatibility | No |
| Glass protection | Yes |
