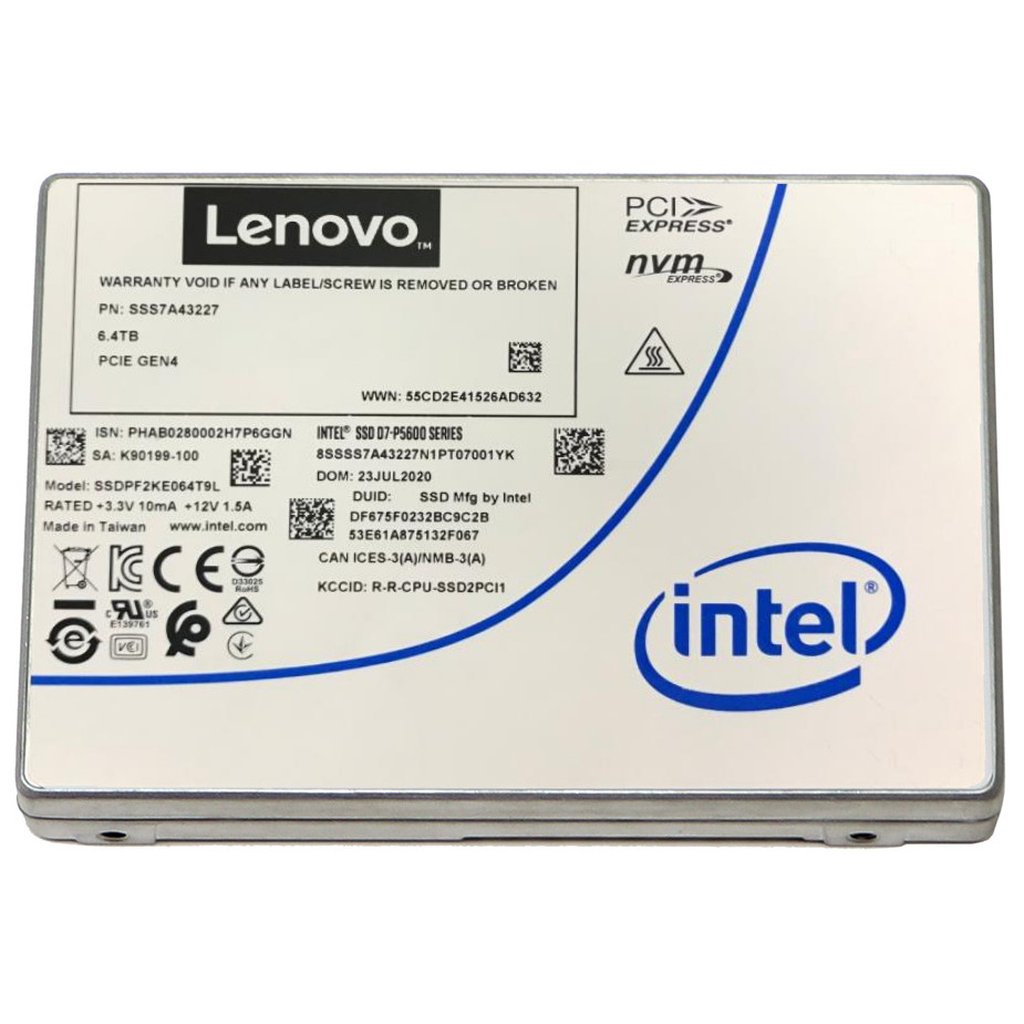

Lenovo 4XB7A17133 internal solid state drive 6.4 TB 2.5″ PCI Express 4.0 NVMe TLC 3D NAND
ThinkSystem 2.5″ U.2 P5620 6.4TB Mixed Use NVMe PCIe 4.0 x4 HS
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem P5620 Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the P5620 SSDs and consider their use in IT solutions.
Additional information
| Weight | 0.3 lbs |
|---|---|
| SSD capacity | 6.4 TB |
| SSD form factor | 2.5" |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 146 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Operating vibration | 2.17 G |
| Random read (4KB) | 1100000 IOPS |
| Random write (4KB) | 390000 IOPS |
| Power consumption (read) | 18 W |
| Power consumption (write) | 18 W |
| Certification | FCC Title 47, Part 15B, Class BCA/CSA-CEI/IEC CISPR 22:02EN 55024: 1998EN 55022: 2006EN-60950-1 2nd EditionUL/CSA EN-60950-1 2nd EditionLow Voltage Directive 2006/95/ECC-Tick: AS/NZS3584BSMI: CNS 1343 |
| Operating relative humidity (H-H) | 5 – 90% |
| Hardware encryption | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Operating shock | 1000 G |
| Random latency - read (up to) | 75 µs |
| Random latency - write (up to) | 15 µs |
| Sequential latency - read (up to) | 10 µs |
| Sequential latency - write (up to) | 13 µs |
| Maximum operating altitude | 3048 m |
| Endurance rating | 35 PB |
