Lenovo 00MM860 network card Internal Ethernet 10000 Mbit/s
Intel X550-T2 Dual Port 10GBase-T
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

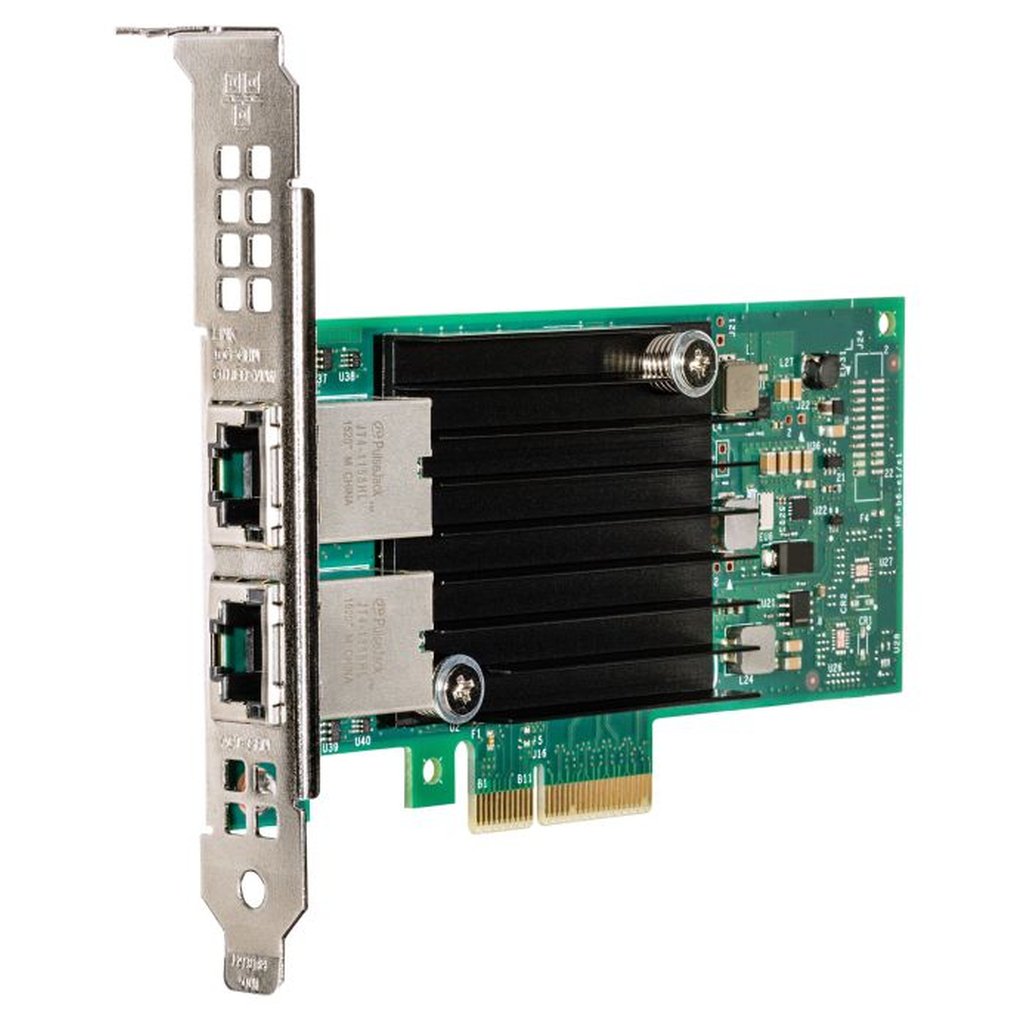

The Intel X550 10GBASE-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
Additional information
| Weight | 0.34 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Internal | Yes |
| Product colour | Black, Green |
| Width | 16 mm |
| Depth | 134 mm |
| Height | 69 mm |
| Quantity per pack | 1 pc(s) |
| Maximum data transfer rate | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| LAN controller | Intel® X550 |
| Component for | Server |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 5 – 55 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000BaseT(X) |
| Jumbo frames support | Yes |
| Jumbo frames | 9500 |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Flow control support | Yes |
| VLAN tagging | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Compatible operating systems | Microsoft Windows Server 2012 R2Microsoft Windows Server 2012Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 12SUSE Lin |
| Receive Side Scaling (RSS) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Operating altitude | 0 – 3048 m |
| Intel Flexible Port Partitioning | Yes |
