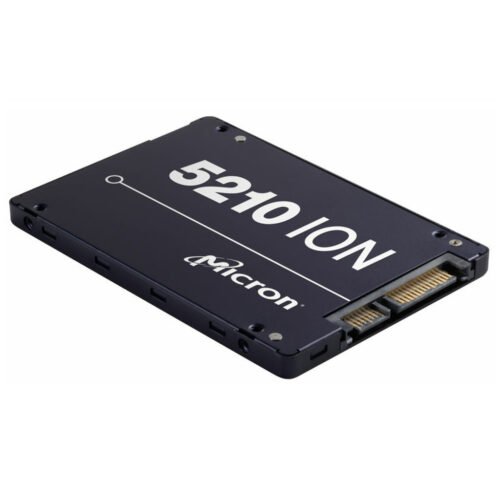

Lenovo 4XB7A38145 internal solid state drive 3.84 TB 2.5″ Serial ATA III QLC 3D NAND
3.84TB, SATAIII, 6Gbps, 2.5″, QLC, Hot Swap
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Additional information
| Weight | 0.188 lbs |
|---|---|
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Hot-Plug support | Yes |
| NVMe | No |
| Memory type | QLC 3D NAND |
| Read speed | 540 MB/s |
| Write speed | 265 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 70 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Compatible products | ThinkSystem |
| Random read (4KB) | 83000 IOPS |
| Random write (4KB) | 2000 IOPS |
| Read latency | 500 µs |
| Write latency | 530 µs |
| Power consumption (read) | 2.8 W |
| Power consumption (write) | 6.3 W |
| Non-operating vibration | 3.13 G |
| Power consumption (idle) | 1.5 W |
| Non-operating shock | 1500 G |
| Harmonized System (HS) code | 84717070 |
| Operating relative humidity (H-H) | 5 – 95% |
| Hardware encryption | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Security algorithms | 256-bit AES |
