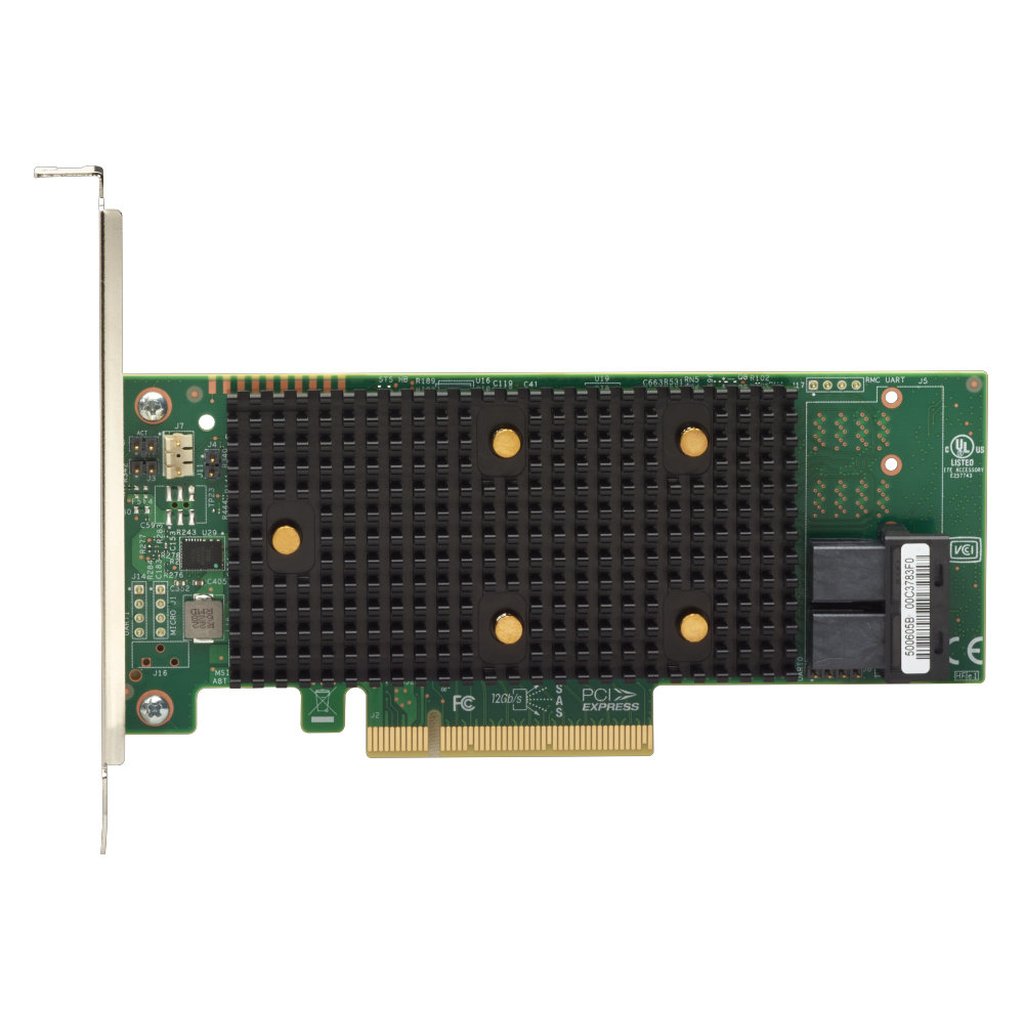

Lenovo 7Y37A01082 RAID controller PCI Express x8 3.0 12000 Gbit/s
ThinkSystem RAID 530-8i PCIe 12Gb Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem RAID 530 family are entry-level 12 Gb SAS/SATA internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0/1/10/5/50, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 530-4i and 530-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Additional information
| Weight | 0.3 lbs |
|---|---|
| Supported storage drive interfaces | SAS |
| Host interface | PCI Express x8 |
| RAID levels | 0, 1, 10, 5, 50 |
| Data transfer rate | 12000 Gbit/s |
| SSD support | Yes |
| Chipset | LSI SAS3408 |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 8 |
| Operating temperature (T-T) | 10 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Harmonized System (HS) code | 84733080 |
| PCI Express slots version | 3.0 |
| RAID Level Migration | Yes |
| Hot-swap | Yes |
| Internal mini-SAS HD ports | 2 |
| Online Capacity Expansion | Yes |
| Compatible operating systems | Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise |
| PCI Card form factor | Full-height (low-profile) |
| Built-in processor | Yes |
| Processor family | LSI |
