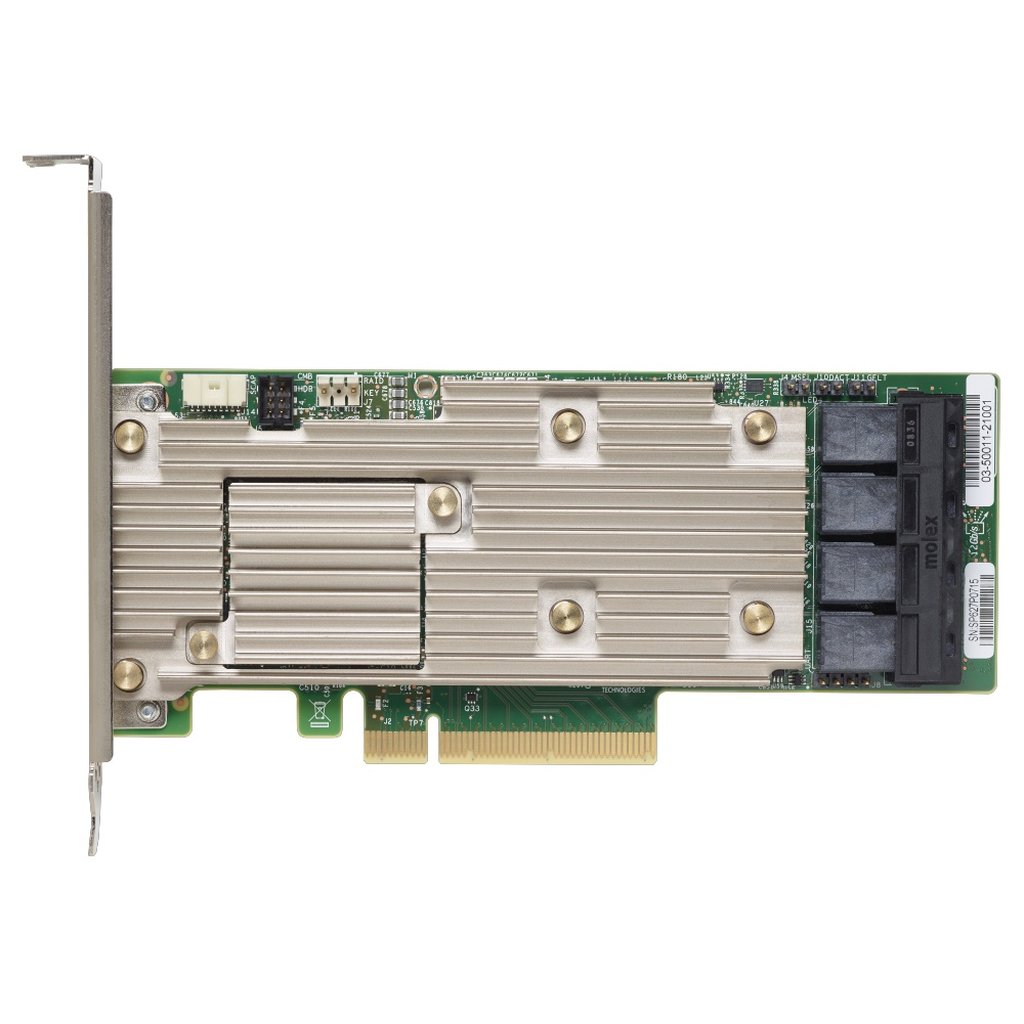

Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Additional information
| Weight | 0.38 lbs |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III |
| Host interface | PCI Express x8 |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Data transfer rate | 12000 Gbit/s |
| SSD support | Yes |
| Chipset | LSI SAS3516 |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 16 |
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA |
| Operating temperature (T-T) | 10 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Compatible products | ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950 |
| Harmonized System (HS) code | 84733080 |
| PCI Express slots version | 3.0 |
| RAID Level Migration | Yes |
| Hot-swap | Yes |
| Internal memory | 4000 MB |
| Internal mini-SAS HD ports | 4 |
| Online Capacity Expansion | Yes |
| Compatible operating systems | Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise |
| PCI Card form factor | Full-height (low-profile) |
| Built-in processor | Yes |
| Processor family | LSI |
