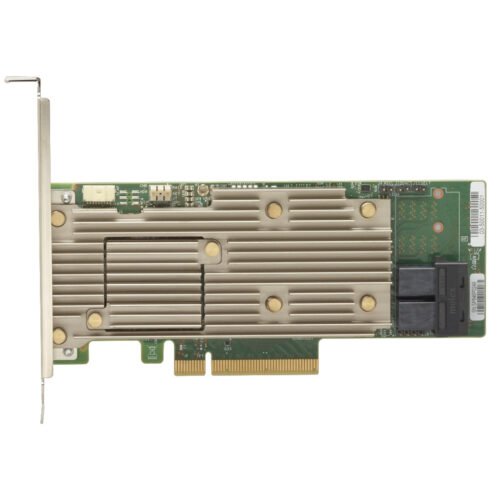

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s
RAID 930-8i, PCIe 3.0 x8, 8x 12 Gb SAS, 2x Mini-SAS HD x4
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III |
| Host interface | PCI Express x8 |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Data transfer rate | 12000 Gbit/s |
| SSD support | Yes |
| Chipset | LSI SAS3508 |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 8 |
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)RoHS compliantEN/IEC/UL 60950Taiwan (CNS 13438)USA |
| Operating temperature (T-T) | 10 – 55 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Harmonized System (HS) code | 84733080 |
| PCI Express slots version | 3.0 |
| RAID Level Migration | Yes |
| Hot-swap | Yes |
| Linux operating systems supported | SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12 |
| Internal mini-SAS HD ports | 2 |
| Online Capacity Expansion | Yes |
| External SAS ports | 8 |
| Compatible operating systems | Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7VMware vSphere ESXi 6.0VMware vSphere ESXi 6.5 |
| PCI Card form factor | Full-height (low-profile) |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016 |
