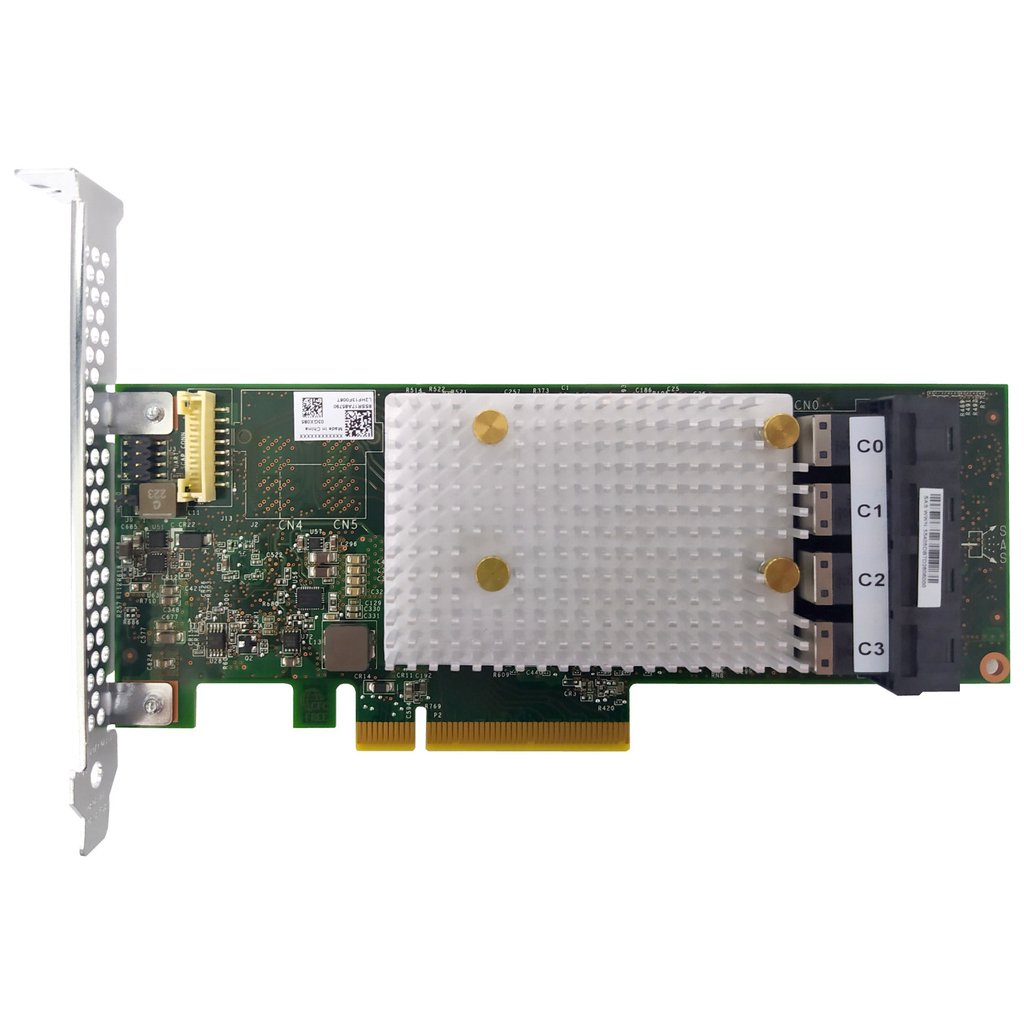

Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
ThinkSystem RAID 9350-16i 4GB Flash PCIe 12Gb Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Additional information
| Weight | 0.454 lbs |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Data transfer rate | 12 Gbit/s |
| SSD support | Yes |
| Chipset | Microchip Luxor ROC PM8236 |
| JBOD function | Yes |
| Number of devices supported | 16 |
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS 3548)Canada (ICES-003 Class B)Europe (EN55032/EN55024)Japan VCCIKorea KCCRoHS compliantEN/IEC/UL 60950USA (FCC 47 CFR part 15 Subpart B class B) |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| PCI Express slots version | 3.0 |
| Hot-swap | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Width | 167 mm |
| Height | 64 mm |
| Internal memory | 4000 MB |
