Lenovo 4Y37A09728 RAID controller PCI Express x8 4.0 12 Gbit/s

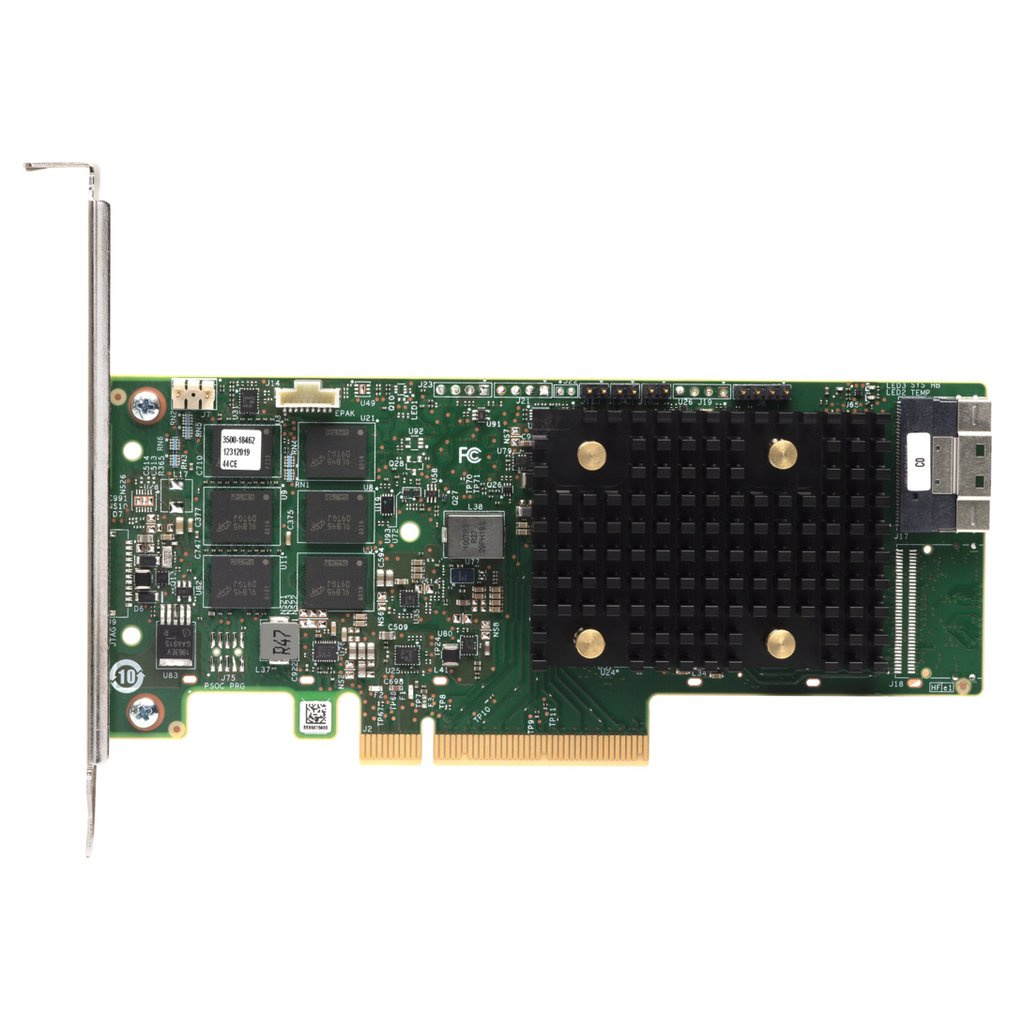

ThinkSystem RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).
RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server’s CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
Additional information
| Weight | 0.34 lbs |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Data transfer rate | 12 Gbit/s |
| Chipset | Broadcom SAS3908 |
| JBOD function | Yes |
| S.M.A.R.T. support | Yes |
| Harmonized System (HS) code | 84733080 |
| PCI Express slots version | 4.0 |
| Internal SAS ports | 8 |
| Internal SATA ports quantity | 8 |
