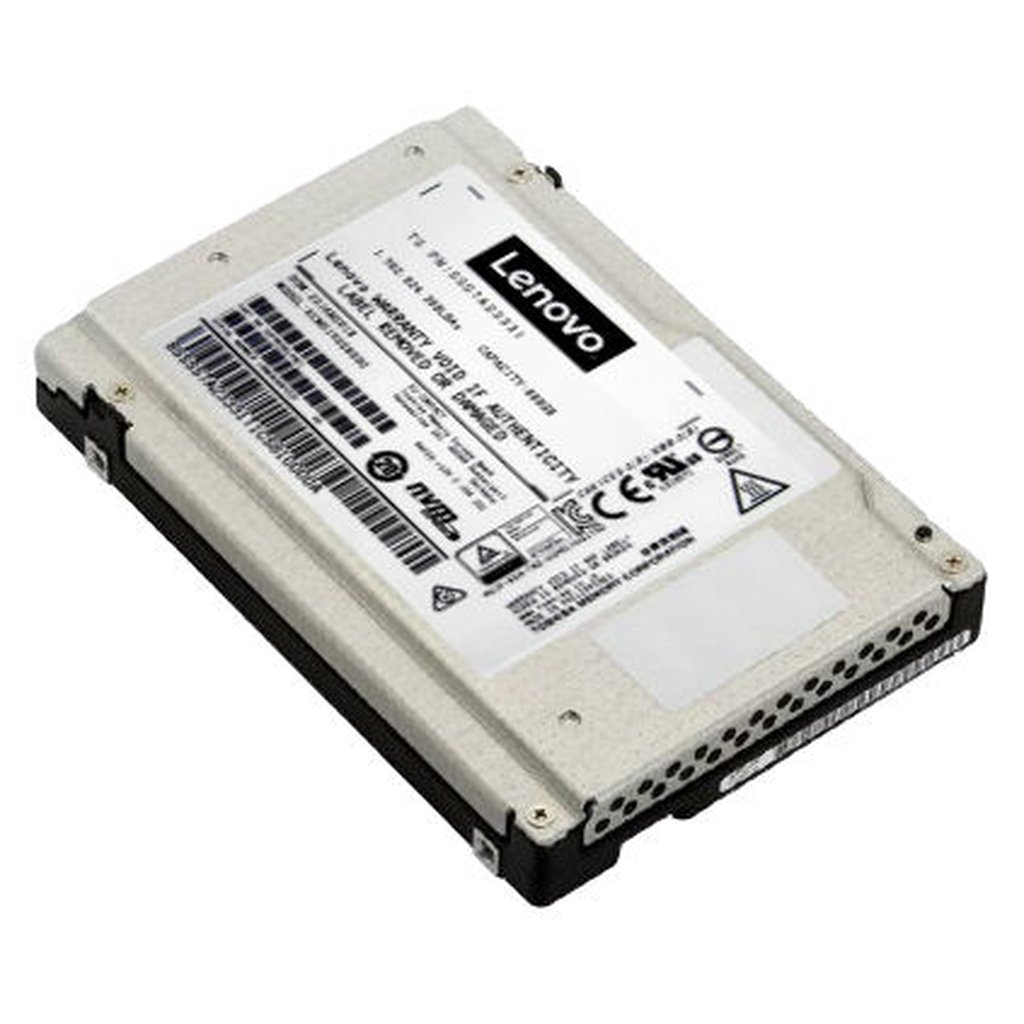

Lenovo 4XB7A08516 internal solid state drive 800 GB 2.5″ PCI Express 3.0 NVMe 3D TLC NAND
800GB Mainstream NVMe PCIe 3.0 x4 Hot Swap
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem Toshiba CM5-V Mainstream NVMe solid-state drives (SSDs) in capacities from 800 GB to 6.4 TB are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the Mainstream NVMe PCIe SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Additional information
| Weight | 0.26 lbs |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | 2.5" |
| Interface | PCI Express 3.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Mean time between failures (MTBF) | 2500000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 130 g |
| Operating temperature (T-T) | 0 – 60 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating vibration | 2.17 G |
| Random read (4KB) | 370000 IOPS |
| Random write (4KB) | 95000 IOPS |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Non-operating shock | 1000 G |
| Certification | Underwriters Laboratories: UL60950-1Canada: CAN/CSA-C22.2 No.60950-1TUV: EN 60950-1BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003MSIP: KN22, KN24 (CISPR Pub. 22 Class B)Australia/New Zealand |
| Operating relative humidity (H-H) | 5 – 95% |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 10 per 10^17 bits read |
| Random latency - read (up to) | 110 µs |
| Random latency - write (up to) | 30 µs |
| Maximum operating altitude | 5486 m |
| Power consumption (max) | 18 W |
| Maximum non-operating altitude | 12192 m |
| Other operating systems supported | Yes |
