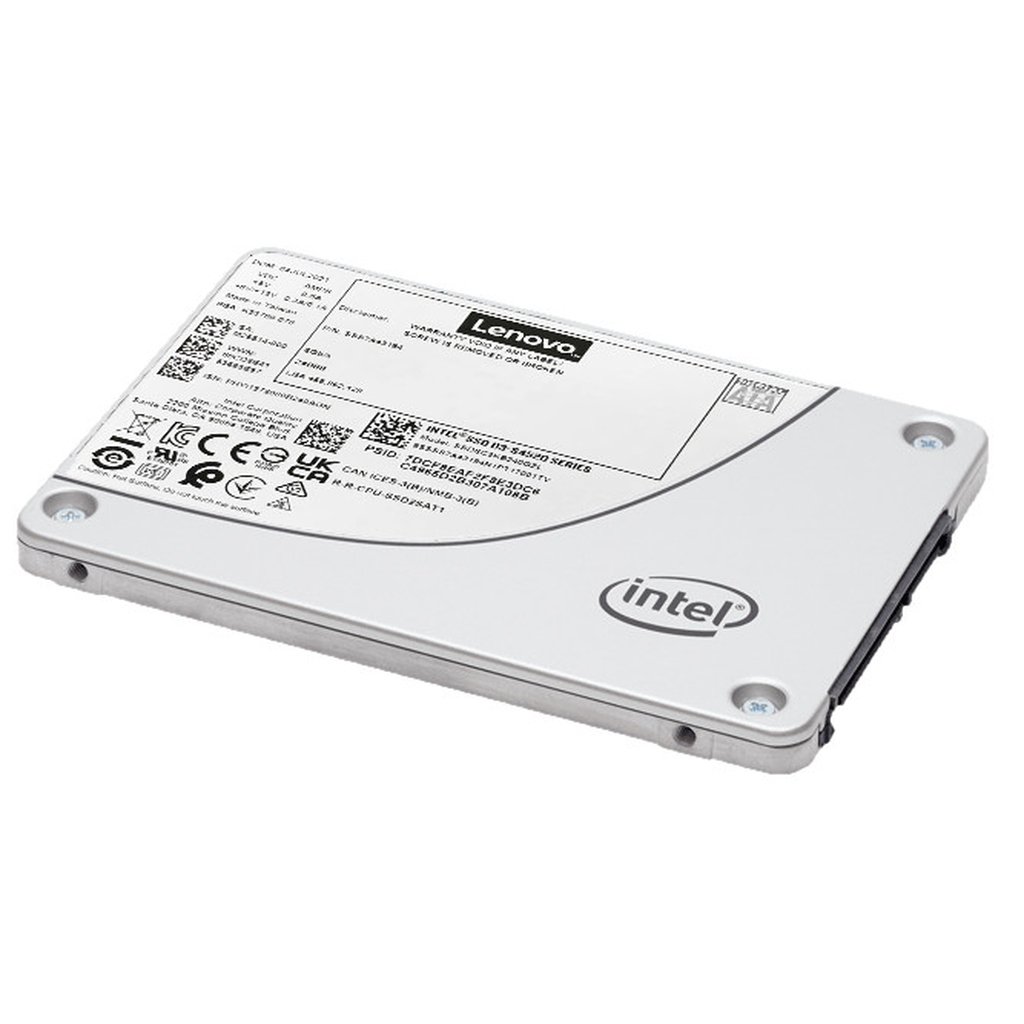

Lenovo 4XB7A17104 internal solid state drive 3.84 TB 2.5″ Serial ATA III 3D TLC NAND
ThinkSystem 2.5″ S4520 3.84TB Read Intensive SATA 6Gb HS SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Additional information
| Weight | 0.22 lbs |
|---|---|
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Memory type | 3D TLC NAND |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Package width | 174 mm |
| Package depth | 133 mm |
| Package height | 63 mm |
| Package weight | 434 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Operating vibration | 2.17 G |
| Random read (4KB) | 92000 IOPS |
| Random write (4KB) | 31000 IOPS |
| Read latency | 37 µs |
| Write latency | 40 µs |
| S.M.A.R.T. support | Yes |
| Power consumption (write) | 3.5 W |
| Non-operating shock | 1000 G |
| Harmonized System (HS) code | 84717070 |
| Certification | FCC Title 47, Part 15B, Class BEN-55035:2017EN-55022:2006EN-55032:2012Low Voltage Directive (LVD) 2014/35/EUEMC Directive 2014/30/EURoHS Directive 2011/65/EUWEEE Directive 2012/19/EUUL 60950-1, 2nd Ed |
| Operating relative humidity (H-H) | 5 – 95% |
| Hardware encryption | Yes |
| Hot-swap | Yes |
| Operating shock | 1000 G |
| Security algorithms | 256-bit AES |
| Maximum operating altitude | 3050 m |
