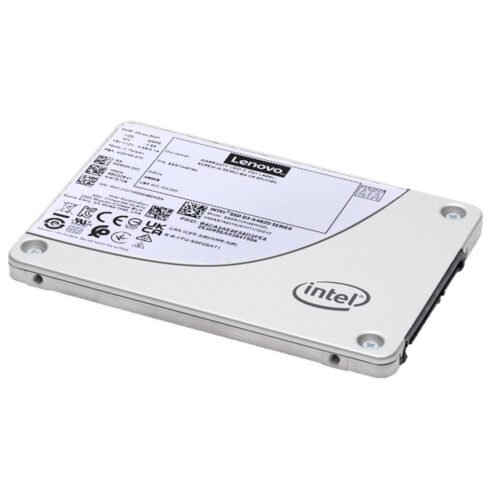

Lenovo 4XB7A17126 internal solid state drive 960 GB 2.5″ Serial ATA III 3D TLC NAND
ThinkSystem 2.5″ S4620 960GB Mixed Use SATA 6Gb HS SSD
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.
Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.
Additional information
| Weight | 0.22 lbs |
|---|---|
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Memory type | 3D TLC NAND |
| Read speed | 550 MB/s |
| Write speed | 510 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Package width | 174 mm |
| Package depth | 133 mm |
| Package height | 63 mm |
| Package weight | 434 g |
| Operating temperature (T-T) | 0 – 70 °C |
| Operating vibration | 2.17 G |
| Random read (4KB) | 85000 IOPS |
| Random write (4KB) | 56000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support | Yes |
| Power consumption (write) | 3 W |
| Non-operating vibration | 3.13 G |
| Non-operating shock | 1000 G |
| Harmonized System (HS) code | 84717070 |
| Certification | FCC Title 47, Part 15B, Class BEN-55035:2017EN-55022:2006EN-55032:2012Low Voltage Directive (LVD) 2014/35/EUEMC Directive 2014/30/EURoHS Directive 2011/65/EUWEEE Directive 2012/19/EUUL 60950-1, 2nd Ed |
| Operating relative humidity (H-H) | 5 – 95% |
| Hardware encryption | Yes |
| Hot-swap | Yes |
| Operating shock | 1000 G |
| Security algorithms | 256-bit AES |
| Maximum operating altitude | 3050 m |
