Neomounts DS70S-950WH2 Monitor arm 17-35″ – gas spring – Topfix – 180°-stop
Neomounts NEXT One DS70S-950WH2 Dual monitor arm – 17-35″ – 1-18 kg/screen (curved 15 kg/screen) – gas spring – 180°-stop – Topfix – Easy Install-model – 100% plastic-free packaging – white
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description

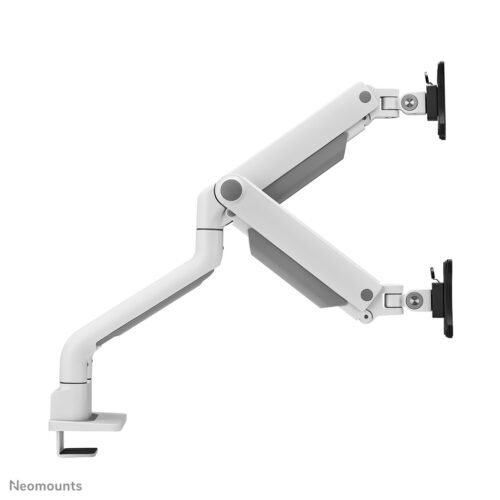

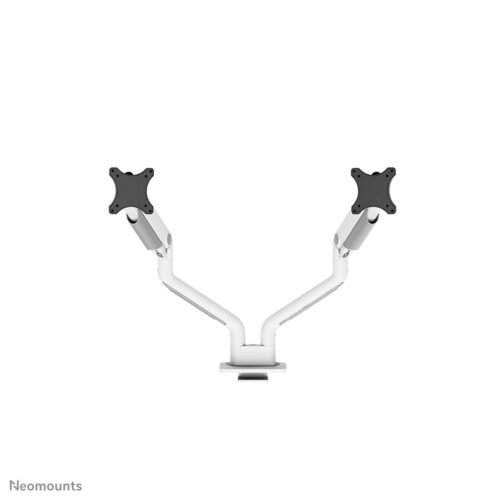

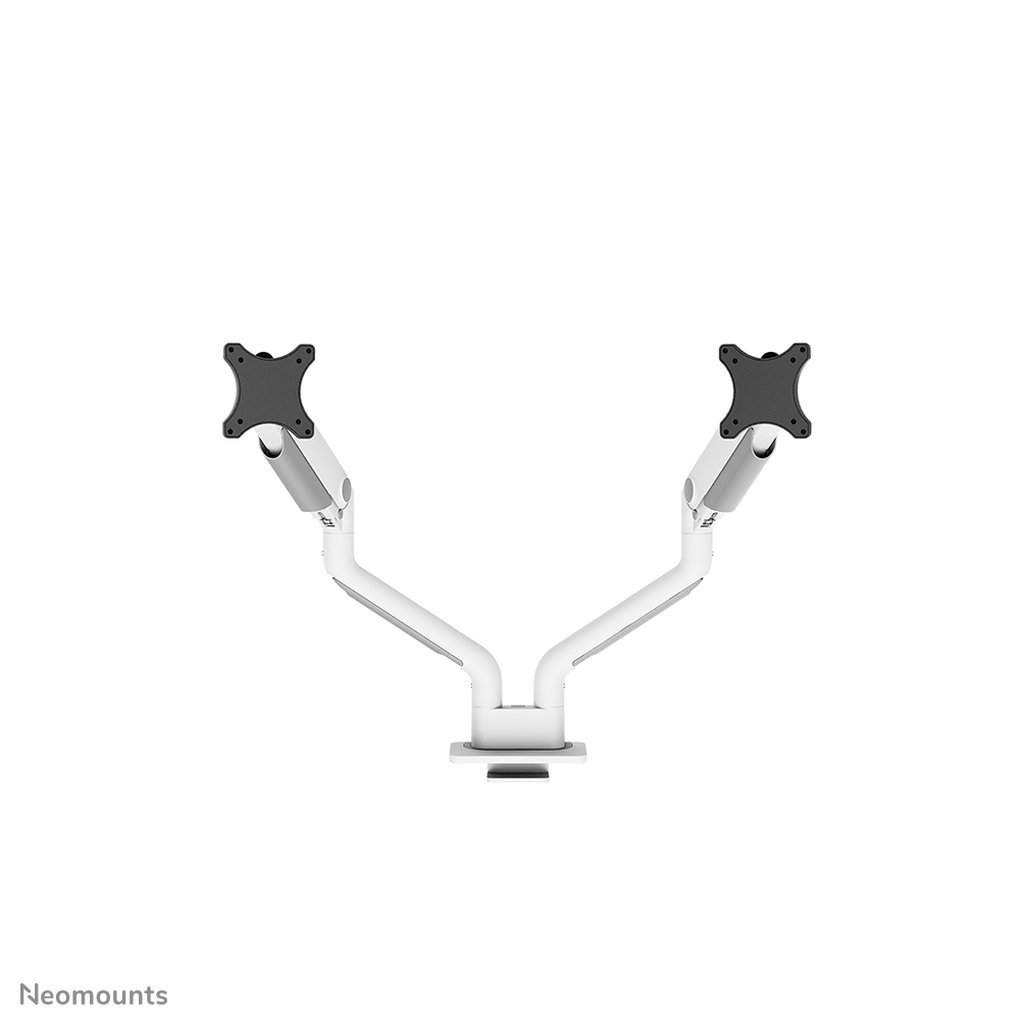

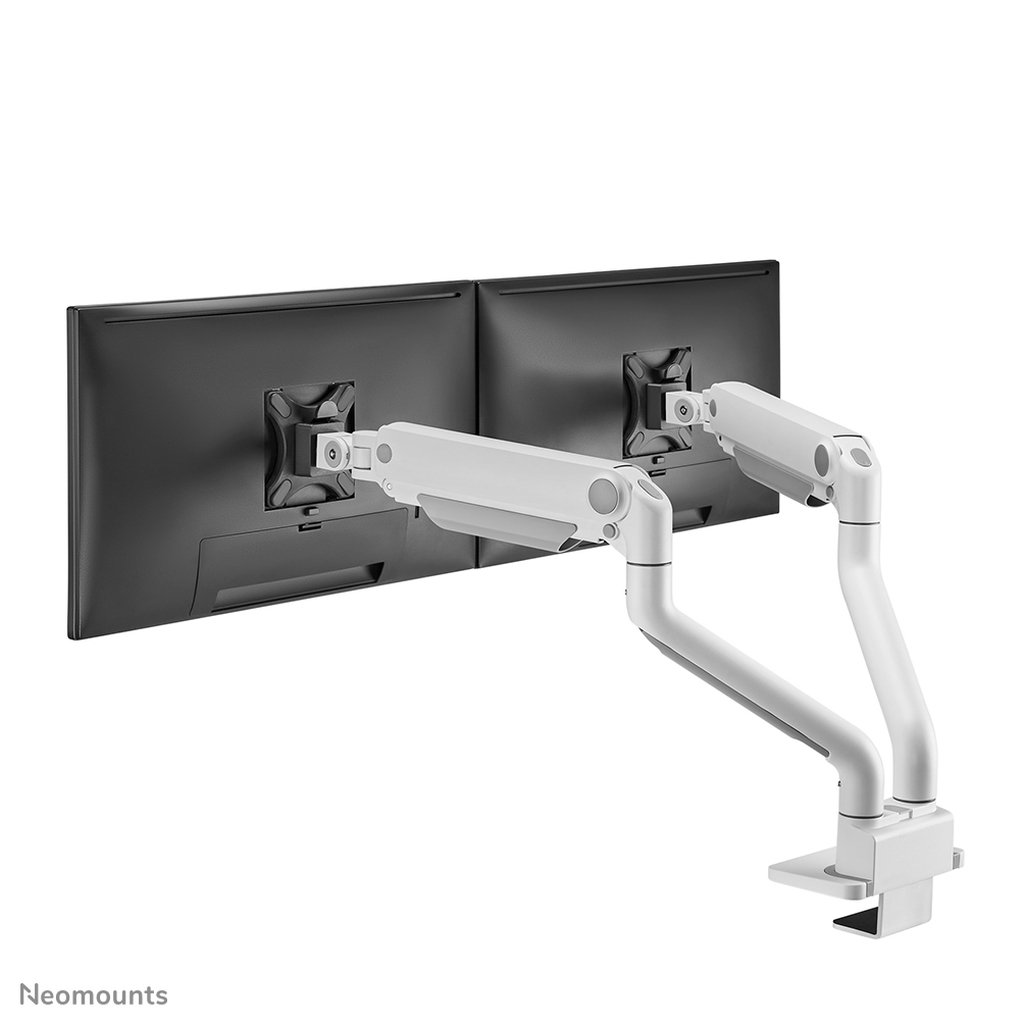

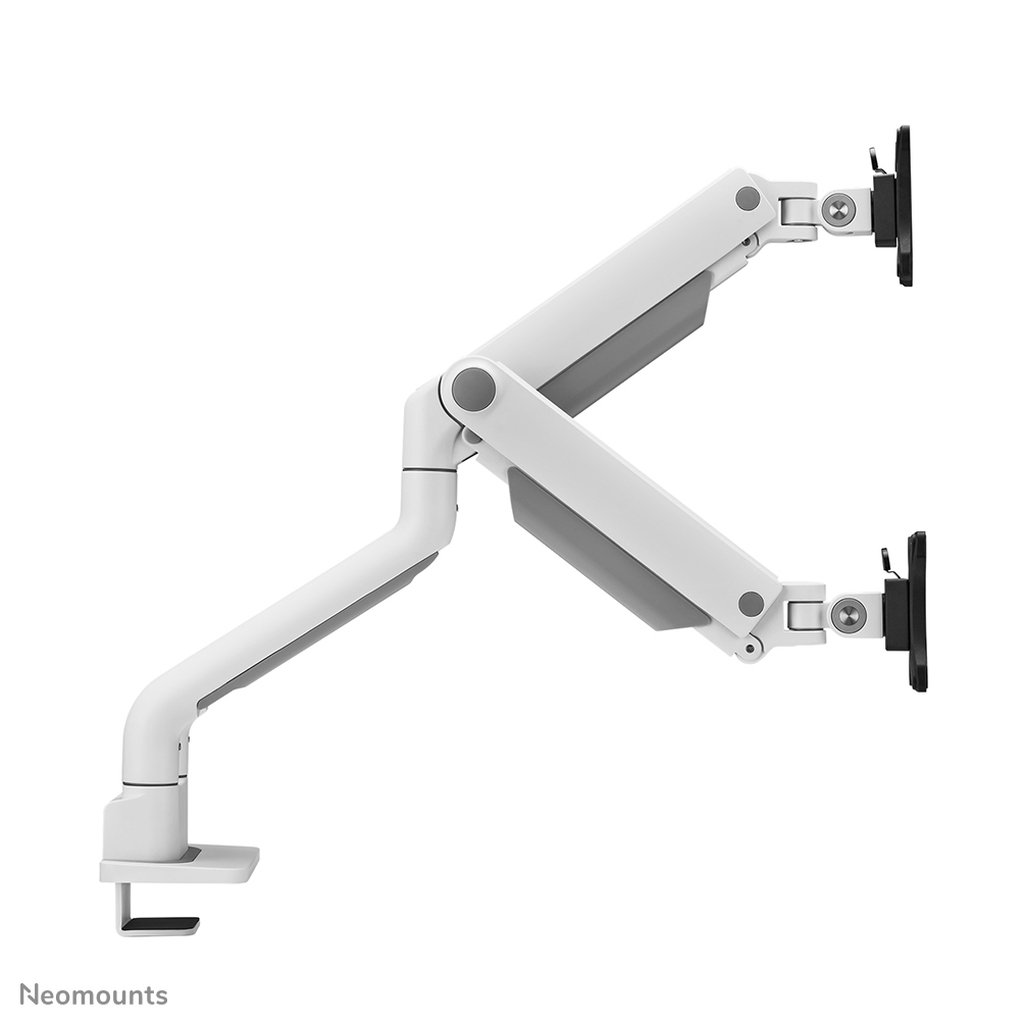

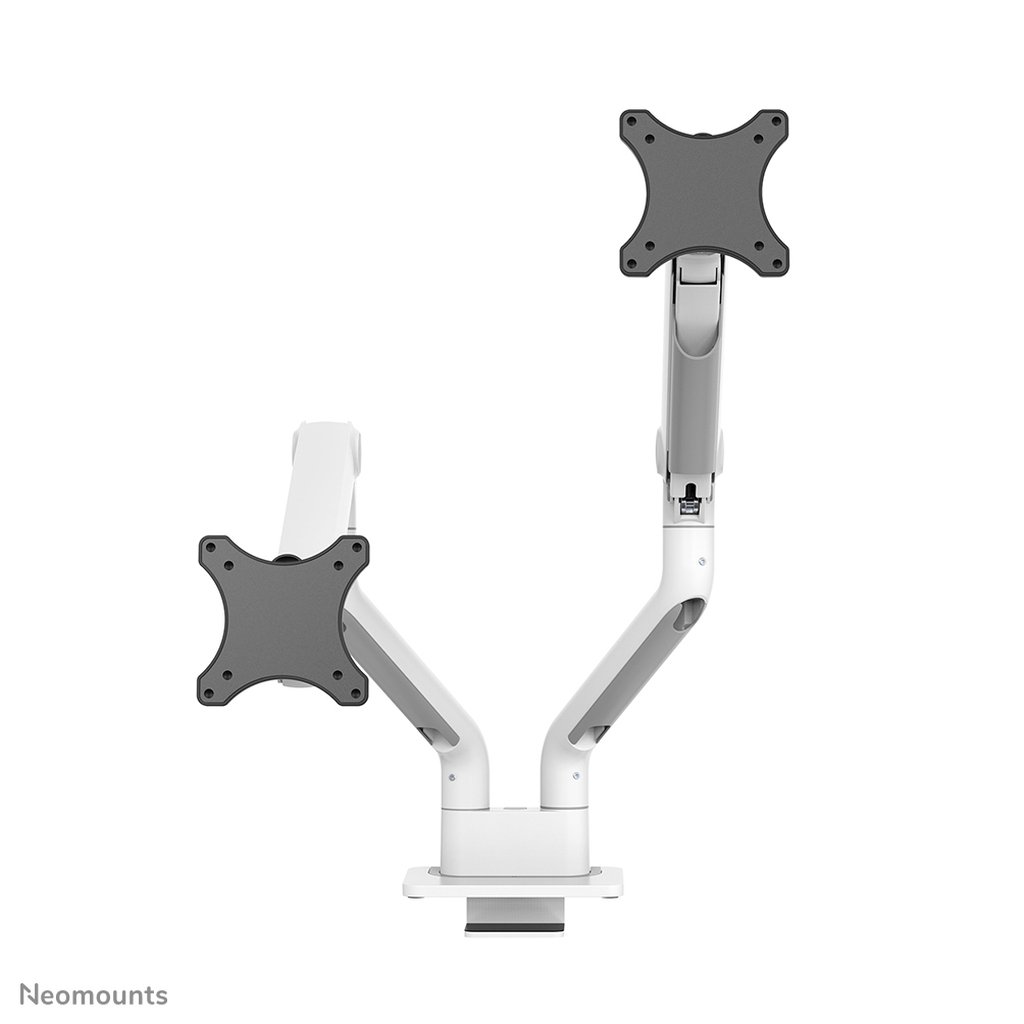

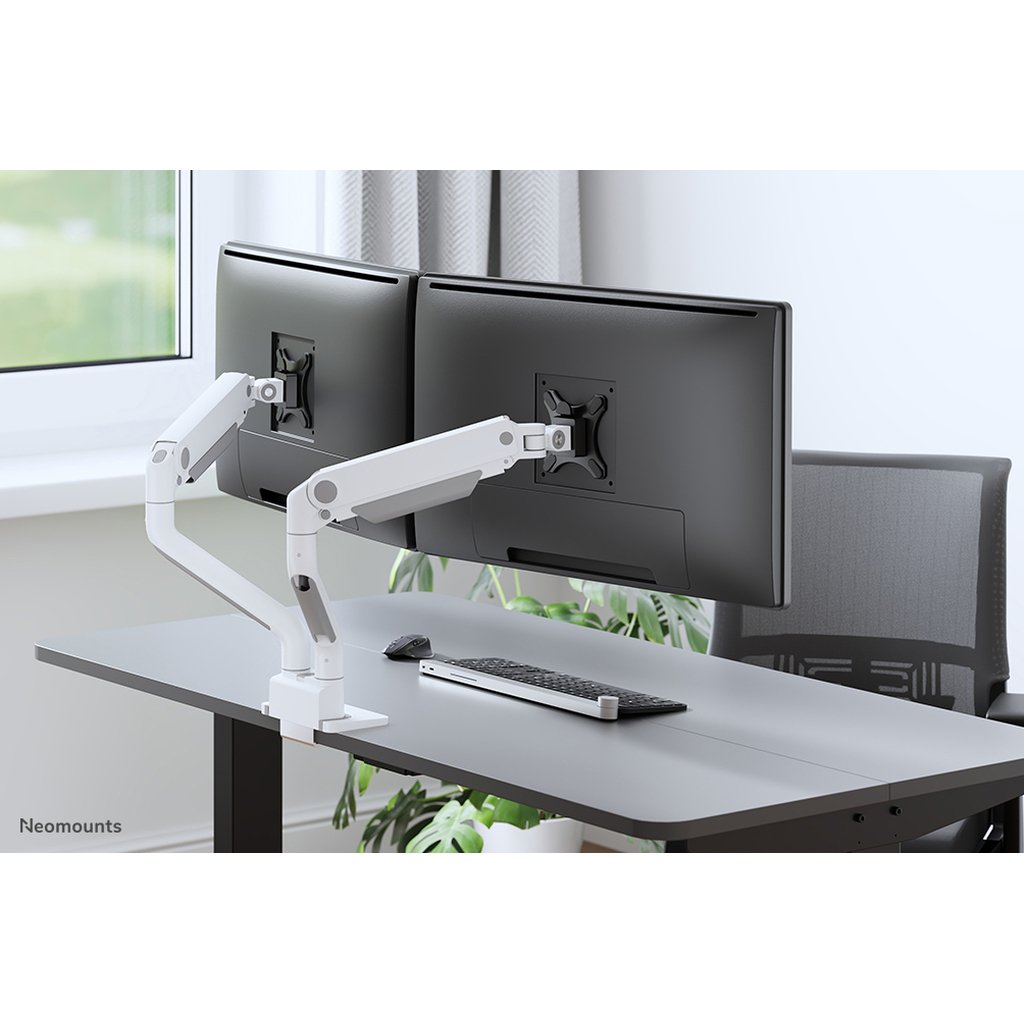

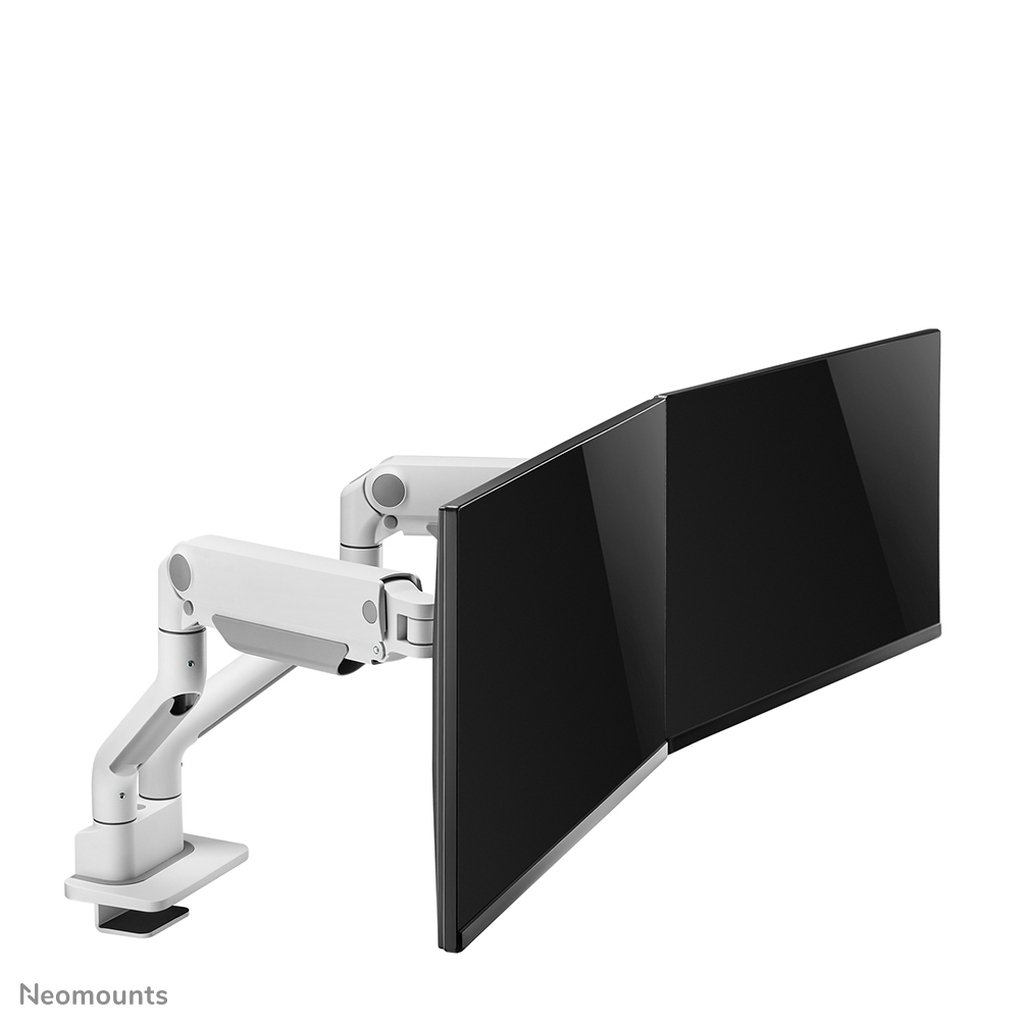

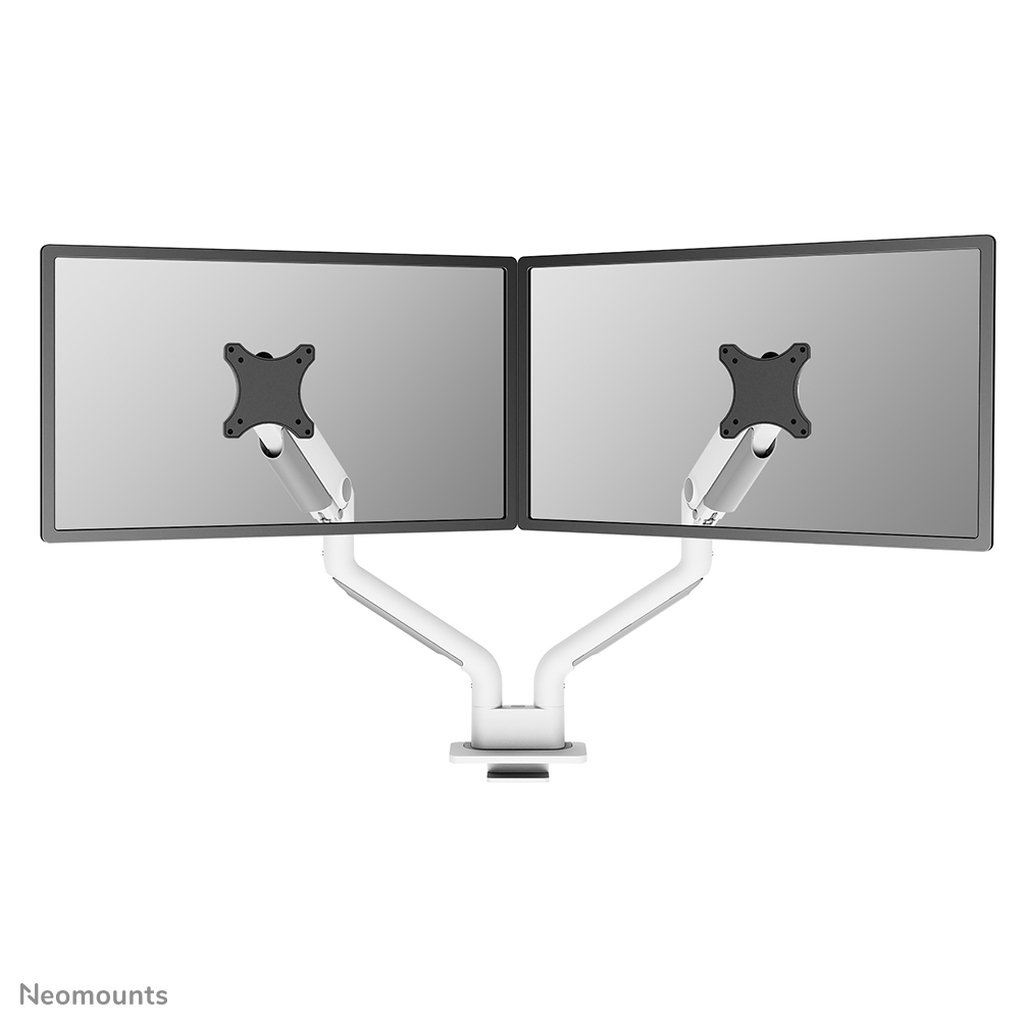

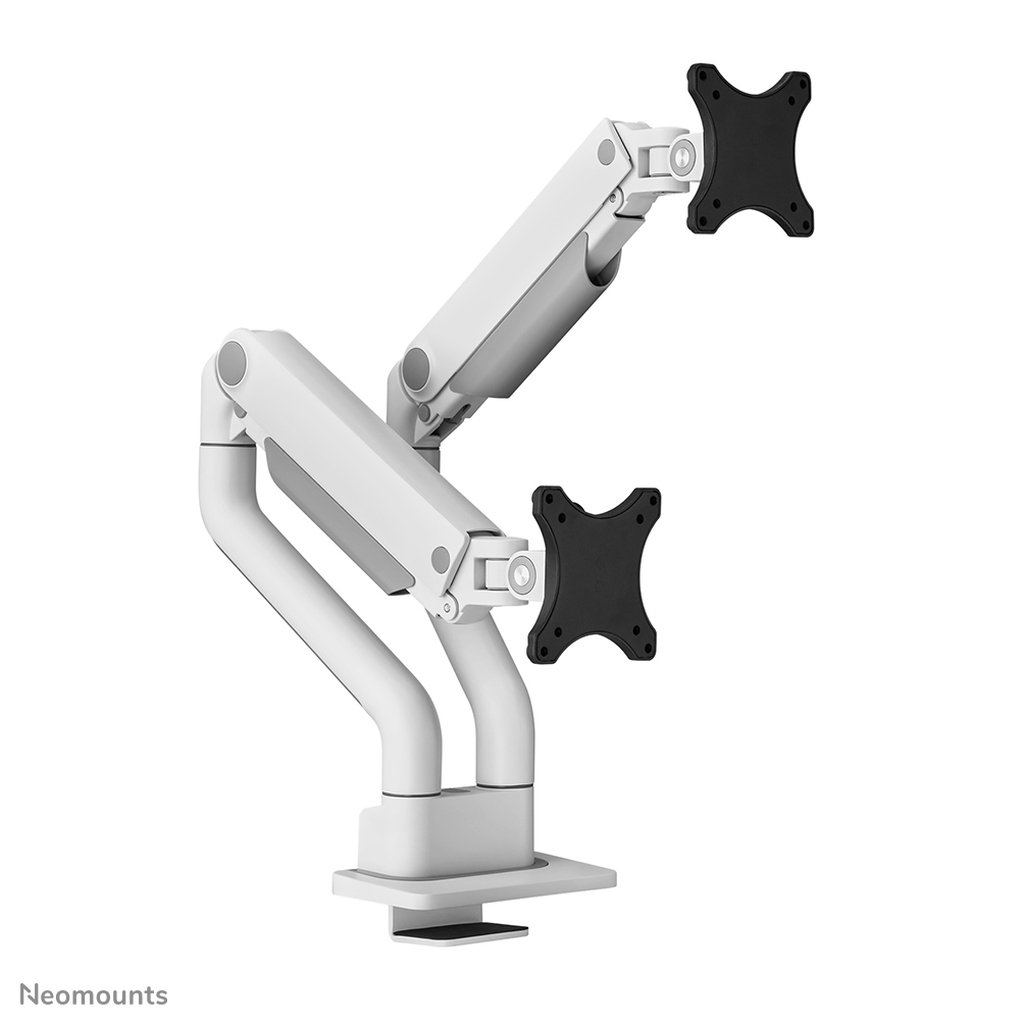

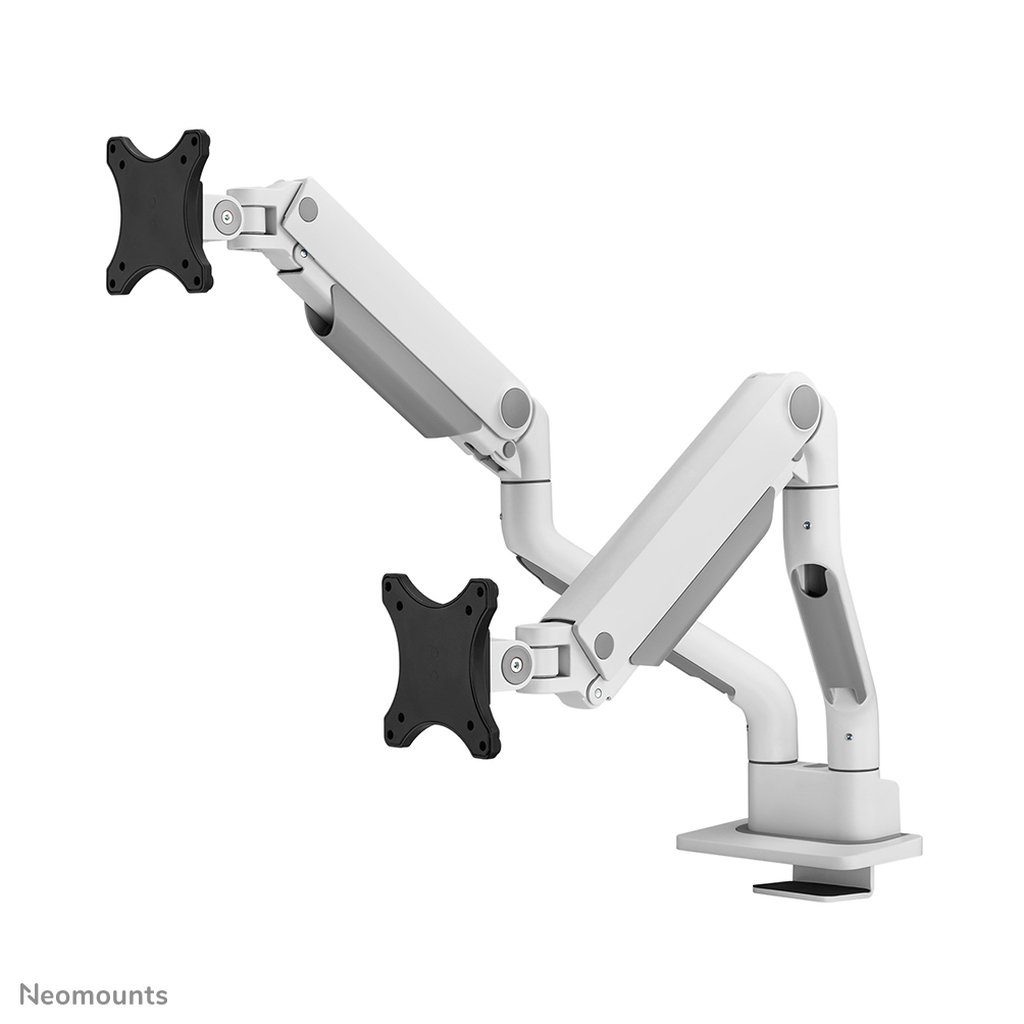

The Neomounts DS70S-950WH2 NEXT One is a full motion desk mount for two screens up to 35″. The DS70S-950WH2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

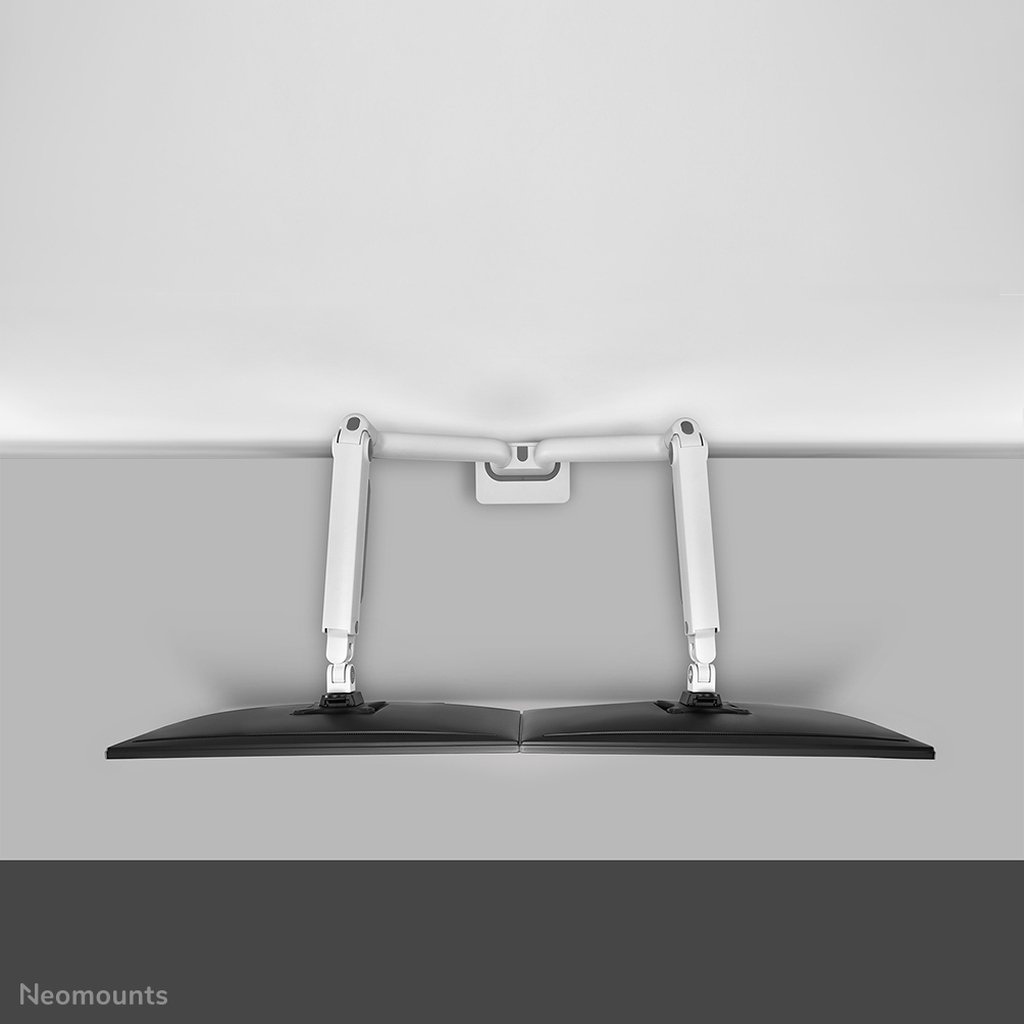

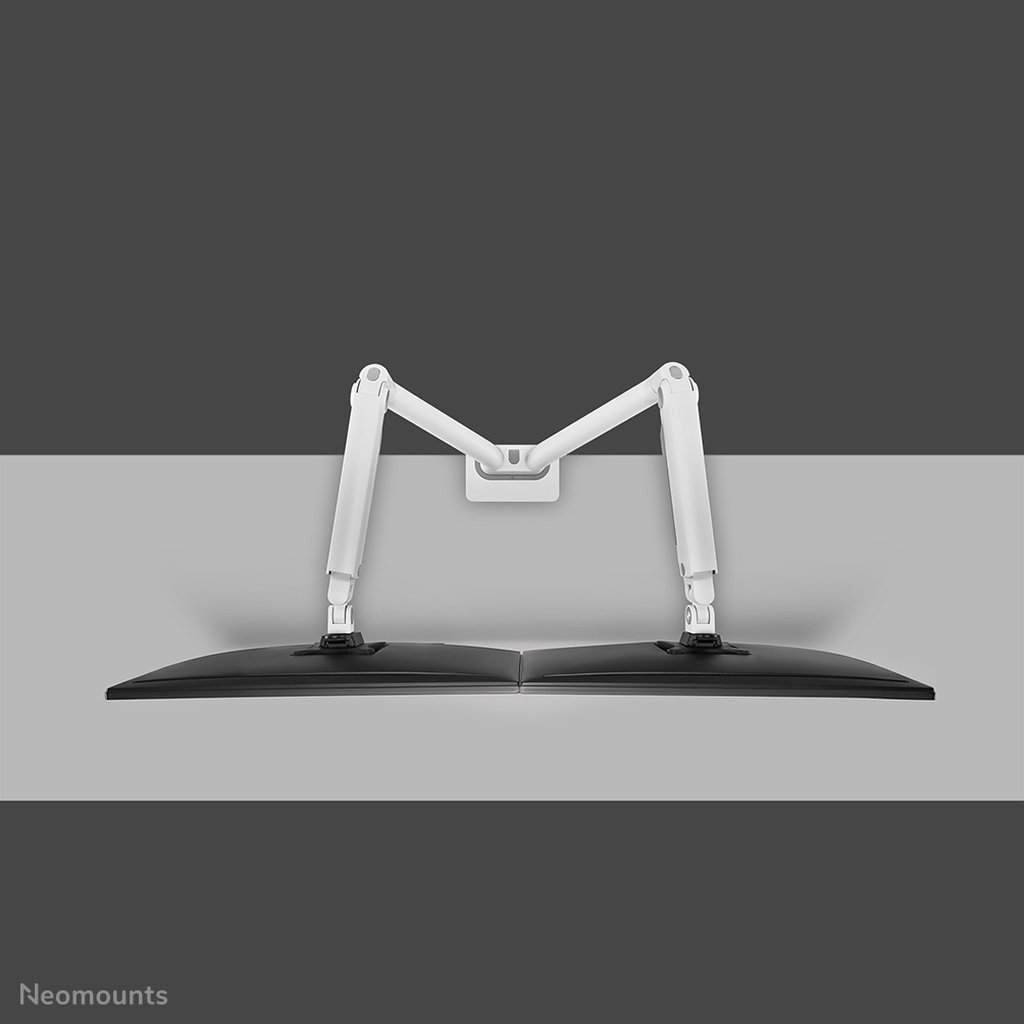

The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

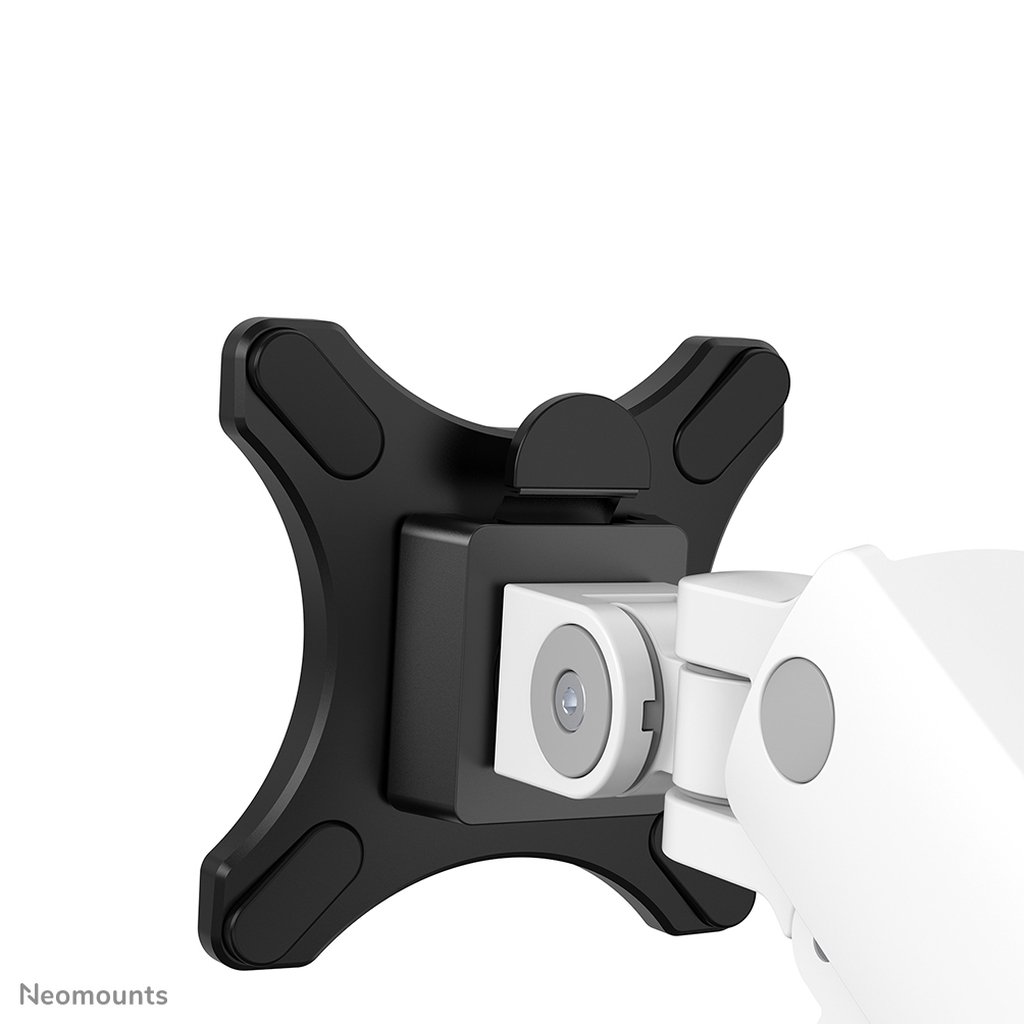

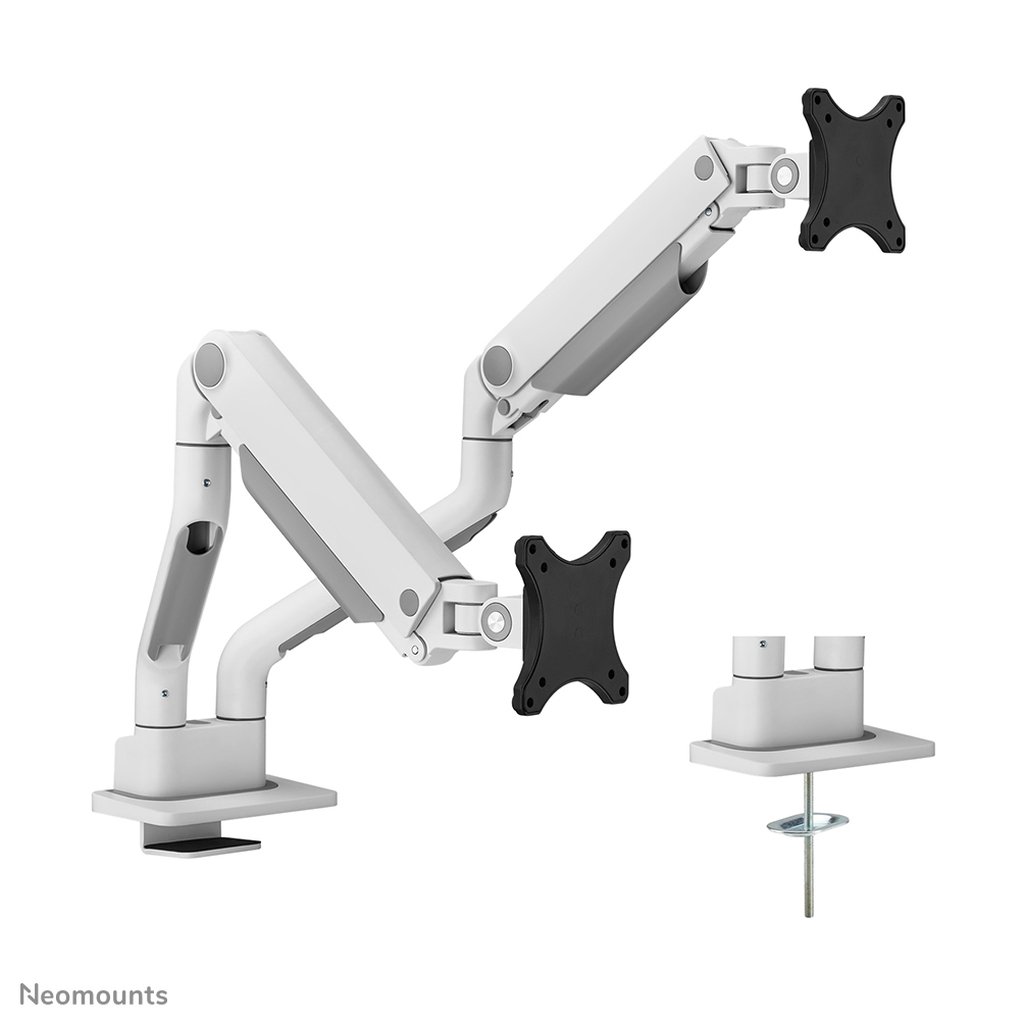

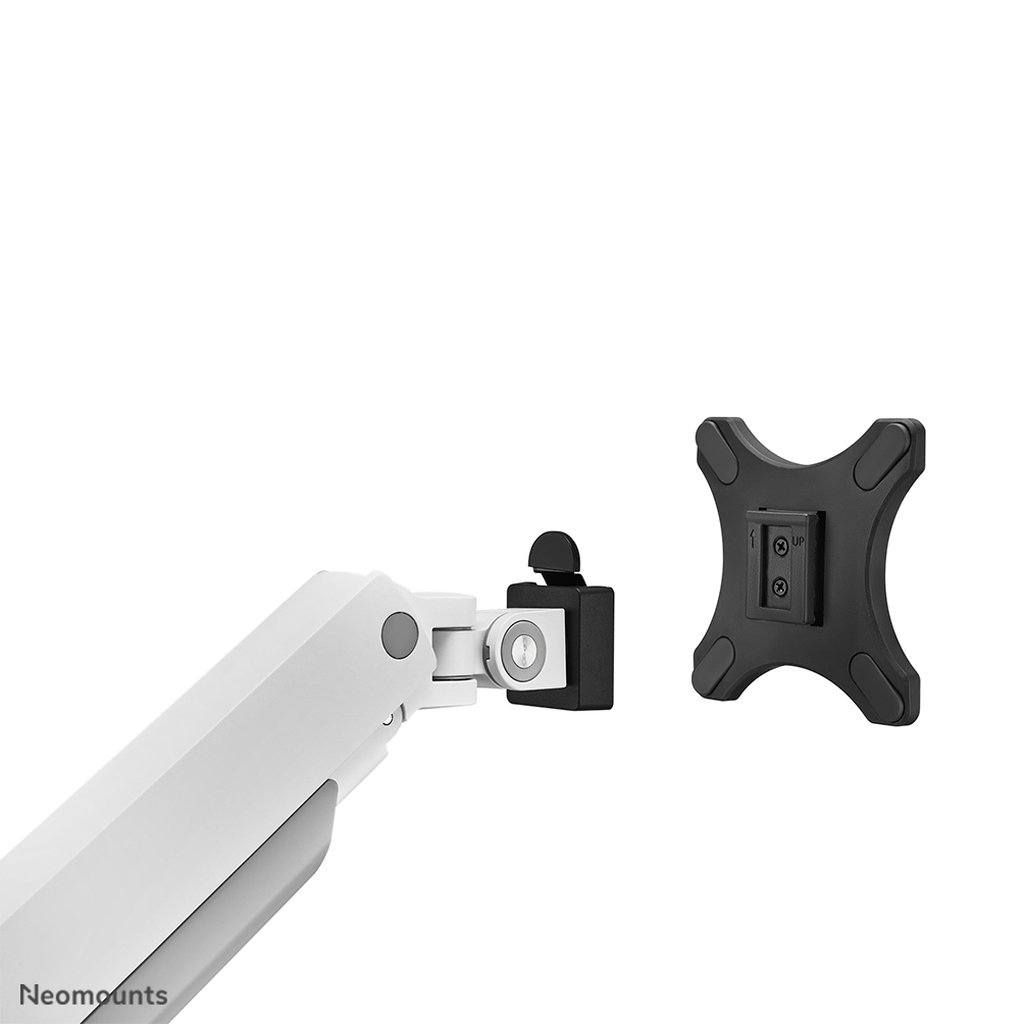

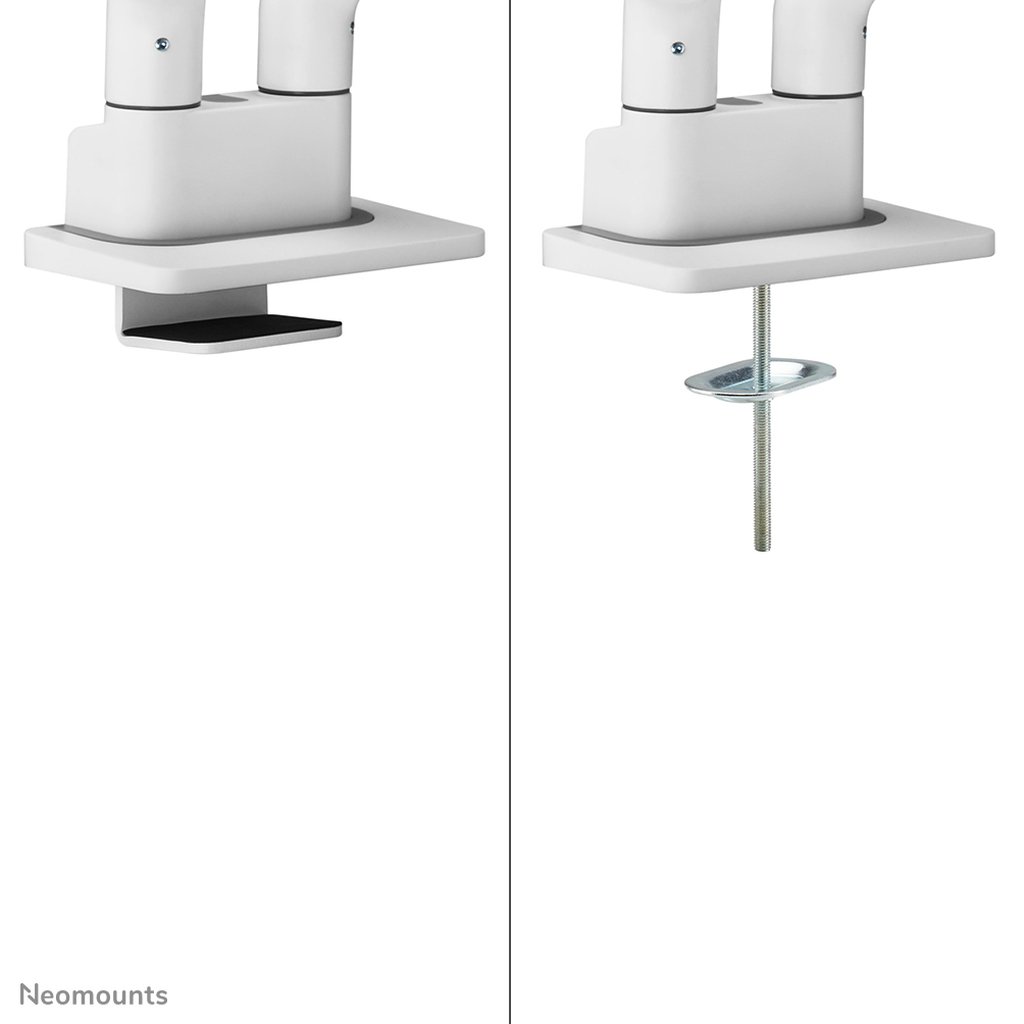

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75×75 or 100×100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

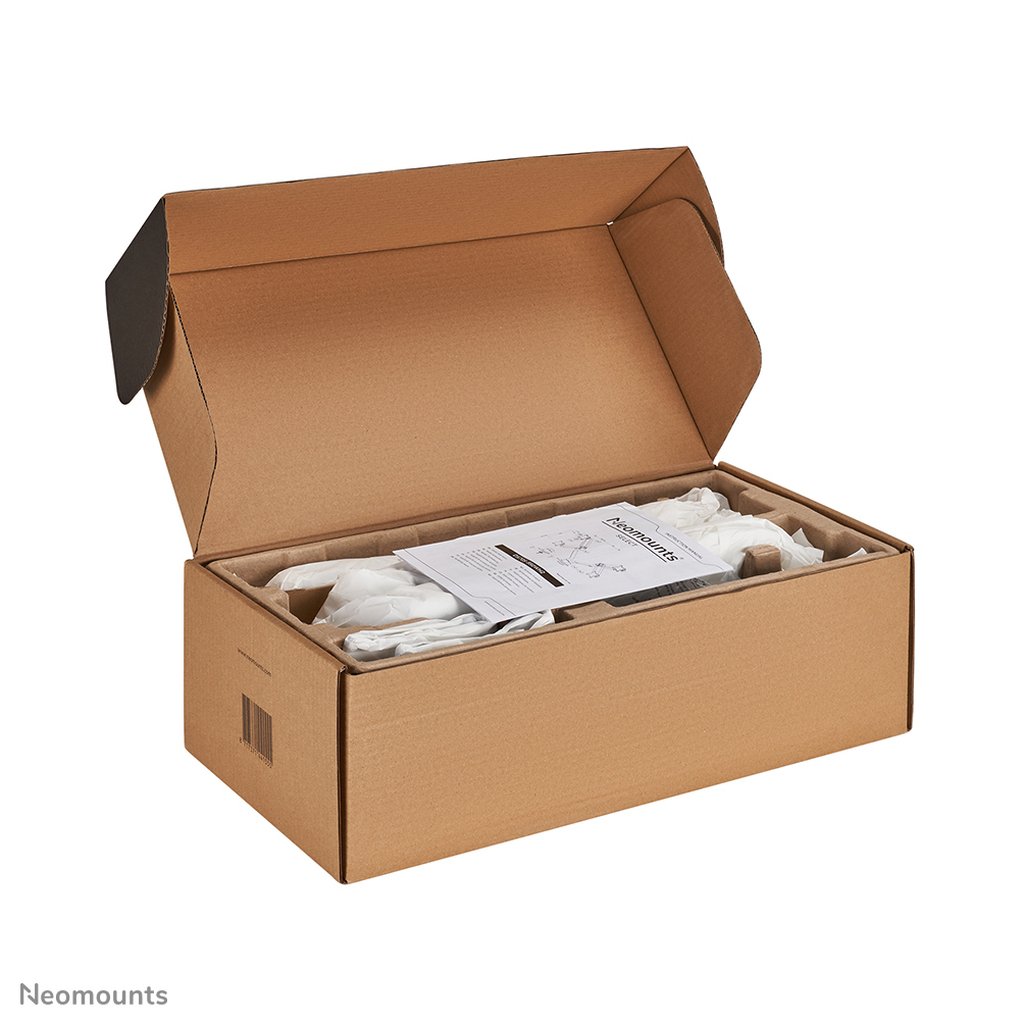

The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Additional information
| Weight | 7.82 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 18 kg |
| Maximum screen size | 88.9 cm (35") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |

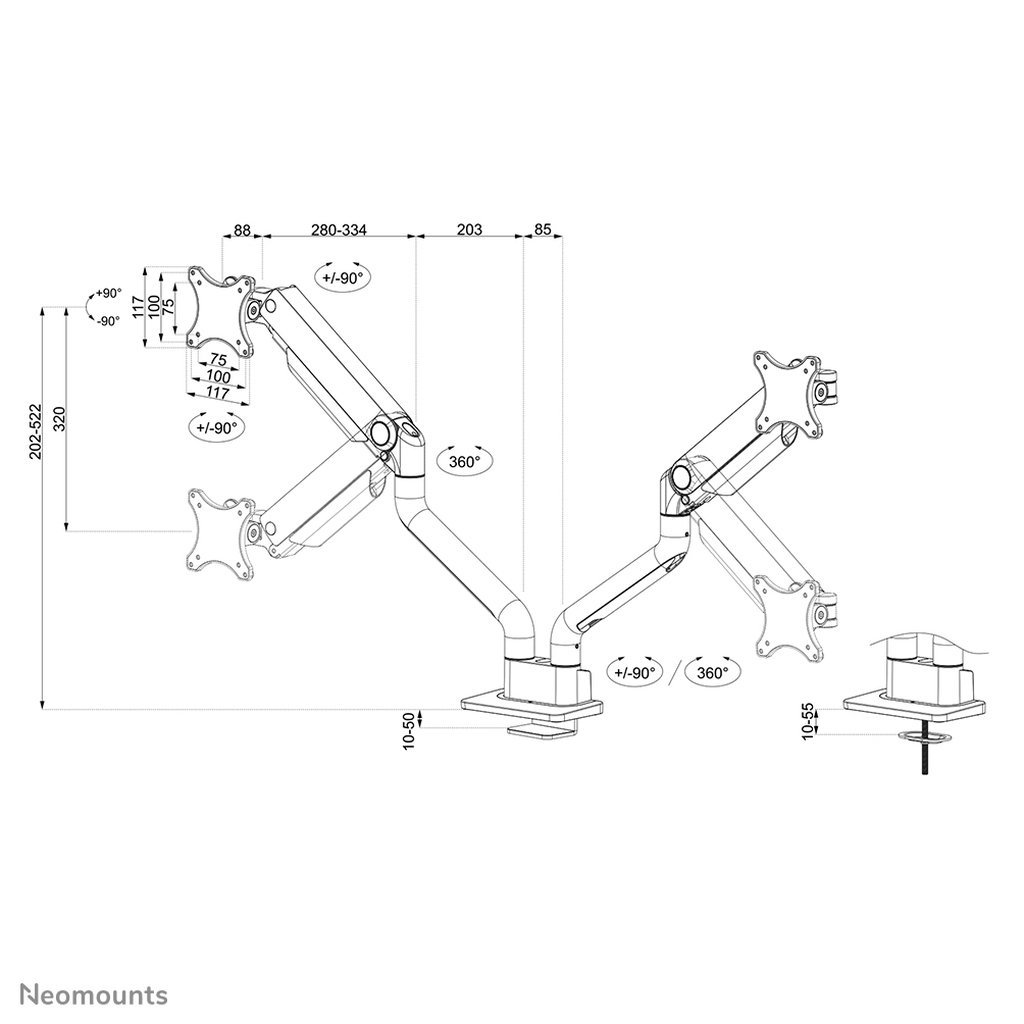

| Height adjustment range | 202 – 522 mm |
| Depth adjustment range | 88 – 625 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -90 – 90° |
| Swivelling | Yes |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | White |
| Housing material | Aluminium |
| Width | 186 mm |
| Depth | 656 mm |
| Height | 579 mm |
| Weight | 6.98 kg |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package weight | 7.9 kg |
| Width adjustment range | 0 – 1159 mm |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 14 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 48 pc(s) |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Minimum weight | 1 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5.5 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Warranty period | 10 year(s) |
| Package type | Box |
| Package net weight | 7.9 kg |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Number of arms | 2 |
| Easy to install | Yes |
