Neomounts FPMA-DTB100 Toolbar desk rail 10-24″
Neomounts FPMA-DTB100 Toolbar desk rail for 1-3 screens – 10-24″ – max 10 kg/screen – VESA 75×75-100×100 – combinable with FPMA-DTBW100/DTBW200 – silver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

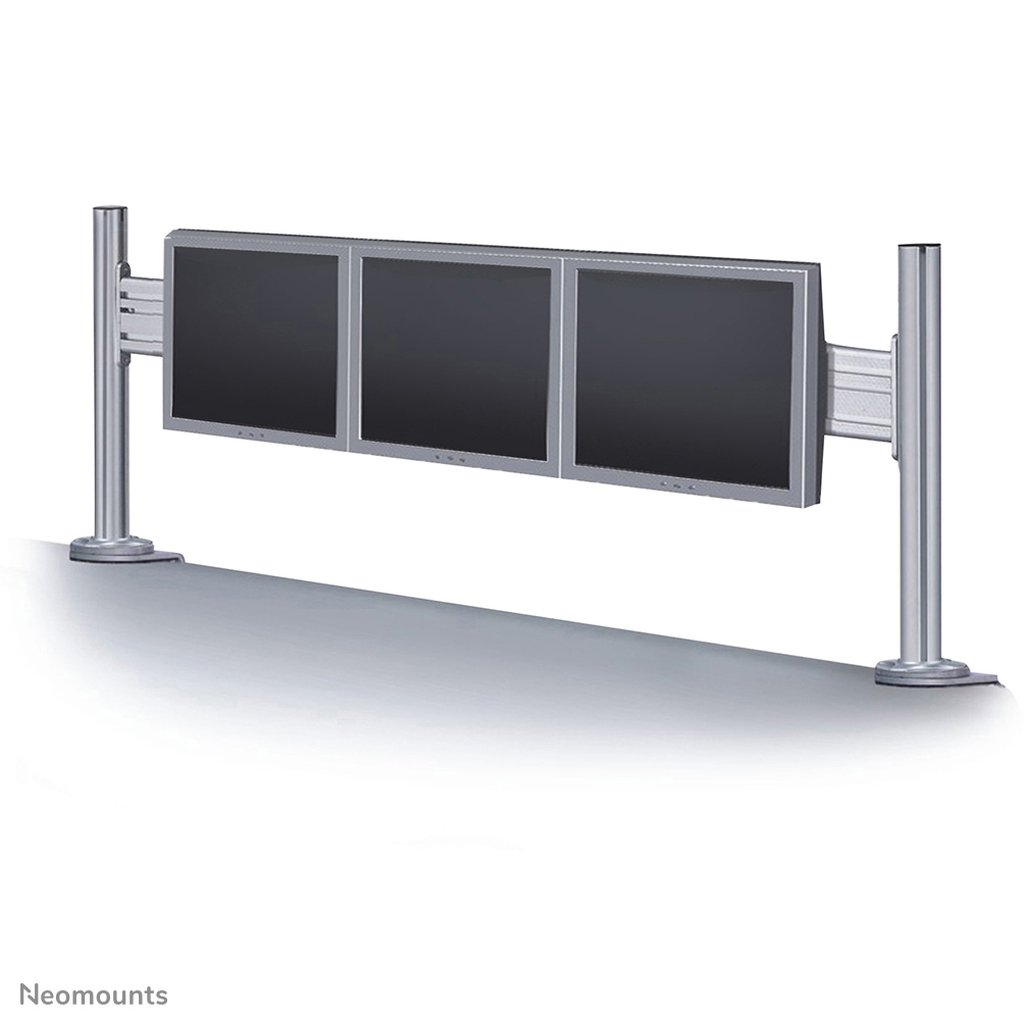

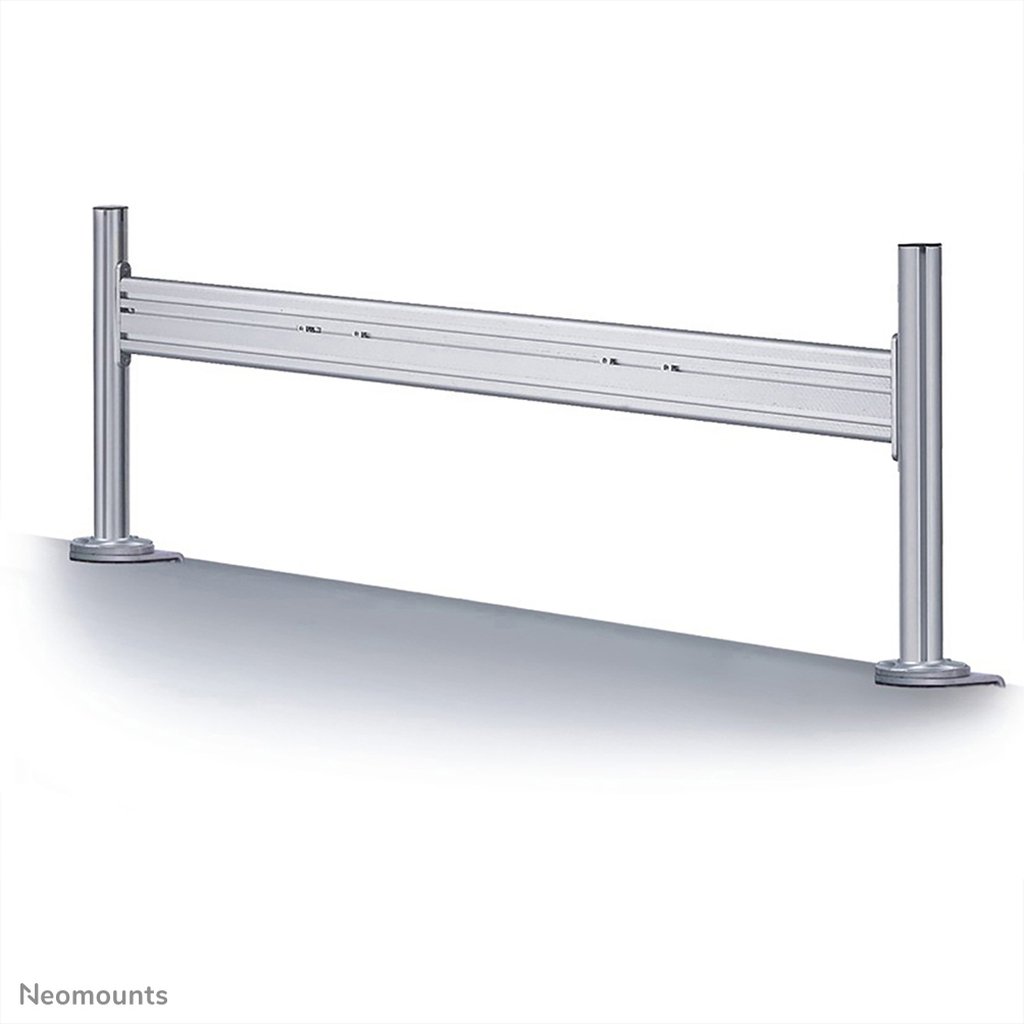

With the Neomounts FPMA-DTB100 toolbar desk rail, you can install up to 3 screens from 10-24″ and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket.
There are various monitor brackets available that can be combined with the FPMA-DTB100 toolbar desk mount:
* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.
* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.
Both monitor brackets are suitable for screens with a VESA hole pattern of 75×75 and 100×100 mm. FPMA-DTB100 toolbar desk mount features cable clips so cables can be easily and neatly routed.
Additional information
| Weight | 7.16 lbs |
|---|---|
| Number of displays supported | 3 |
| Maximum weight capacity (per display) | 10 kg |
| Maximum screen size | 61 cm (24") |
| Mounting type | Desk |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 – 420 mm |
| Depth adjustment range | 0 – 80 mm |
| Product colour | Silver |
| Housing material | Aluminium |
| Depth | 80 mm |
| Height | 420 mm |
| Weight | 6.87 kg |
| Package width | 1360 mm |
| Package depth | 170 mm |
| Package height | 170 mm |
| Package weight | 6.9 kg |
| Master (outer) case width | 1360 mm |
| Master (outer) case length | 170 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 7.7 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 6.9 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 30 pc(s) |
| Mounting interface | VESA 75×75 mm |
