Neomounts FPMA-HAW100HC Medical monitor arm wall 10-32″ – h 0-170 cm – gas spring
Neomounts FPMA-HAW100HC Medical monitor arm wall – 10-32″ – h 0-170 cm – 6-12 kg – VESA 75×75-100×100 – gas spring – white
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

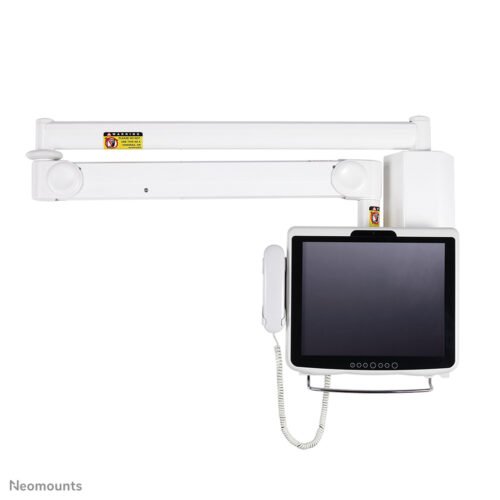

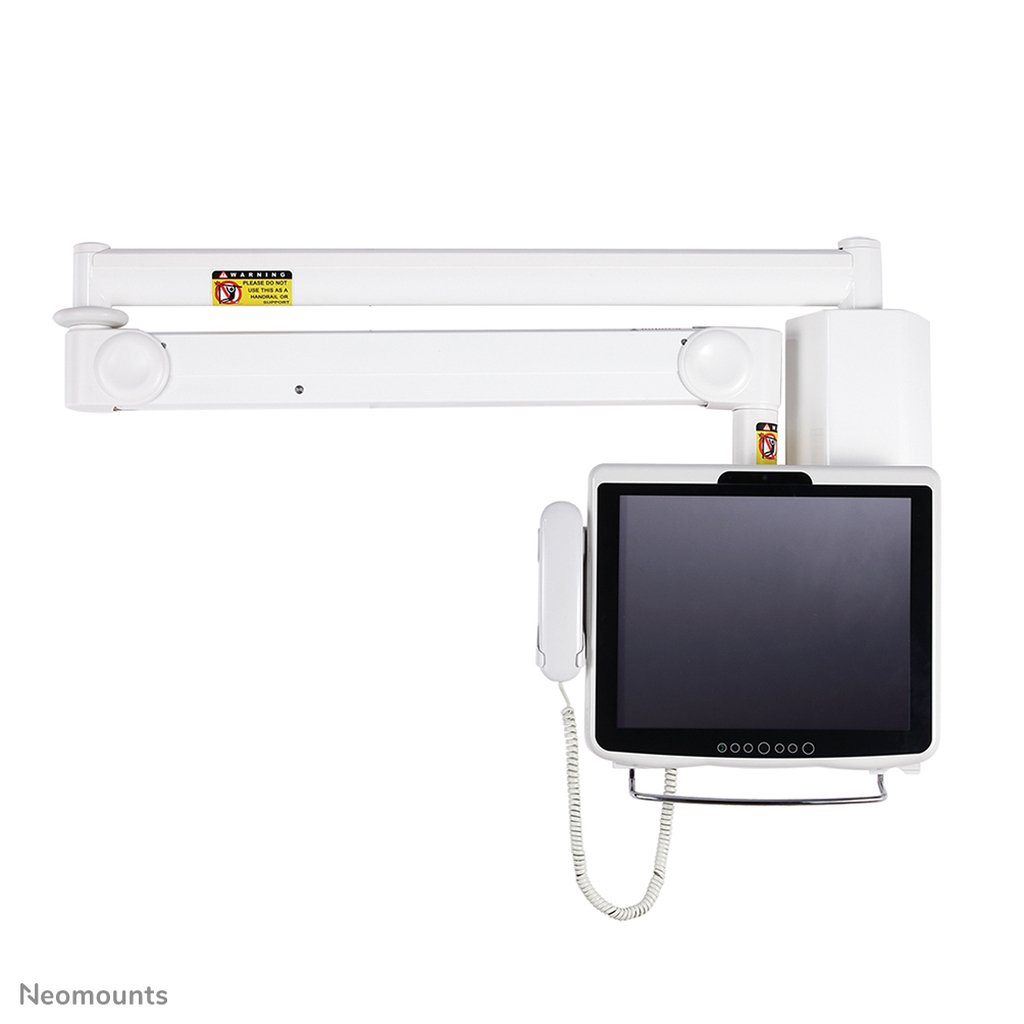

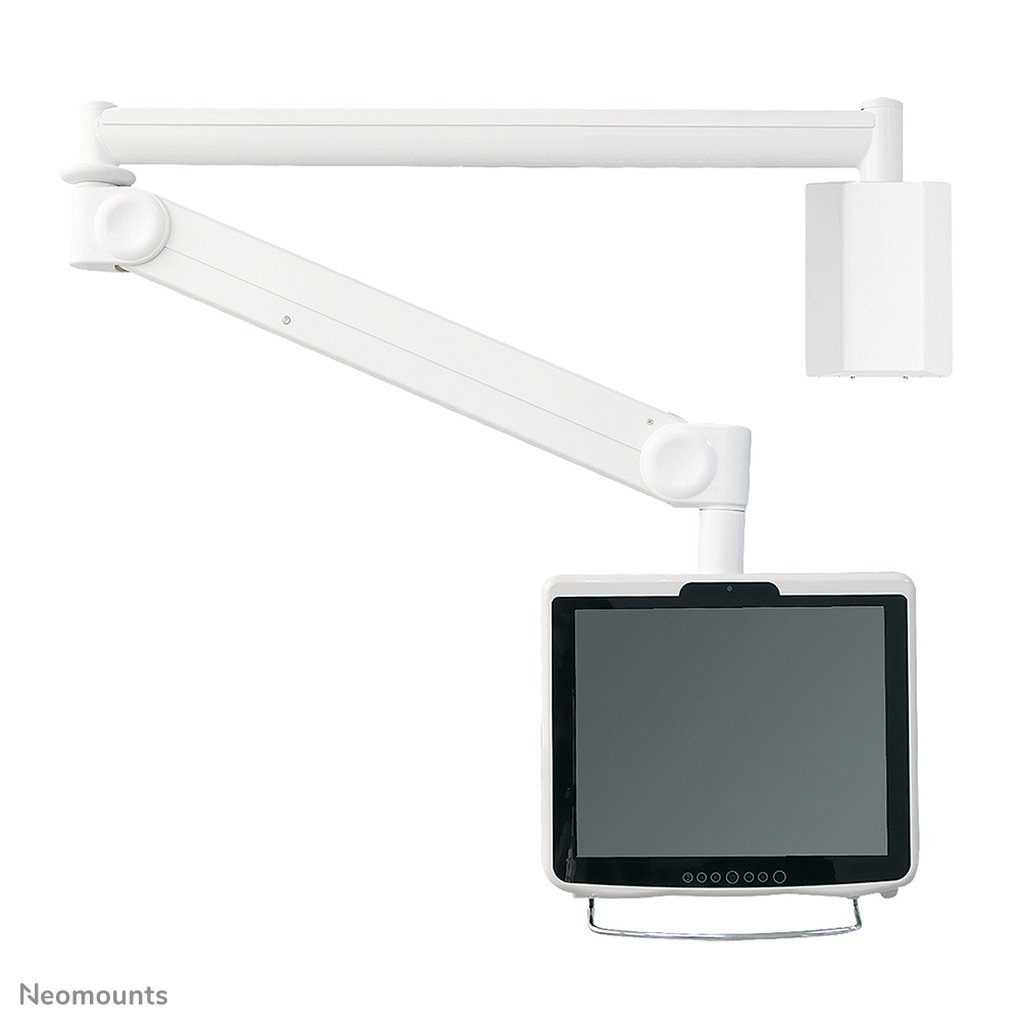

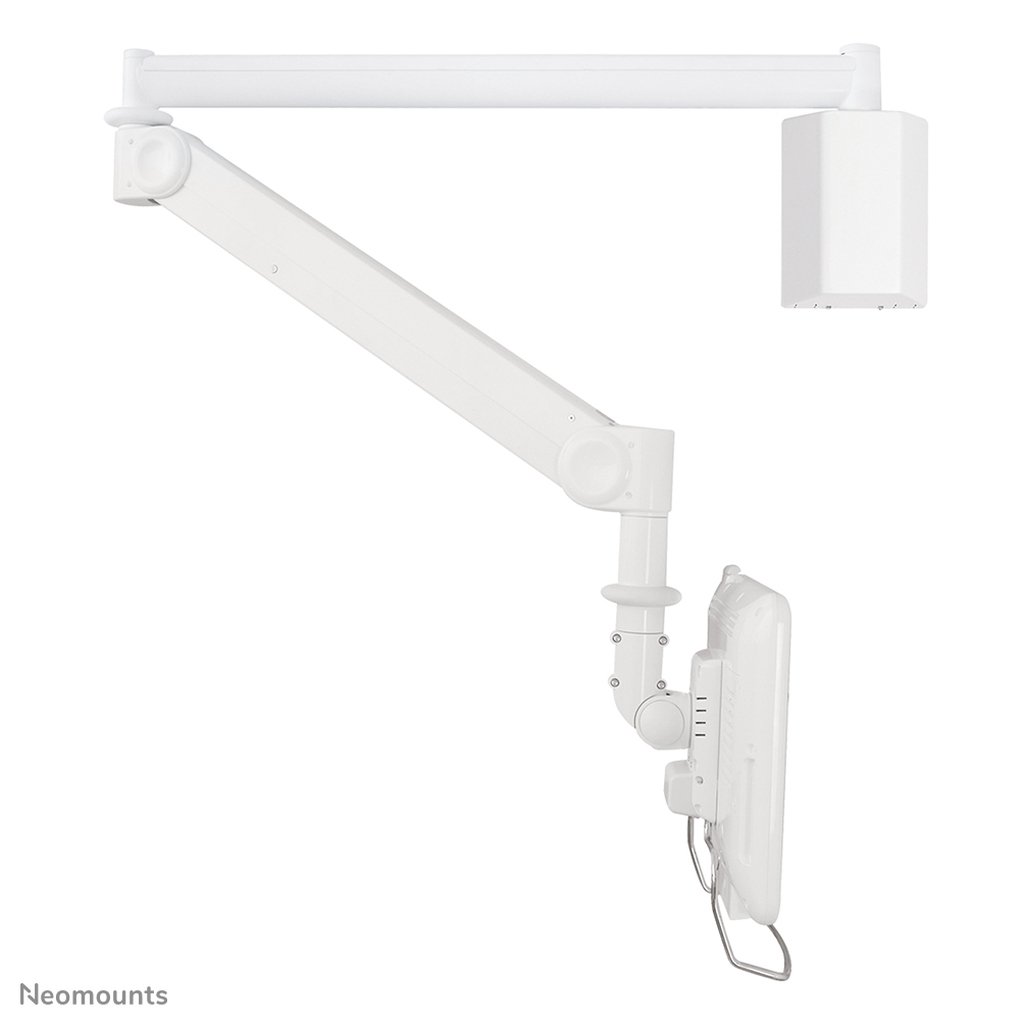

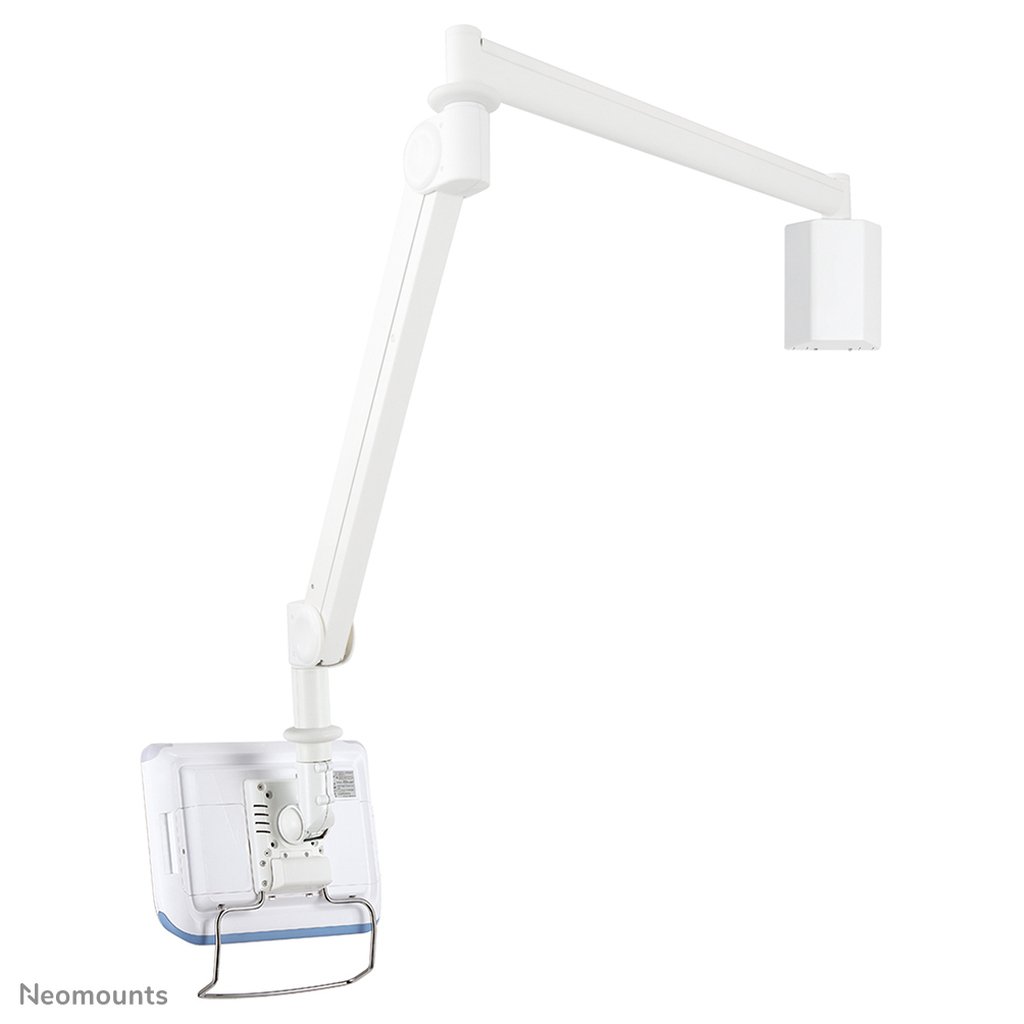

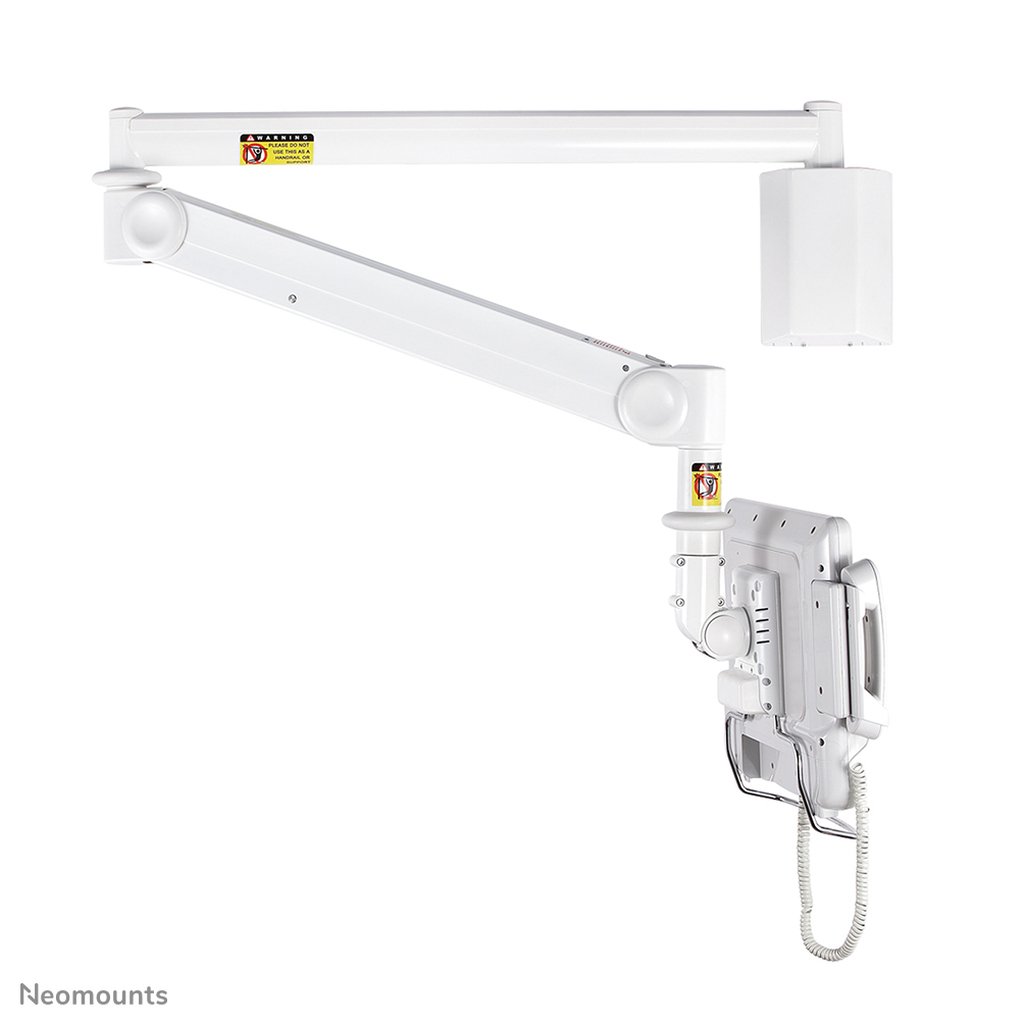

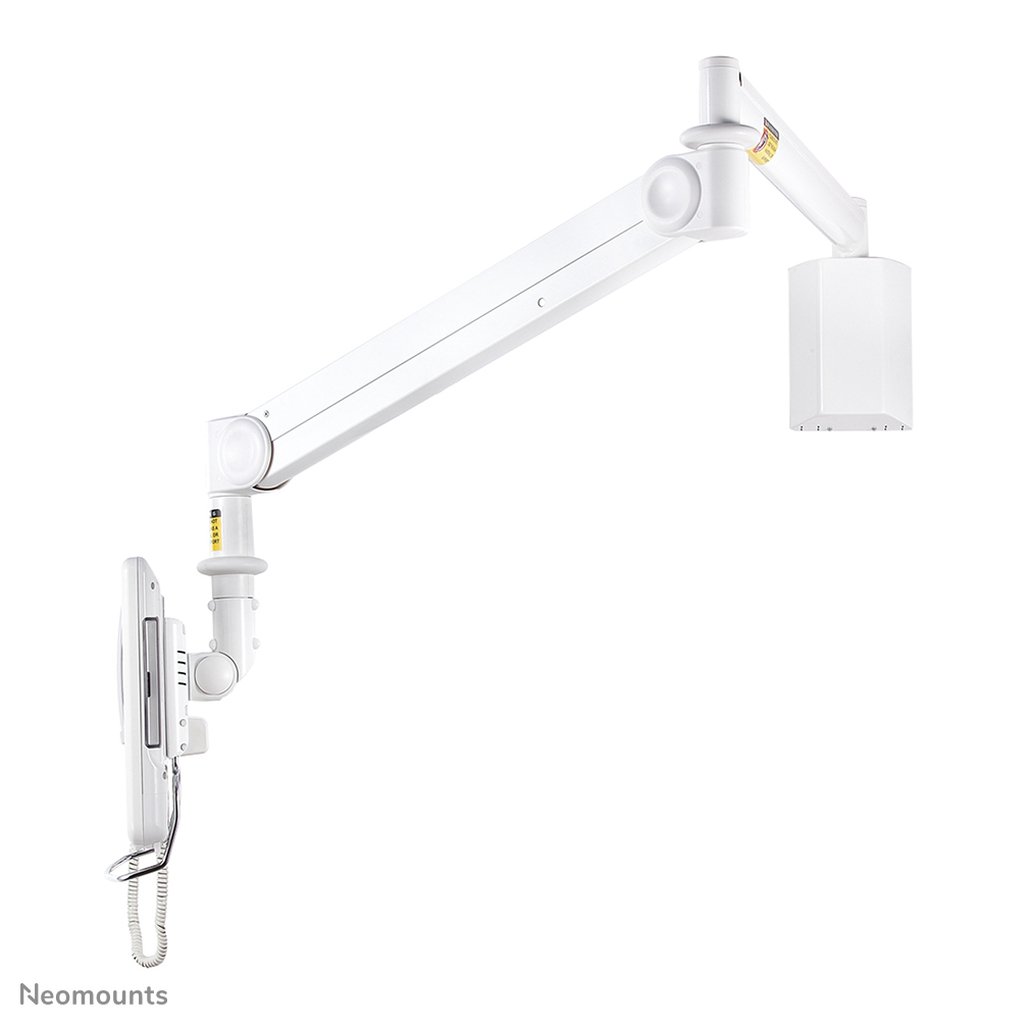

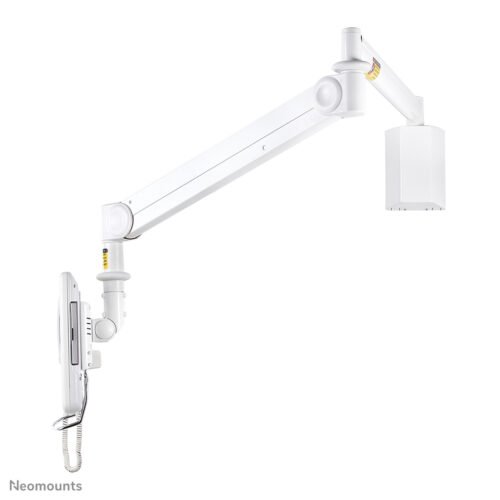

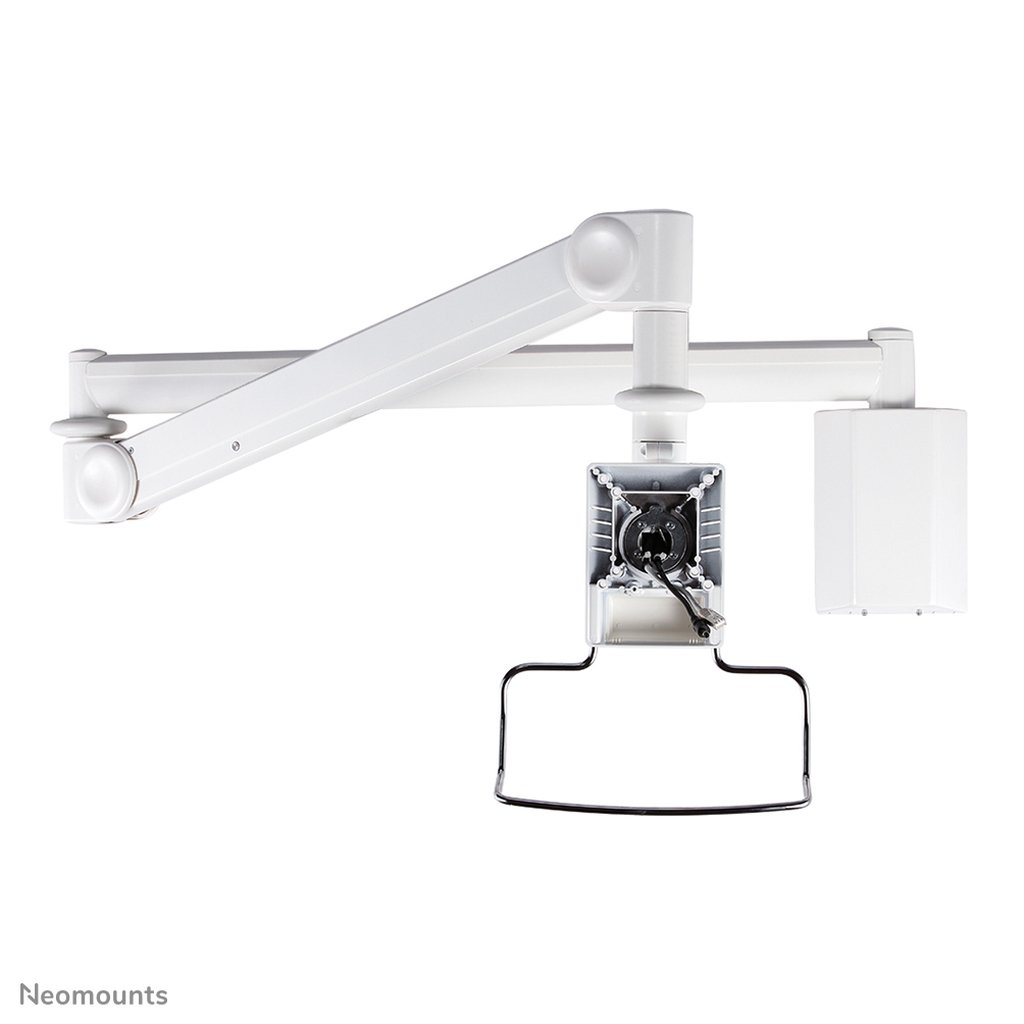

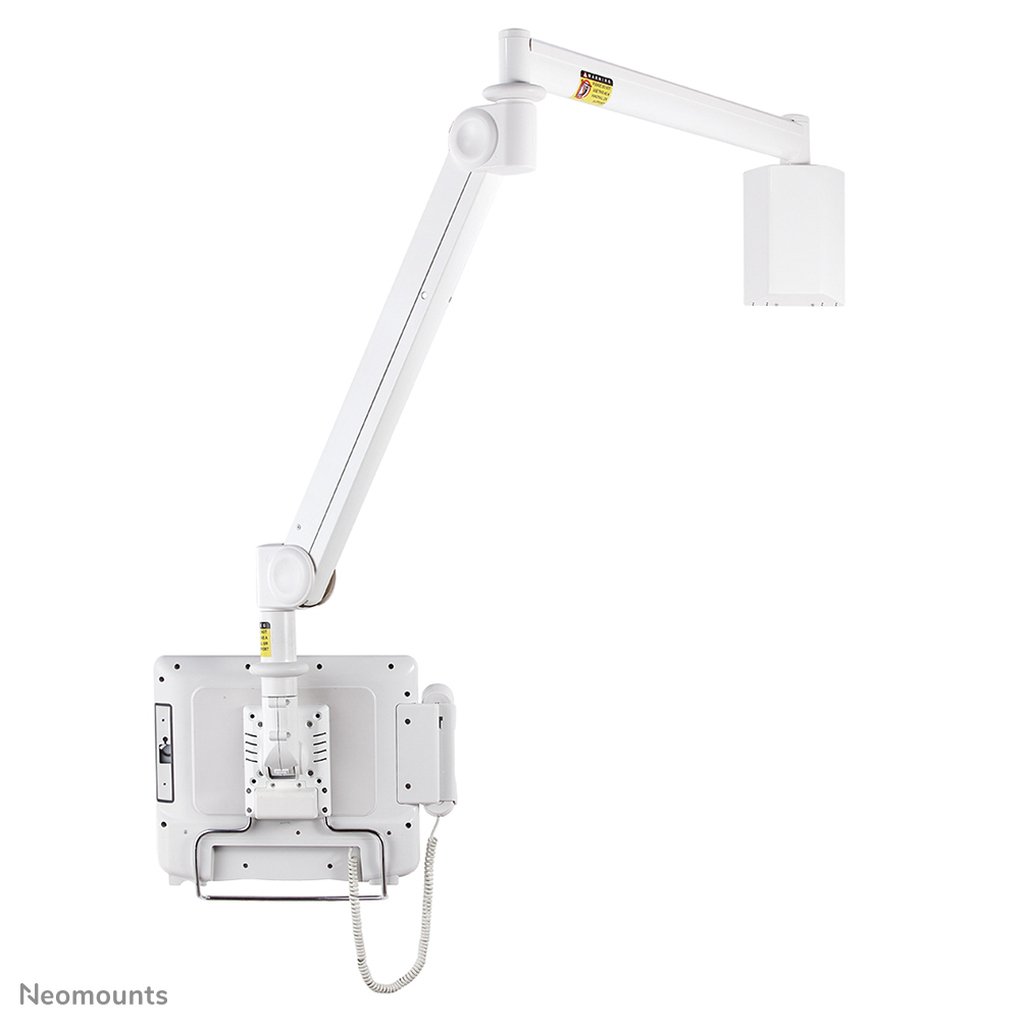

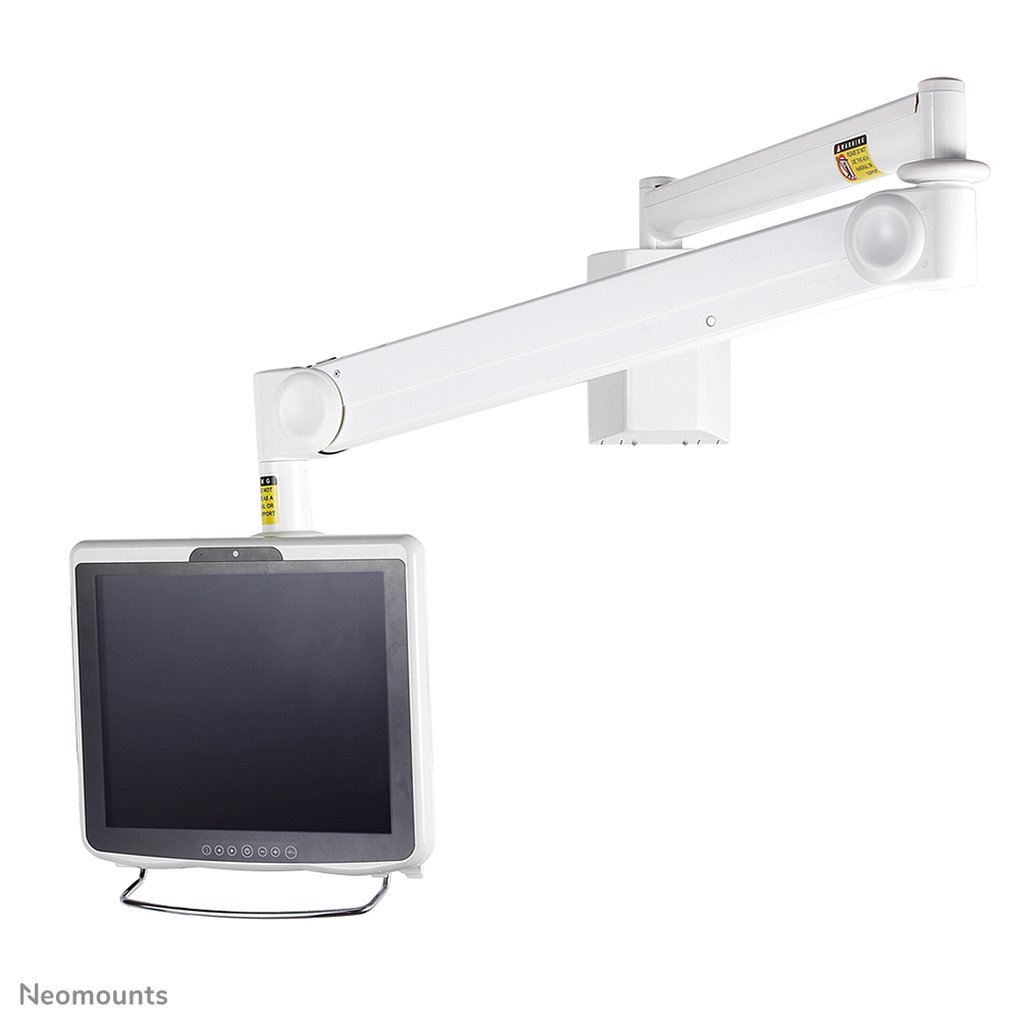

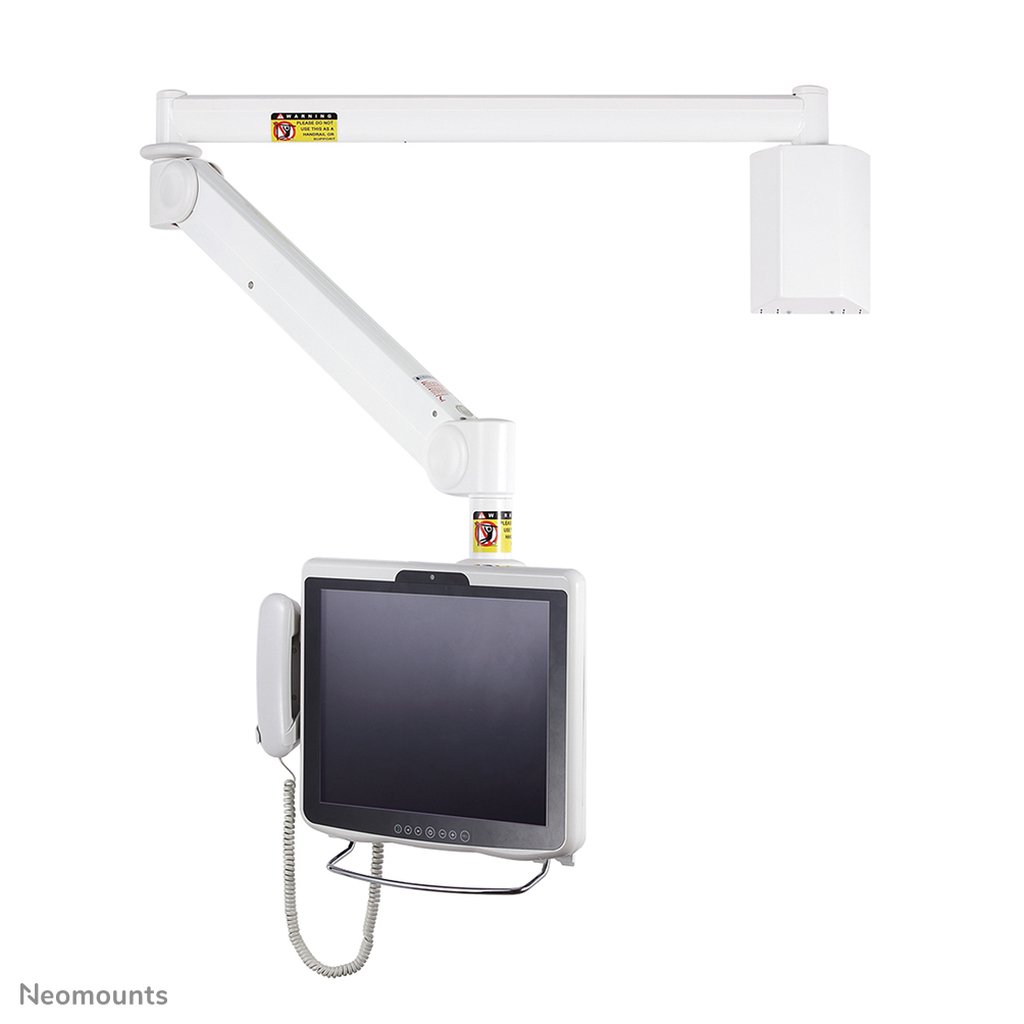

The Neomounts wall mount, model FPMA-HAW100HC is a tilt- and swivel wall mount for medical flat screens up to 32″. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

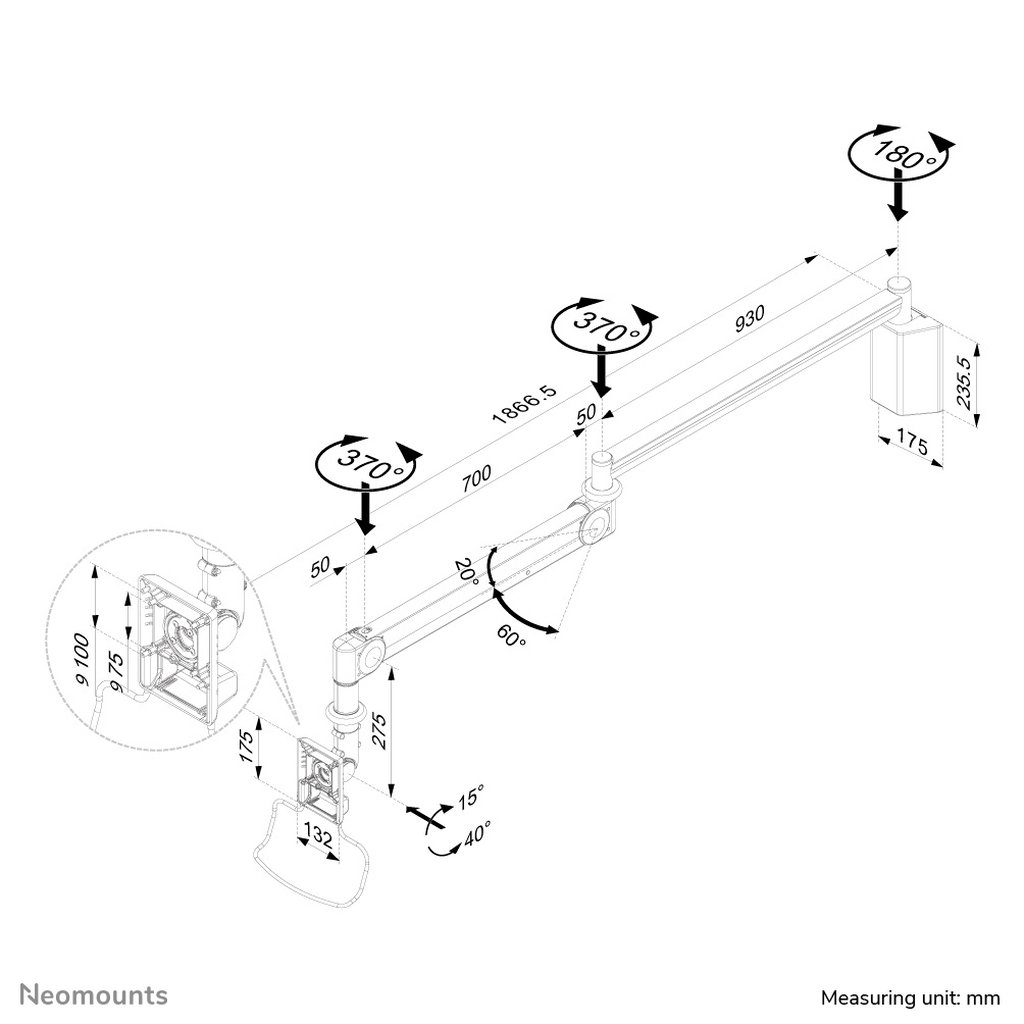

Neomounts’ unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW100HC has two pivot points and is suitable for screens up to 32″ (81 cm). The weight capacity of this product is 6 – 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Additional information
| Weight | 14.2 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Wall |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 – 1700 mm |
| Depth adjustment range | 0 – 1870 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 55° |
| Swivelling | Yes |
| Swivel angle | 370° |
| Rotating | Yes |
| Product colour | White |
| Housing material | Aluminium |
| Depth | 1870 mm |
| Height | 1700 mm |
| Weight | 17.8 kg |
| Package width | 1010 mm |
| Package depth | 300 mm |
| Package height | 400 mm |
| Package weight | 14.2 kg |
| Master (outer) case width | 1010 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 14.2 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 8 pc(s) |
| Distance to the wall (max) | 170 cm |
| Minimum weight | 6 kg |
| Maximum weight capacity | 12 kg |
| Swivel angle range | 0 – 270° |
| Cable management | Yes |
| Package net weight | 14.2 kg |
| Number of pivot points | 3 |
