Neomounts FPMA-HAW200 Medical monitor arm wall 10-27″ – h 0-149 cm – gas spring
Neomounts FPMA-HAW200 Medical monitor arm wall – 10-27″ – h 0-149 cm – 1-7 kg – VESA 75×75-100×100 – gas spring – white
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

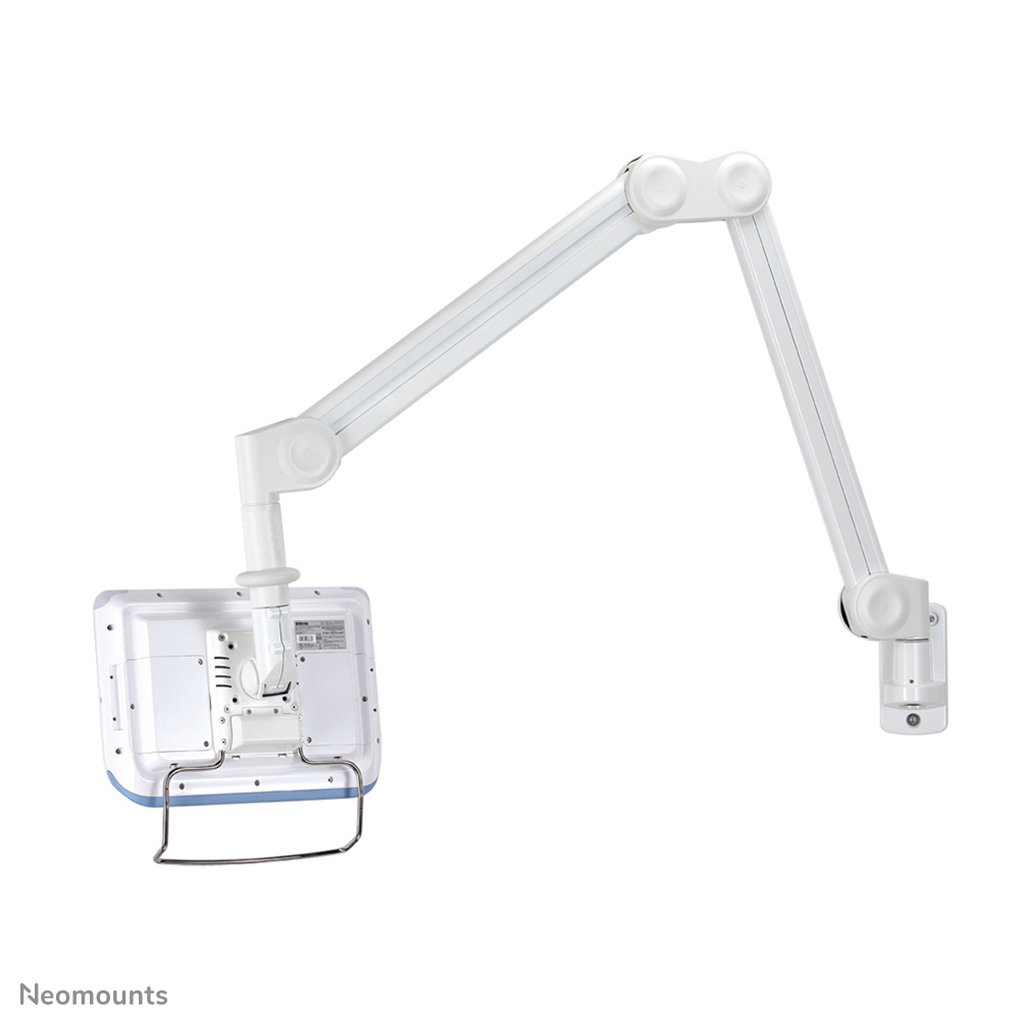

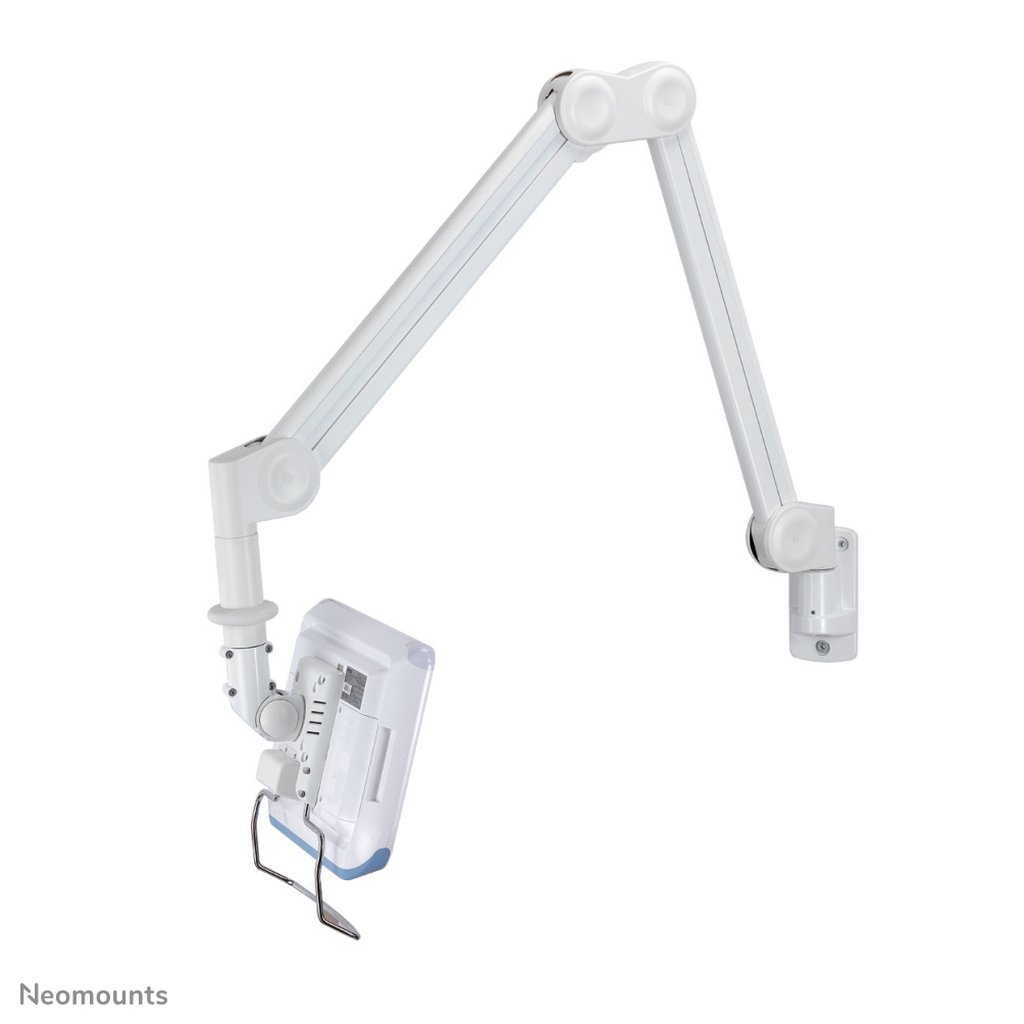

The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27″. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

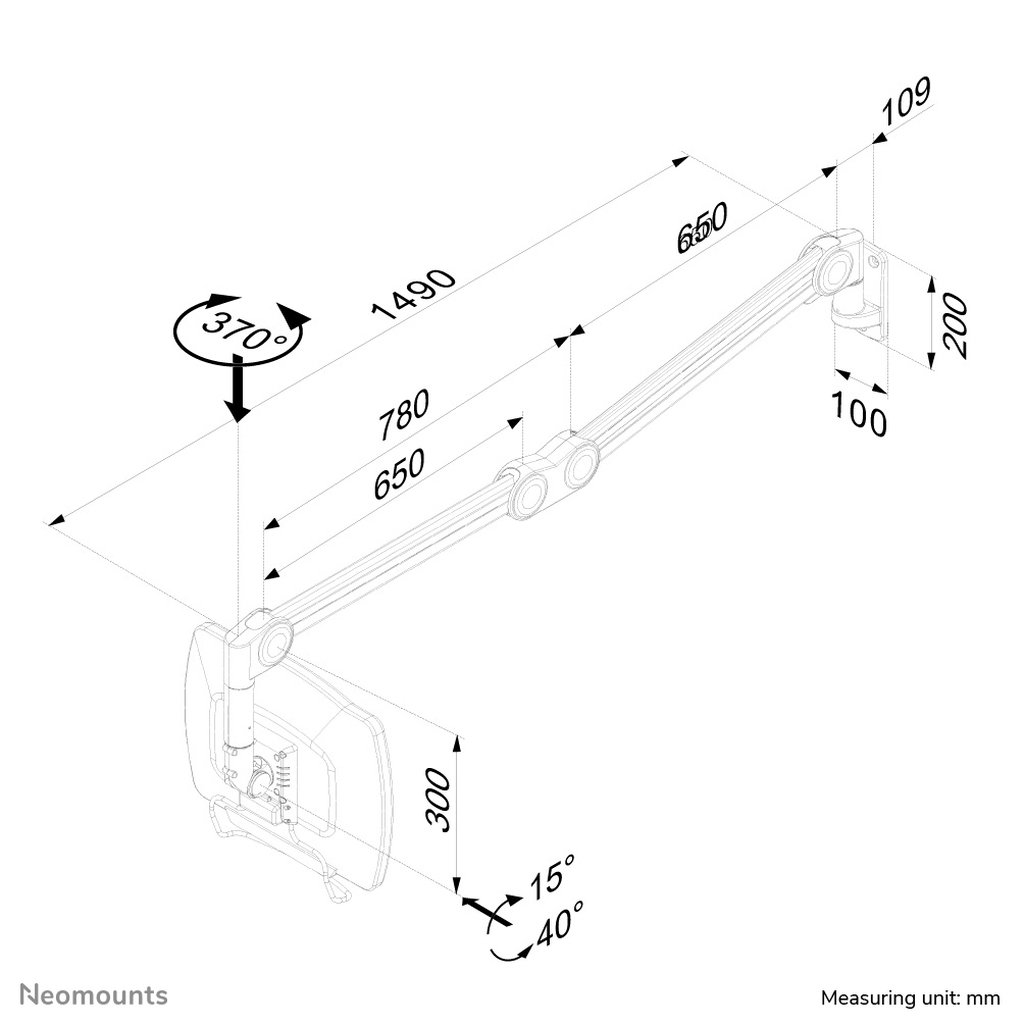

Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27″ (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
Additional information
| Weight | 12.08 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Wall |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 – 1490 mm |
| Depth adjustment range | 0 – 1490 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 55° |
| Swivelling | Yes |
| Swivel angle | 370° |
| Rotating | Yes |
| Product colour | White |
| Housing material | Aluminium |
| Depth | 1490 mm |
| Height | 1490 mm |
| Weight | 8.55 kg |
| Package width | 1150 mm |
| Package depth | 160 mm |
| Package height | 430 mm |
| Package weight | 8.6 kg |
| Master (outer) case width | 1150 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 12.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 8.6 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 12 pc(s) |
| Distance to the wall (min) | 0 mm |
| Distance to the wall (max) | 149 cm |
| Minimum weight | 1 kg |
| Maximum weight capacity | 7 kg |
| Cable management | Yes |
| Package net weight | 8.55 kg |
