Neomounts DS70-250SL2 Monitor arm 17-32″ – gas spring – Topfix – 180°-stop
Neomounts NEXT Slim DS70-250SL2 Dual monitor arm – 17-32″ – 1-9 kg/screen (curved 8 kg/screen) – gas spring – 180°-stop – Topfix – Easy Install-model – 100% plastic-free packaging – silver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

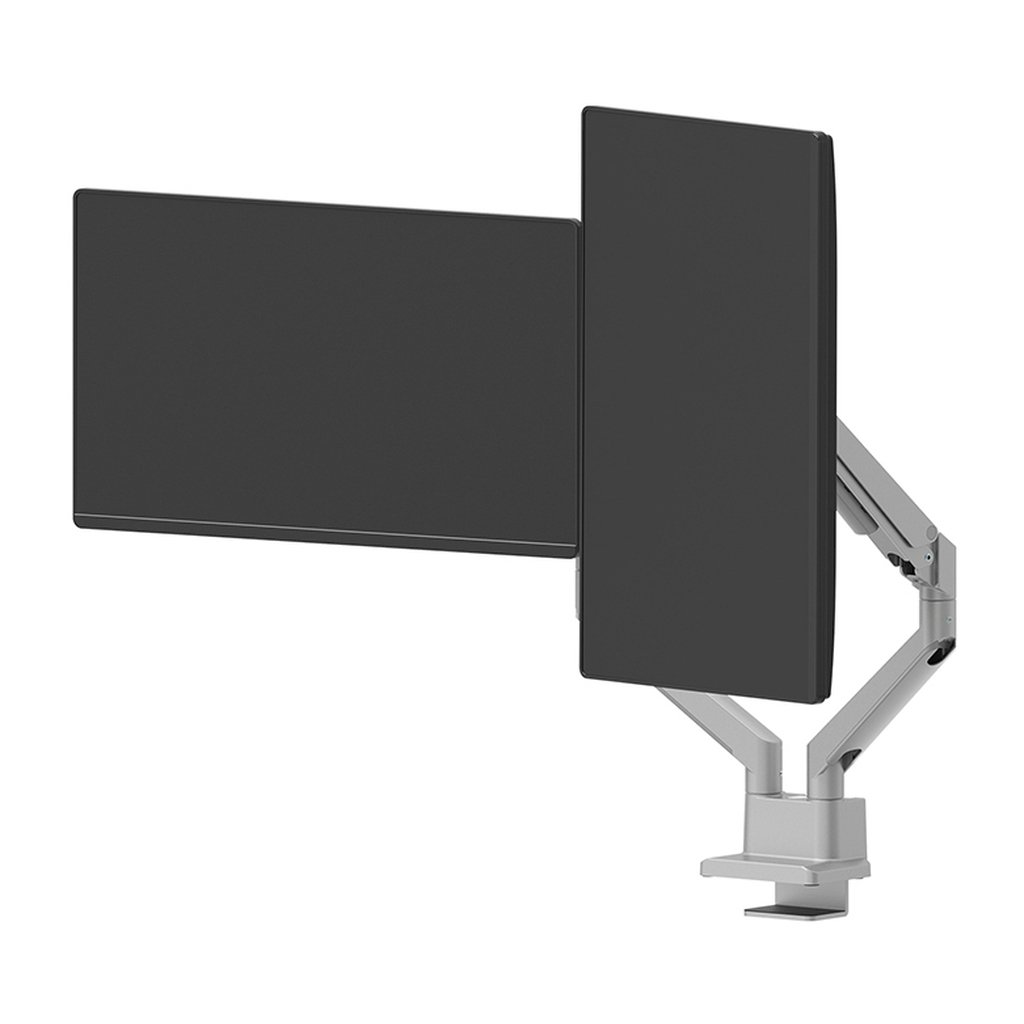

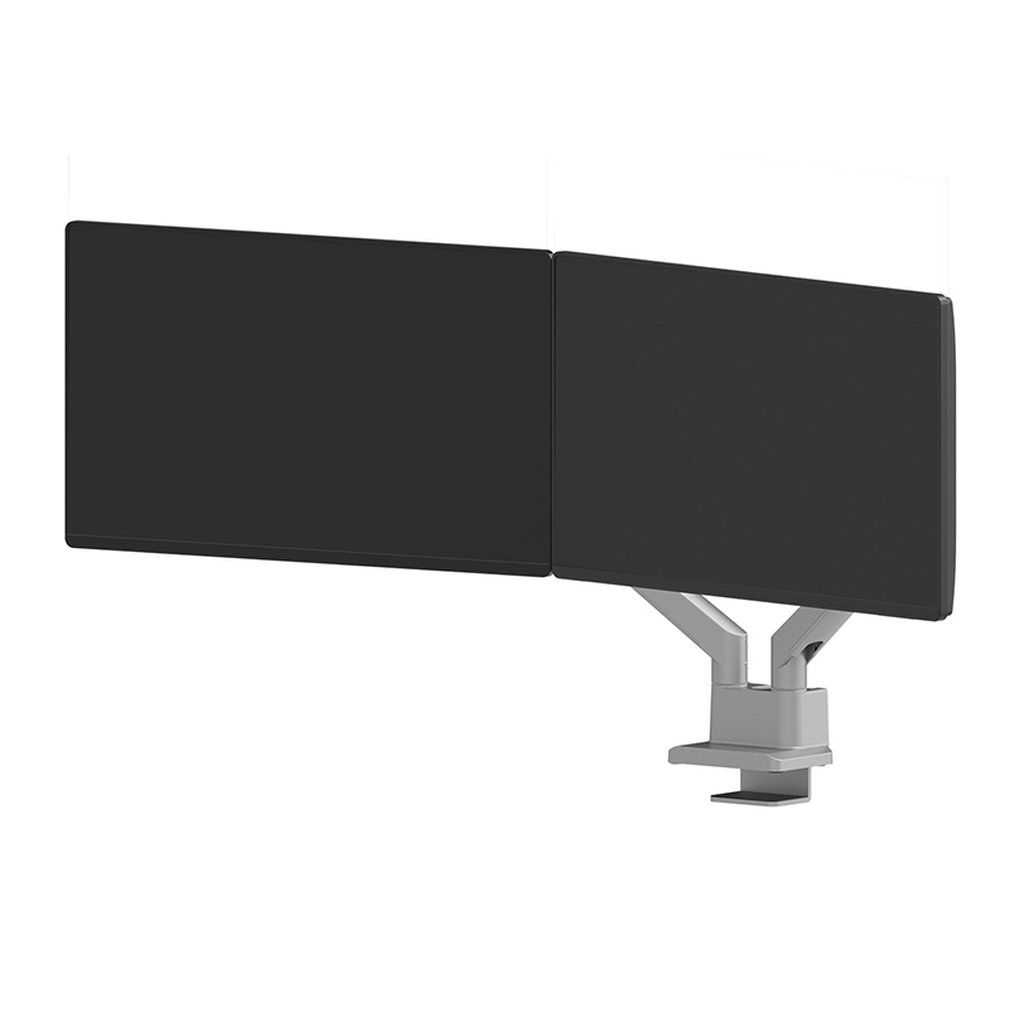

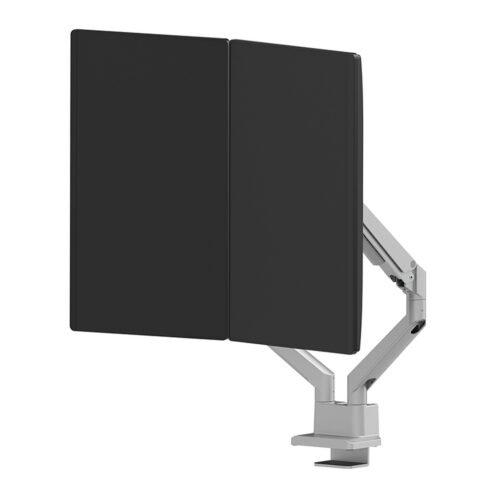

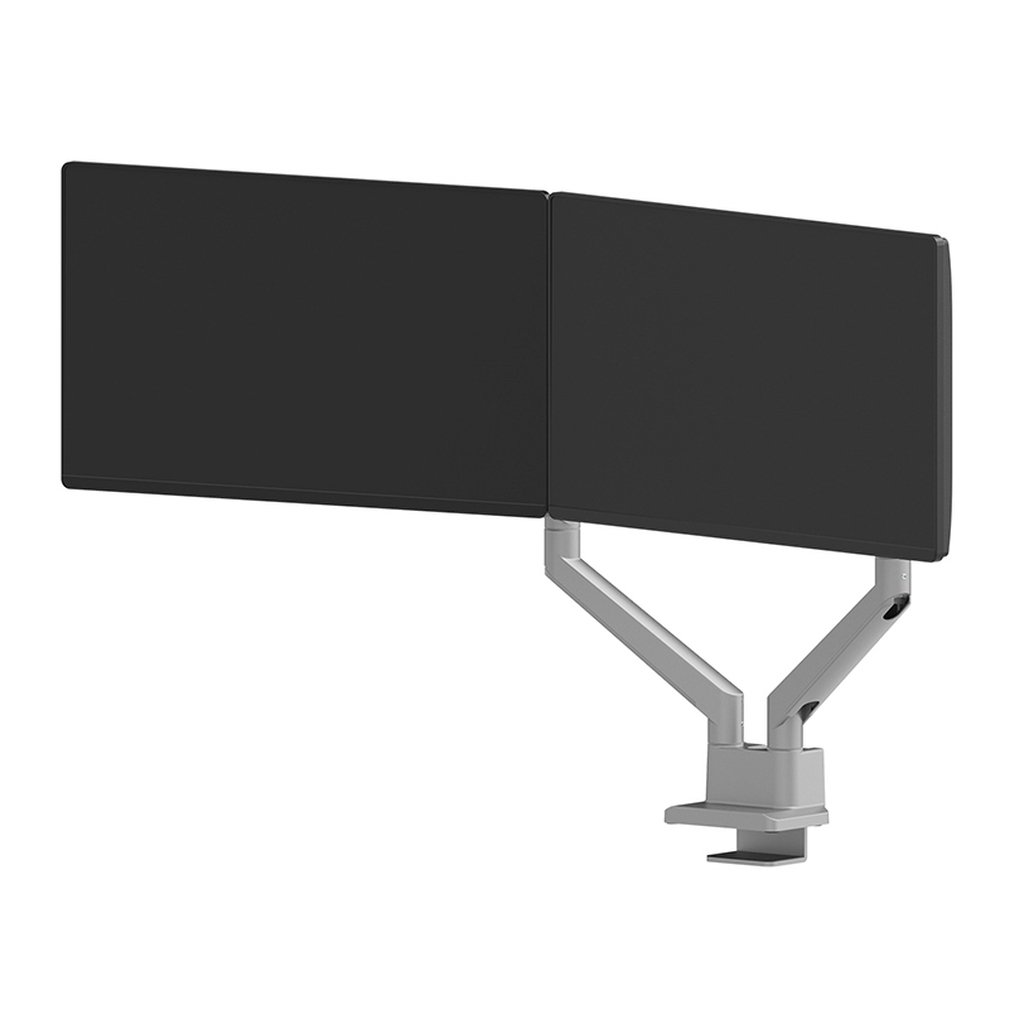

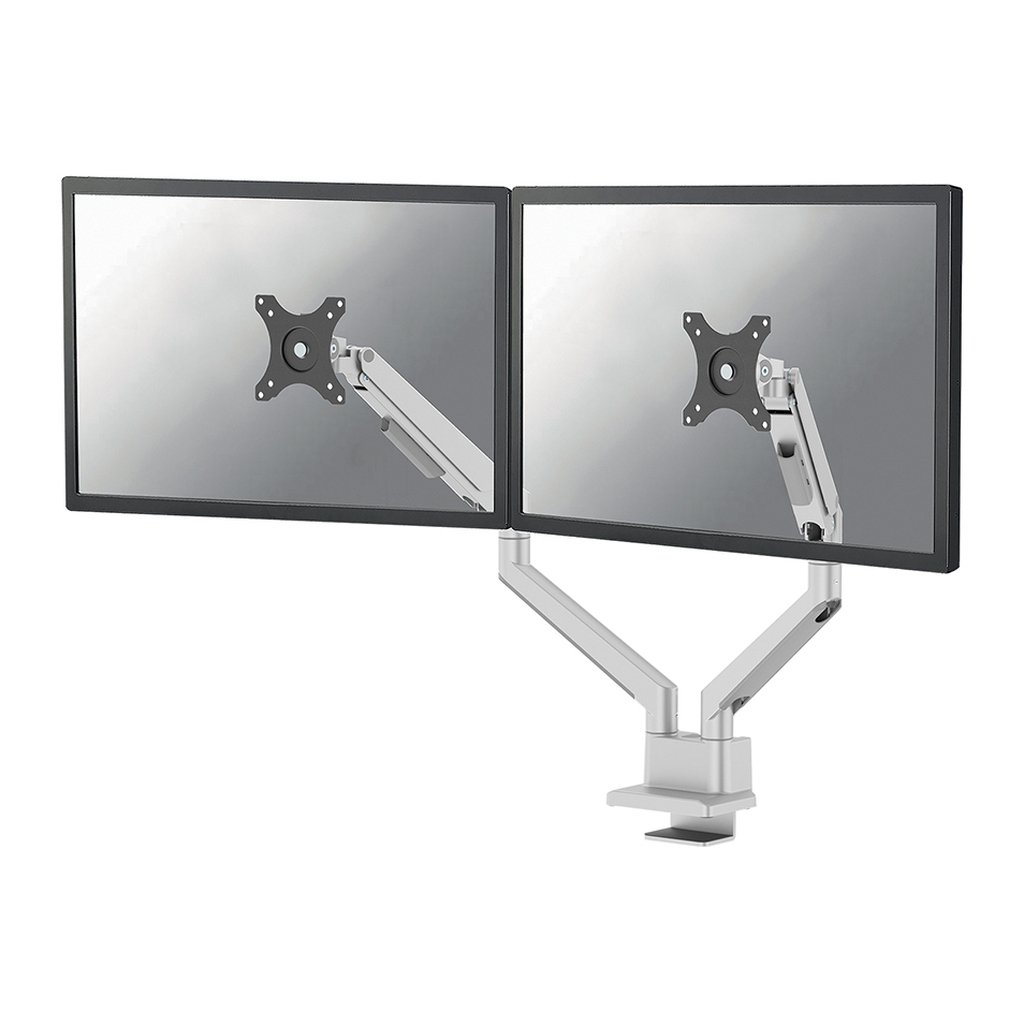

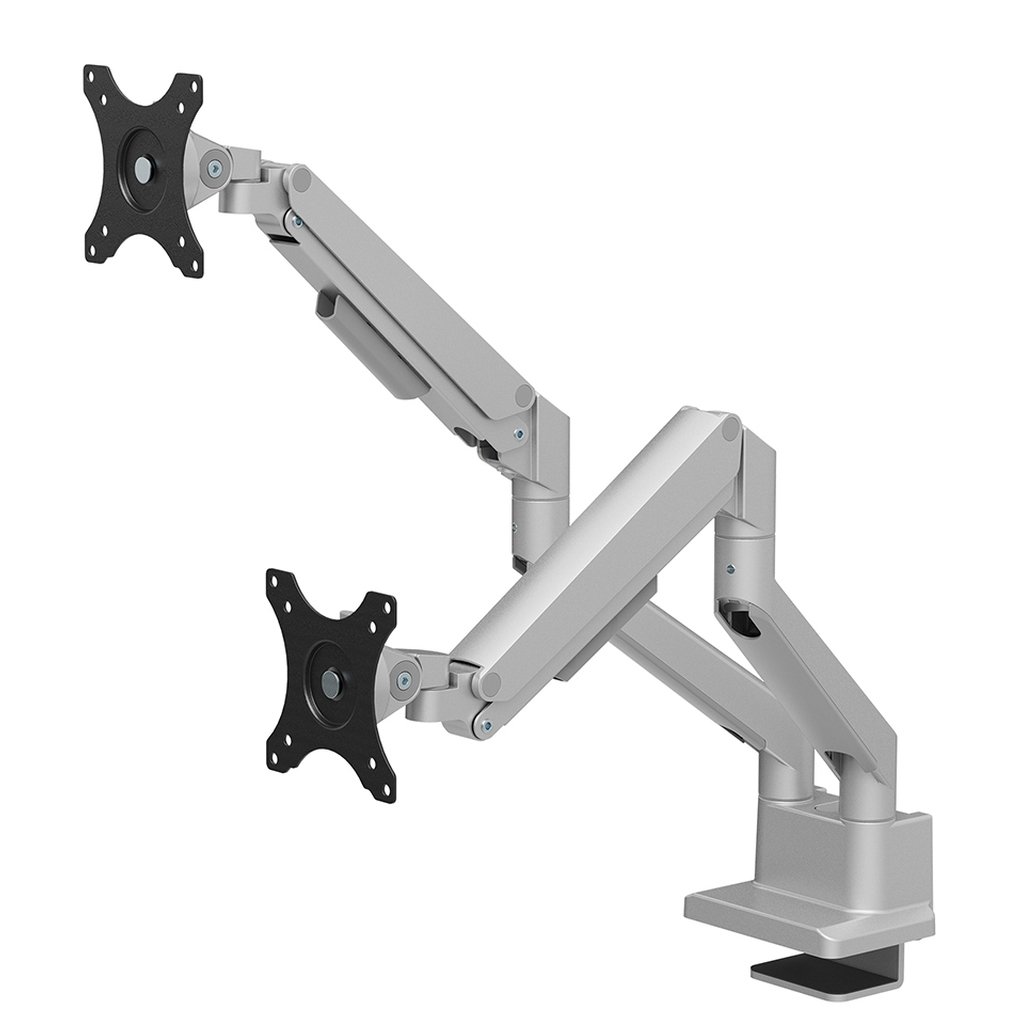

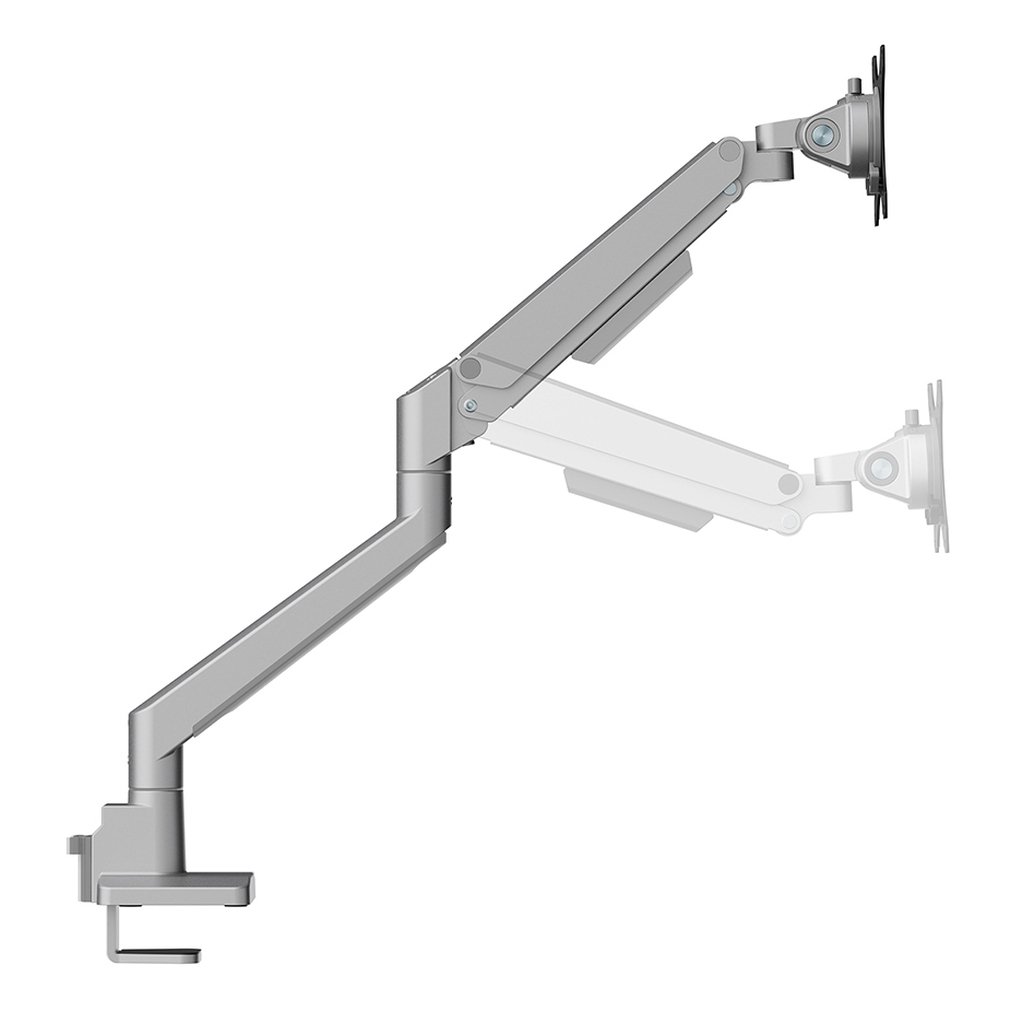

The Neomounts DS70-250SL2 NEXT Slim is a full motion desk mount designed for two screens up to 32″, boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen’s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

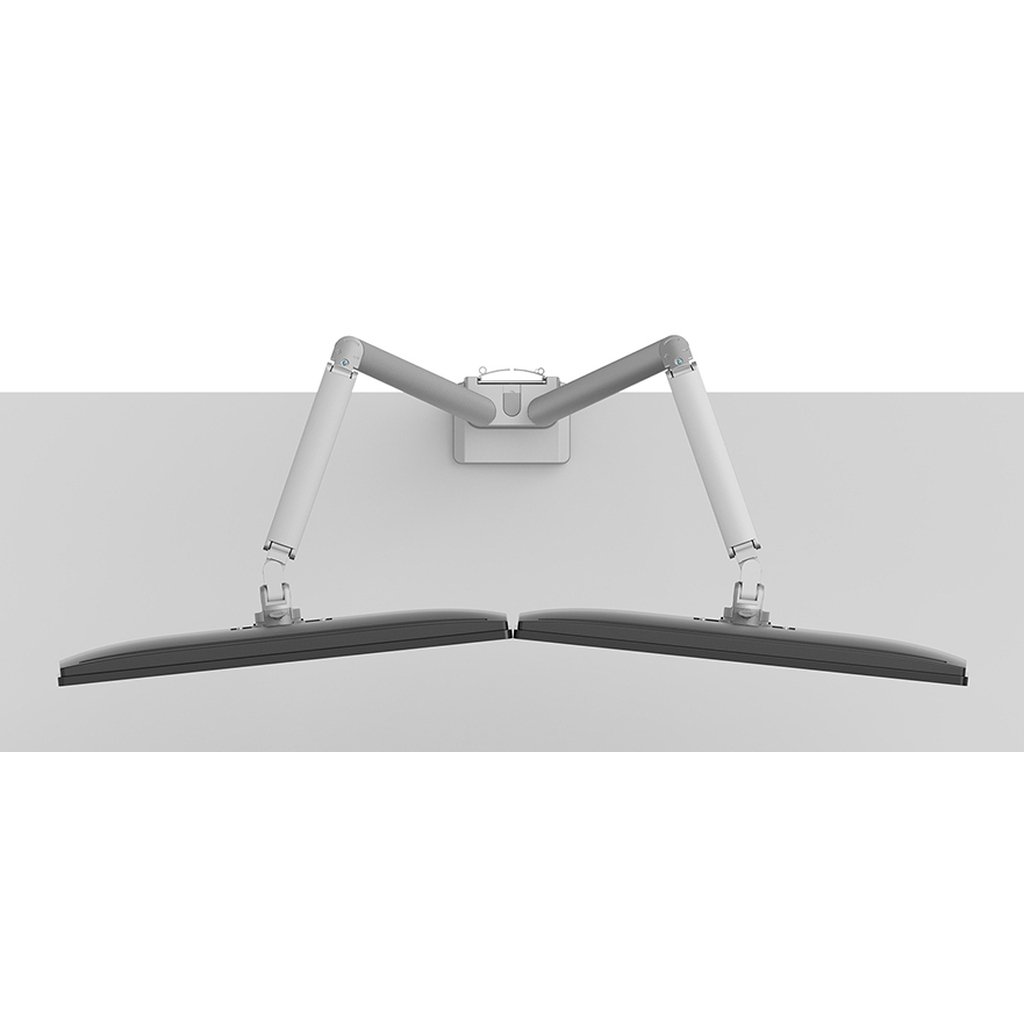

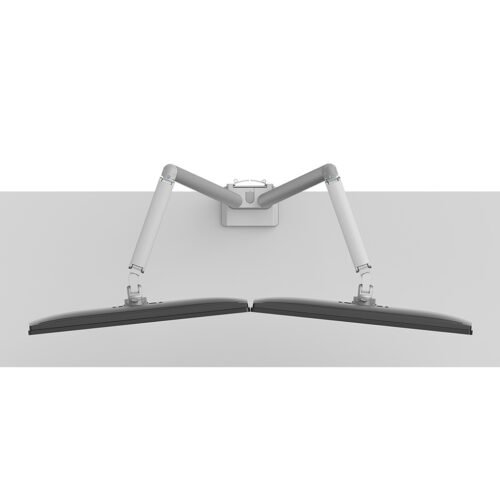

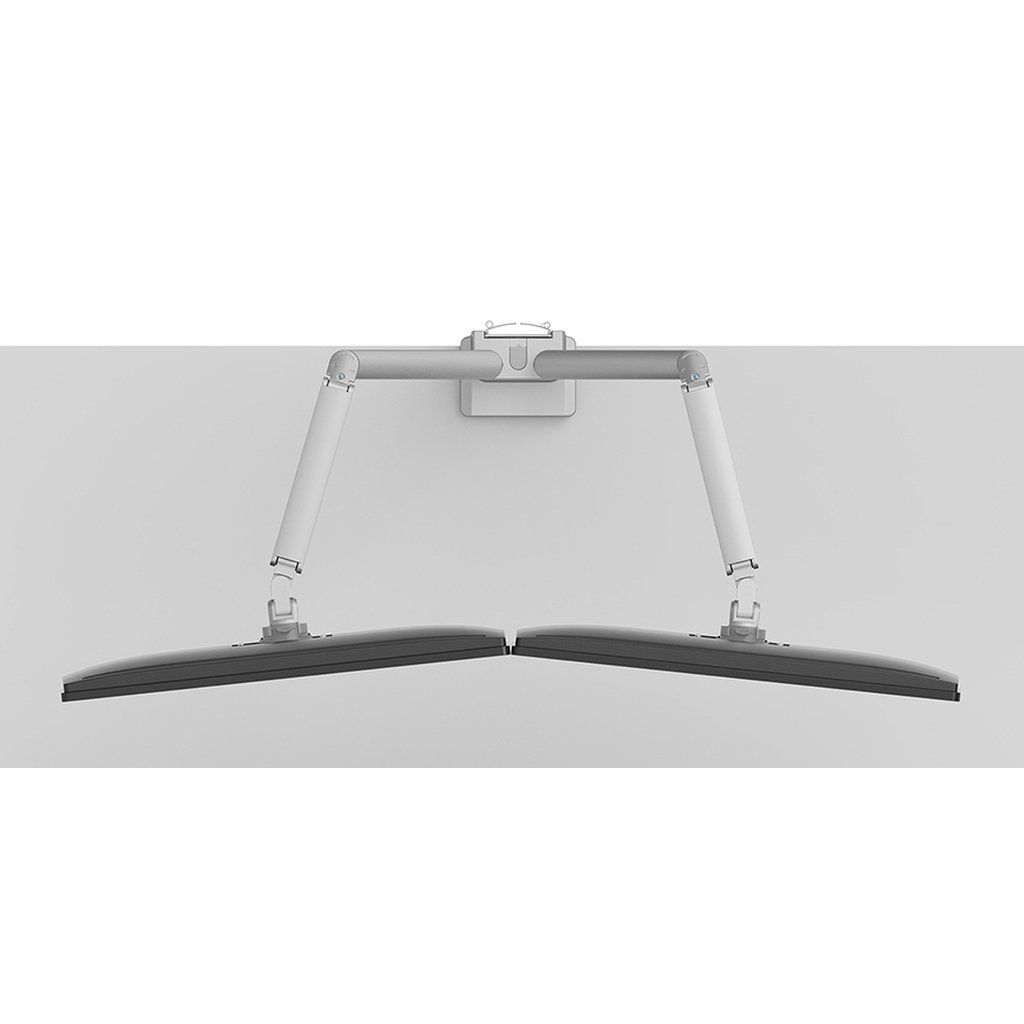

The DS70-250SL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

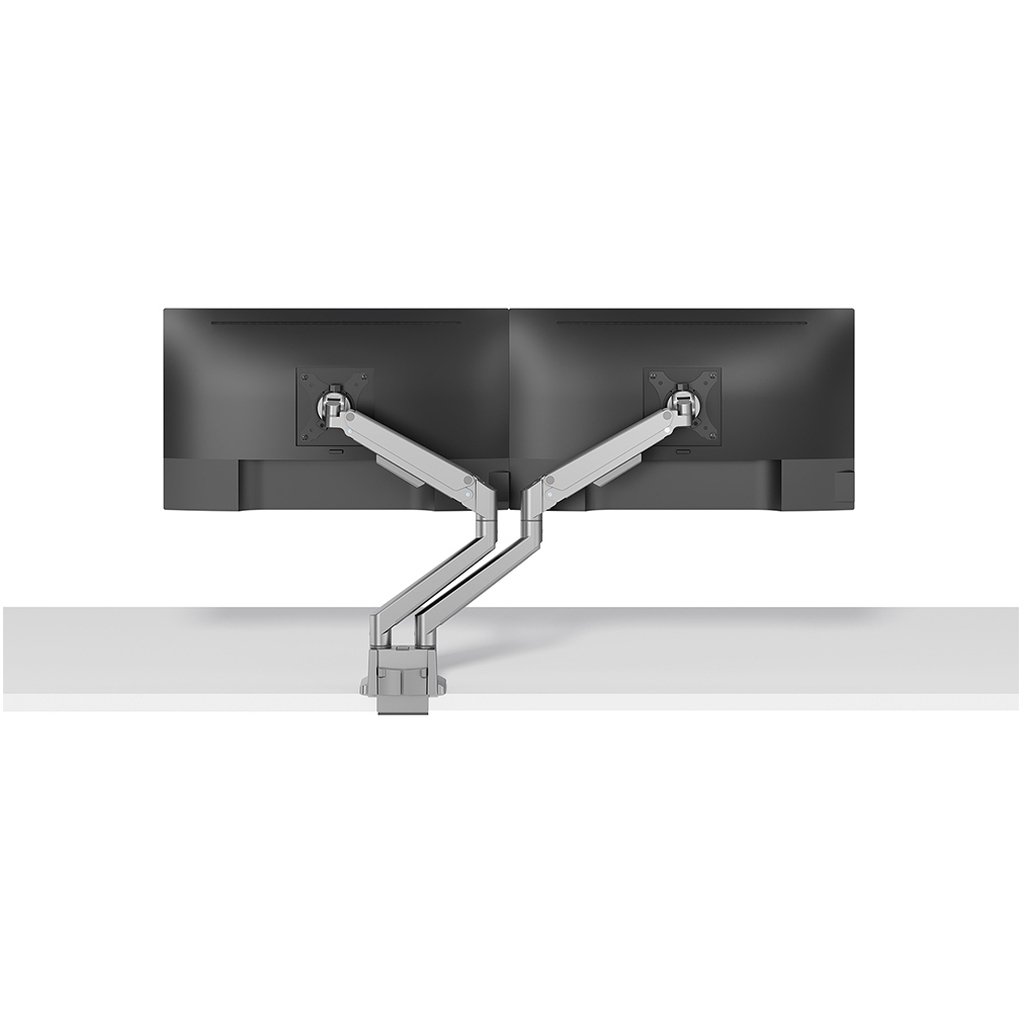

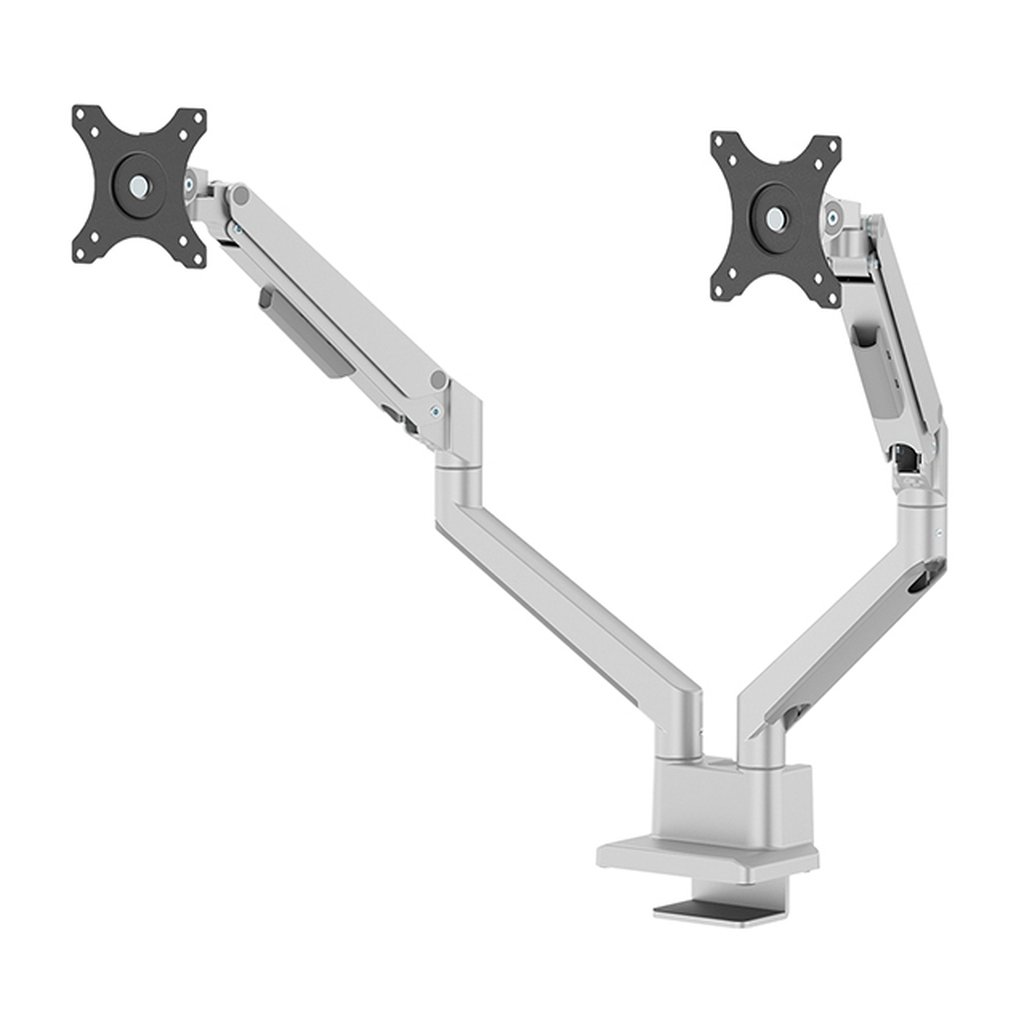

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75×75 or 100×100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

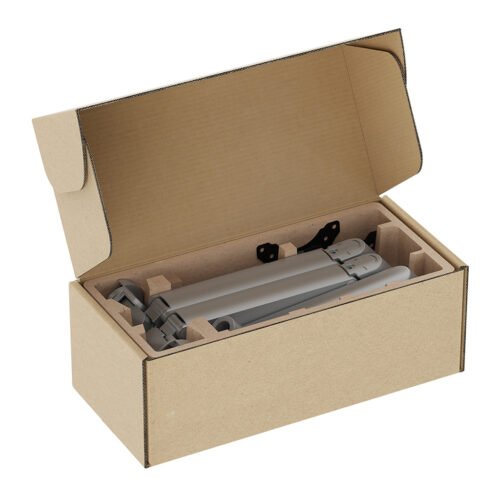

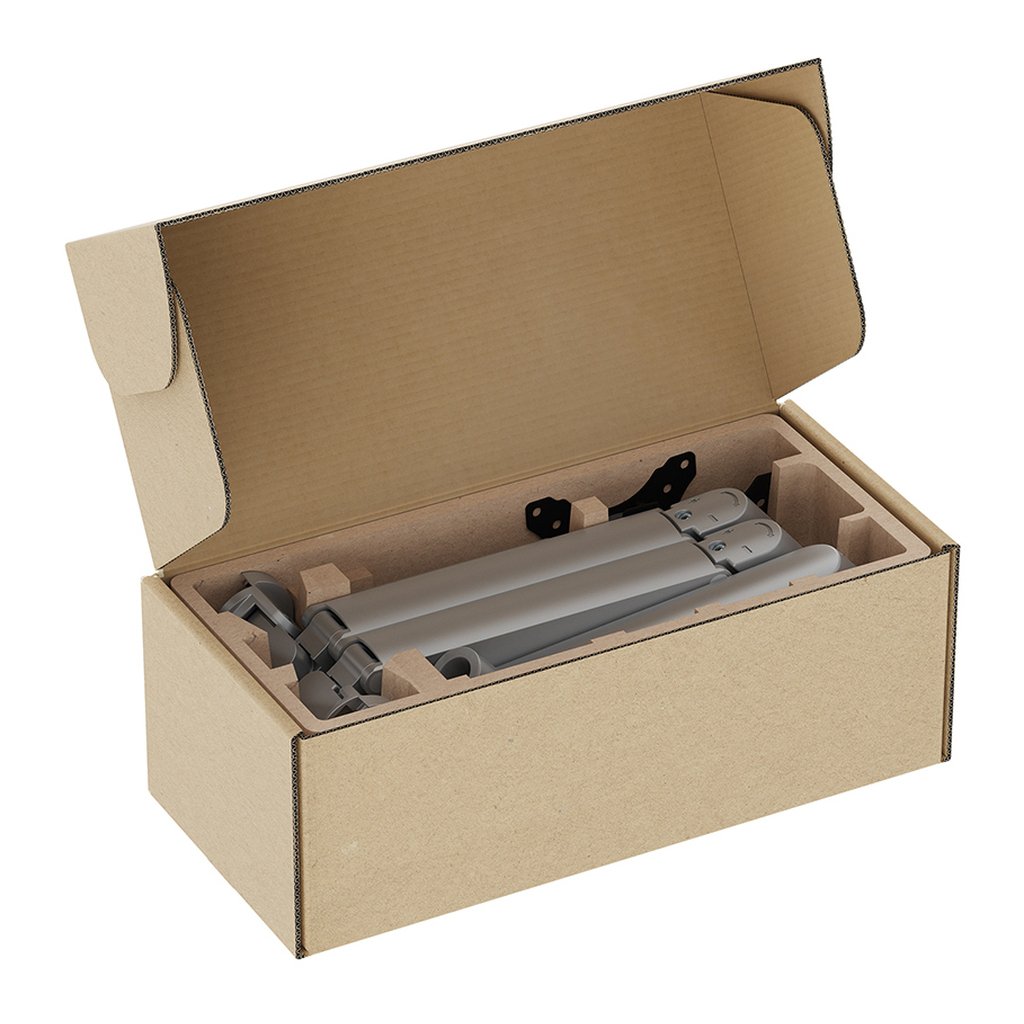

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Additional information
| Weight | 5.08 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 215 – 495 mm |
| Depth adjustment range | 70 – 525 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 45° |
| Swivelling | Yes |
| Swivel angle | 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Silver |
| Housing material | Aluminium |
| Width | 114 mm |
| Depth | 580 mm |
| Height | 552 mm |
| Weight | 4.35 kg |
| Package width | 192 mm |
| Package depth | 147 mm |
| Package height | 430 mm |
| Package weight | 4.9 kg |
| Width adjustment range | 0 – 984 mm |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 20.7 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 17.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 80 pc(s) |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 40.4 cm |
| Minimum weight | 1 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Accepts padlock | No |
| Warranty period | 5 year(s) |
| Pivot angle | -180 – 180° |
| Orientation | Landscape/Portrait |
