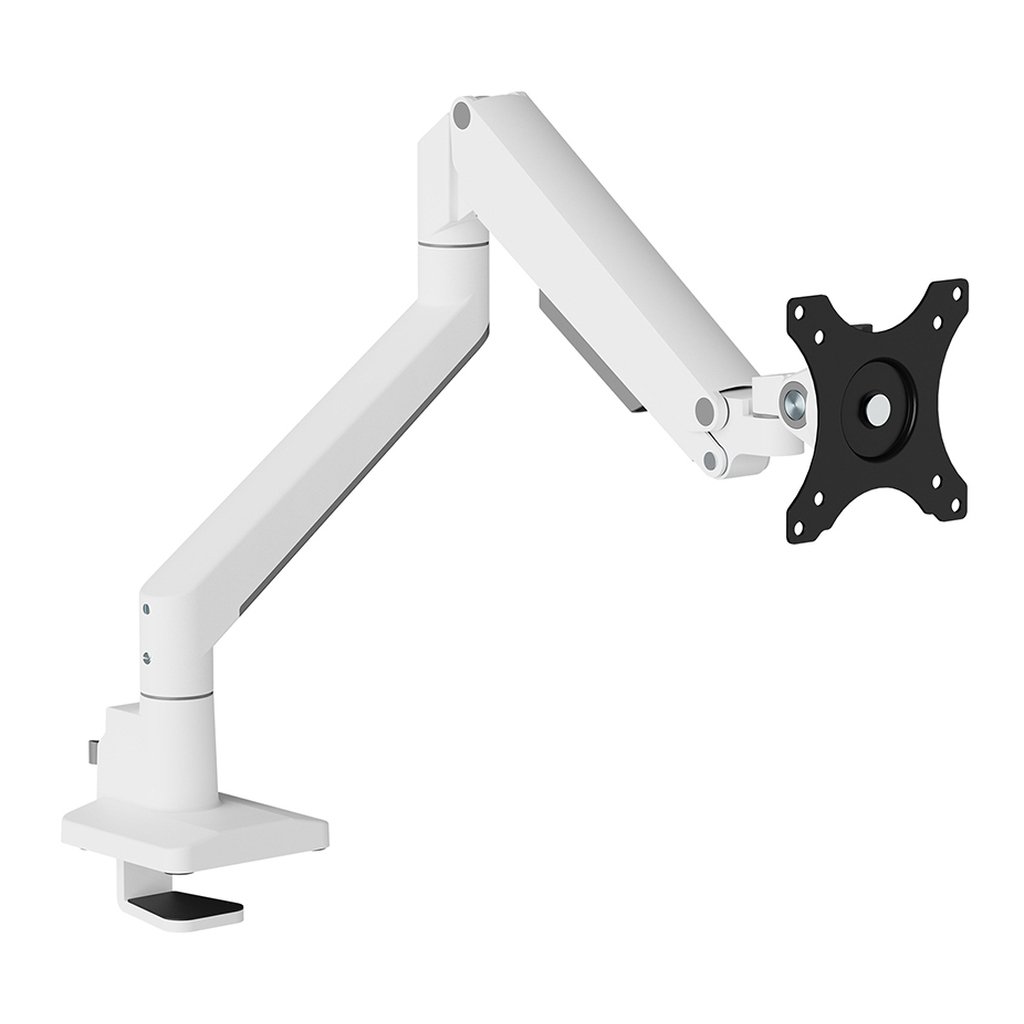

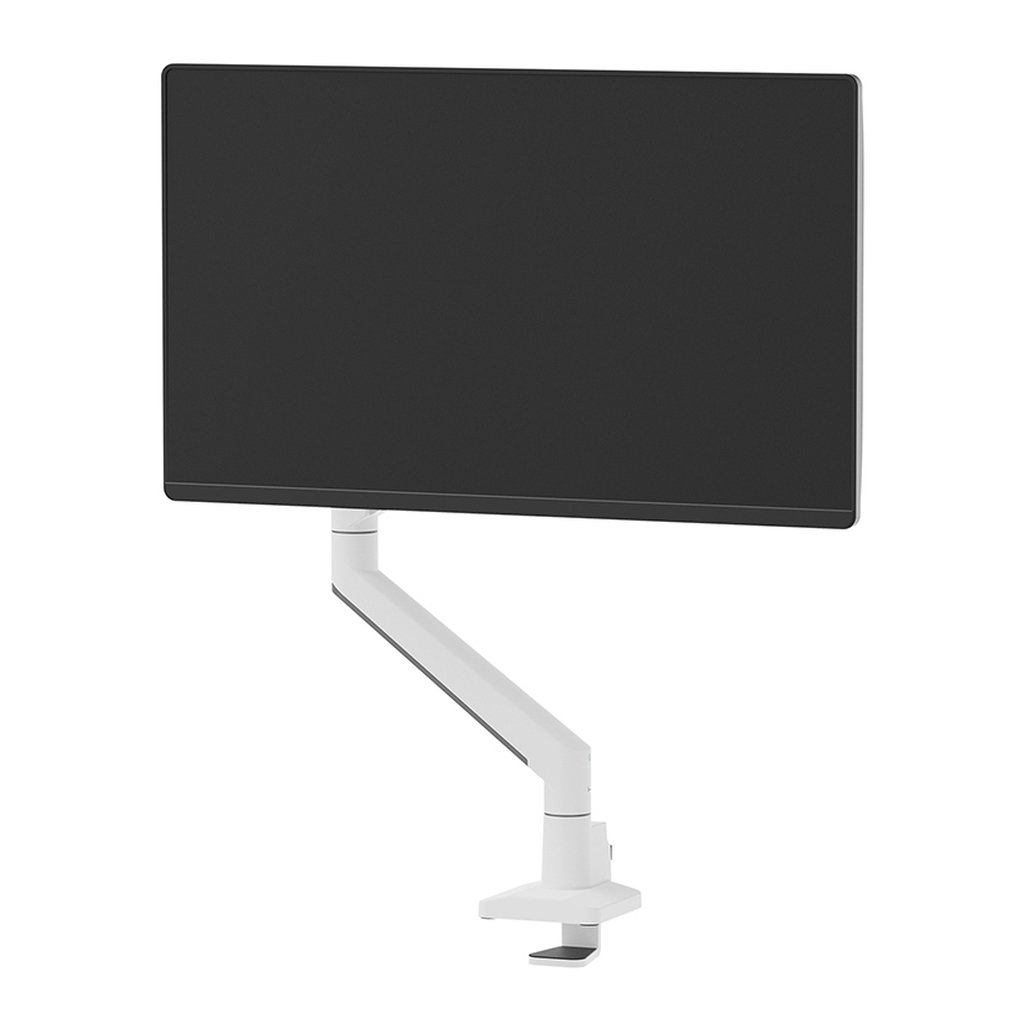

Neomounts DS70-250WH1 Monitor arm 17-35″ – gas spring – Topfix – 180°-stop
Neomounts NEXT Slim DS70-250WH1 Single monitor arm – 17-35″ – 1-9 kg (curved 8 kg) – gas spring – 180°-stop – Topfix – Easy Install-model – 100% plastic-free packaging – white
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

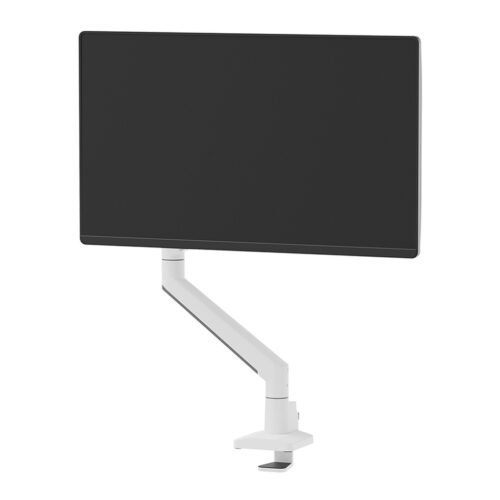

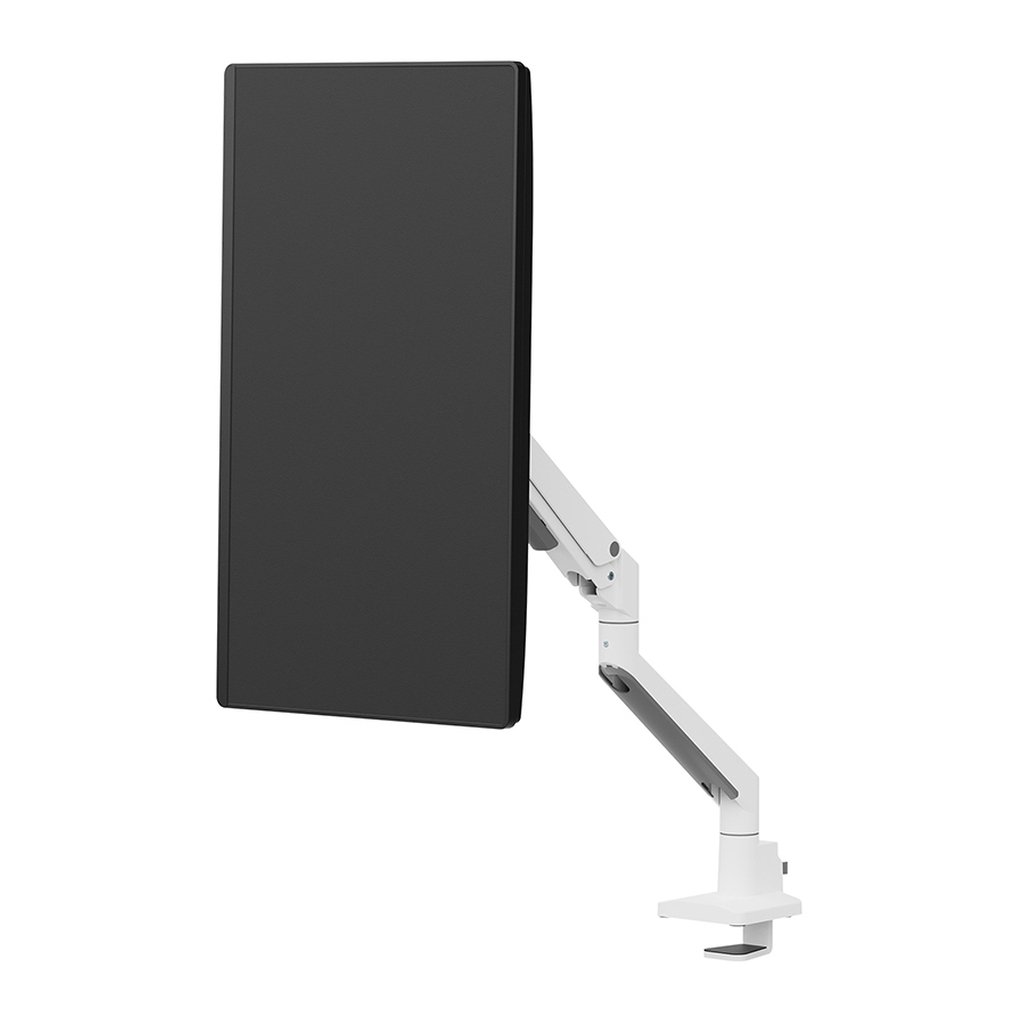

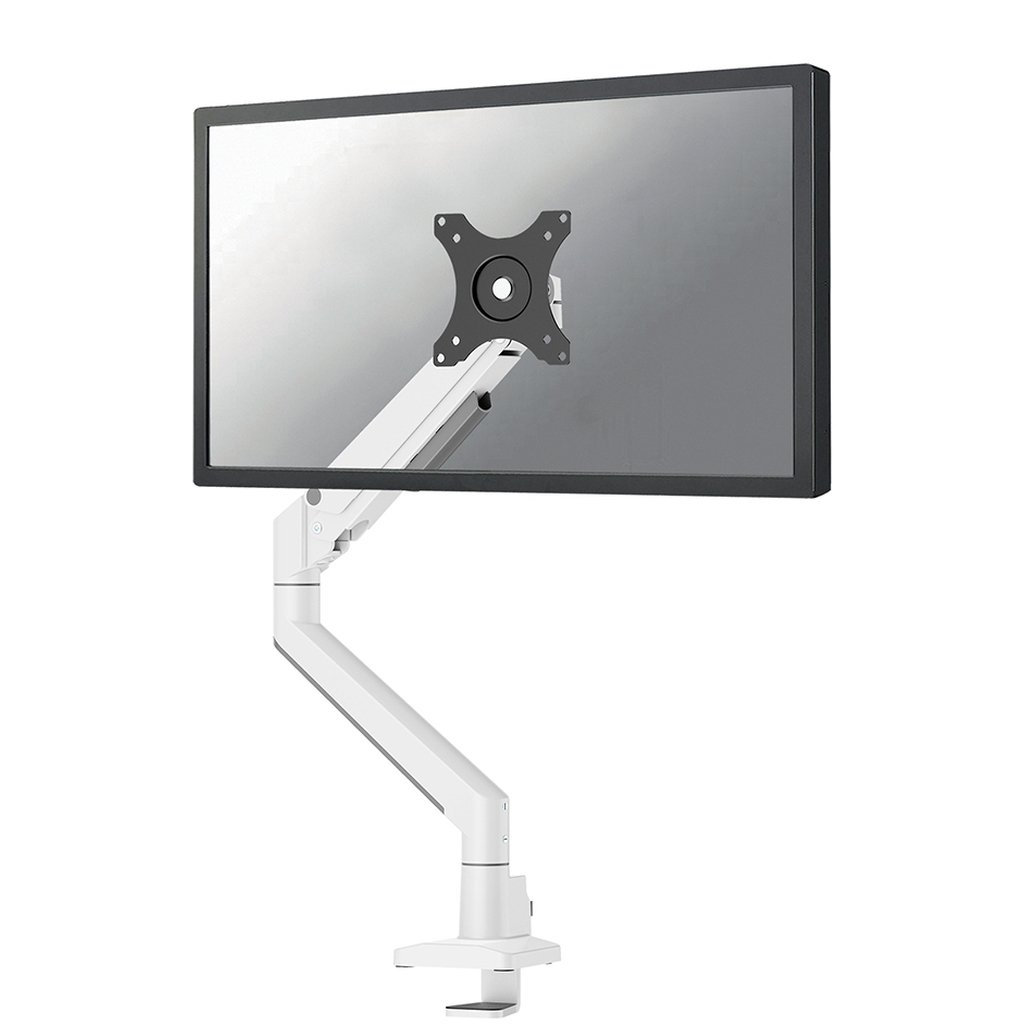

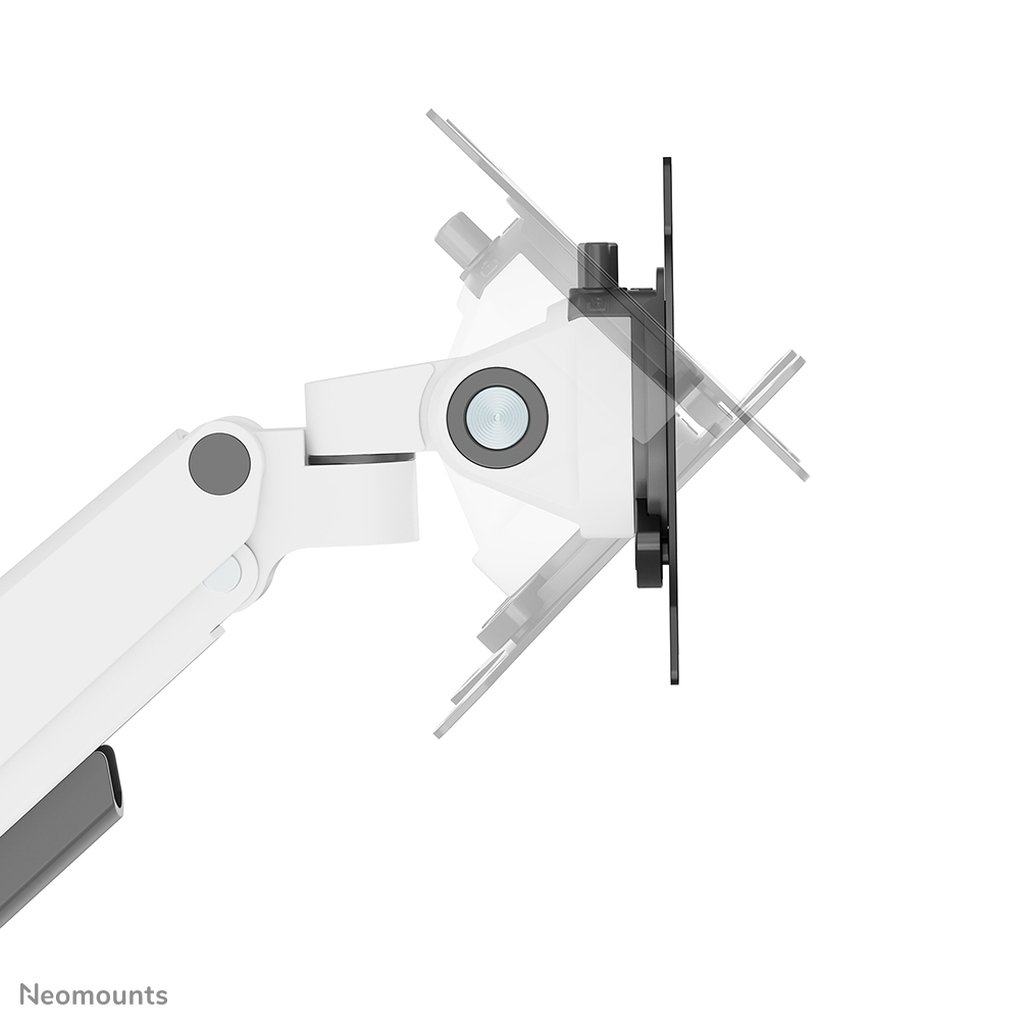

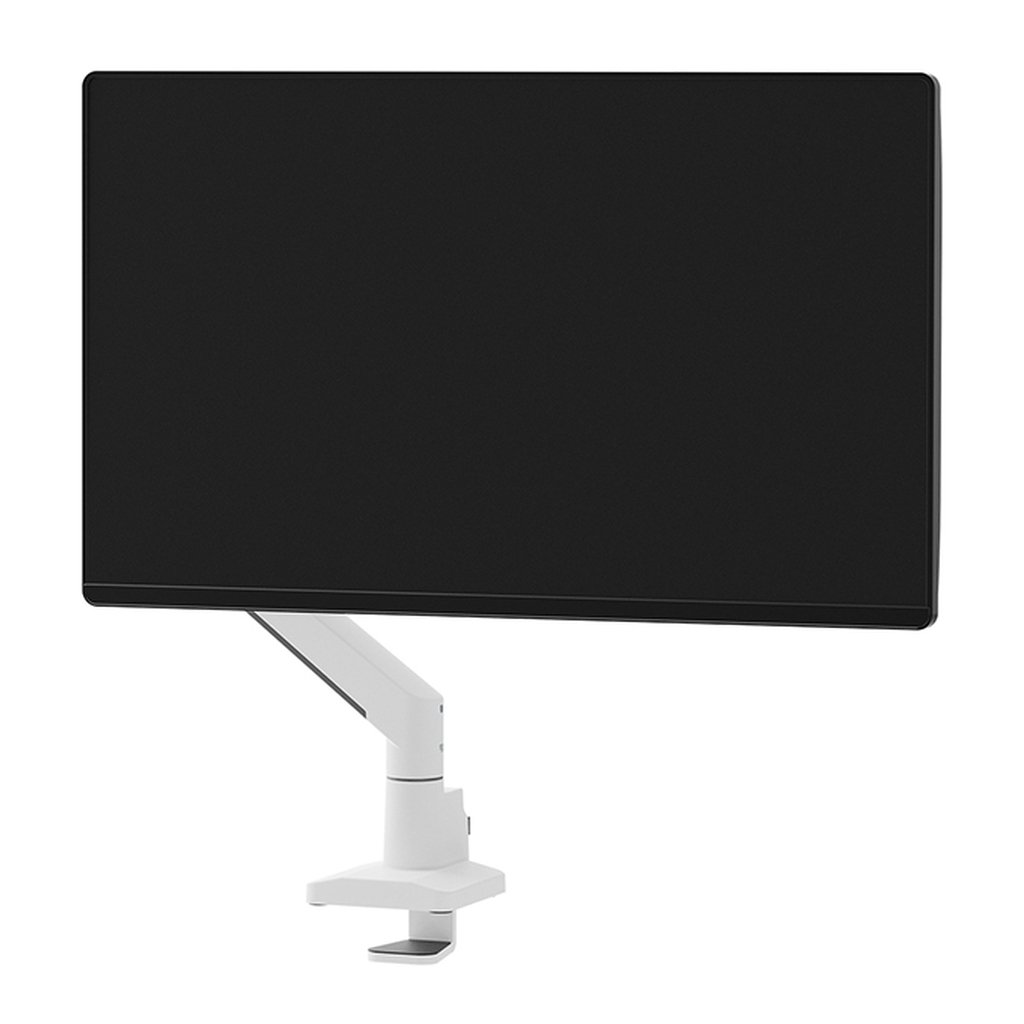

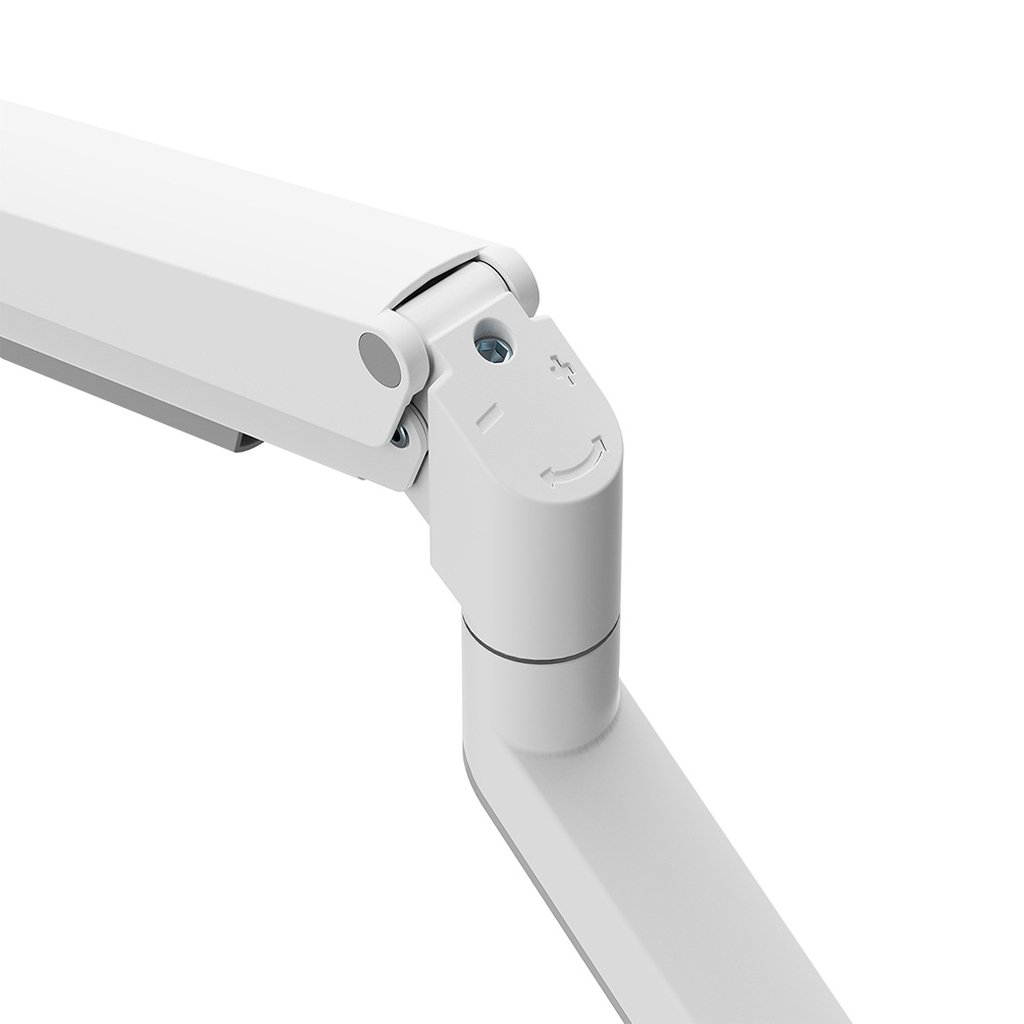

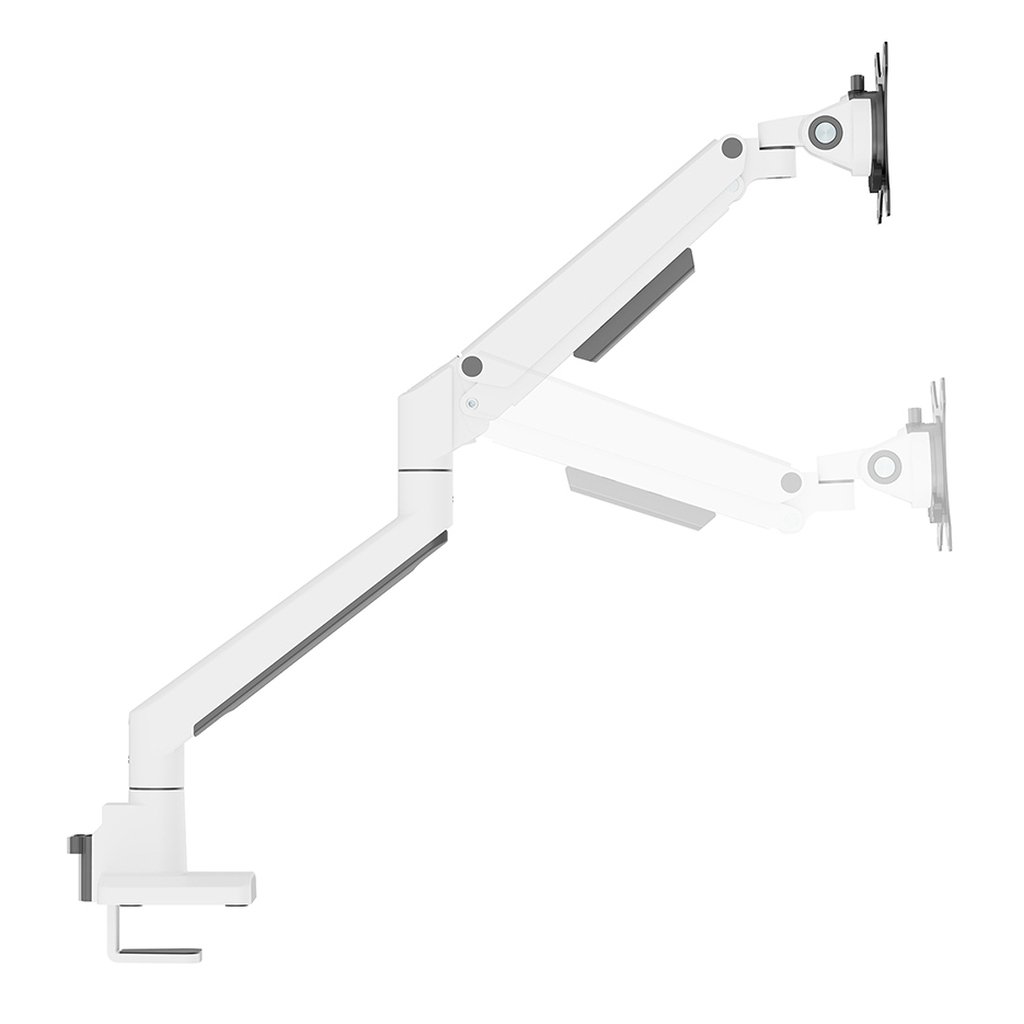

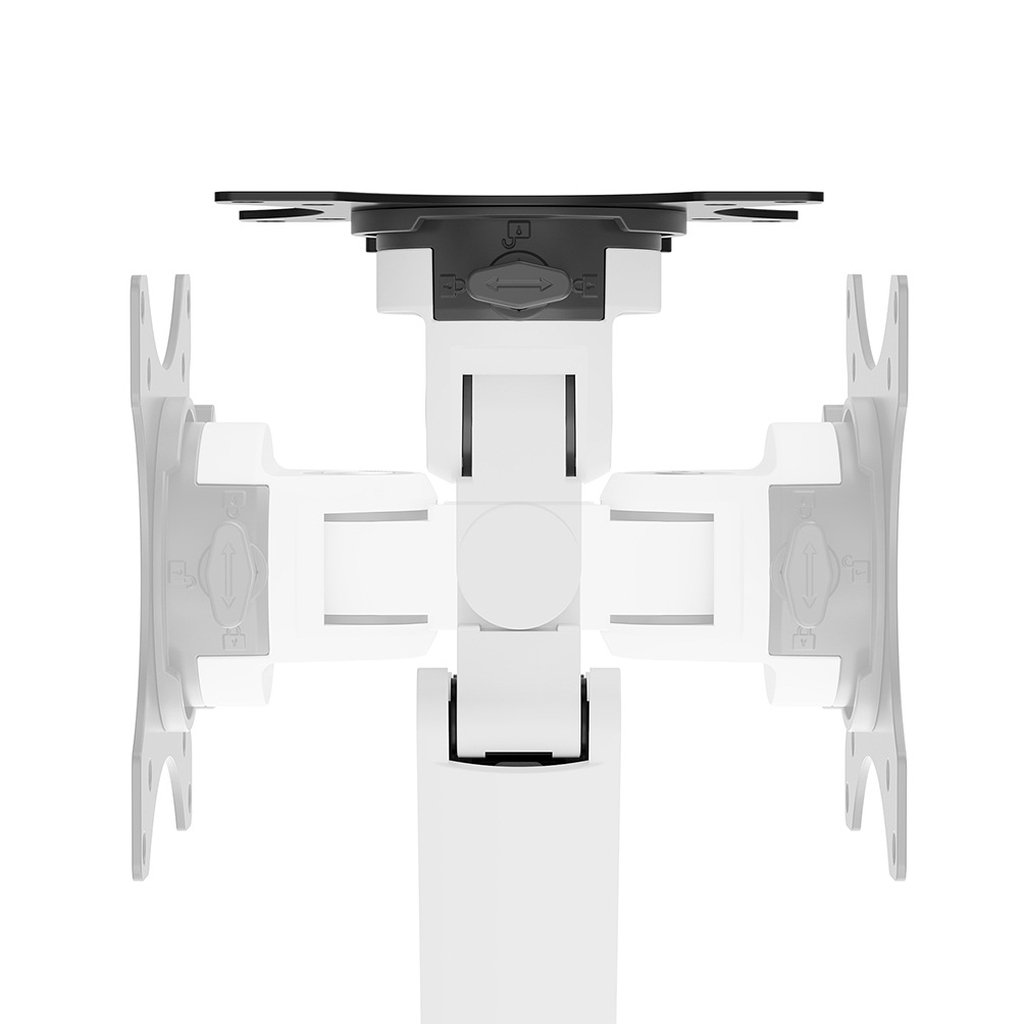

The Neomounts DS70-250WH1 NEXT Slim is a full motion desk mount designed for screens up to 35″, boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen?s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

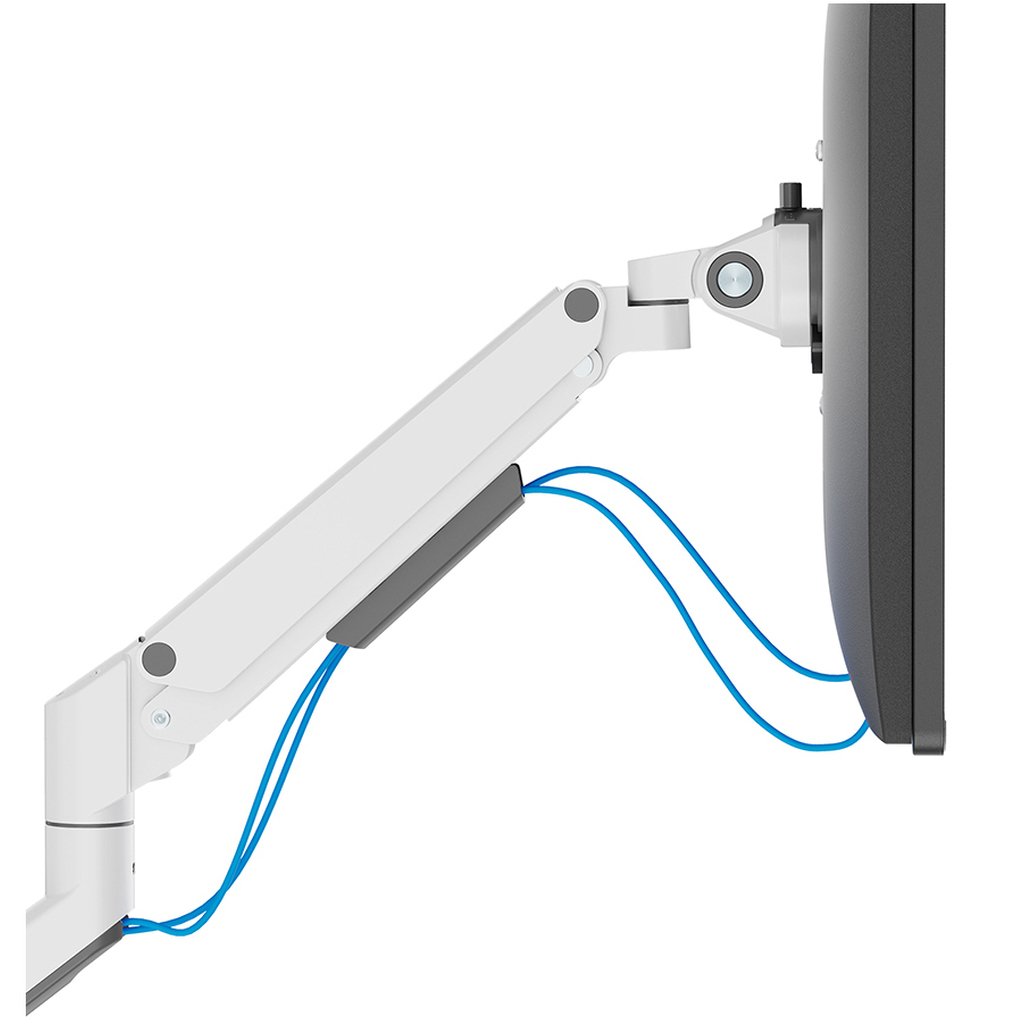

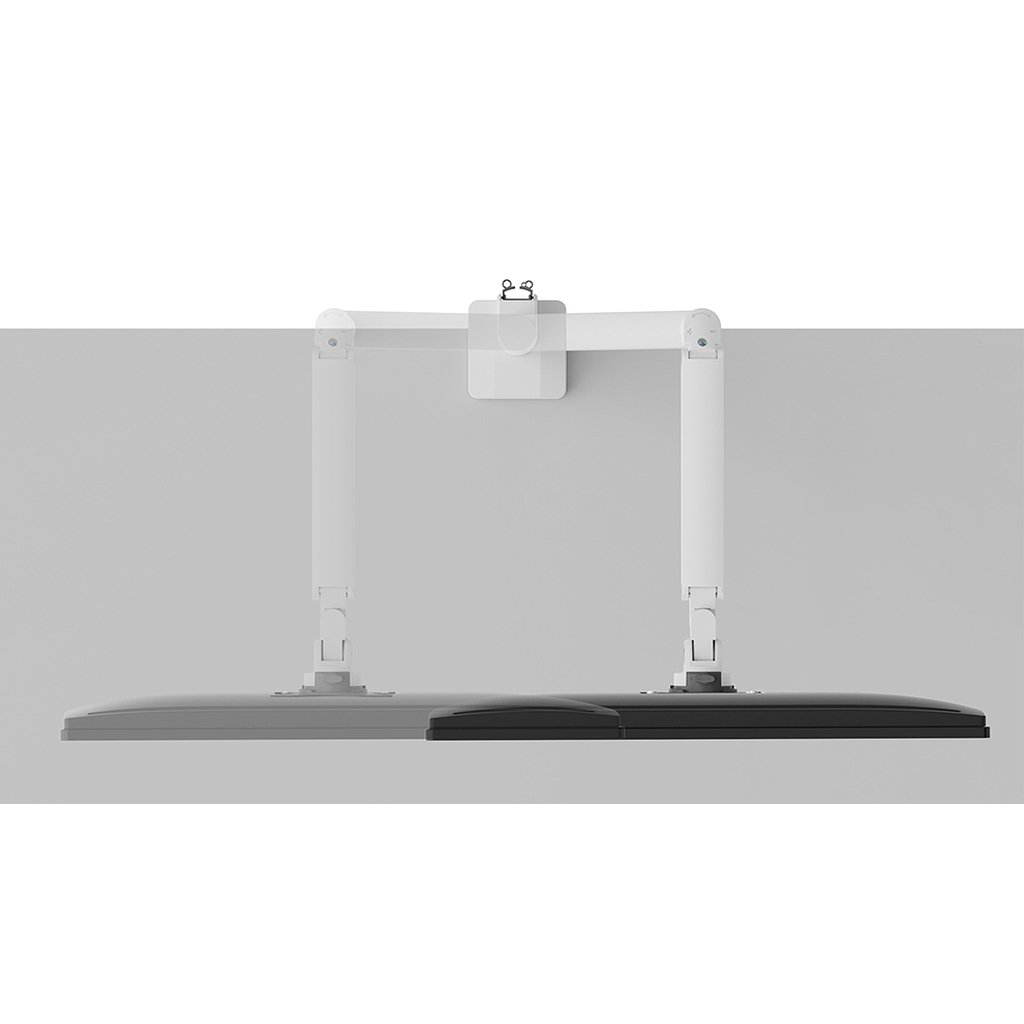

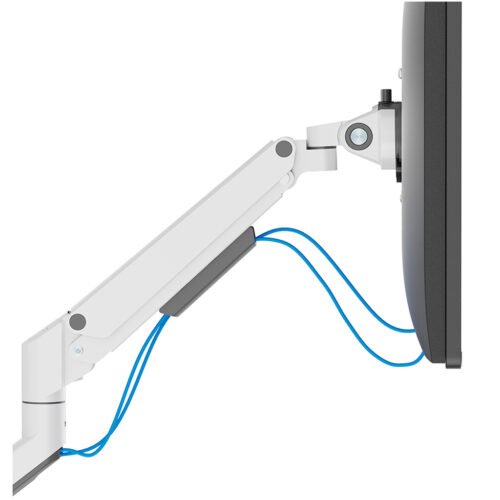

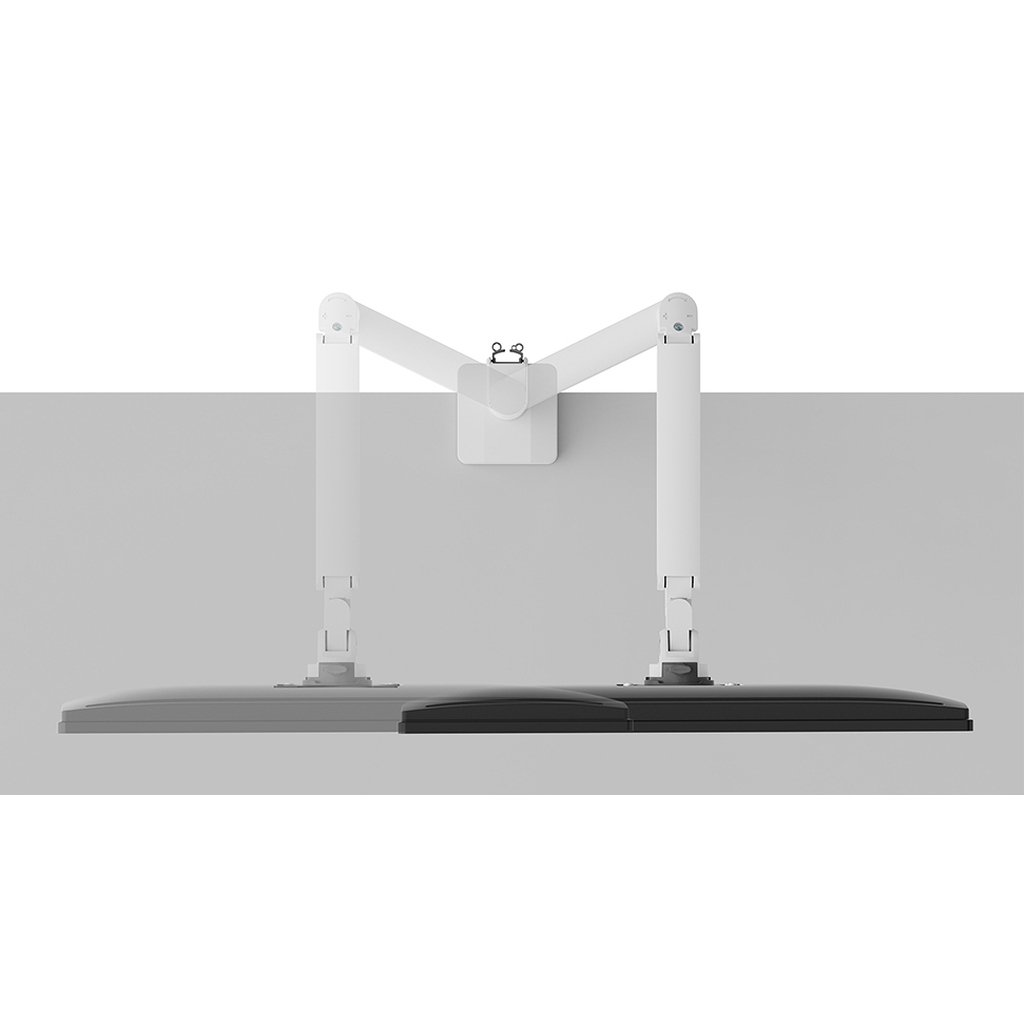

The DS70-250WH1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

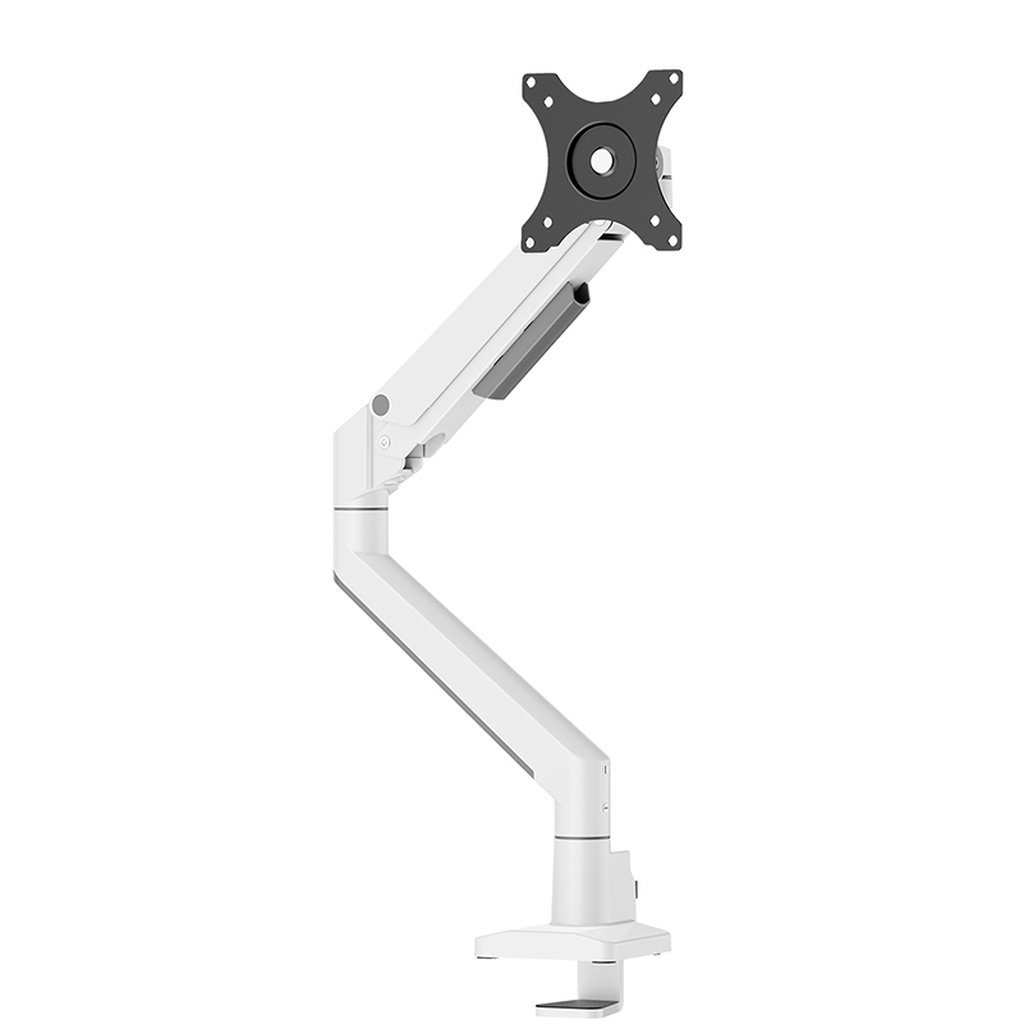

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75×75 or 100×100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

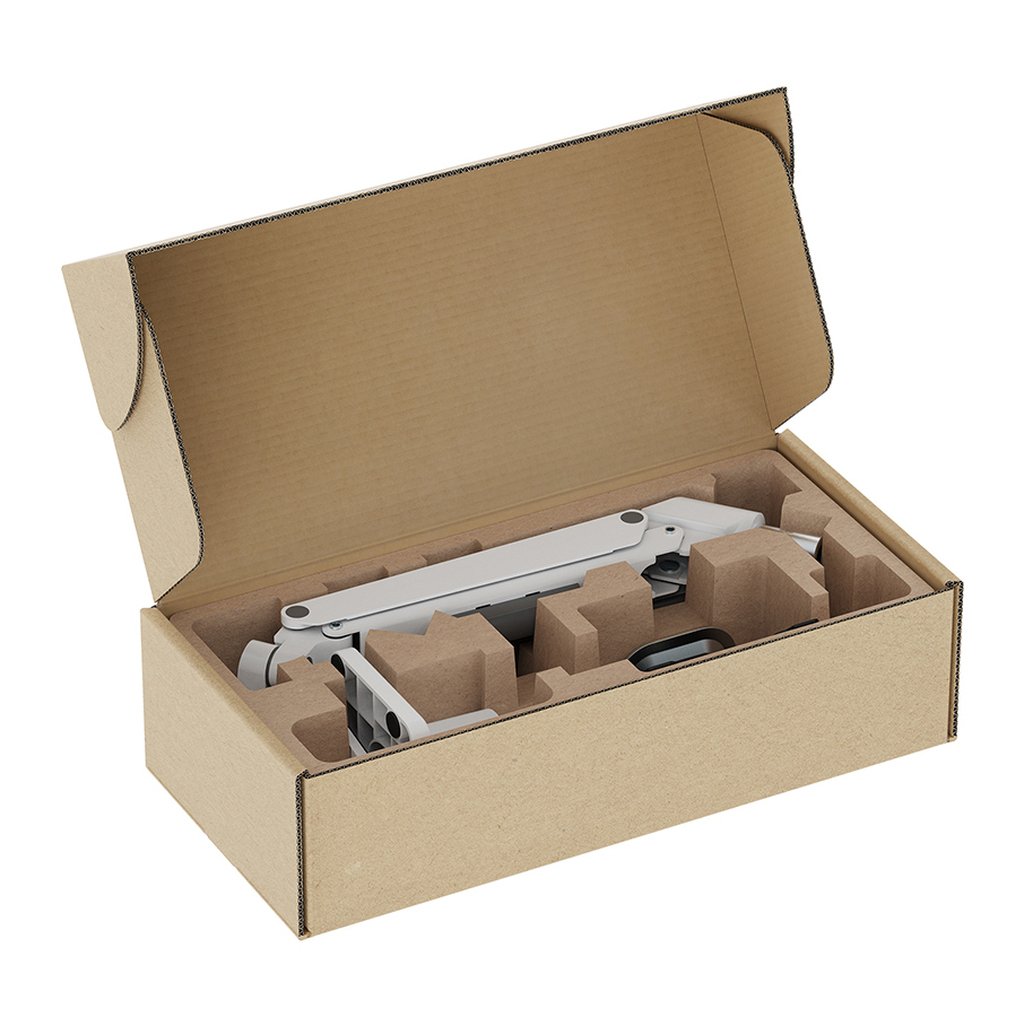

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Additional information
| Weight | 2.84 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 88.9 cm (35") |
| Mounting type | Desk |
| Minimum screen size | 43.2 cm (17") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 215 – 495 mm |
| Depth adjustment range | 70 – 525 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 45° |
| Swivelling | Yes |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | White |
| Housing material | Aluminium |
| Width | 114 mm |
| Depth | 580 mm |
| Height | 552 mm |
| Weight | 2.3 kg |
| Package width | 198 mm |
| Package depth | 108 mm |
| Package height | 428 mm |
| Package weight | 2.9 kg |
| Width adjustment range | 0 – 910 mm |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 18.3 kg |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 13.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 84 pc(s) |
| Distance to the wall (min) | 12.5 cm |
| Distance to the wall (max) | 58 cm |
| Minimum weight | 1 kg |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Adjustable depth | Yes |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Accepts padlock | No |
| Warranty period | 5 year(s) |
| Pivot angle | -180 – 180° |
