Neomounts NM-D775DXSILVER Monitor arm 10-32″ – gas spring – Topfix – 180°-stop
Neomounts NM-D775DXSILVER Dual crossbar monitor arm – 10-32″ – 1-8 kg/screen – gas spring – 180°-stop – Topfix – silver
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

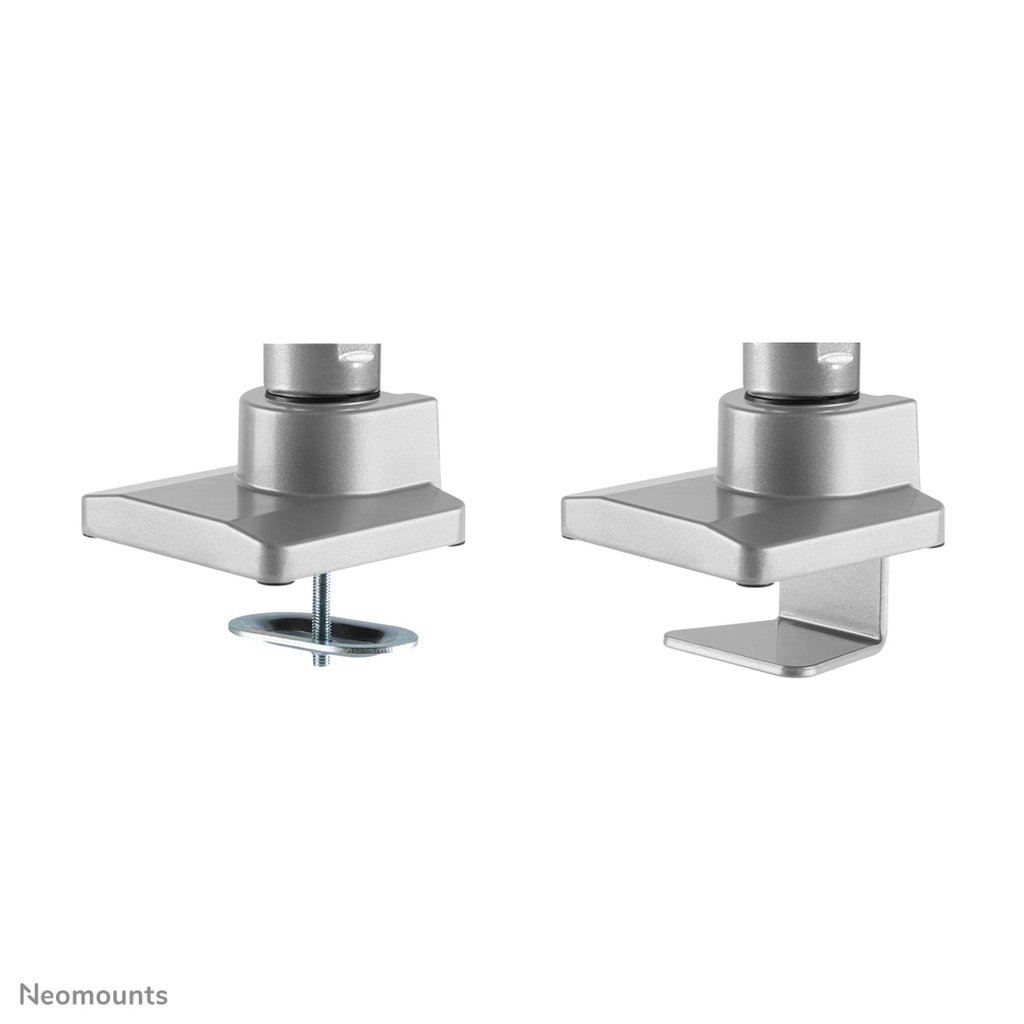

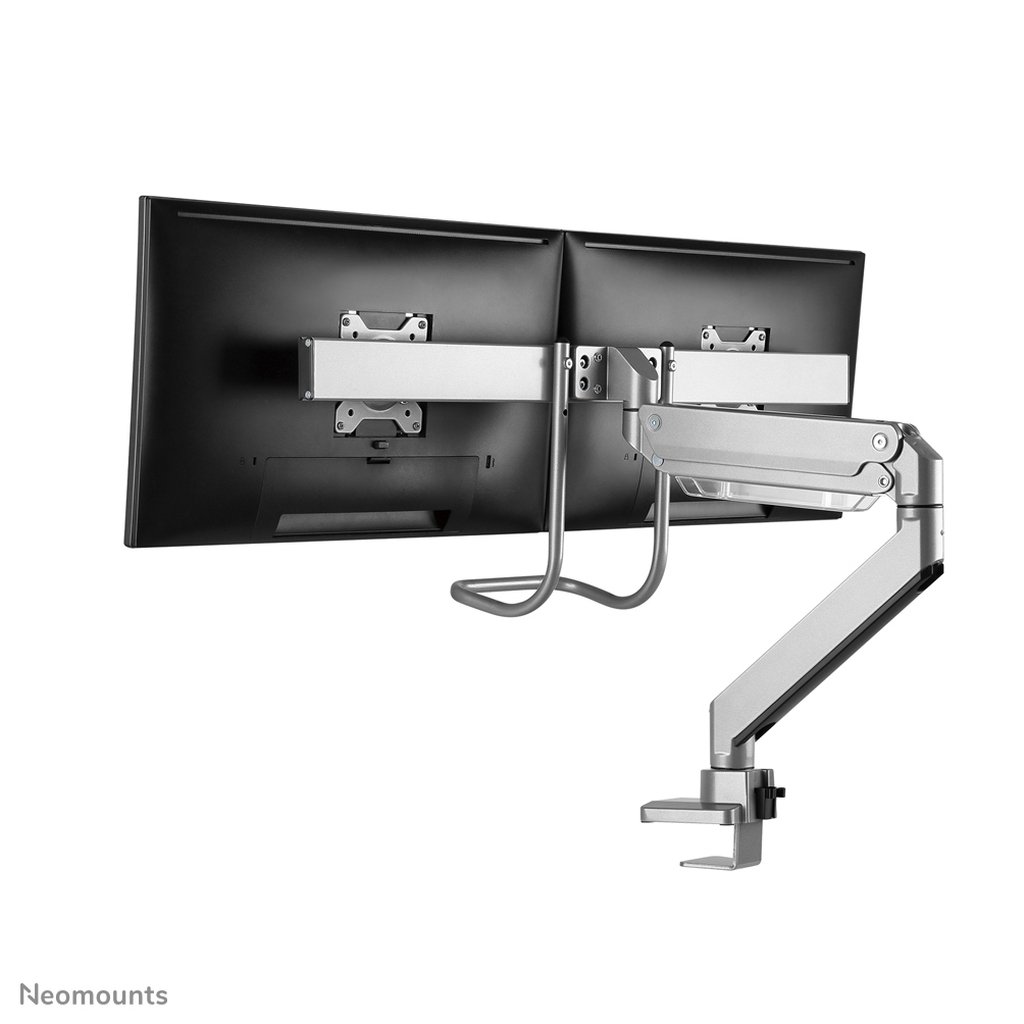

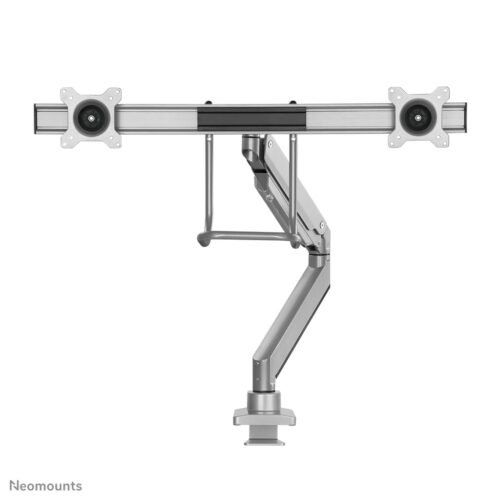

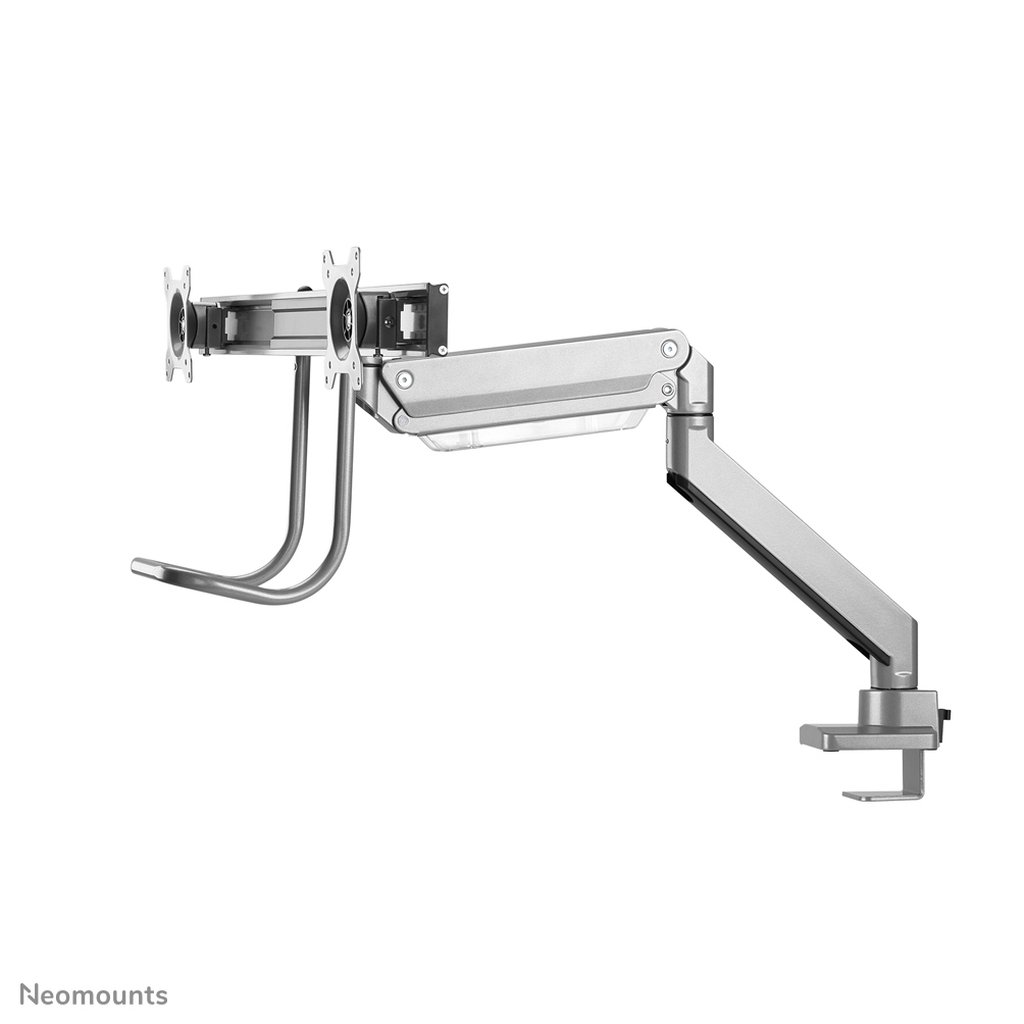

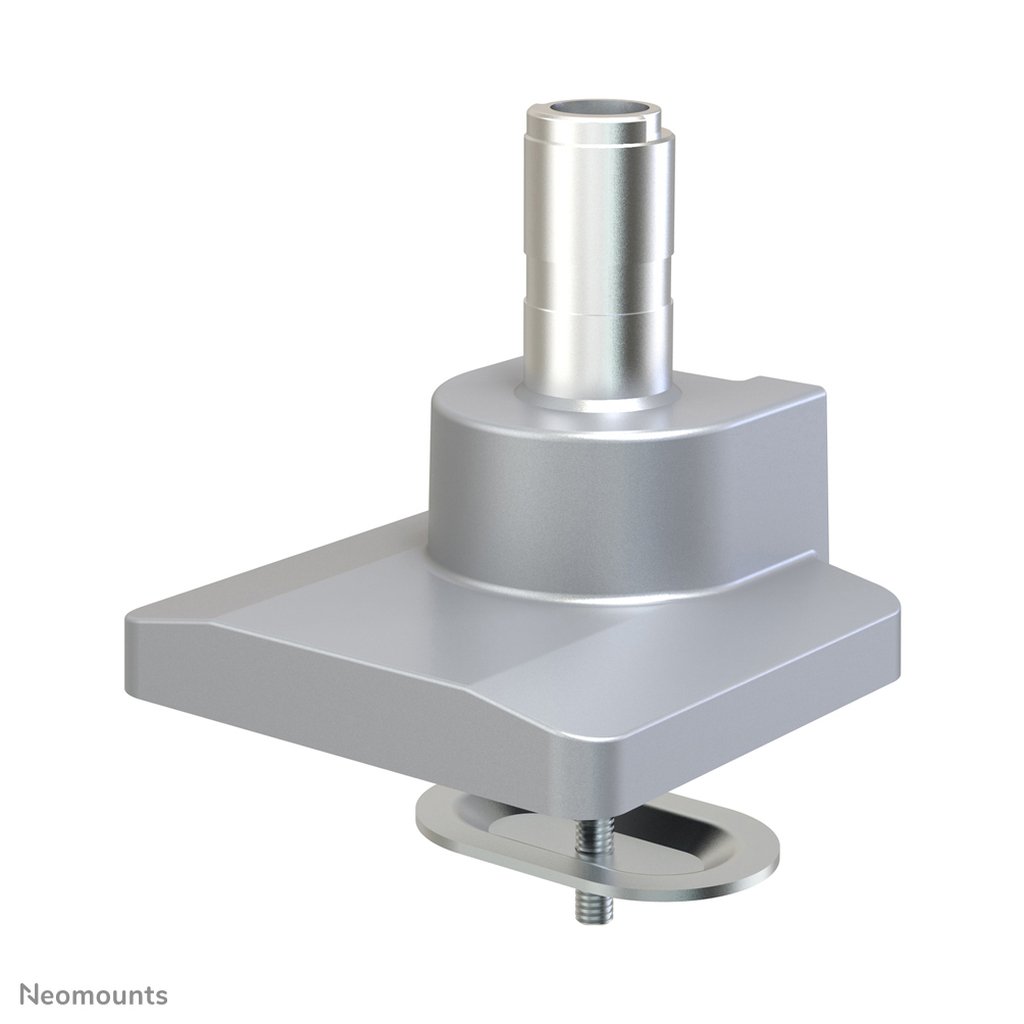

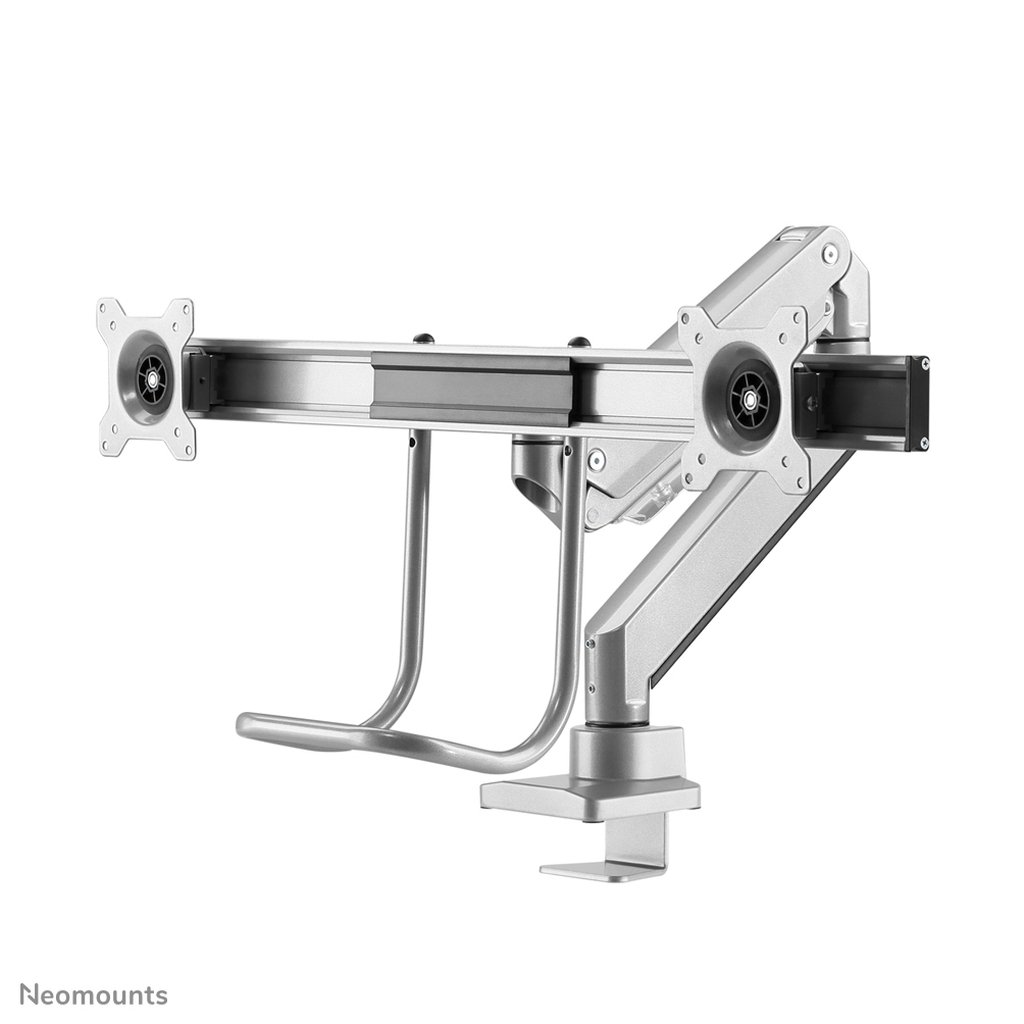

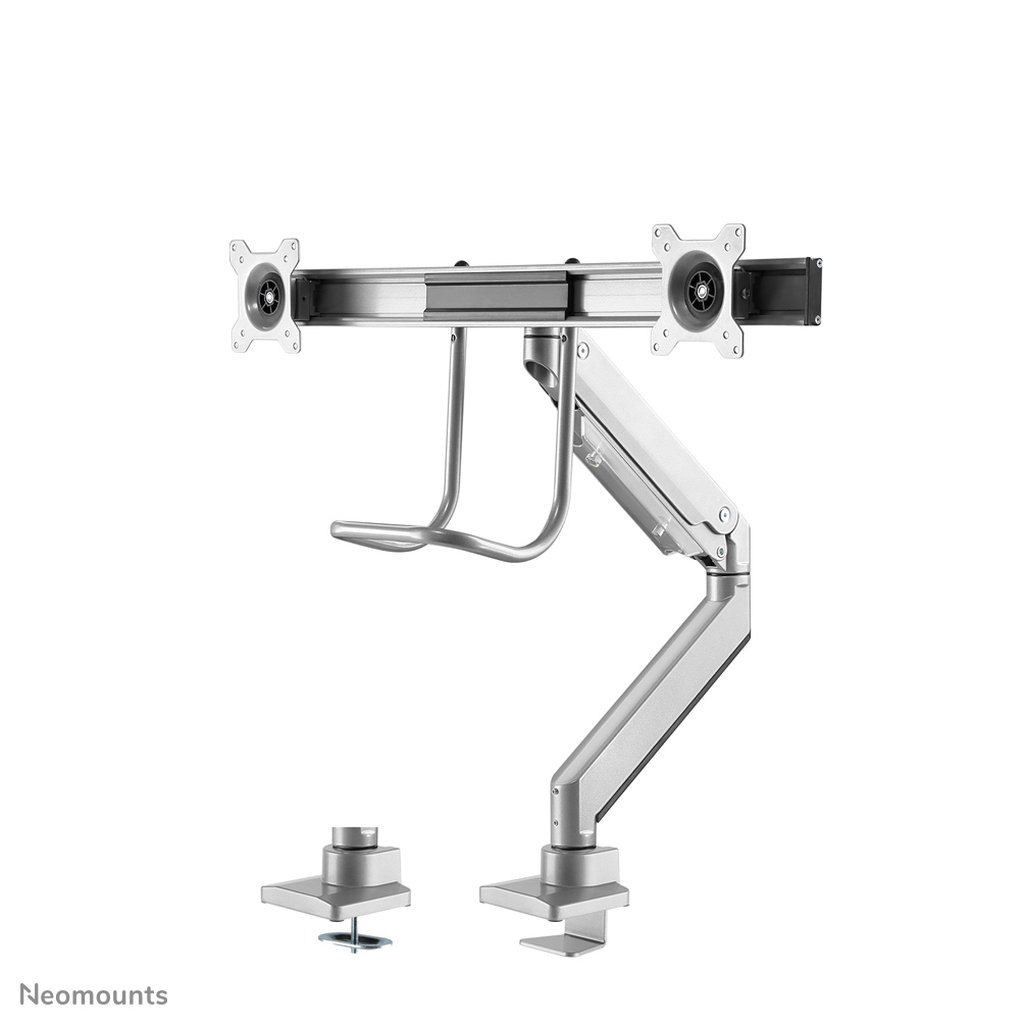

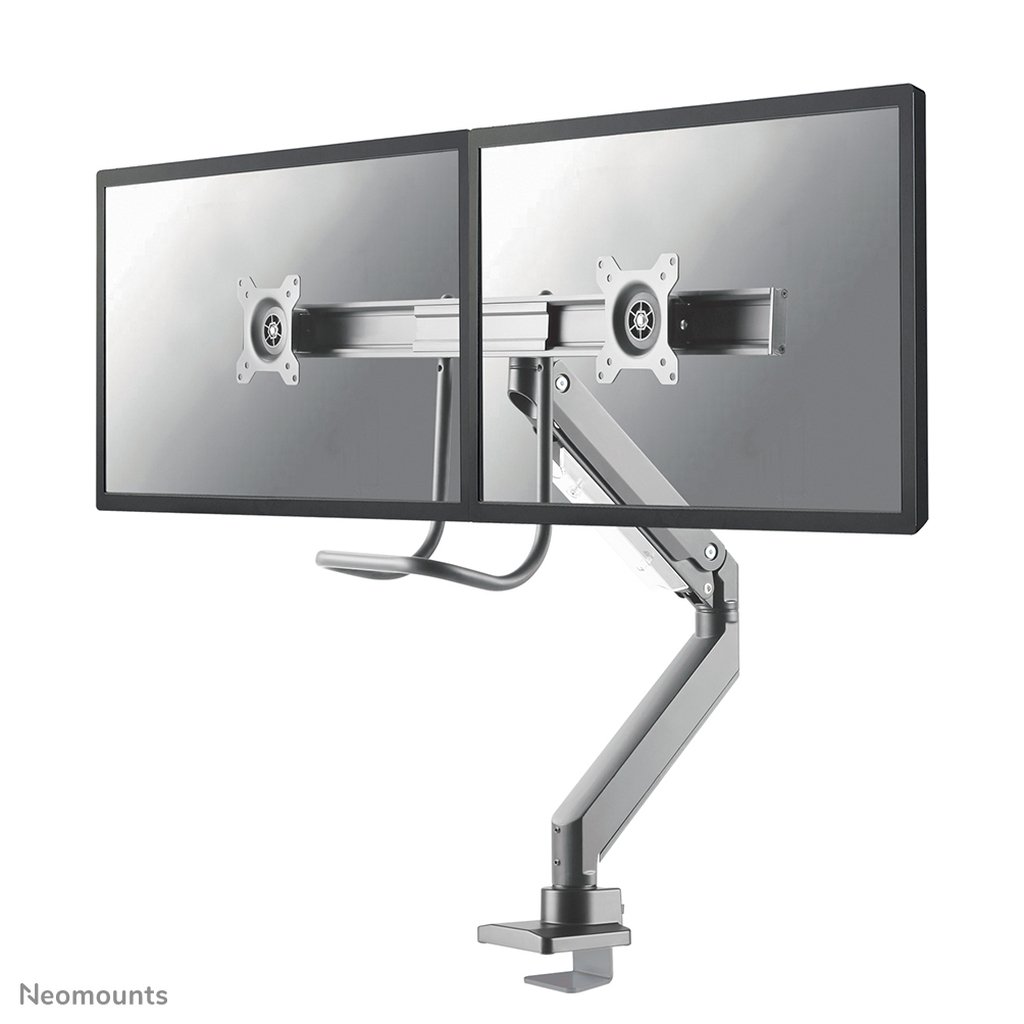

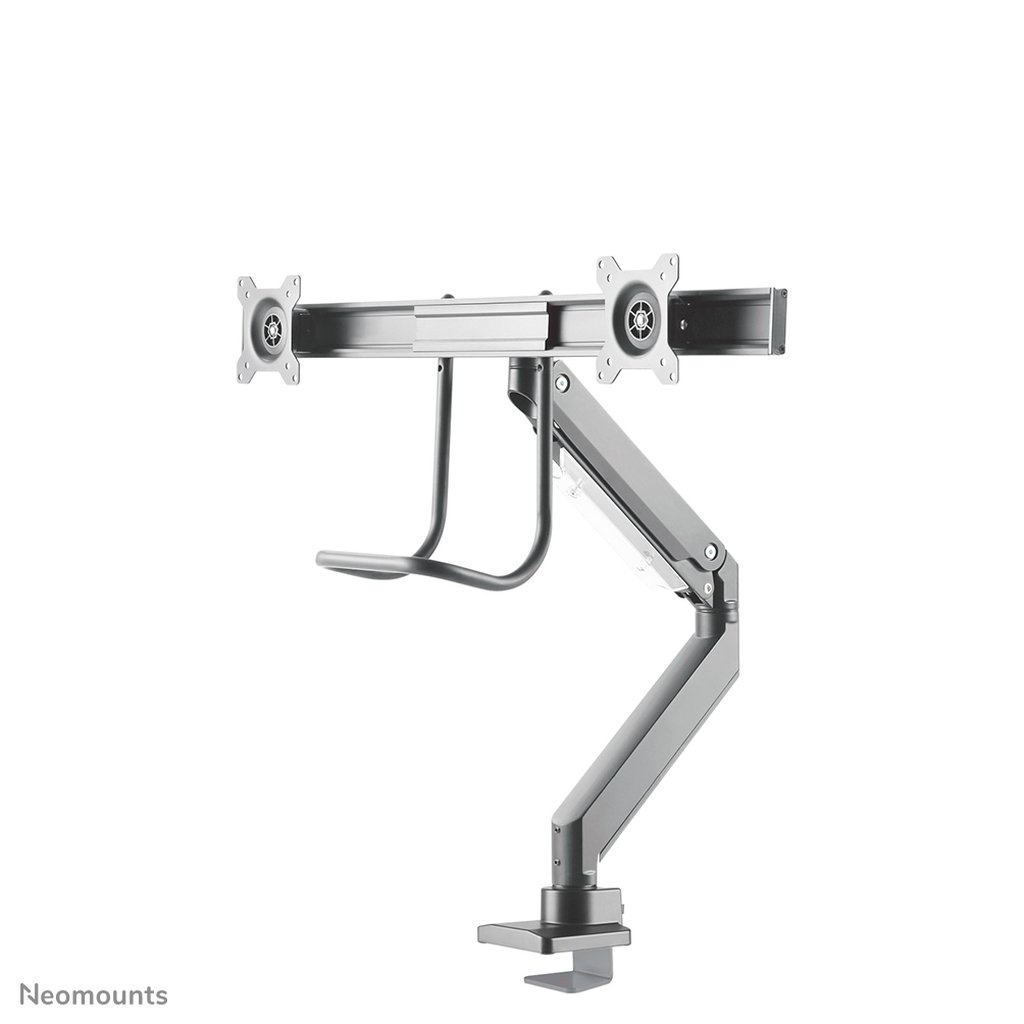

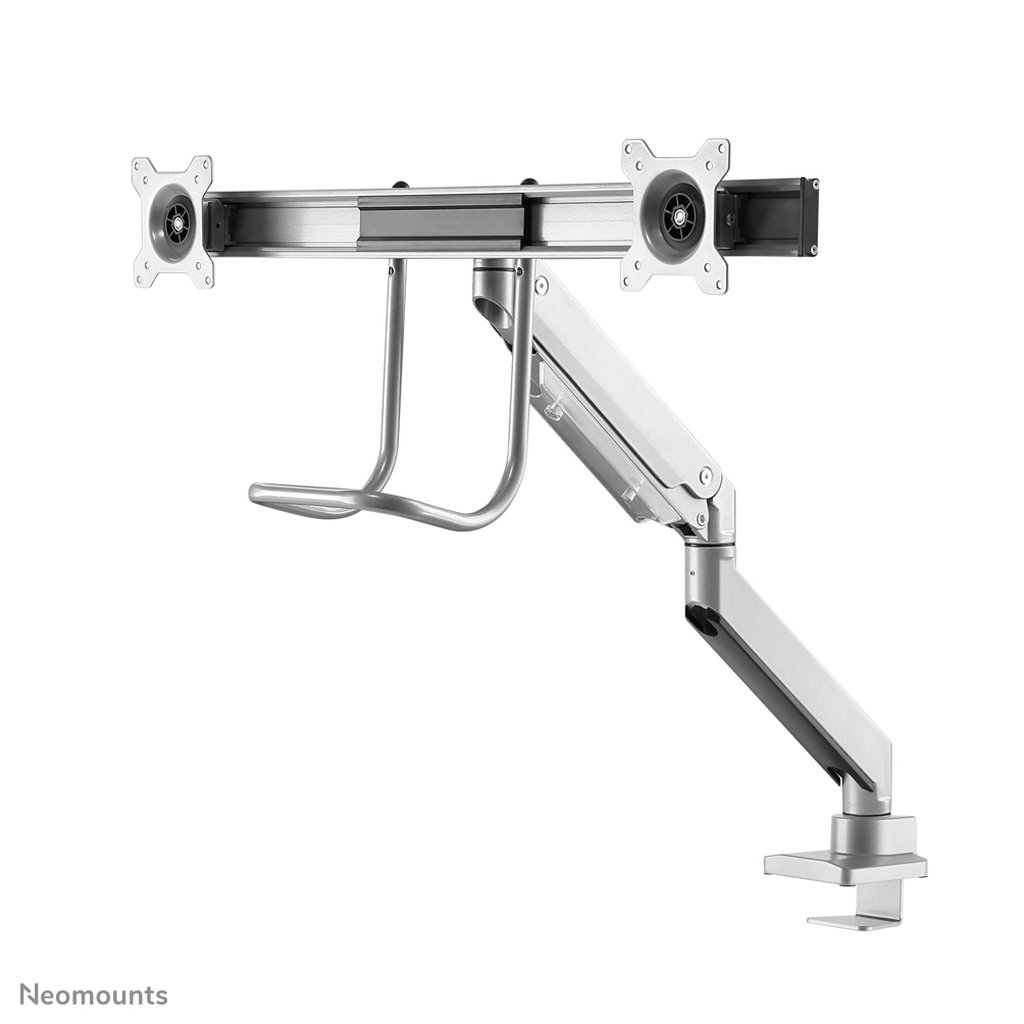

The Neomounts NM-D775DXSILVER is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32″. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts’ unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXSILVER with handle has three pivot points and is suitable for screens up to 32″ (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

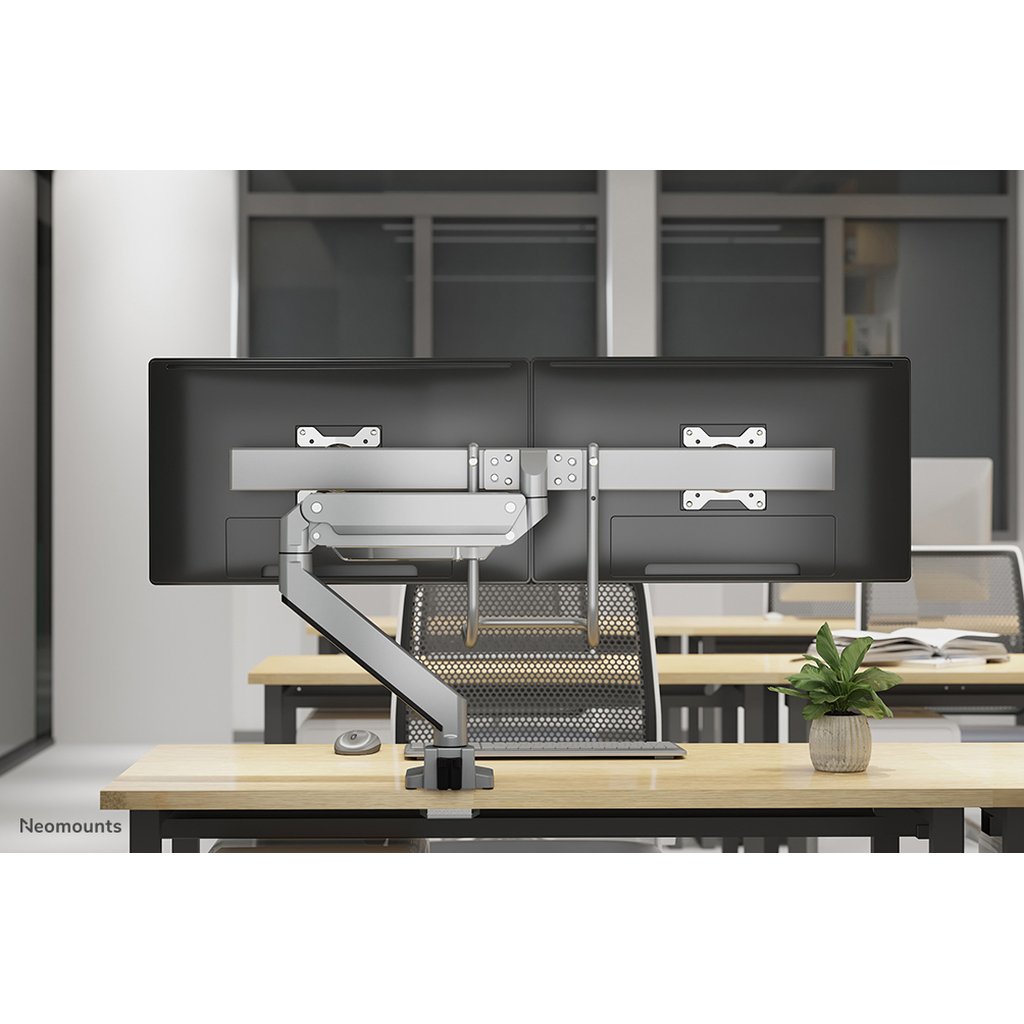

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Additional information
| Weight | 8.76 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Desk |
| Minimum screen size | 25.4 cm (10") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |

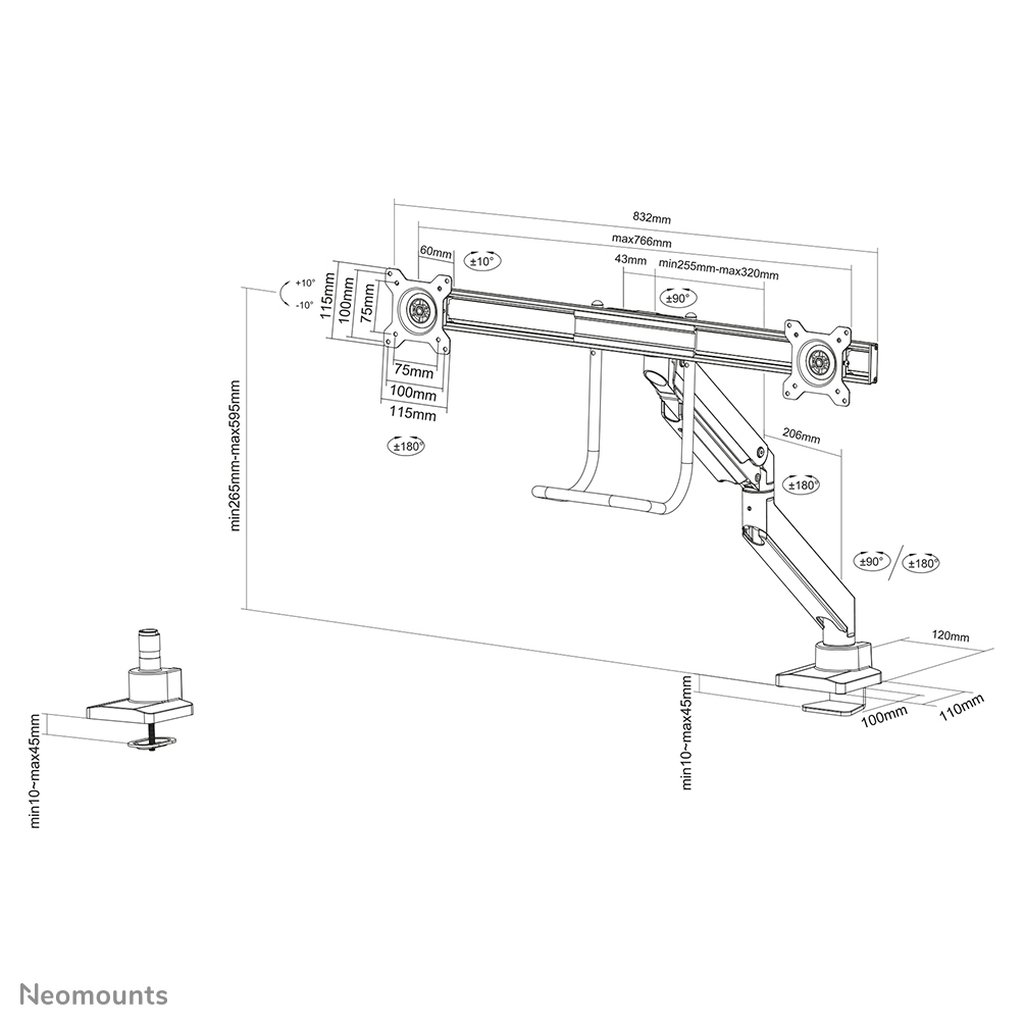

| Height adjustment range | 270 – 600 mm |
| Depth adjustment range | 0 – 630 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -10 – 10° |
| Swivelling | Yes |
| Swivel angle | 360° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Product colour | Silver |
| Housing material | Steel |
| Height | 600 mm |
| Weight | 5.92 kg |
| Package width | 225 mm |
| Package depth | 150 mm |
| Package height | 895 mm |
| Package weight | 9 kg |
| Master (outer) case width | 910 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 9 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 22 pc(s) |
| Minimum weight | 1 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Swivel angle range | -90 – 90° |
| Cable management | Yes |
| Pivot angle | -180 – 180° |
| Package net weight | 8.95 kg |
