Neomounts NM-D775SILVERPLUS Monitor arm 10-49″ – gas spring – Topfix – 180°-stop

In Stock

Neomounts NM-D775SILVERPLUS Single monitor arm – 10-49″ – 1-18 kg (curved 14 kg) – gas spring – 180°-stop – Topfix – silver

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: NM-D775SILVERPLUS
Brand:

Description

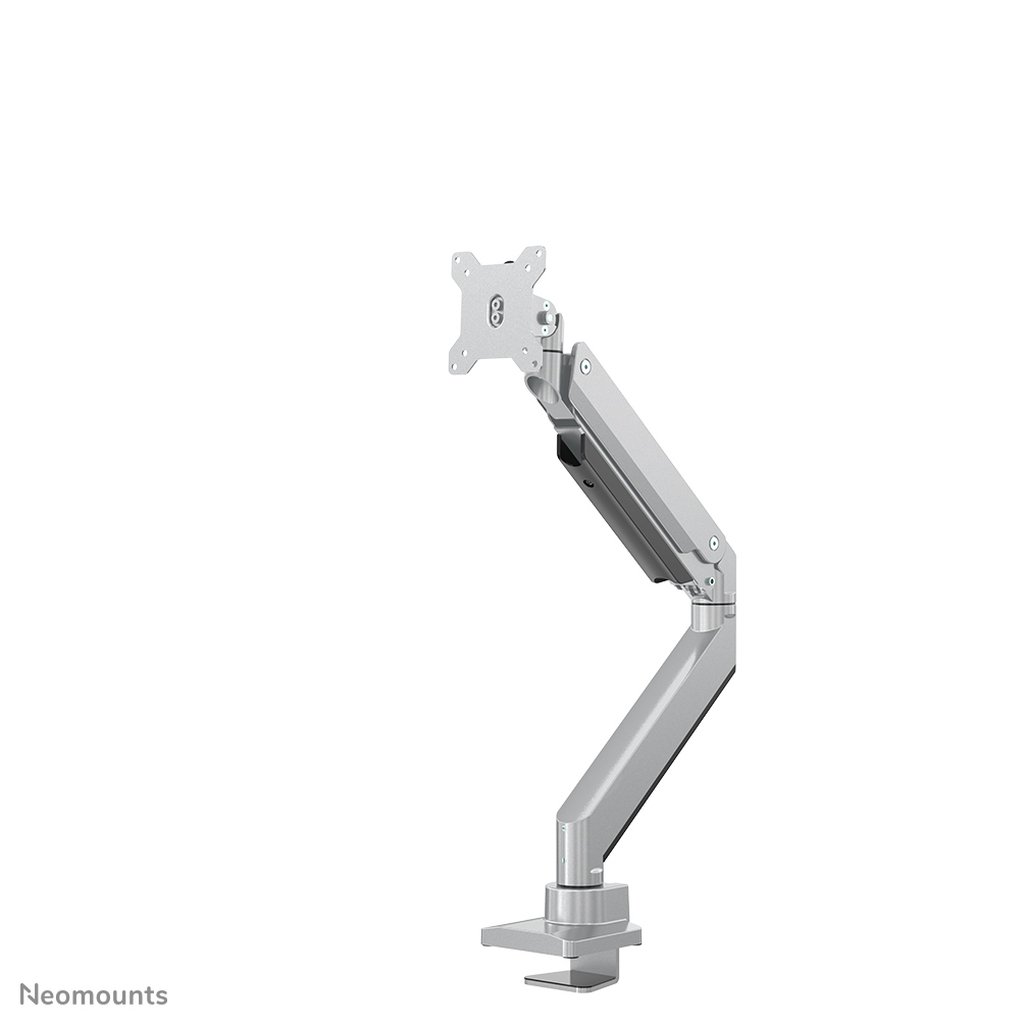

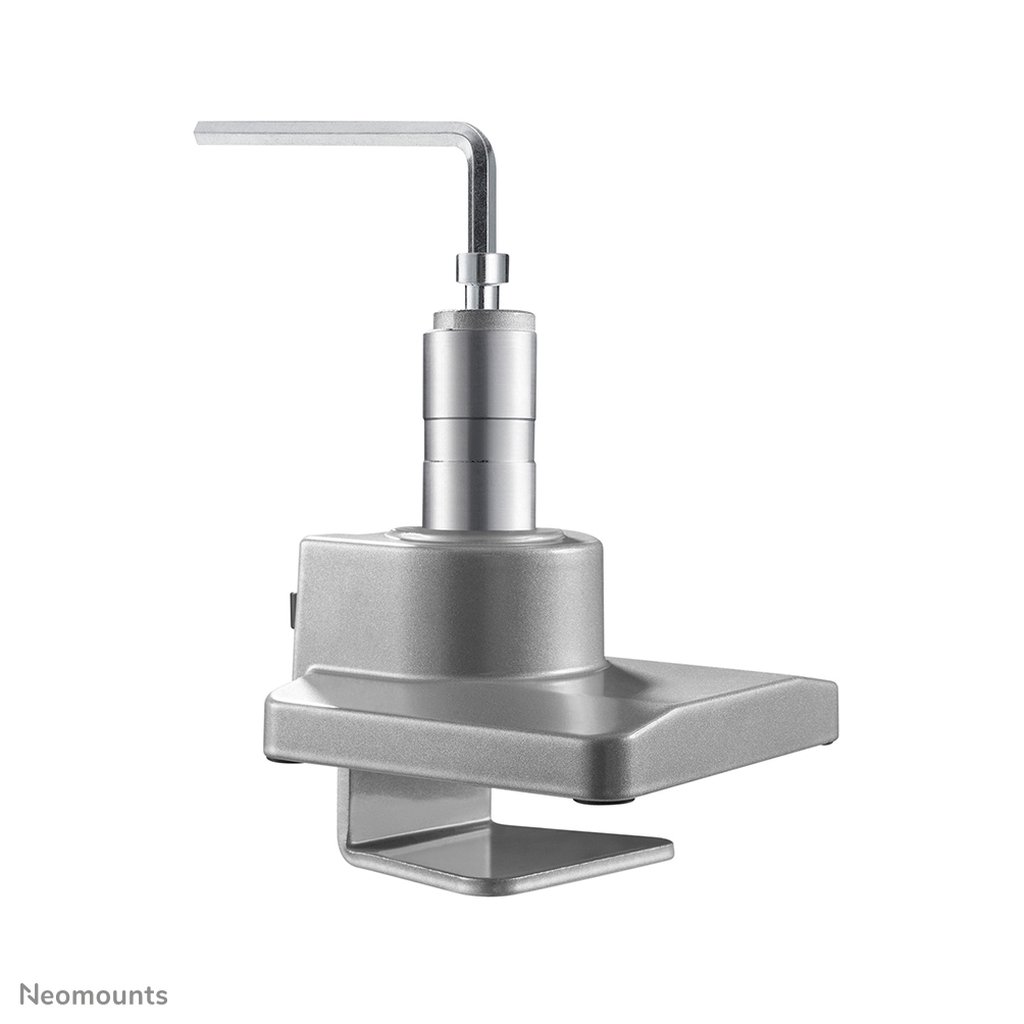

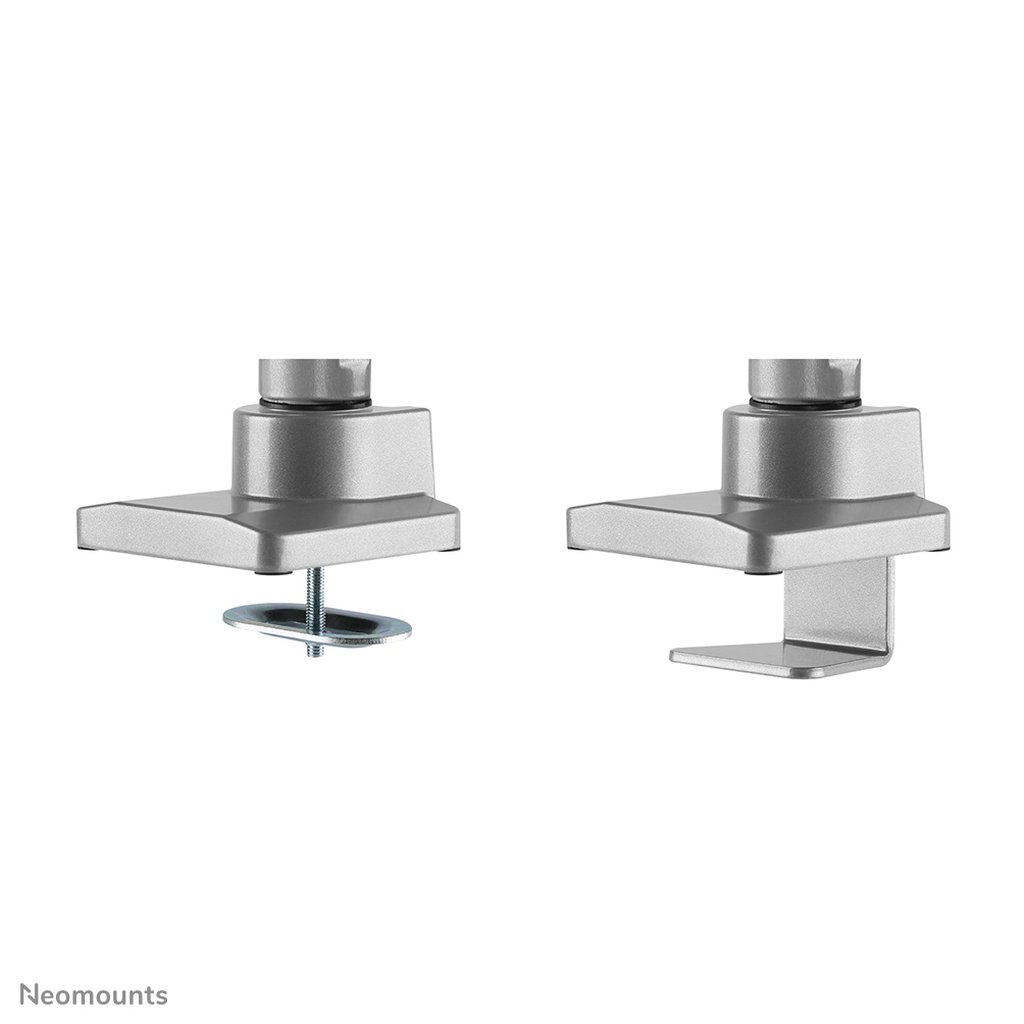

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49″. This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

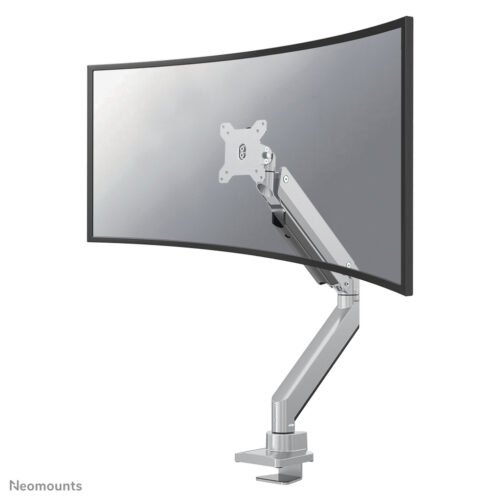

The NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49″ and a maximum weight of 18 kg.

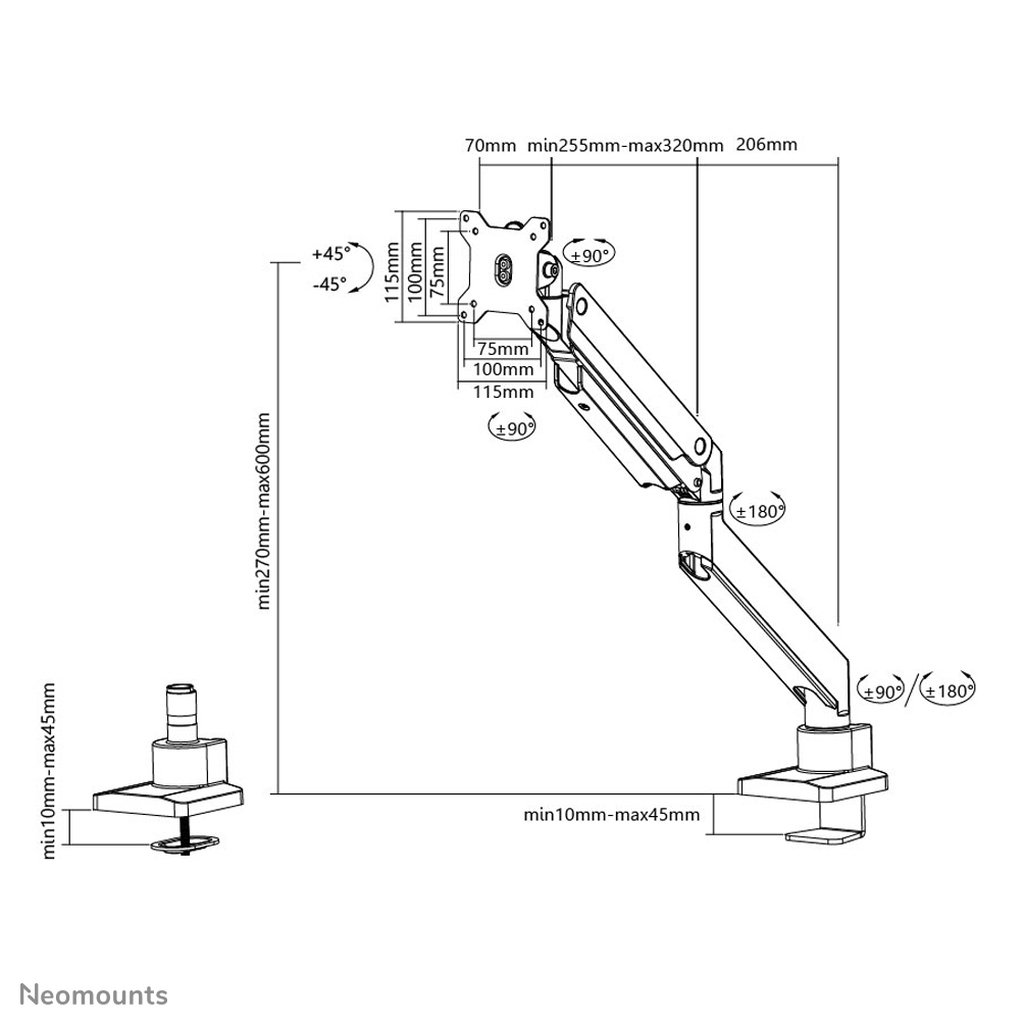

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

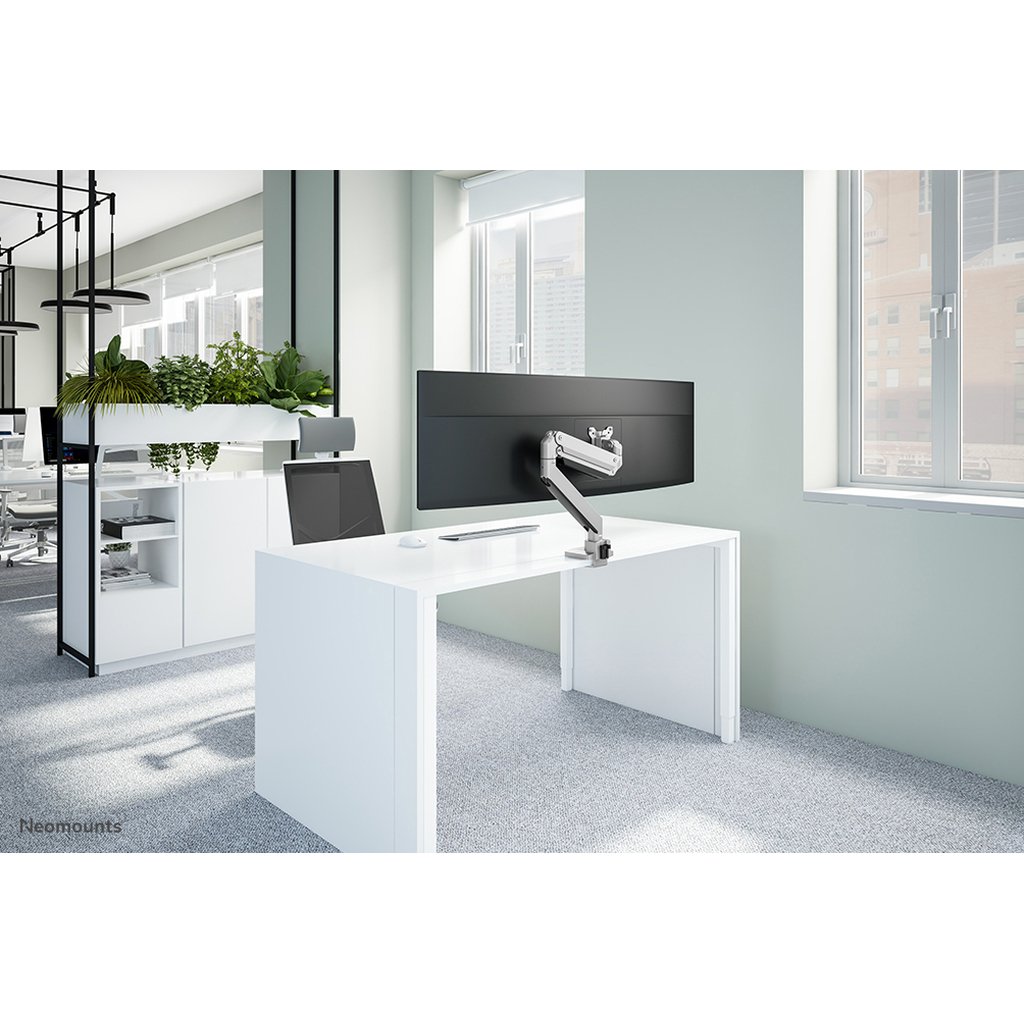

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775SILVERPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.

Additional information

Weight 5 lbs
Number of displays supported

1

Maximum weight capacity (per display)

18 kg

Maximum screen size

124.5 cm (49")

Mounting type

Desk

Minimum screen size

25.4 cm (10")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Mounting

Clamp/Grommet

Panel mounting interface

75 x 75 mm

Height adjustment

Yes

Height adjustment type

Gas spring

Height adjustment range

270 – 600 mm

Depth adjustment range

0 – 630 mm

Tilt adjustment

Yes

Tilt angle range

-45 – 45°

Swivelling

Yes

Swivel angle

360°

Rotating

Yes

Angle of rotation

180°

Product colour

Silver

Housing material

Steel

Depth

630 mm

Height

600 mm

Weight

3.91 kg

Package width

240 mm

Package depth

123 mm

Package height

555 mm

Package weight

5.2 kg

Master (outer) case width

500 mm

Master (outer) case length

265 mm

Master (outer) case height

575 mm

Master (outer) case gross weight

5.2 kg

Products per master (outer) case

4 pc(s)

Country of origin

China

Master (outer) case net weight

4.6 kg

Harmonized System (HS) code

7326909890

Products per pallet (EU)

72 pc(s)

Minimum weight

1 kg

Maximum weight capacity

18 kg

Maximum weight capacity (per curved/ultra-wide display)

14 kg

Desk thickness (min)

1 cm

Desk thickness (max)

4.5 cm

Adjustable depth

Yes

Cable management

Yes

Package net weight

5.2 kg
