Neomounts PLASMA-C100D Dual monitor/TV mount ceiling 37-75″ – h 67-107 cm
Neomounts PLASMA-C100D Monitor/TV mount ceiling 2 screens – 37-75″ – max 50 kg/screen – VESA 200×200-800×450 – h 67-107 cm – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

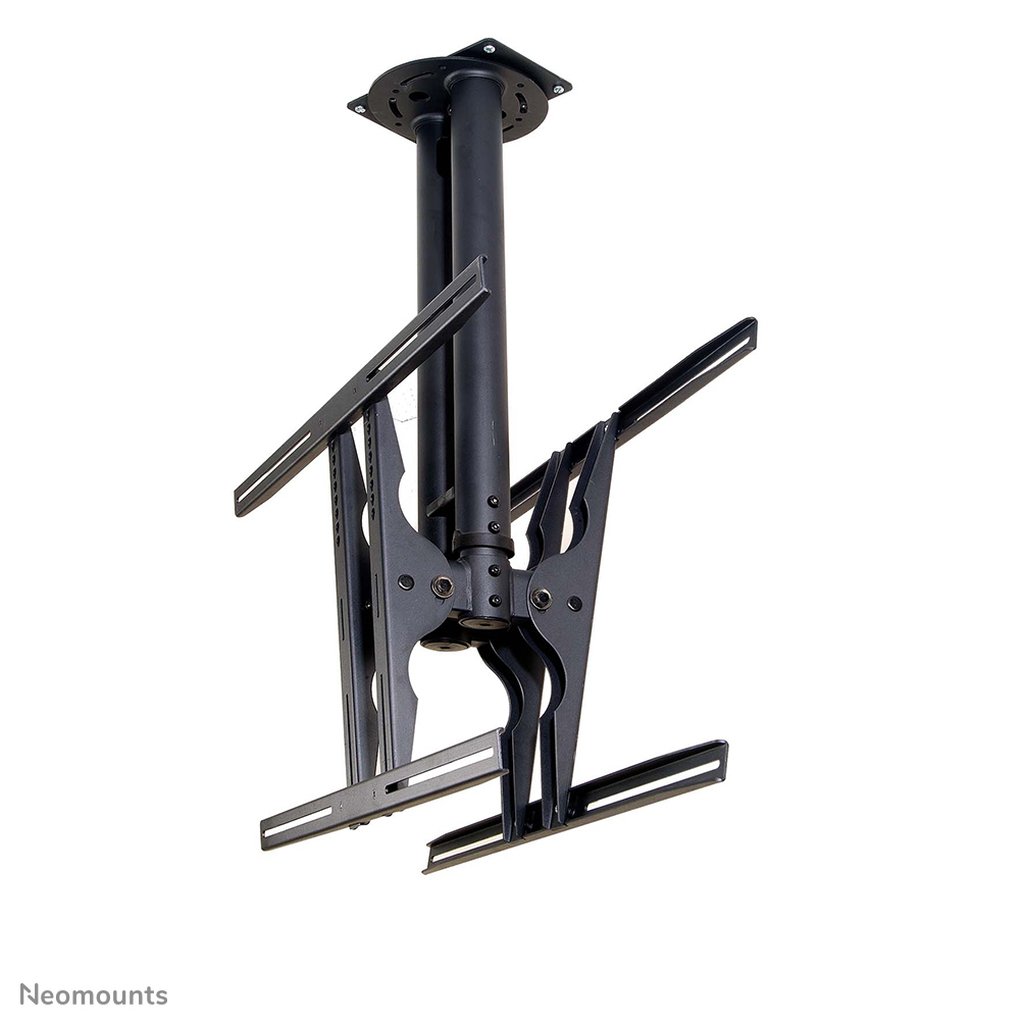

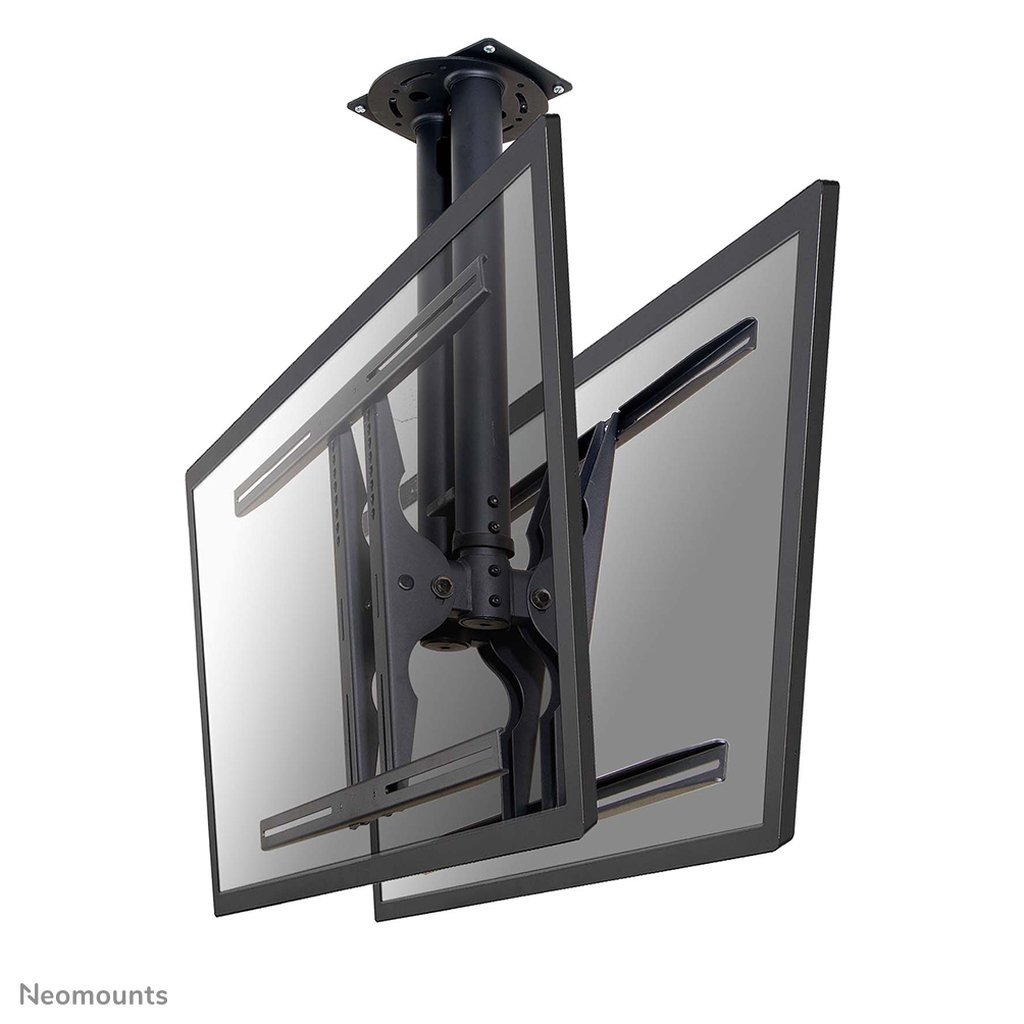

The Neomounts ceiling mount, model PLASMA-C100D is a dual-sided tilt- and swivel ceiling mount for flat screens up to 75″ (191 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

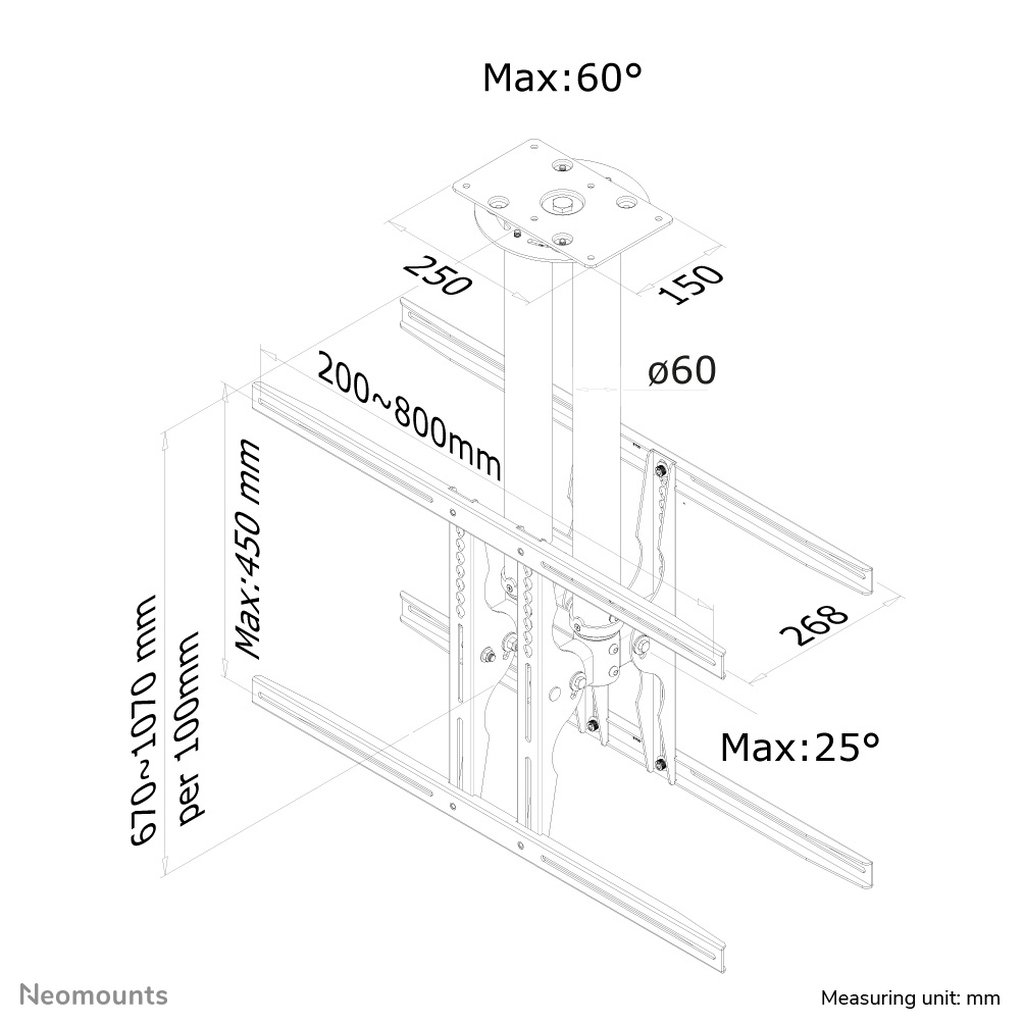

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 67 to 107 centimetres. If different heights are needed extension poles are available. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts PLASMA-C100D has one pivot point and is suitable for screens up to 75″ (191 cm). The weight capacity of this product is 100 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 200×200 to 800x450mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
By using extension poles (FPMA-CP100 up to FPMA-CP200) you can increase the distance to the ceiling. These can be ordered additionally. This pole replaces the original pole. Please note that to extend the PLASMA-C100D you will need two extension poles.
Additional information
| Weight | 24.22 lbs |
|---|---|
| Number of displays supported | 2 |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Maximum VESA mount | 800 x 450 mm |
| Minimum screen size | 94 cm (37") |
| Product colour | Black |
| Housing material | Steel |
| Height | 1070 mm |
| Weight | 20.9 kg |
| Package width | 950 mm |
| Package depth | 280 mm |
| Package height | 260 mm |
| Package weight | 22 kg |
| Harmonized System (HS) code | 7326909890 |
| Height adjustment | Yes |
| Minimum VESA mount | 200 x 200 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 200 |
| Height adjustment type | Manual |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Country of origin | Taiwan |
| Master (outer) case net weight | 22 kg |
| Products per pallet (EU) | 18 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case width | 950 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 24.3 kg |
| Products per master (outer) case | 1 pc(s) |
| Maximum weight capacity (per display) | 50 kg |
| Tilt angle range | 0 – 25° |
| Height adjustment range | 670 – 1070 mm |
| Tilt angle | 25° |
| Swivel angle | 60° |
