Neomounts WL70-550BL12 Monitor/TV mount wall 23-42″ – gas spring – full motion
Neomounts WL70-550BL12 Monitor/TV mount wall – 23-42″ – 5-30 kg – VESA 75×75-200×200 – d 5,9-56,3 cm – gas spring – level adjustment – full motion – black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

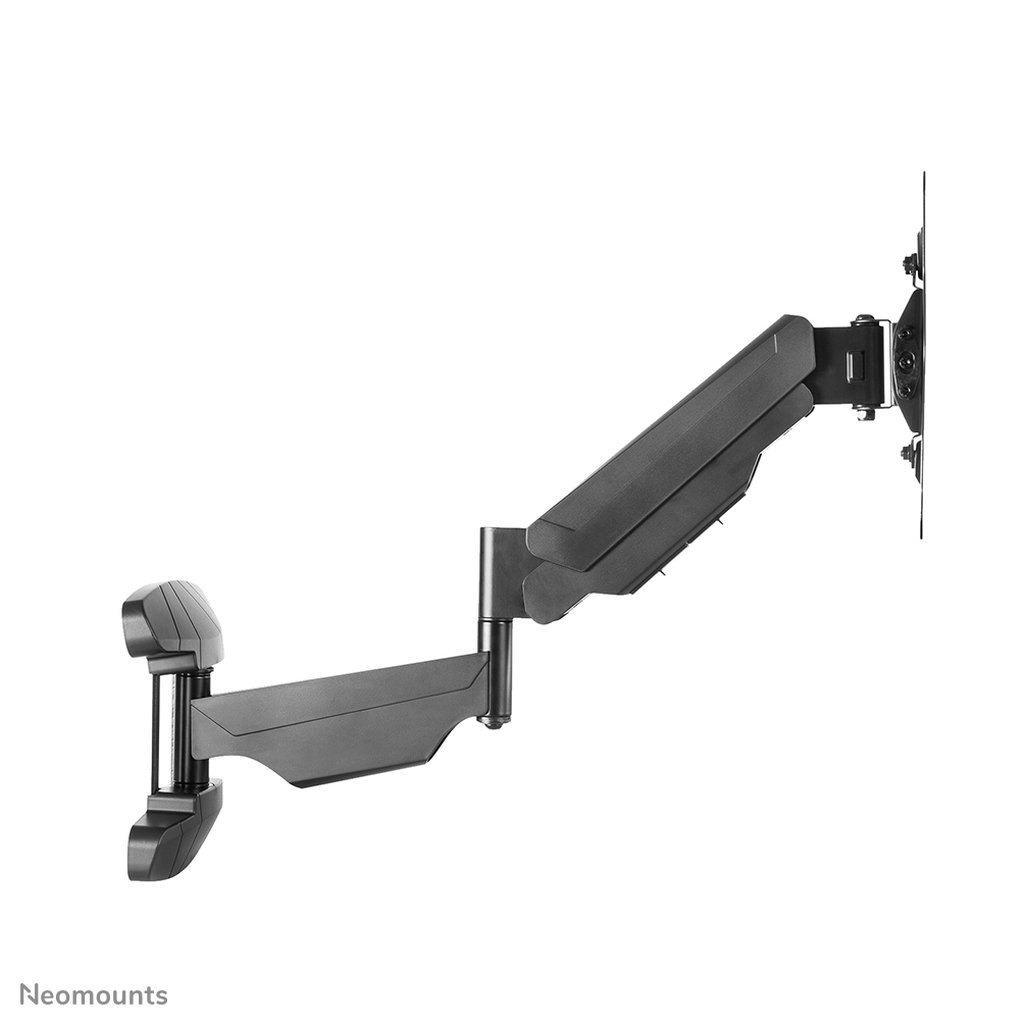

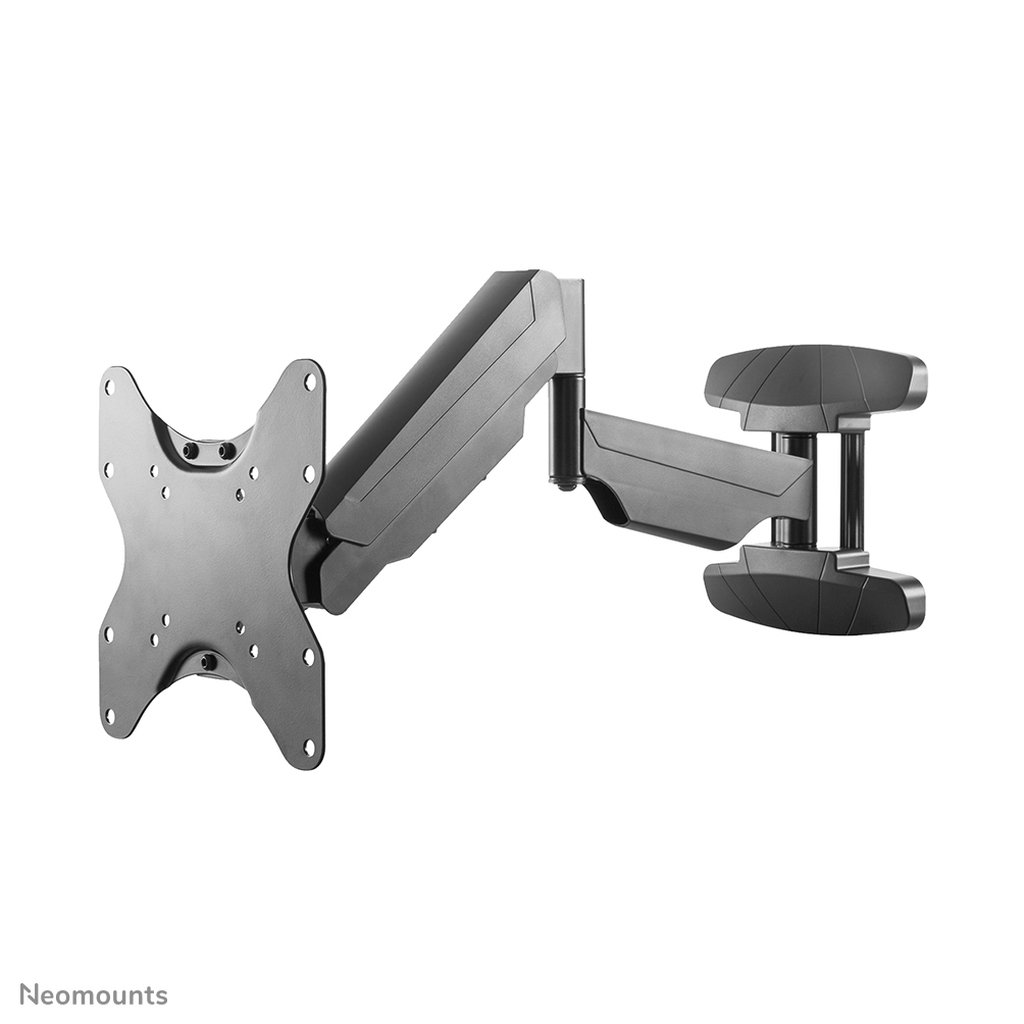

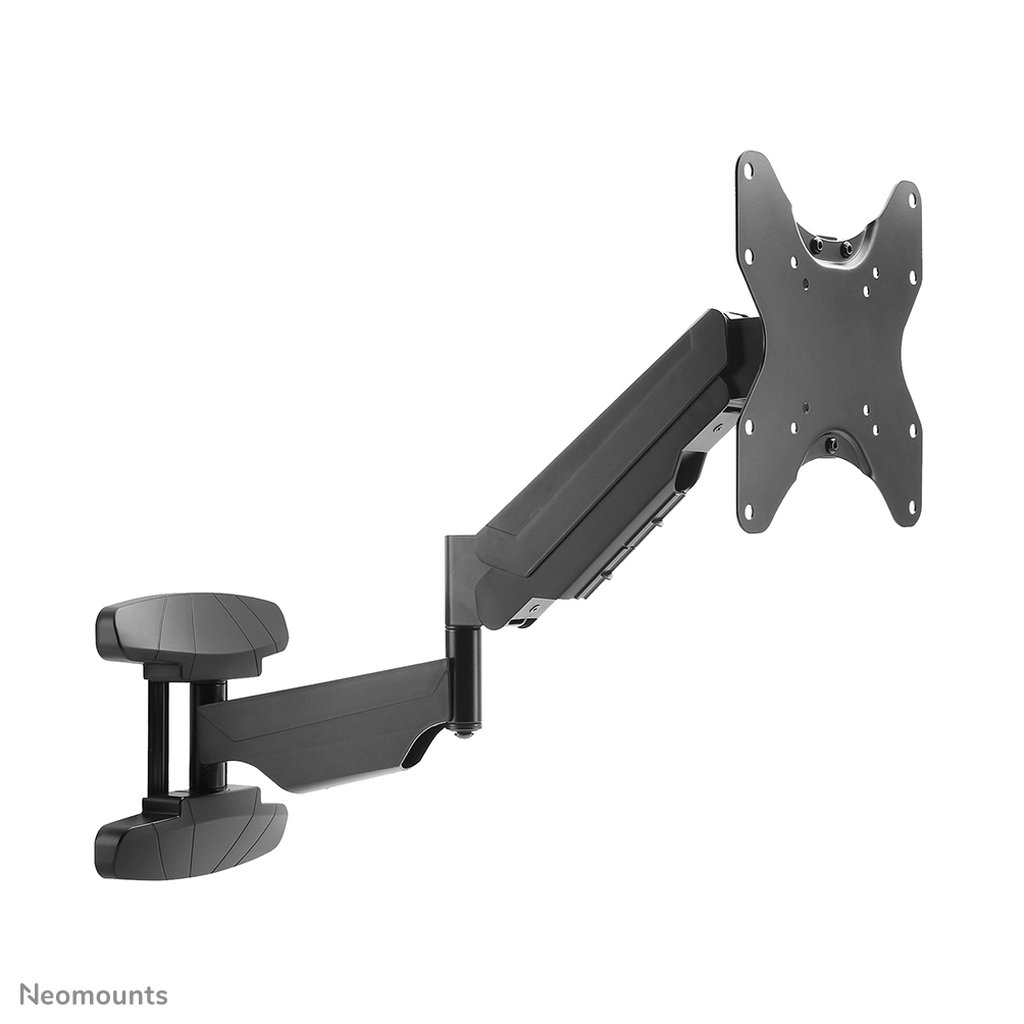

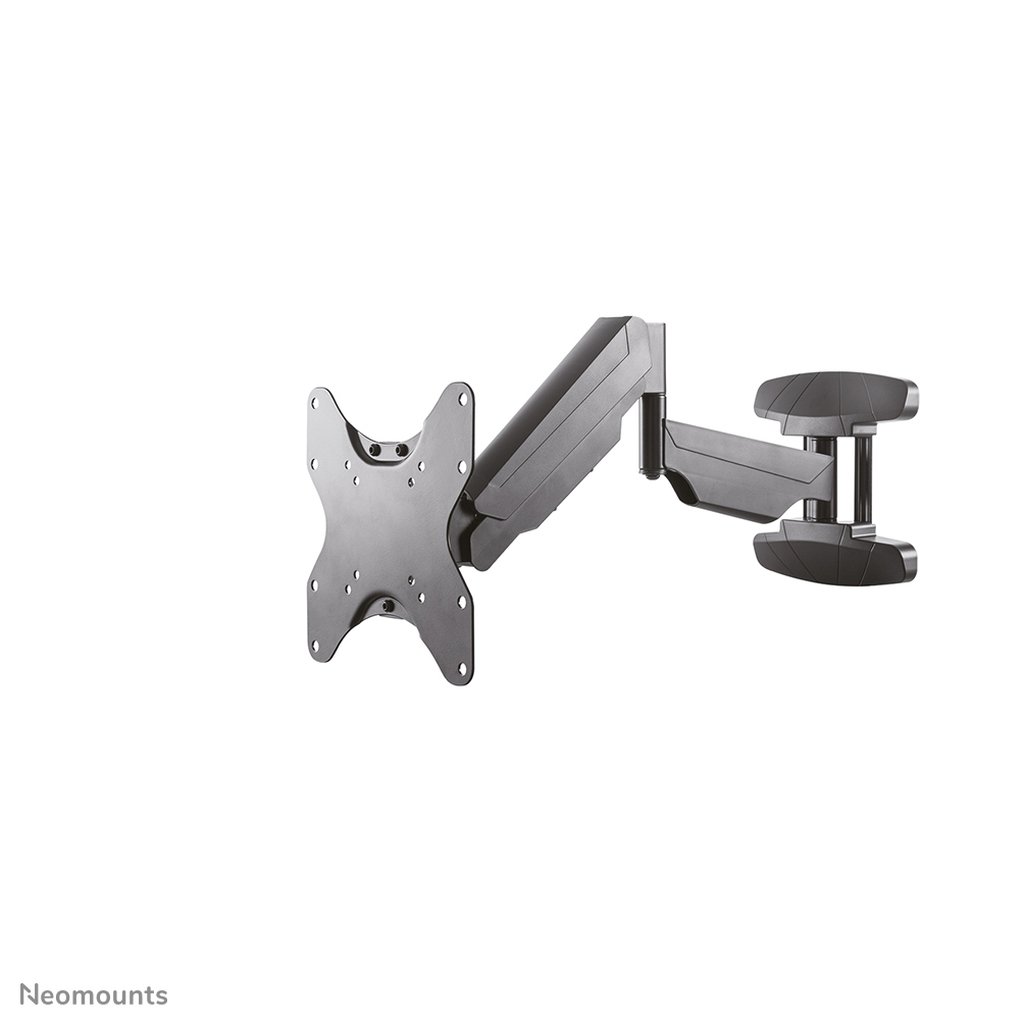

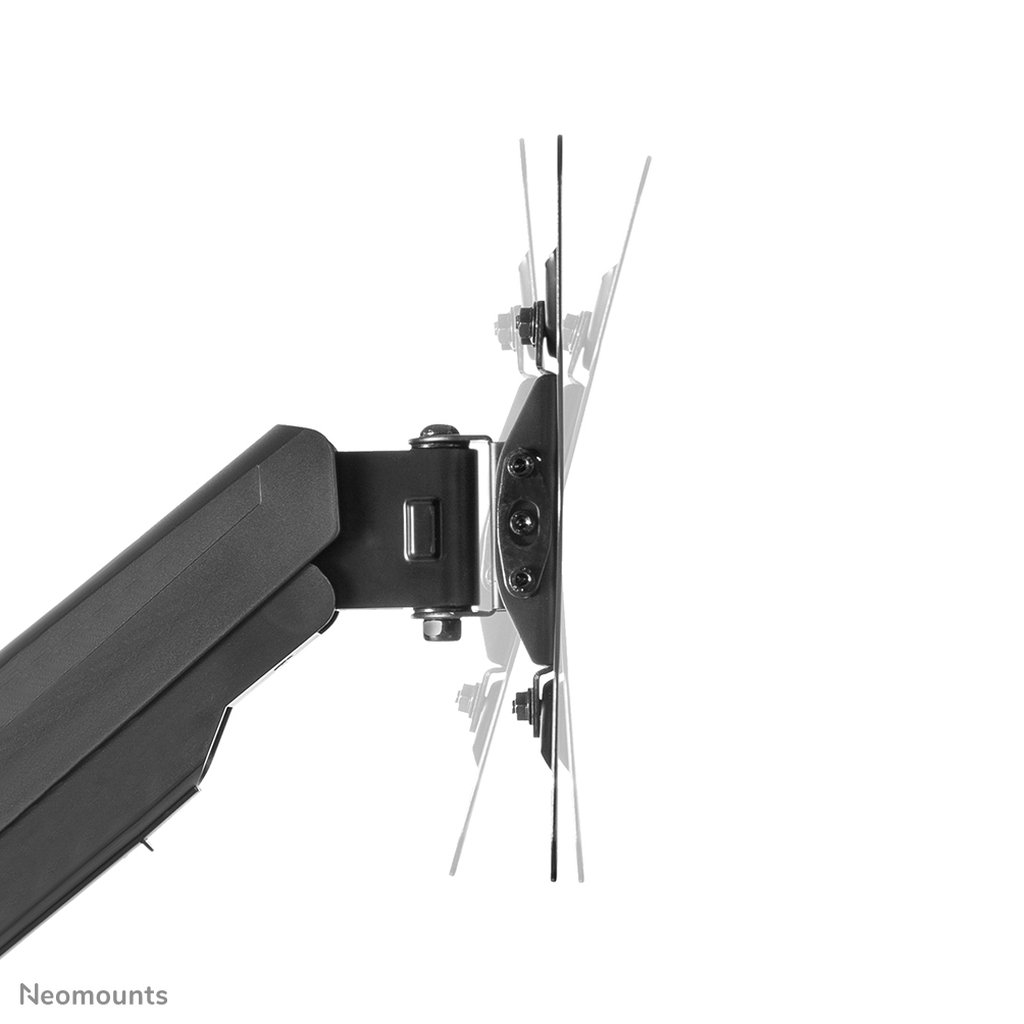

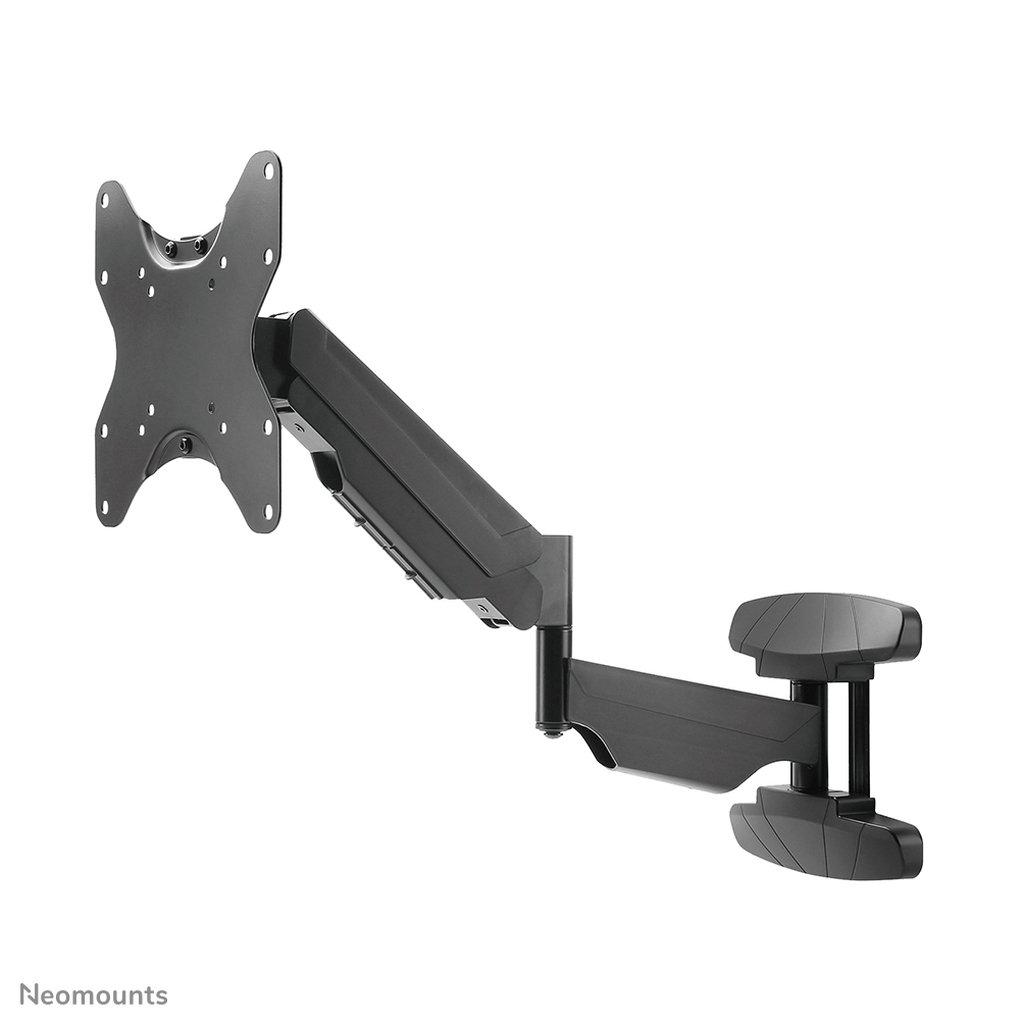

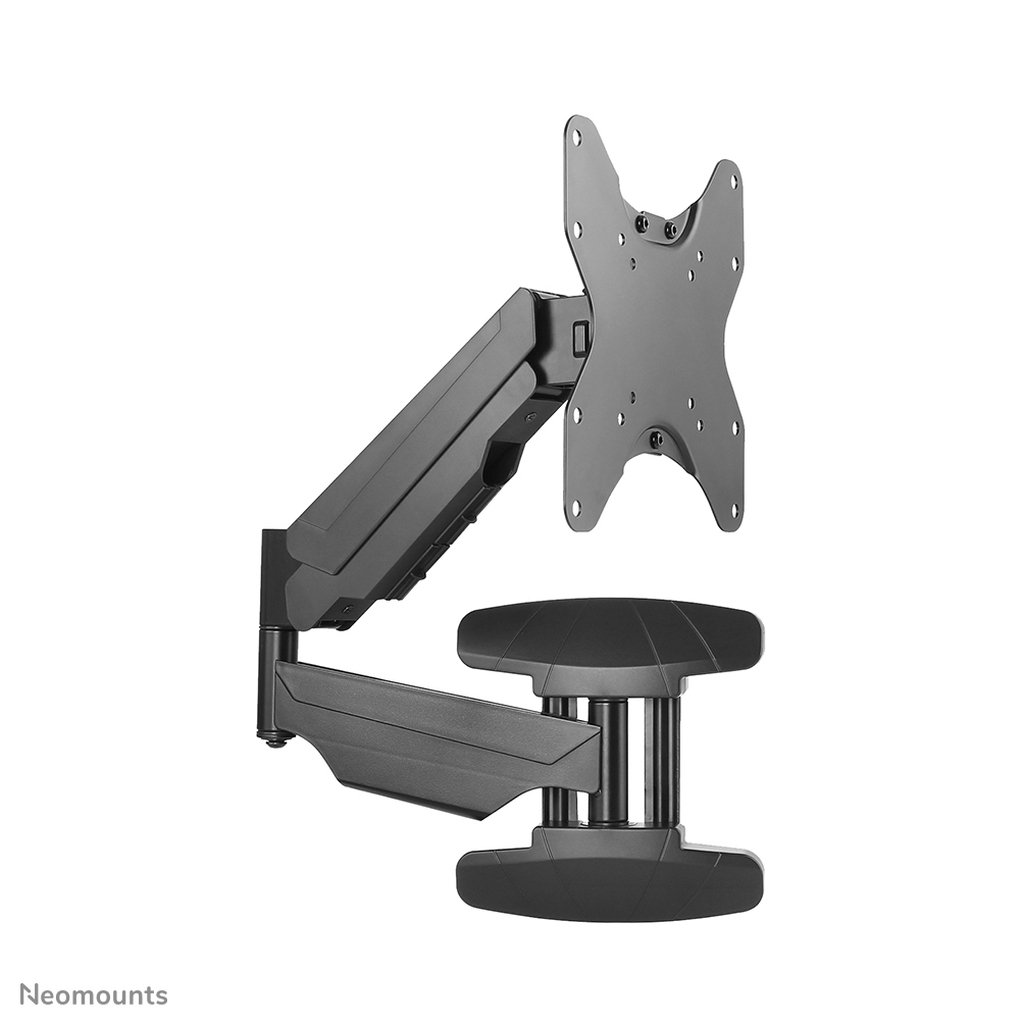

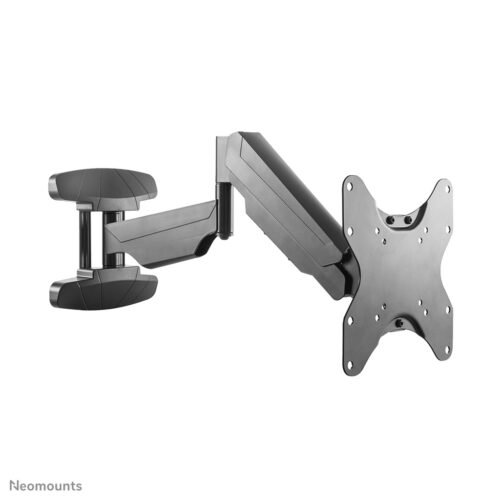

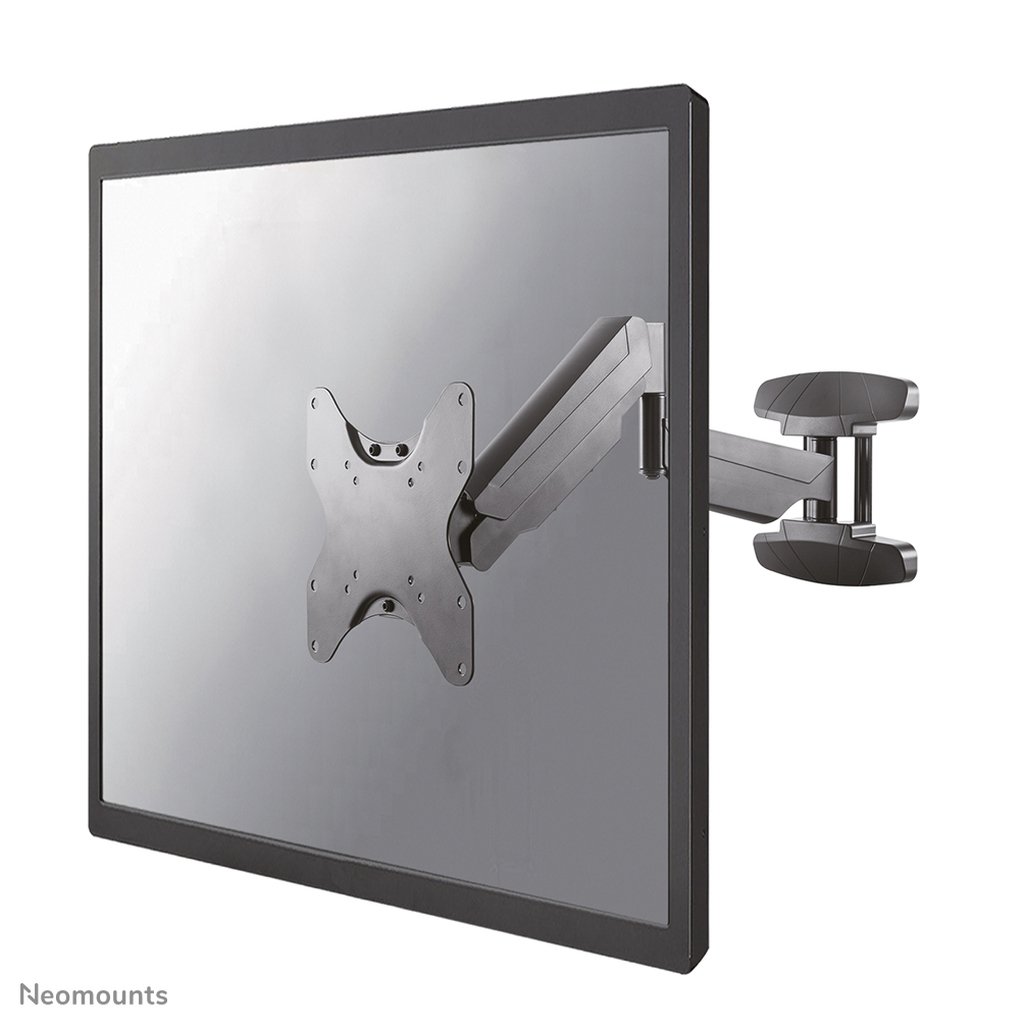

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42″ with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

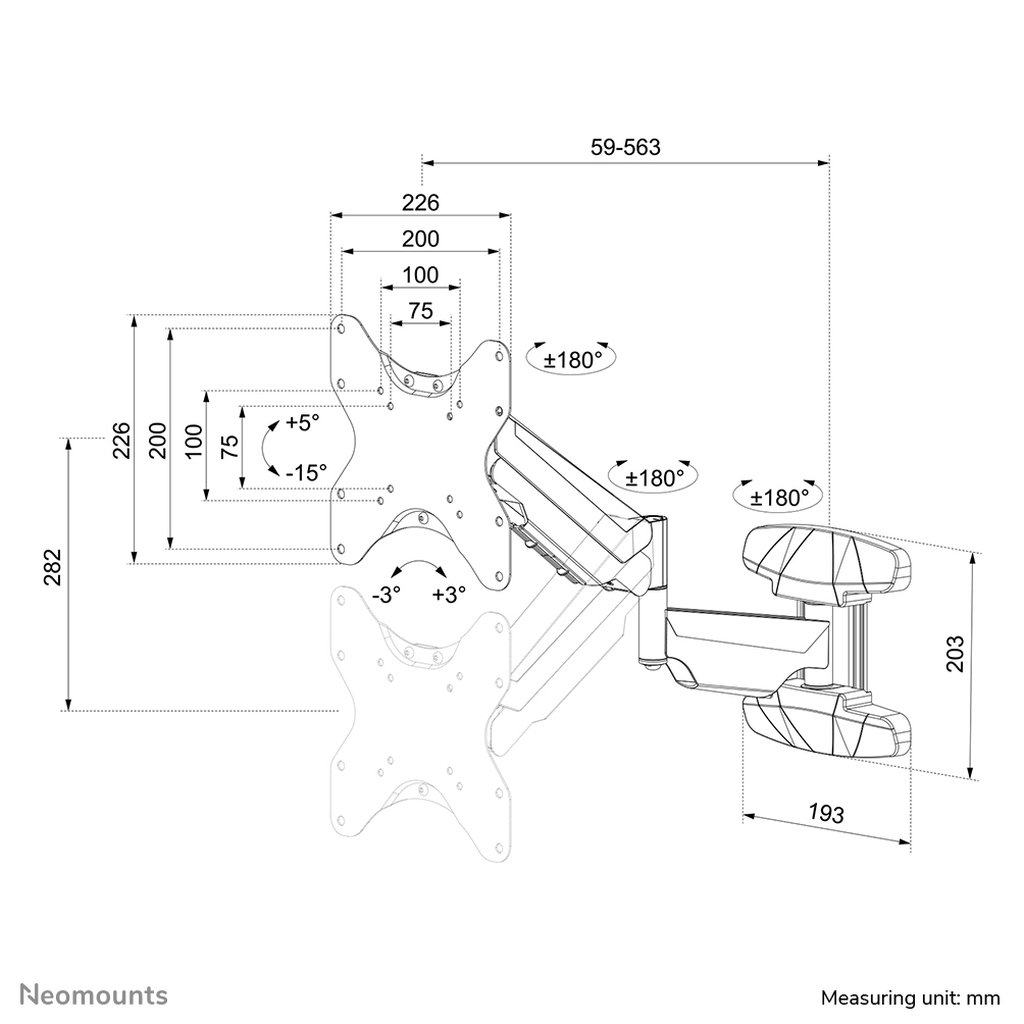

The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75×75 to 200×200 mm.

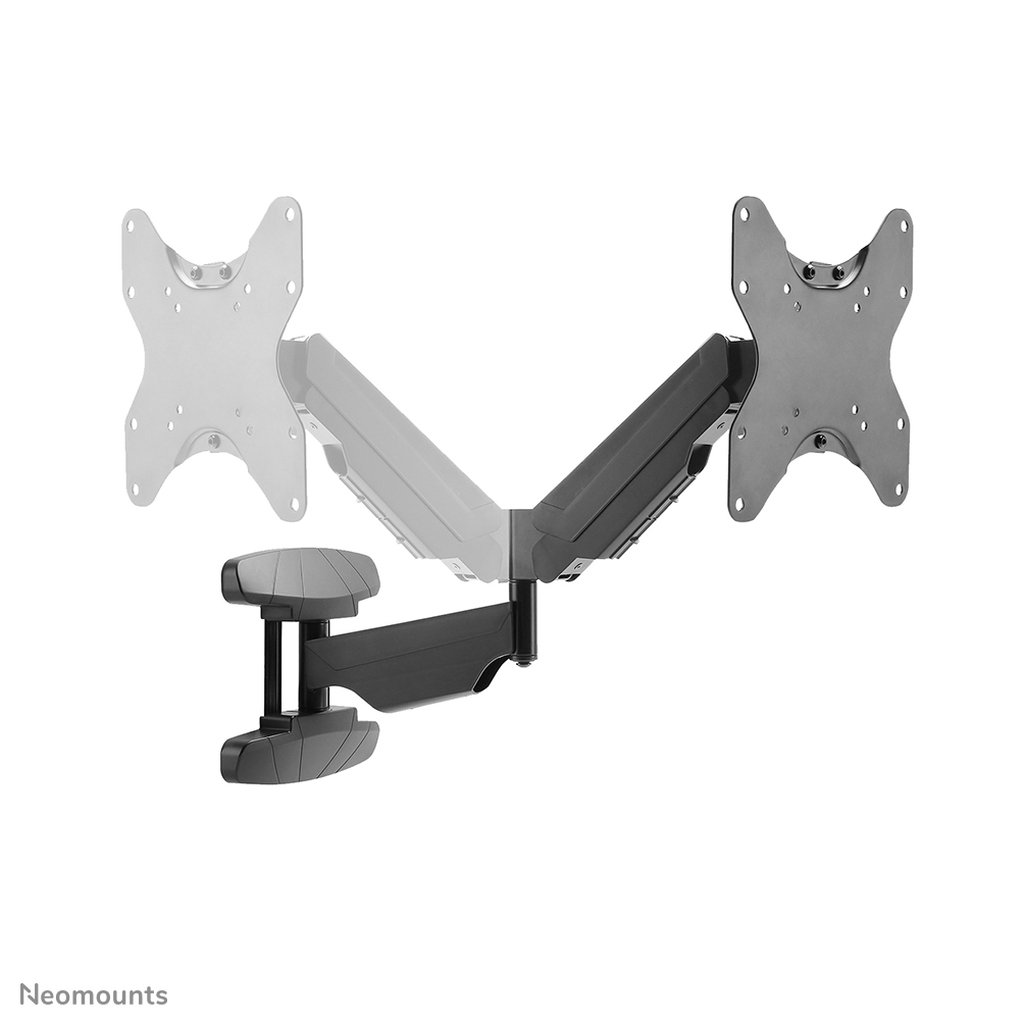

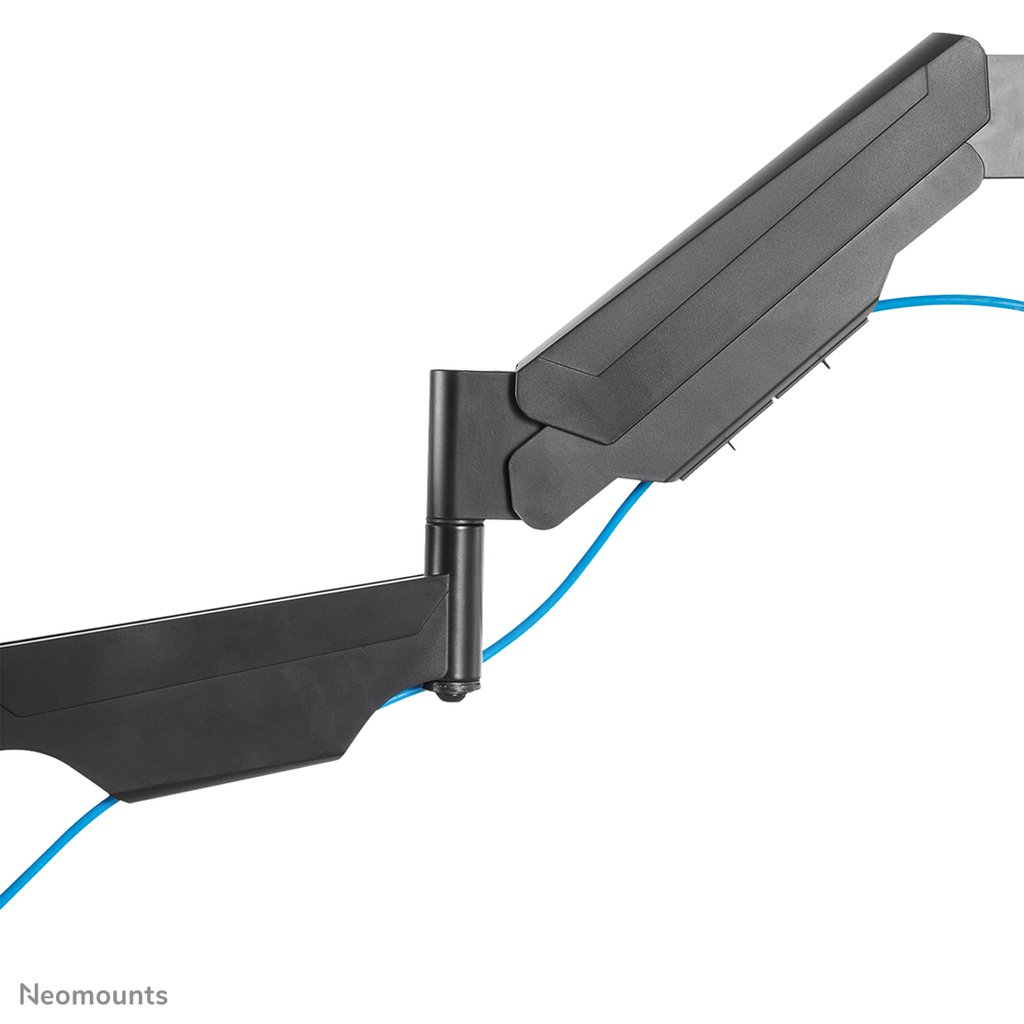

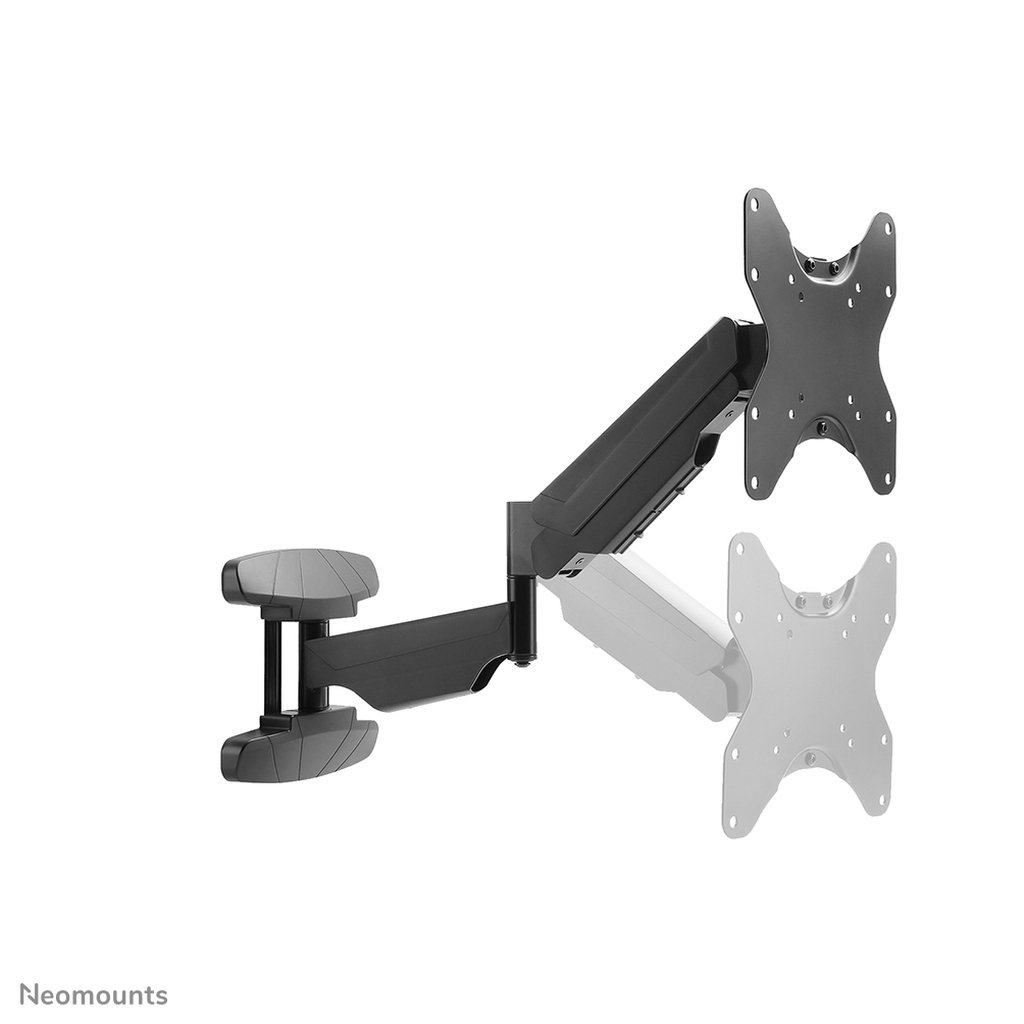

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Additional information
| Weight | 4.72 lbs |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 30 kg |
| Maximum screen size | 106.7 cm (42") |
| Mounting type | Wall |
| Minimum screen size | 58.4 cm (23") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Mounting | Screws |
| Panel mounting interface | 75 x 75 mm |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 – 282 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -15 – 5° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Rotating | Yes |
| Angle of rotation | 6° |
| Product colour | Black |
| Housing material | Steel |
| Width | 226 mm |
| Depth | 563 mm |
| Height | 327 mm |
| Weight | 3.9 kg |
| Package width | 365 mm |
| Package depth | 505 mm |
| Package height | 75 mm |
| Package weight | 4.8 kg |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 245 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 11.7 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 72 pc(s) |
| Distance to the wall (min) | 5.9 cm |
| Distance to the wall (max) | 56.3 cm |
| Minimum weight | 5 kg |
| Maximum weight capacity | 30 kg |
| Cable management | Yes |
| Pivot angle | -3 – 3° |
| Quantity per pack | 1 pc(s) |
| Package net weight | 4.8 kg |
