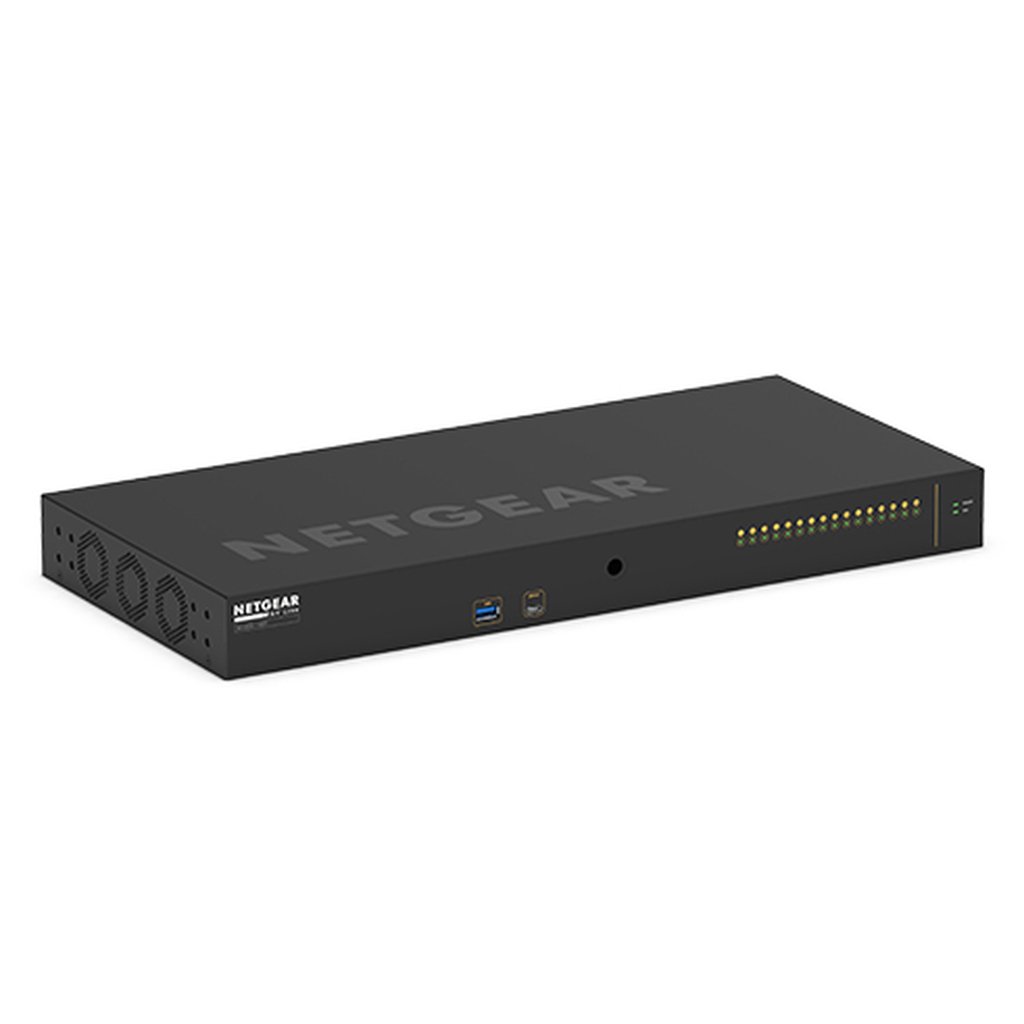

NETGEAR M4250-16XF Managed L2/L3 1U Black
320 Gbps, 16x 1G/10G SFP+, 440x100x43.2 mm
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by integratedtechltd.com
- Pick up at a integratedtechltd.com collection point is possible
- 30 days to change your mind and free returns
- Great customer service
Description
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Additional information
| Weight | 4.68 lbs |
|---|---|
| Brand compatibility | 238.08 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Yes |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
| Mean time between failures (MTBF) | 778769 h |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 440 mm |
| Depth | 100 mm |
| Height | 43.2 mm |
| Weight | 1.74 kg |
| Harmonized System (HS) code | 85176990 |
| Power consumption (typical) | 47.84 W |
| Switch layer | L2/L3 |
| Console port | RJ-45/USB Type-C |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Form factor | 1U |
| Loop protection | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4093 |
| Authentication type | RADIUS |
| Internal memory | 2048 MB |
| Link aggregation | Yes |
| Latency (1 Gbps) | 1.274 µs |
| Noise level | 56.7 dB |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 163.33 BTU/h |
| SFP+ module slots quantity | 16 |
| Rate limiting | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Multicast support | Yes |
| Number of queues | 8 |
| Latency (10 Gbps) | 0.811 µs |
| Built-in processor | Yes |
| Processor frequency | 1250 MHz |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Processor model | ARM Cortex-A9 |
