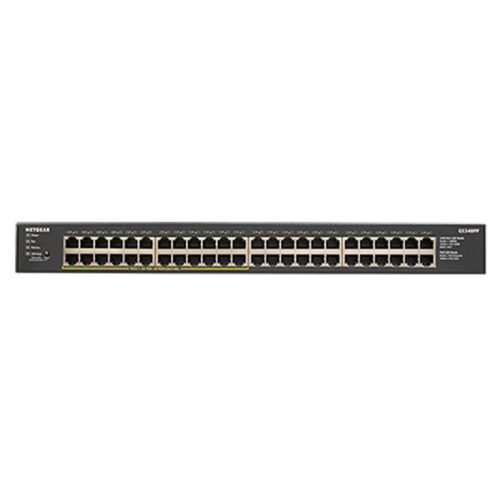

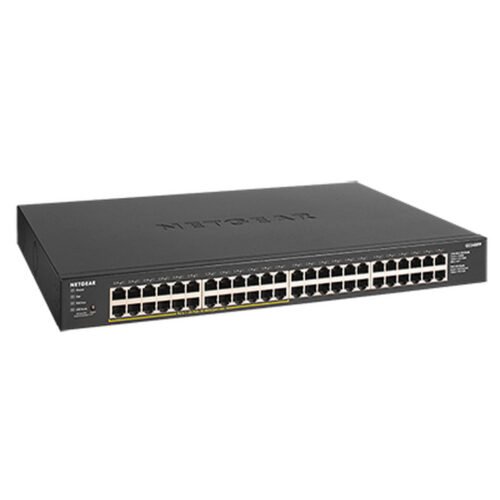

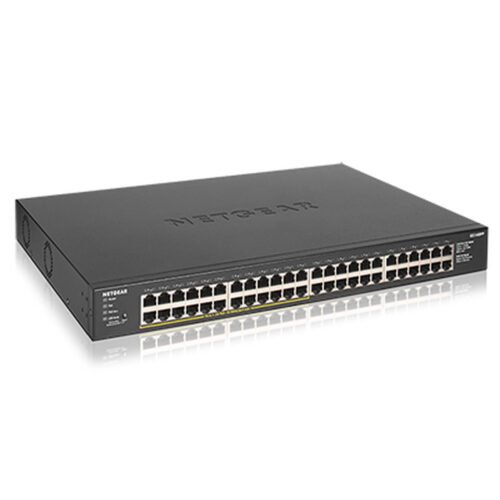

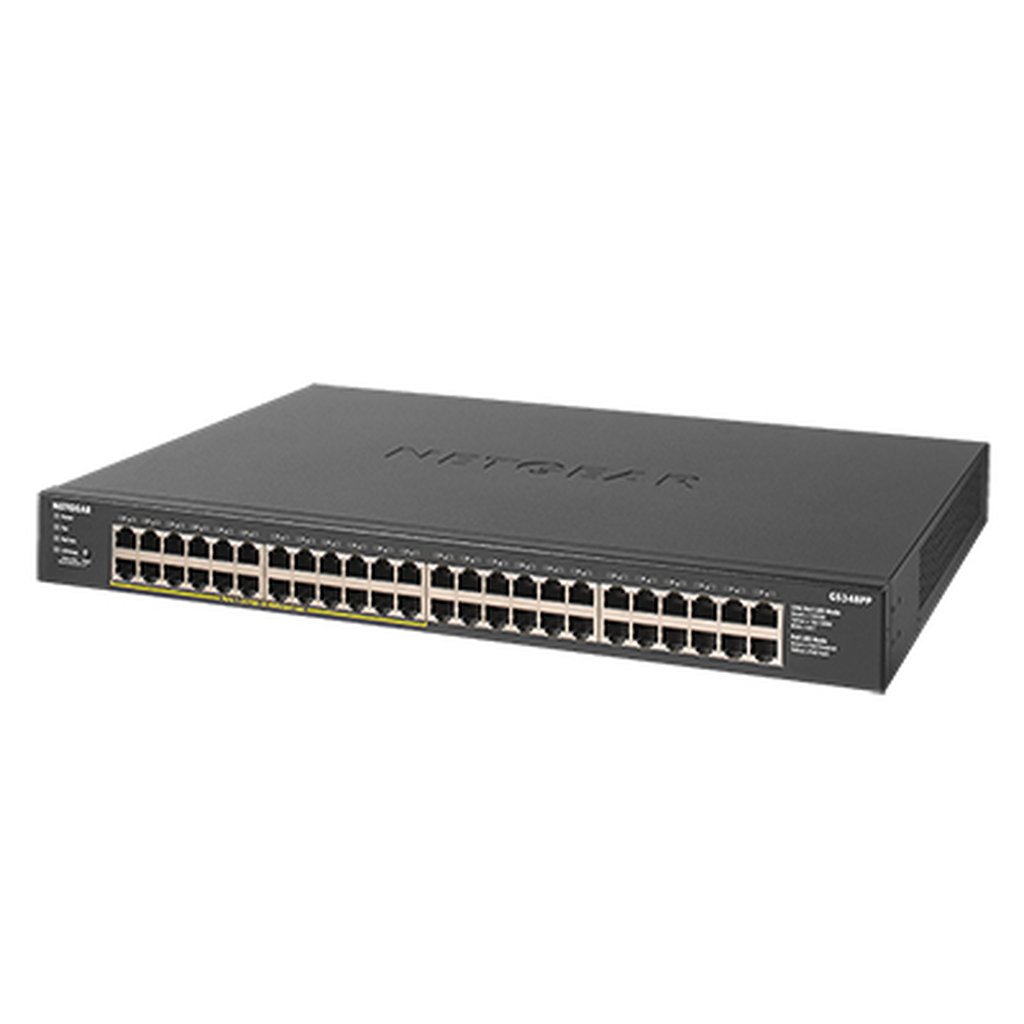

NETGEAR GS348PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
GS348PP, 48x 1G RJ-45, 96 Gbps, PoE, 110-240V, 50/60Hz, 440x310x43 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.
Extended Features
– Choice of Fast Ethernet and Gigabit Ethernet connectivity
– Energy-efficient technology for power savings
– Auto-MDI/MDIX eliminates the need for crossover cables
– Non-blocking switching architecture for maximum throughput at wire speed
– Auto-negotiation for automatic connection at the highest common speed between switch and an end device
– Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
– Fanless design for silent opeartion
– Desktop, wall-mountable or rack-mountable (GS324, GS348)
Additional information
| Weight | 5.74 lbs |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 96 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 1.5 MB |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Mean time between failures (MTBF) | 570972 h |
| Power consumption (max) | 410 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.56 kg |
| Harmonized System (HS) code | 85176990 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | Yes |
| Number of fans | 2 fan(s) |
| Cables included | AC |
| Certification | CE, FCC 15 A, IC A, RCM, VCCI, KCCB, CE LVD, UL |
| AC input voltage | 110 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Total Power over Ethernet (PoE) budget | 380 W |
| Forwarding rate | 1.448 Mpps |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| User guide | Yes |
| Cable length detection | Yes |
| Latency (1 Gbps) | 4 µs |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 1402.2 BTU/h |
| Auto-sensing | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mount kit | Yes |
